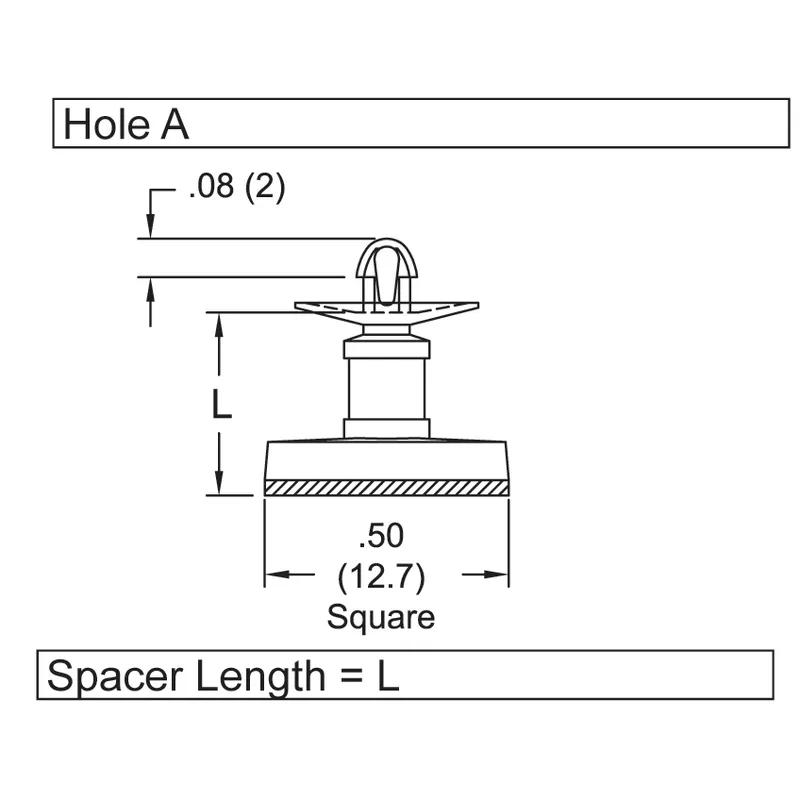

Adhesive Base Support - Base Length 12.7 mm | 0.500 in ; Base Width 12.7 mm | 0.500 in ; Spacer Length 6.4 mm | 0.250 in
This Natural adhesive based support is locking and is made of UL94 V-2 Nylon. It has a 0.250 in Spacer length and goes into a 0.100 in diameter hole in a maximum panel thickness of 0.062 in. The base size is 0.500 in x 0.500 in
WARNING: This product can expose you to chemicals including benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3754 |
| 10000 - 24999 | $0.353 |
| 25000 + | $0.3305 |
Specifications
Imperial
Metric
| Base Width | 0.500 in |
|---|---|
| Hole Diameter A | 0.100 in |
| Locking Head Height A | 0.080 in |
| Maximum Panel Thickness A | 0.062 in |
| Minimum Operating Temperature | 32 °F |
| Spacer Length | 0.250 in |
| Base Material | Acrylic-Based Adhesive |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock |
| Hole B Fix Type | Adhesive Fix |
| Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
