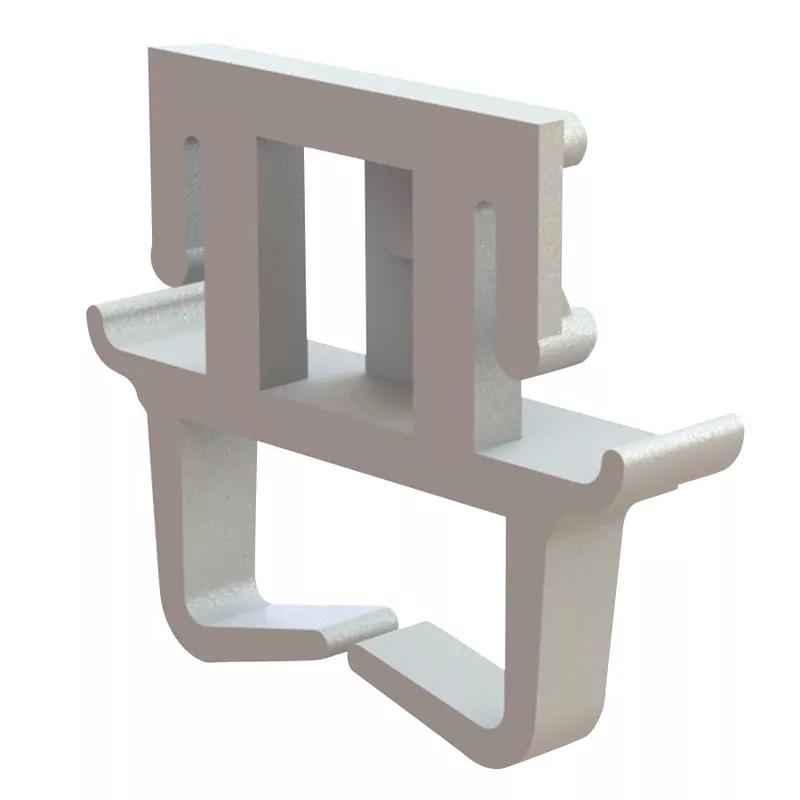

Wire Saddle - Edge Mount

In production

Attaches to the edge of a panel and clips onto wires and cables. Can attach to a panel 1.0-2.0mm thick.

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Inside Width Saddle Type Fitting Style Inside Height Buy
EHWSE-1-01
$0.1406 - $0.3919 In production
0.63 in
Edge Holding;Rectangular
Edge Holding
0.307 in
Wire Saddle - Maximum Panel Thickness - 2.0 mm | 0.079 in ; Inside Height - 7.8 mm | 0.307 in ; Inside Width - 16.0 mm | 0.63 in

EHWSE-1-01

Price Range
$0.3919 - $0.1406

Stock Levels
In production

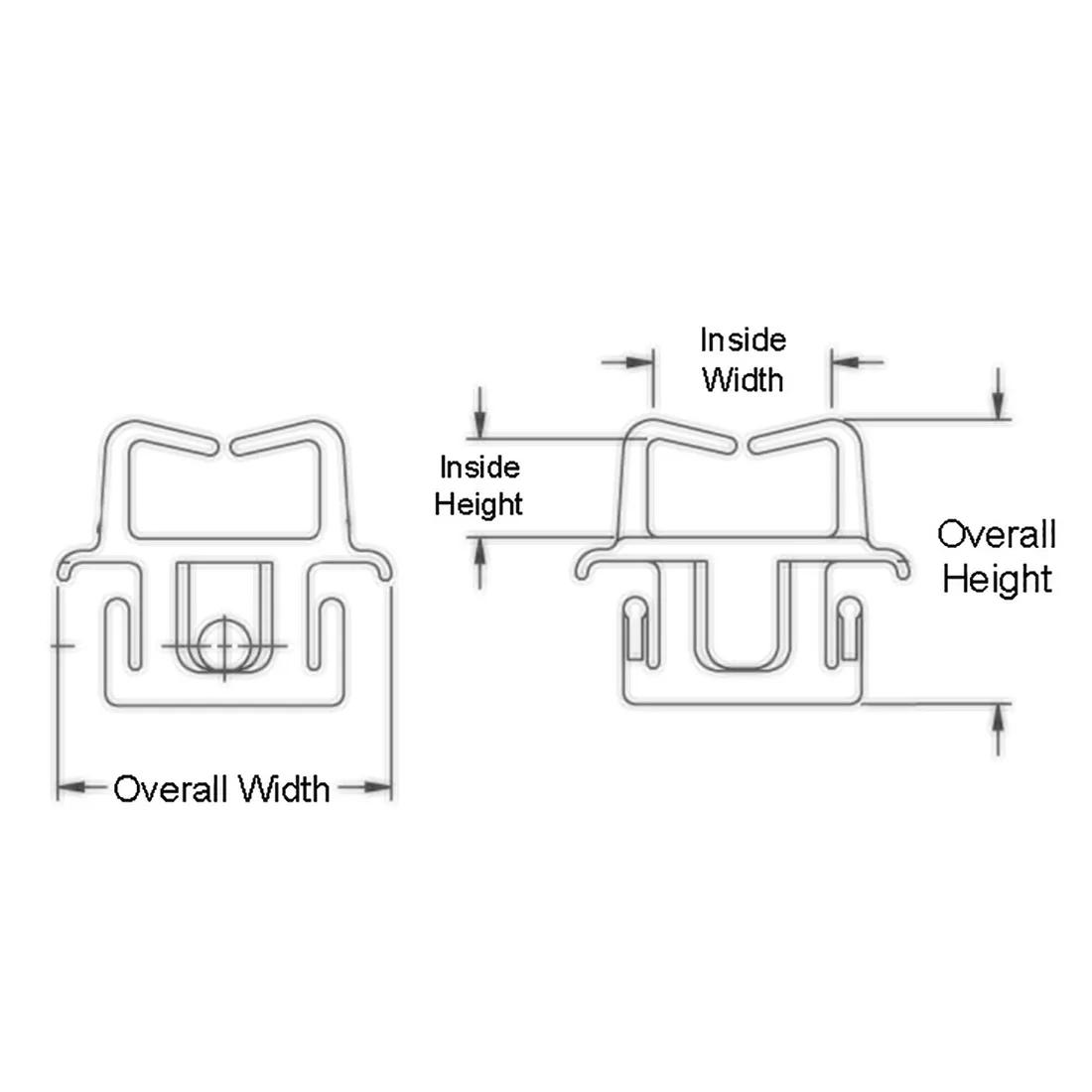

Attributes
  • Depth
    0.244 in
  • Inside Height
    0.307 in
  • Inside Width
    0.63 in
  • Maximum Panel Thickness
    0.079 in
  • Overall Width
    1.197 in
