Snap Latch Rivets

In stock

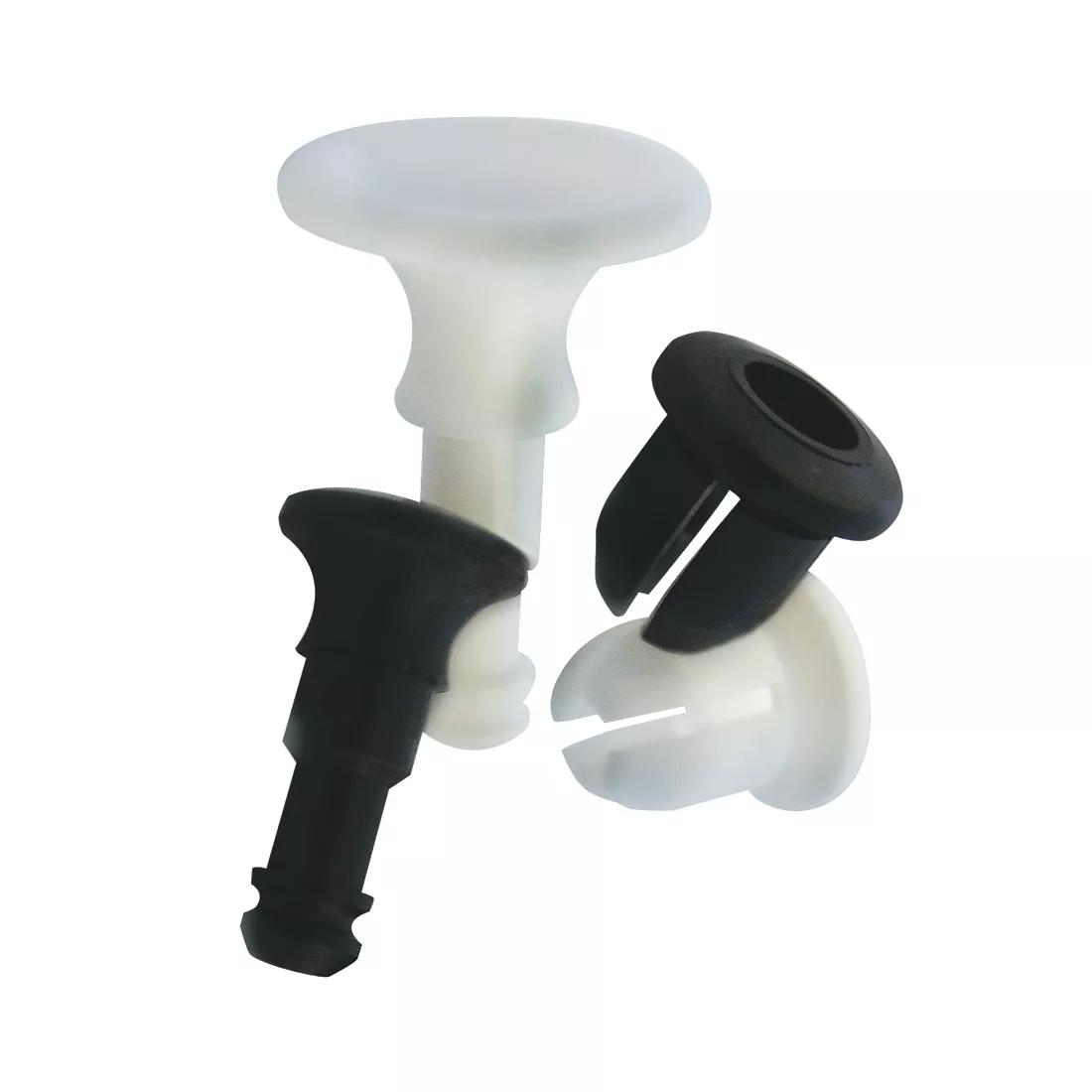

Snap Latch Rivets comprise of a Plunger made from Nylon 6 and a Grommet made from Polycarbonate (PC). Together they form a Snap Latch assembly for the joining and securing of panels.

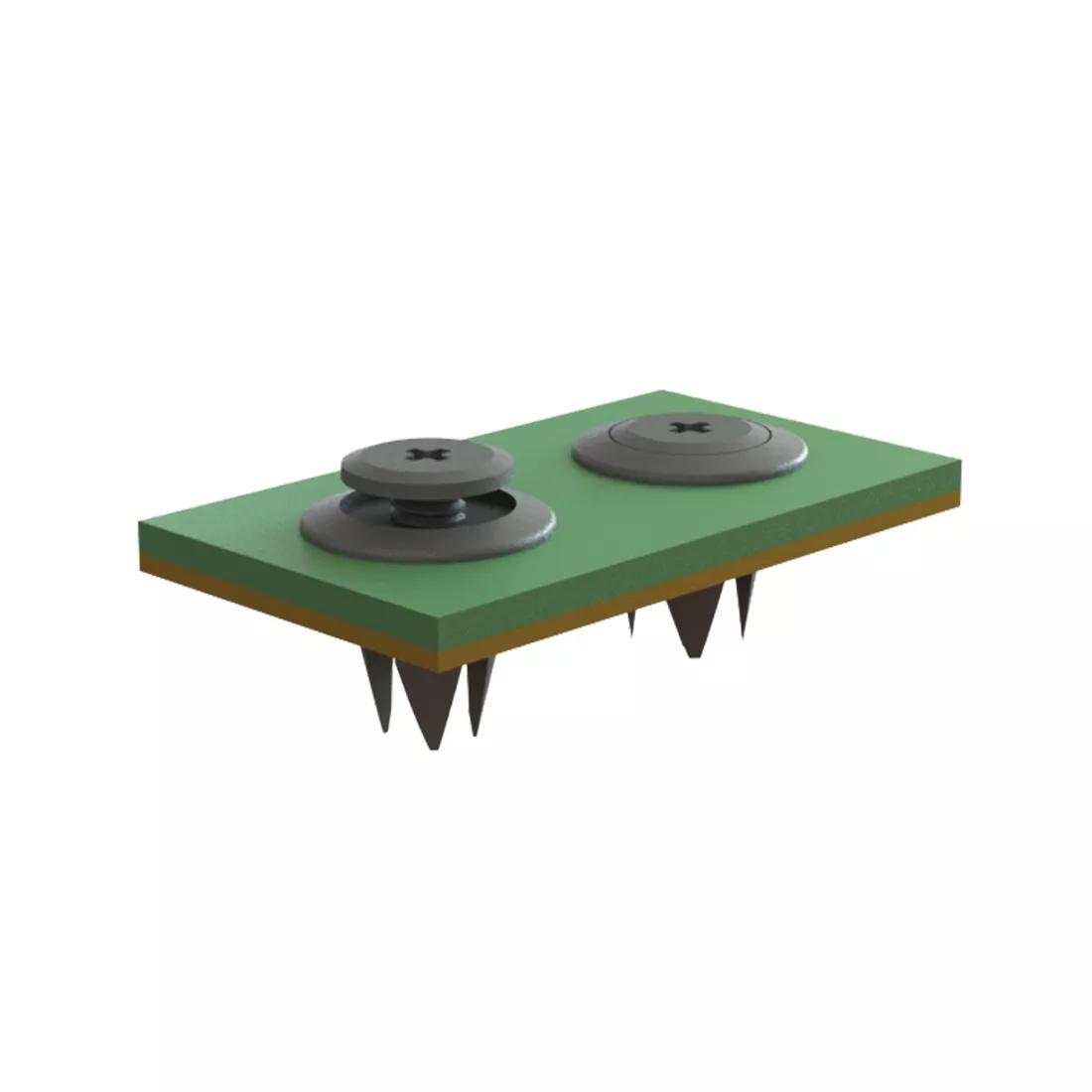

To install; simply push the grommet into the removable panel and then the desired plunger into the grommet. When the panel and plunger are pushed into the fixed panel, it locks them together. Pull on the plunger to easily remove the non-fixed panel.

These handy panel fasteners are ideal for applications that require regular maintenance work. They are offered in easy-grip or mini-grip designs to suit an array of panel hole and thickness ranges.

Snap Latch Rivets are ideal for applications, such as; electrical equipment, metal enclosures, telecommunications equipment, appliances, and more.

  • Grommet and Plunger are sold separately.
  • Colors: Black and White

Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
18 results
Product SKUs information
Item Code Price range Availability Minimum Fixed Panel Hole Diameter Maximum Fixed Panel Hole Diameter Color Material Minimum Compatible Panel Thickness Maximum Compatible Panel Thickness Type View
$0.2911 - $0.3491 In production
0.319 in
0.323 in
Black
Nylon
0.228 in
0.319 in
Plunger
RSLG100B $0.2397 - $0.2876 10000 In stock
0.319 in
0.323 in
Black
PC
0.043 in
0.043 in
Grommet
$0.2903 - $0.3483 5000 In stock
0.319 in
0.323 in
White
PC
0.209 in
0.209 in
Grommet
$0.2653 - $0.3184 In production
0.319 in
0.323 in
Black
Nylon
0.228 in
0.319 in
Plunger
$0.2911 - $0.3491 11000 In stock
0.319 in
0.323 in
Black
Nylon
0.181 in
0.272 in
Plunger
$0.2903 - $0.3483 In production
0.319 in
0.323 in
Black
PC
0.209 in
0.209 in
Grommet
$0.2653 - $0.3184 In production
0.319 in
0.323 in
White
Nylon
0.059 in
0.146 in
Plunger
$0.2654 - $0.3186 1000 In stock
0.319 in
0.323 in
White
Nylon
0.059 in
0.146 in
Plunger
$0.2903 - $0.3483 1000 In stock
0.319 in
0.323 in
White
PC
0.161 in
0.161 in
Grommet
RSLP100B $0.2653 - $0.3184 2000 In stock
0.319 in
0.323 in
Black
Nylon
0.059 in
0.146 in
Plunger
$0.2654 - $0.3186 1000 In stock
0.319 in
0.323 in
Black
Nylon
0.059 in
0.146 in
Plunger
$0.2903 - $0.3483 9000 In stock
0.319 in
0.323 in
Black
PC
0.161 in
0.161 in
Grommet
$0.2903 - $0.3483 In production
0.252 in
0.256 in
White
PC
0.161 in
0.161 in
Grommet
$0.2653 - $0.3184 7000 In stock
0.319 in
0.323 in
White
Nylon
0.228 in
0.319 in
Plunger
$0.2911 - $0.3491 1000 In stock
0.319 in
0.323 in
White
Nylon
0.181 in
0.272 in
Plunger
$0.2911 - $0.3491 9000 In stock
0.319 in
0.323 in
White
Nylon
0.228 in
0.319 in
Plunger
$0.2793 - $0.335 1000 In stock
0.319 in
0.323 in
White
Nylon
0.181 in
0.272 in
Plunger
$0.2793 - $0.335 4000 In stock
0.319 in
0.323 in
Black
Nylon
0.181 in
0.272 in
Plunger
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 5.8 - 8.1 mm | 0.228 - 0.319 in ; Head Diameter 8.3 mm | 0.327 in ; Compatible Part Numbers RSLG120B

RSLP220B

Price Range
$0.3491 - $0.2911

Stock Levels
In production
Attributes
  • Compatible Panel Thickness Range
    0.228 - 0.319 in
  • Compatible Door Thickness Range
    0.228 - 0.319 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Grommet ; Black ; PC ; Compatible Panel Thickness Range 1.1 mm | 0.043 in ; Head Diameter 10.8 mm | 0.425 in ; Compatible Part Numbers RSLP100B

RSLG100B

Price Range
$0.2876 - $0.2397

Stock Levels
10000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.043 in
  • Compatible Door Thickness Range
    0.043 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Diameter
    0.425 in
  • Flange Height
    0.079 in
Snap Latch Rivet - Grommet ; White ; PC ; Compatible Panel Thickness Range 5.3 mm | 0.209 in ; Head Diameter 10.8 mm | 0.425 in ; Compatible Part Numbers RSLP120W

RSLG120W

Price Range
$0.3483 - $0.2903

Stock Levels
5000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.209 in
  • Compatible Door Thickness Range
    0.209 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Diameter
    0.425 in
  • Flange Height
    0.079 in
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 5.8 - 8.1 mm | 0.228 - 0.319 in ; Head Diameter 16.0 mm | 0.63 in ; Compatible Part Numbers RSLG120B

RSLP120B

Price Range
$0.3184 - $0.2653

Stock Levels
In production
Attributes
  • Compatible Panel Thickness Range
    0.228 - 0.319 in
  • Compatible Door Thickness Range
    0.228 - 0.319 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.374 in
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 4.6 - 6.9 mm | 0.181 - 0.272 in ; Head Diameter 9.4 mm | 0.37 in ; Compatible Part Numbers RSLG115B

RSLP215B

Price Range
$0.3491 - $0.2911

Stock Levels
11000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.181 - 0.272 in
  • Compatible Door Thickness Range
    0.181 - 0.272 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Grommet ; Black ; PC ; Compatible Panel Thickness Range 5.3 mm | 0.209 in ; Head Diameter 10.8 mm | 0.425 in ; Compatible Part Numbers RSLP120B

RSLG120B

Price Range
$0.3483 - $0.2903

Stock Levels
In production
Attributes
  • Compatible Panel Thickness Range
    0.209 in
  • Compatible Door Thickness Range
    0.209 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Diameter
    0.425 in
  • Flange Height
    0.079 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 1.5 - 3.7 mm | 0.059 - 0.146 in ; Head Diameter 16.0 mm | 0.63 in ; Compatible Part Numbers RSLG100W

RSLP100W

Price Range
$0.3184 - $0.2653

Stock Levels
In production
Attributes
  • Compatible Panel Thickness Range
    0.059 - 0.146 in
  • Compatible Door Thickness Range
    0.059 - 0.146 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.374 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 1.5 - 3.7 mm | 0.059 - 0.146 in ; Head Diameter 9.4 mm | 0.37 in ; Compatible Part Numbers RSGL100W

RSLP200W

Price Range
$0.3186 - $0.2654

Stock Levels
1000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.059 - 0.146 in
  • Compatible Door Thickness Range
    0.059 - 0.146 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Grommet ; White ; PC ; Compatible Panel Thickness Range 4.1 mm | 0.161 in ; Head Diameter 10.8 mm | 0.425 in ; Compatible Part Numbers RSLP215W

RSLG115W

Price Range
$0.3483 - $0.2903

Stock Levels
1000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.161 in
  • Compatible Door Thickness Range
    0.161 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Diameter
    0.425 in
  • Flange Height
    0.079 in
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 1.5 - 3.7 mm | 0.059 - 0.146 in ; Head Diameter 16.0 mm | 0.63 in ; Compatible Part Numbers RSLG100B

RSLP100B

Price Range
$0.3184 - $0.2653

Stock Levels
2000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.059 - 0.146 in
  • Compatible Door Thickness Range
    0.059 - 0.146 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.374 in
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 1.5 - 3.7 mm | 0.059 - 0.146 in ; Head Diameter 9.4 mm | 0.37 in ; Compatible Part Numbers RSGL100B

RSLP200B

Price Range
$0.3186 - $0.2654

Stock Levels
1000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.059 - 0.146 in
  • Compatible Door Thickness Range
    0.059 - 0.146 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Grommet ; Black ; PC ; Compatible Panel Thickness Range 4.1 mm | 0.161 in ; Head Diameter 10.8 mm | 0.425 in ; Compatible Part Numbers RSLP215B

RSLG115B

Price Range
$0.3483 - $0.2903

Stock Levels
9000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.161 in
  • Compatible Door Thickness Range
    0.161 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Diameter
    0.425 in
  • Flange Height
    0.079 in
Snap Latch Rivet - Grommet ; White ; PC ; Compatible Panel Thickness Range 4.1 mm | 0.161 in ; Head Diameter 6.4 mm | 0.252 in ; Compatible Part Numbers RSLP315W

RSLG140W

Price Range
$0.3483 - $0.2903

Stock Levels
In production
Attributes
  • Compatible Panel Thickness Range
    0.161 in
  • Compatible Door Thickness Range
    0.161 in
  • Compatible Hole Diameter Range
    0.232 - 0.24 in
  • Head Diameter
    0.252 in
  • Flange Height
    0.071 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 5.8 - 8.1 mm | 0.228 - 0.319 in ; Head Diameter 16.0 mm | 0.63 in ; Compatible Part Numbers RSGL120W

RSLP120W

Price Range
$0.3184 - $0.2653

Stock Levels
7000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.228 - 0.319 in
  • Compatible Door Thickness Range
    0.228 - 0.319 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.374 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 4.6 - 6.9 mm | 0.181 - 0.272 in ; Head Diameter 9.4 mm | 0.37 in ; Compatible Part Numbers RSLG115W

RSLP215W

Price Range
$0.3491 - $0.2911

Stock Levels
1000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.181 - 0.272 in
  • Compatible Door Thickness Range
    0.181 - 0.272 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 5.8 - 8.1 mm | 0.228 - 0.319 in ; Head Diameter 8.3 mm | 0.327 in ; Compatible Part Numbers RSGL120W

RSLP220W

Price Range
$0.3491 - $0.2911

Stock Levels
9000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.228 - 0.319 in
  • Compatible Door Thickness Range
    0.228 - 0.319 in
  • Removable Panel Hole Diameter Range
    7.6 - 7.7 mm | 0.299 - 0.303 in
  • Compatible Hole Diameter Range
    0.295 - 0.303 in
  • Head Height
    0.256 in
Snap Latch Rivet - Plunger ; White ; Nylon ; Compatible Panel Thickness Range 4.6 - 6.9 mm | 0.181 - 0.272 in ; Head Diameter 8.3 mm | 0.327 in ; Compatible Part Numbers RSLG140W

RSLP315W

Price Range
$0.335 - $0.2793

Stock Levels
1000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.181 - 0.272 in
  • Compatible Door Thickness Range
    0.181 - 0.272 in
  • Removable Panel Hole Diameter Range
    6.0 - 6.1 mm | 0.236 - 0.24 in
  • Compatible Hole Diameter Range
    0.232 - 0.24 in
  • Head Height
    0.276 in
Snap Latch Rivet - Plunger ; Black ; Nylon ; Compatible Panel Thickness Range 4.6 - 6.9 mm | 0.181 - 0.272 in ; Head Diameter 8.3 mm | 0.327 in ; Compatible Part Numbers RSLG140B

RSLP315B

Price Range
$0.335 - $0.2793

Stock Levels
4000 In stock
Attributes
  • Compatible Panel Thickness Range
    0.181 - 0.272 in
  • Compatible Door Thickness Range
    0.181 - 0.272 in
  • Removable Panel Hole Diameter Range
    6.0 - 6.1 mm | 0.236 - 0.24 in
  • Compatible Hole Diameter Range
    0.232 - 0.24 in
  • Head Height
    0.276 in
