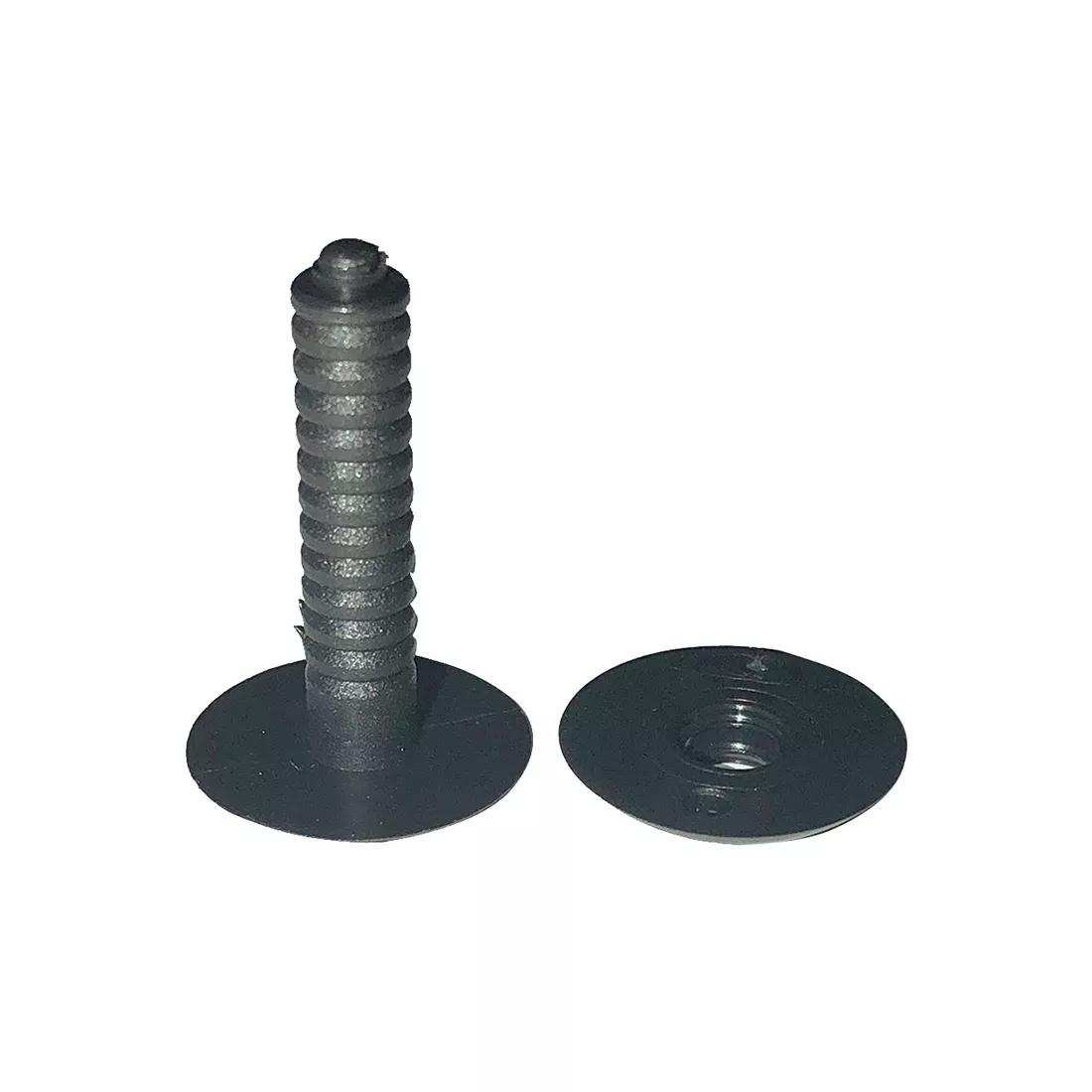

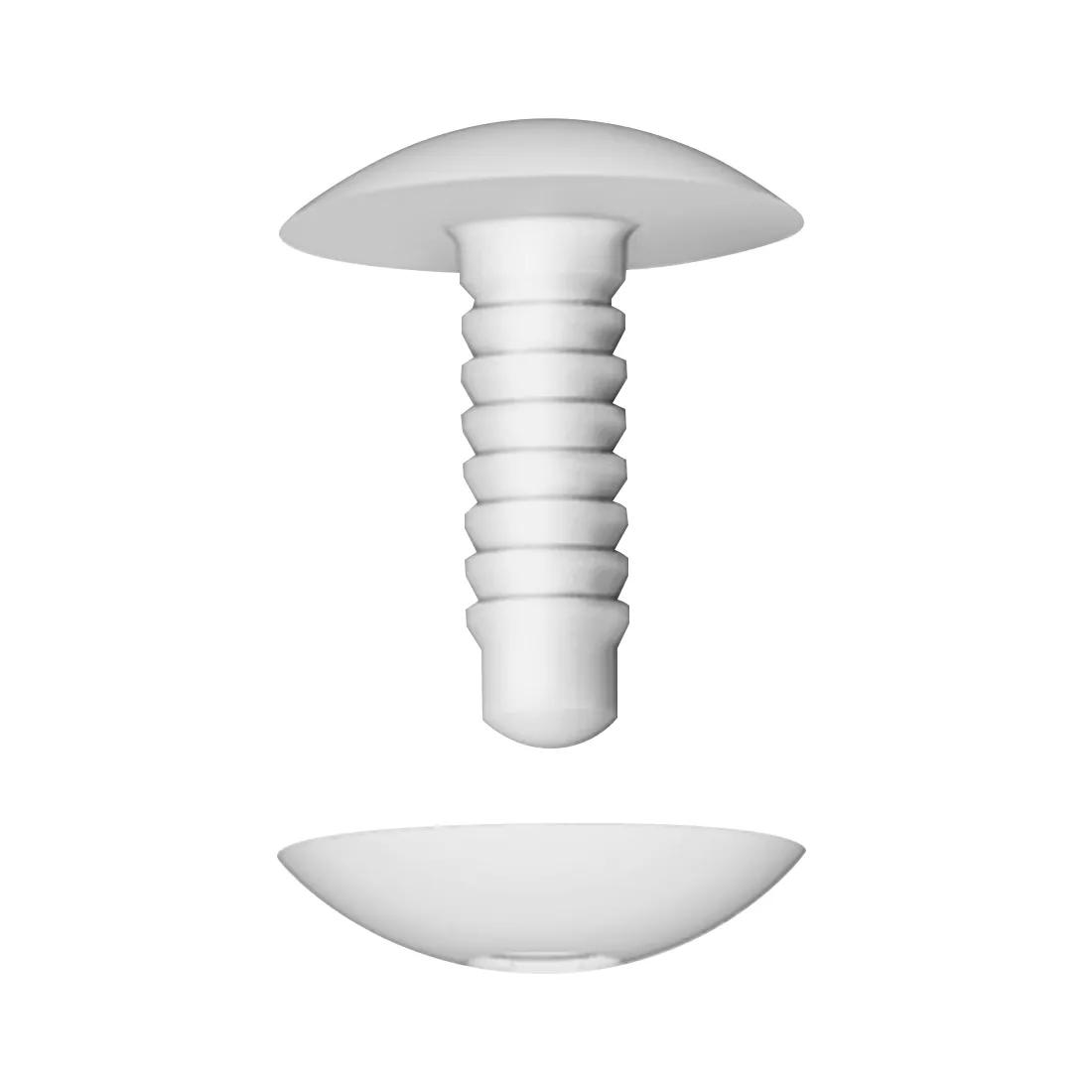

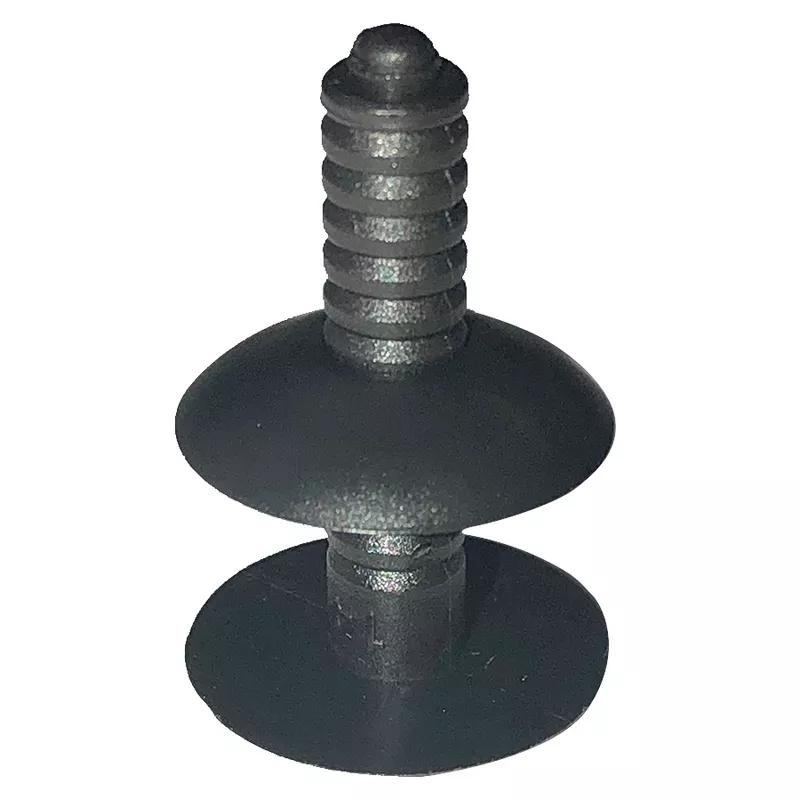

Ratchet Post & Pin Rivets

In stock

Our Snap fasteners include a Nylon option that is rated UL94 V2, and an LDPE with PP option. The male clip is ratcheted into the female washer to mate two surfaces together. They are an ideal choice for corrugated panels.

  • Quick and easy installation
  • Colors include; Natural, Black, White and High Clarity (Transparent).

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
Product SKUs information
Item Code Price range Availability Maximum Compatible Hole Diameter Color Material Male Clip Shank Length Maximum Compatible Panel Thickness Female Washer Stem Length Buy
8502260901VR
$0.0852 - $0.0973 998 In stock
0.787 in
Black
LDPE;PP
0.157 in
0.866 in
0.236 in
8501150908VR
$0.0852 - $0.0959 In production
0.394 in
White
LDPE;PP
0.591 in
0.315 in
0.315 in
8501220901VR
$0.1182 - $0.197 In production
0.394 in
Black
LDPE;PP
0.866 in
0.63 in
0.315 in
8501260908VR
$0.0878 - $0.1013 60 In stock
0.787 in
White
LDPE;PP
0.157 in
1.181 in
0.472 in
8501160900VR
$0.0878 - $0.1013 In production
0.787 in
Transparent
LDPE;PP
0.551 in
0.709 in
0.472 in
8502160900VR
$0.0852 - $0.0973 In production
0.787 in
Transparent
LDPE;PP
1.102 in
0.394 in
0.236 in
8502160901VR
$0.0852 - $0.0973 1000 In stock
0.787 in
Black
LDPE;PP
0.394 in
0.236 in
8501260901VR
$0.0878 - $0.1013 In production
0.787 in
Black
LDPE;PP
0.157 in
1.181 in
0.472 in
8501160901VR
$0.0878 - $0.1013 1000 In stock
0.787 in
Black
LDPE;PP
0.551 in
0.709 in
0.472 in
8501220900VR
$0.1139 - $0.1891 In production
0.787 in
Transparent
LDPE;PP
0.866 in
0.63 in
0.315 in
8502260900VR
$0.1013 - $0.1162 In production
0.787 in
Transparent
LDPE;PP
0.157 in
0.866 in
0.236 in
8502440901VR
$0.0878 - $0.1013 In production
0.787 in
Black
LDPE;PP
0.551 in
1.575 in
0.236 in
8501220908VR
$0.1168 - $0.1946 In production
0.394 in
White
LDPE;PP
0.866 in
0.63 in
0.315 in
8501150901VR
$0.0852 - $0.0959 6000 In stock
0.394 in
Black
LDPE;PP
0.591 in
0.315 in
0.315 in
8502440908VR
$0.0878 - $0.1013 In production
0.787 in
White
LDPE;PP
0.551 in
1.575 in
0.236 in
8501440908VR
$0.0878 - $0.1013 1000 In stock
0.787 in
White
LDPE;PP
0.551 in
1.811 in
0.472 in
8501260900VR
$0.0867 - $0.1001 1000 In stock
0.787 in
Transparent
LDPE;PP
0.157 in
1.181 in
0.472 in
8502160908VR
$0.0852 - $0.0973 In production
0.787 in
White
LDPE;PP
0.551 in
0.394 in
0.236 in
8501160908VR
$0.5131 - $0.586 In production
0.787 in
White
LDPE;PP
0.551 in
0.709 in
0.472 in
8501440901VR
$0.0878 - $0.1013 In production
0.787 in
Black
LDPE;PP
0.551 in
1.811 in
0.472 in
8501150900VR
$0.0852 - $0.0959 1000 In stock
0.394 in
Transparent
LDPE;PP
0.591 in
0.315 in
0.315 in
8501440900VR
$0.0878 - $0.1013 In production
0.787 in
Transparent
LDPE;PP
0.551 in
1.811 in
0.472 in
8502440900VR
$0.0878 - $0.1013 22000 In stock
0.787 in
Transparent
LDPE;PP
0.551 in
1.575 in
0.236 in
8502260908VR
$0.0852 - $0.0973 In production
0.787 in
White
LDPE;PP
0.157 in
0.866 in
0.236 in
27AMR0940500
$0.1082 - $0.1082 In production
0.094 in
Natural
Nylon
0.5 in
0.374 in
0.5 in
  • of 2
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 22.0 mm | 0.236 - 0.866 in

8502260901VR

Price Range
$0.0973 - $0.0852

Stock Levels
998 In stock
Attributes

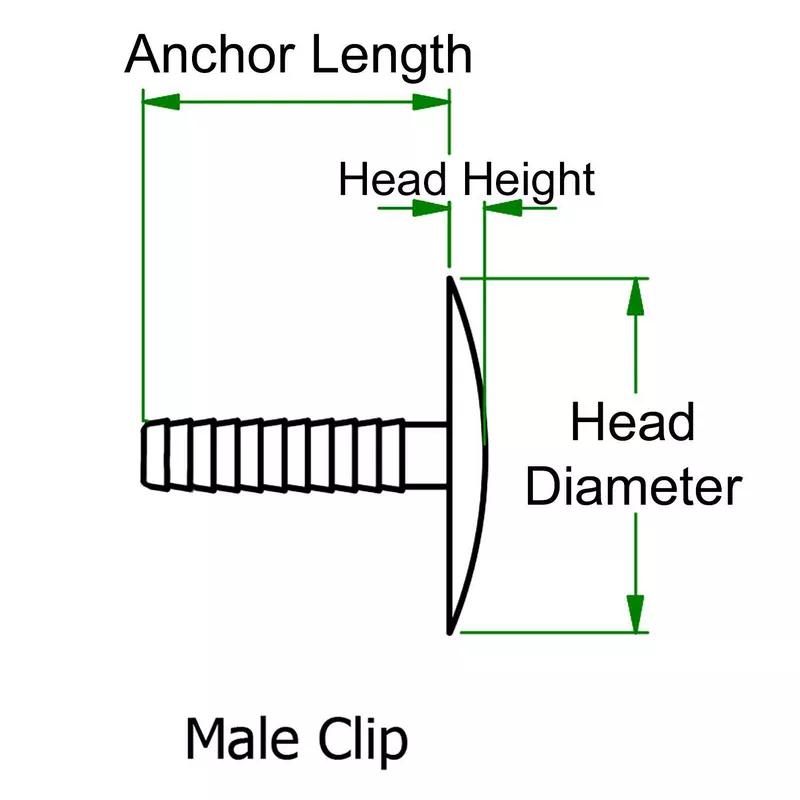

  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.866 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 5.0 - 10.0 mm | 0.197 - 0.394 in; Compatible Panel Thickness Range 8.0 mm | 0.315 in

8501150908VR

Price Range
$0.0959 - $0.0852

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.591 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.197 - 0.394 in
  • Compatible Panel Thickness Range
    0.315 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 5.0 - 10.0 mm | 0.197 - 0.394 in; Compatible Panel Thickness Range 16.0 mm | 0.63 in

8501220901VR

Price Range
$0.197 - $0.1182

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.866 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.197 - 0.394 in
  • Compatible Panel Thickness Range
    0.63 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 30.0 mm | 0.472 - 1.181 in

8501260908VR

Price Range
$0.1013 - $0.0878

Stock Levels
60 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.181 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 18.0 mm | 0.472 - 0.709 in

8501160900VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 0.709 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 10.0 mm | 0.236 - 0.394 in

8502160900VR

Price Range
$0.0973 - $0.0852

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    1.102 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.394 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 10.0 mm | 0.236 - 0.394 in

8502160901VR

Price Range
$0.0973 - $0.0852

Stock Levels
1000 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.394 in

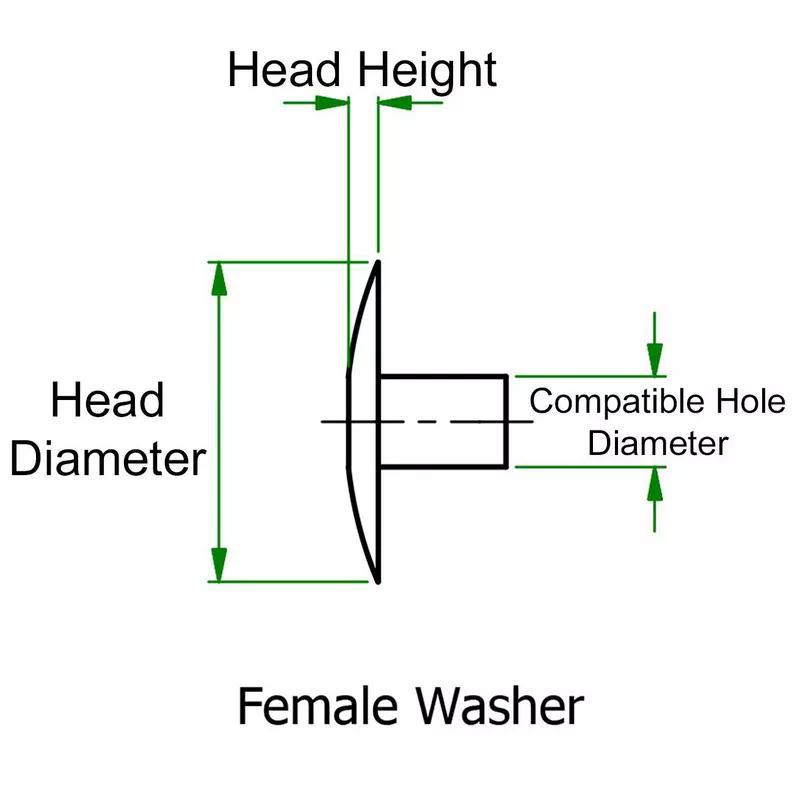

  • Female Washer Head Height
    3.0 mm
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 30.0 mm | 0.472 - 1.181 in

8501260901VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.181 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 18.0 mm | 0.472 - 0.709 in

8501160901VR

Price Range
$0.1013 - $0.0878

Stock Levels
1000 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 0.709 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 16.0 mm | 0.63 in

8501220900VR

Price Range
$0.1891 - $0.1139

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.866 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.63 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 22.0 mm | 0.236 - 0.866 in

8502260900VR

Price Range
$0.1162 - $0.1013

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.866 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 2.0 - 40.0 mm | 0.079 - 1.575 in

8502440901VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.079 - 1.575 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 5.0 - 10.0 mm | 0.197 - 0.394 in; Compatible Panel Thickness Range 16.0 mm | 0.63 in

8501220908VR

Price Range
$0.1946 - $0.1168

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.866 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.197 - 0.394 in
  • Compatible Panel Thickness Range
    0.63 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 5.0 - 10.0 mm | 0.197 - 0.394 in; Compatible Panel Thickness Range 8.0 mm | 0.315 in

8501150901VR

Price Range
$0.0959 - $0.0852

Stock Levels
6000 In stock
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.591 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.197 - 0.394 in
  • Compatible Panel Thickness Range
    0.315 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 2.0 - 40.0 mm | 0.079 - 1.575 in

8502440908VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.079 - 1.575 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 46.0 mm | 0.472 - 1.811 in

8501440908VR

Price Range
$0.1013 - $0.0878

Stock Levels
1000 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.811 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 30.0 mm | 0.472 - 1.181 in

8501260900VR

Price Range
$0.1001 - $0.0867

Stock Levels
1000 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.181 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 10.0 mm | 0.236 - 0.394 in

8502160908VR

Price Range
$0.0973 - $0.0852

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.394 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 18.0 mm | 0.472 - 0.709 in

8501160908VR

Price Range
$0.586 - $0.5131

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 0.709 in
Snap-Together Rivet - Black ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 46.0 mm | 0.472 - 1.811 in

8501440901VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.811 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 5.0 - 10.0 mm | 0.197 - 0.394 in; Compatible Panel Thickness Range 8.0 mm | 0.315 in

8501150900VR

Price Range
$0.0959 - $0.0852

Stock Levels
1000 In stock
Attributes
  • Male Clip Head Height
    3.5 mm
  • Male Clip Shank Length
    0.591 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.197 - 0.394 in
  • Compatible Panel Thickness Range
    0.315 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 12.0 - 46.0 mm | 0.472 - 1.811 in

8501440900VR

Price Range
$0.1013 - $0.0878

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.472 - 1.811 in
Snap-Together Rivet - Transparent ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 2.0 - 40.0 mm | 0.079 - 1.575 in

8502440900VR

Price Range
$0.1013 - $0.0878

Stock Levels
22000 In stock
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.551 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.079 - 1.575 in
Snap-Together Rivet - White ; LDPE;PP ;Compatible Hole Diameter Range 8.0 - 20.0 mm | 0.315 - 0.787 in; Compatible Panel Thickness Range 6.0 - 22.0 mm | 0.236 - 0.866 in

8502260908VR

Price Range
$0.0973 - $0.0852

Stock Levels
In production
Attributes
  • Male Clip Head Height
    3.0 mm
  • Male Clip Shank Length
    0.157 in
  • Male Clip Stem Diameter
    0.236 in
  • Compatible Hole Diameter Range
    0.315 - 0.787 in
  • Compatible Panel Thickness Range
    0.236 - 0.866 in
Snap-Together Rivet - Natural ; Nylon ;Compatible Hole Diameter Range 2.4 mm | 0.094 in; Compatible Panel Thickness Range 1.6 - 9.5 mm | 0.063 - 0.374 in

27AMR0940500

Price Range
$0.1082 - $0.1082

Stock Levels
In production
Attributes
  • Male Clip Head Height
    2.4 mm
  • Male Clip Shank Length
    0.5 in
  • Male Clip Stem Diameter
    0.094 in
  • Compatible Hole Diameter Range
    0.094 in
  • Compatible Panel Thickness Range
    0.063 - 0.374 in
