Push-In Rivets - Mounting Button

In stock

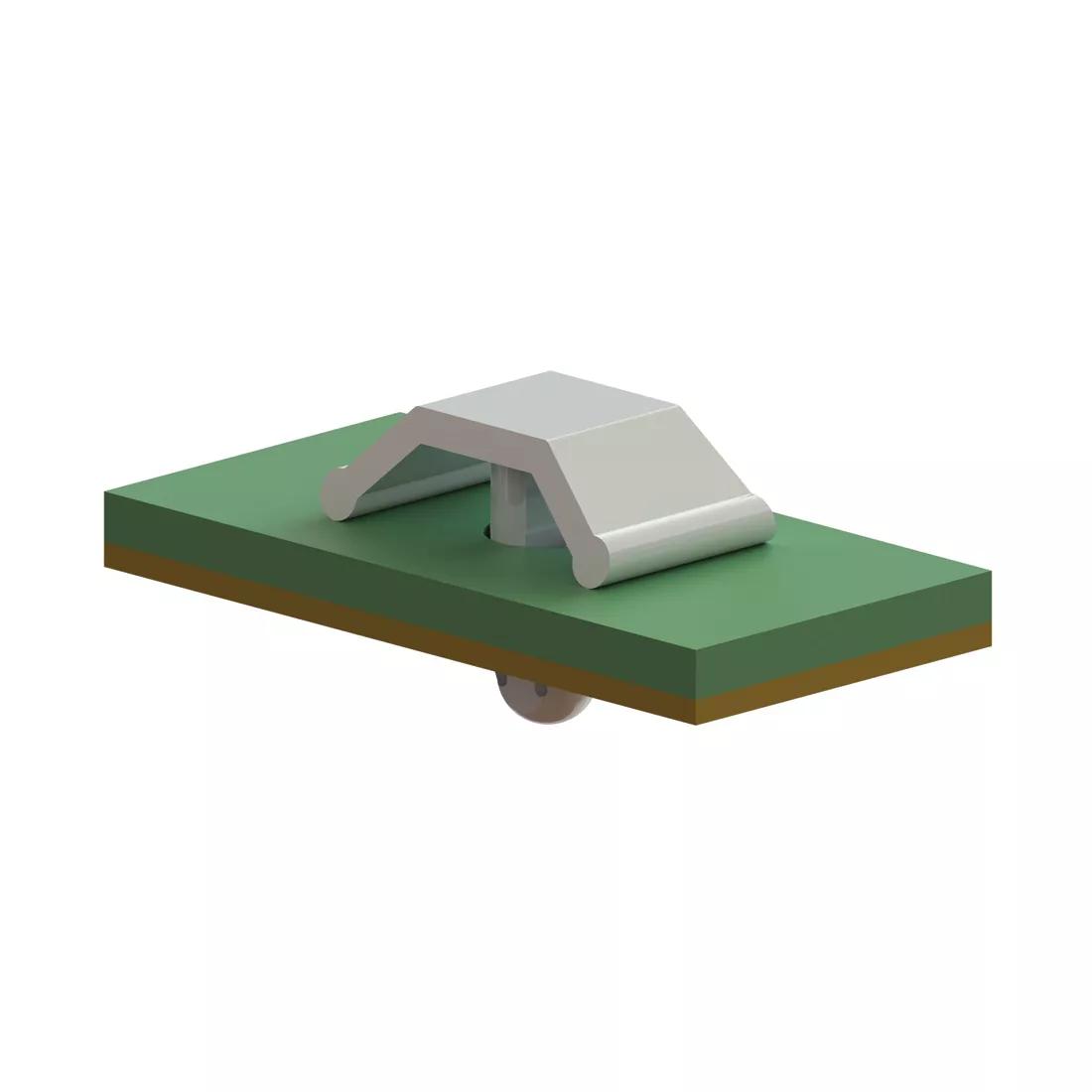

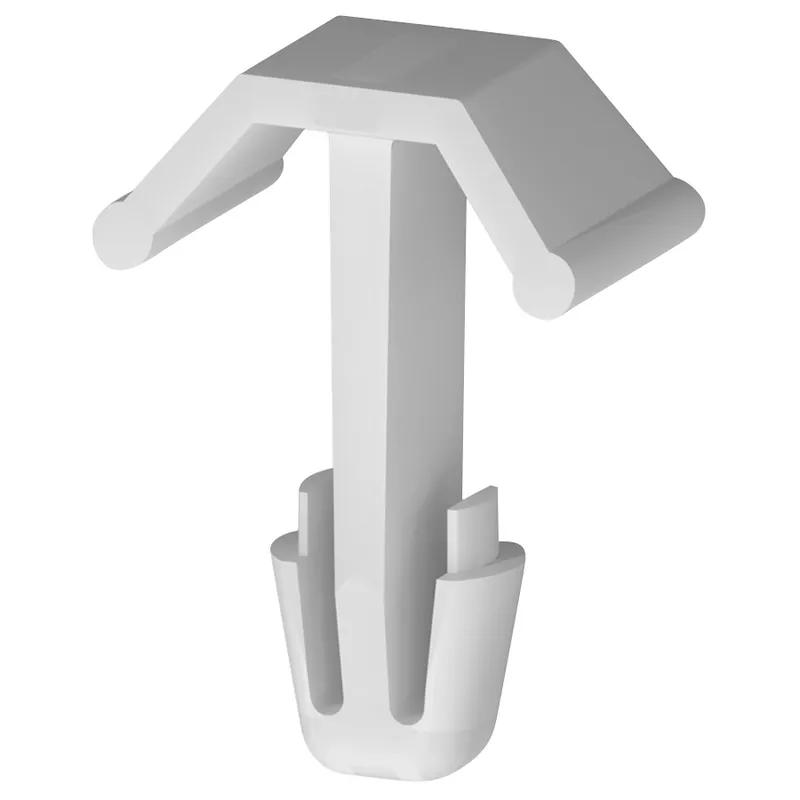

Mounting Button Push-In Rivets create a tight locking solution that mates two objects together. They are ideal for applications where metal fasteners cannot be used, such as electrical and PCB applications.

The tension wings help lock the rivet securely in place and cover a wider surface area. The rivet can only be removed from the underside of the board

Our range features two types. Type 1 snap-locks into a 0.156 inch diameter hole and Type 2 snap-locks into a 0.187 inch diameter hole.

  • Material: Nylon 6/6
  • Color: Natural
  • UL94 V2 Flame Rated

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Compatible Hole Diameter Minimum Compatible Panel Thickness Maximum Compatible Panel Thickness Buy
MB-9-187
$0.142 - $0.2643 6000 In stock
0.187 in
0.281 in
0.344 in
MB-11-156
$0.1452 - $0.2691 In production
0.156 in
0.344 in
0.406 in
MB-11-187
$0.1452 - $0.2691 2000 In stock
0.187 in
0.344 in
0.406 in
MB-1-156
$0.1314 - $0.2451 In production
0.156 in
0.031 in
0.094 in
MB-1-187
$0.1314 - $0.2451 70000 In stock
0.187 in
0.031 in
0.094 in
MB-3-156
$0.134 - $0.25 2400 In stock
0.156 in
0.094 in
0.156 in
MB-3-187
$0.134 - $0.25 106000 In stock
0.187 in
0.094 in
0.156 in
MB-5-156
$0.1367 - $0.2548 10000 In stock
0.156 in
0.156 in
0.219 in
MB-5-187
$0.1367 - $0.2548 2000 In stock
0.187 in
0.156 in
0.219 in
MB-7-156
$0.1395 - $0.2595 In production
0.156 in
0.219 in
0.281 in
MB-7-187
$0.1395 - $0.2595 In production
0.187 in
0.219 in
0.281 in
MB-9-156
$0.142 - $0.2643 In production
0.156 in
0.281 in
0.344 in
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 7.1 - 8.7 mm | 0.281 - 0.344 in

MB-9-187

Price Range
$0.2643 - $0.142

Stock Levels
6000 In stock
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.281 - 0.344 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 8.7 - 10.3 mm | 0.344 - 0.406 in

MB-11-156

Price Range
$0.2691 - $0.1452

Stock Levels
In production
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.344 - 0.406 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 8.7 - 10.3 mm | 0.344 - 0.406 in

MB-11-187

Price Range
$0.2691 - $0.1452

Stock Levels
2000 In stock
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.344 - 0.406 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 0.8 - 2.4 mm | 0.031 - 0.094 in

MB-1-156

Price Range
$0.2451 - $0.1314

Stock Levels
In production
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.031 - 0.094 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 0.8 - 2.4 mm | 0.031 - 0.094 in

MB-1-187

Price Range
$0.2451 - $0.1314

Stock Levels
70000 In stock
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.031 - 0.094 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 2.4 - 4 mm | 0.094 - 0.156 in

MB-3-156

Price Range
$0.25 - $0.134

Stock Levels
2400 In stock
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.390 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.094 - 0.156 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 2.4 - 4 mm | 0.094 - 0.156 in

MB-3-187

Price Range
$0.25 - $0.134

Stock Levels
106000 In stock
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.390 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.094 - 0.156 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 4 - 5.6 mm | 0.156 - 0.219 in

MB-5-156

Price Range
$0.2548 - $0.1367

Stock Levels
10000 In stock
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.390 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.156 - 0.219 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 4 - 5.6 mm | 0.156 - 0.219 in

MB-5-187

Price Range
$0.2548 - $0.1367

Stock Levels
2000 In stock
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.390 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.156 - 0.219 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 5.6 - 7.1 mm | 0.219 - 0.281 in

MB-7-156

Price Range
$0.2595 - $0.1395

Stock Levels
In production
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.390 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.219 - 0.281 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 5.6 - 7.1 mm | 0.219 - 0.281 in

MB-7-187

Price Range
$0.2595 - $0.1395

Stock Levels
In production
Attributes
  • Compatible Hole Diameter
    0.187 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.219 - 0.281 in
  • Operating Temperature Range
    -40 - 185 °F
Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 7.1 - 8.7 mm | 0.281 - 0.344 in

MB-9-156

Price Range
$0.2643 - $0.142

Stock Levels
In production
Attributes
  • Compatible Hole Diameter
    0.156 in
  • Head Diameter
    0.484 in
  • Head Height
    0.188 in
  • Compatible Panel Thickness Range
    0.281 - 0.344 in
  • Operating Temperature Range
    -40 - 185 °F
