Push-In Rivets - Heat Sink

In stock

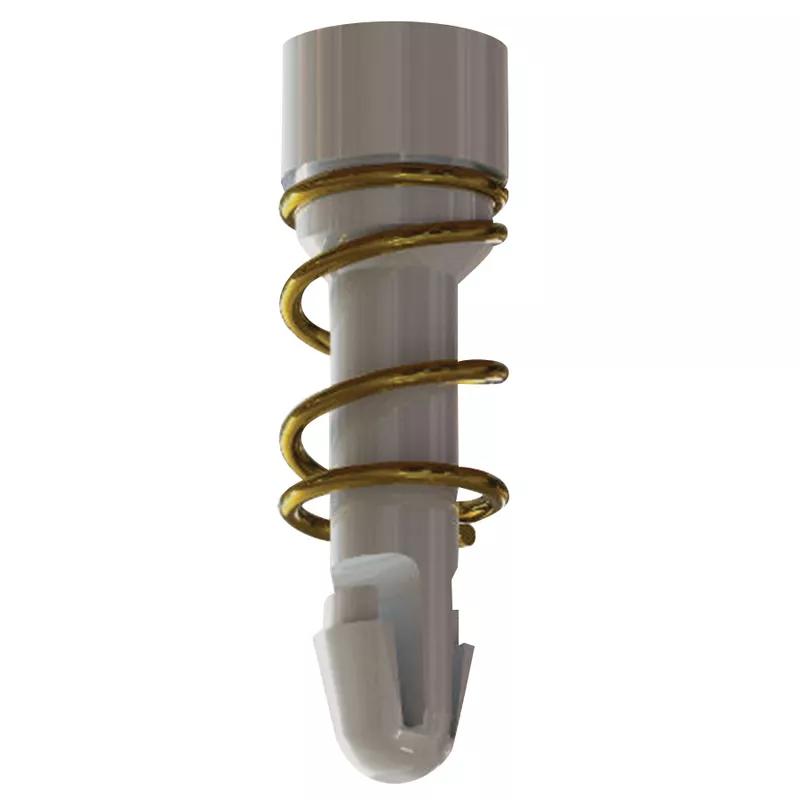

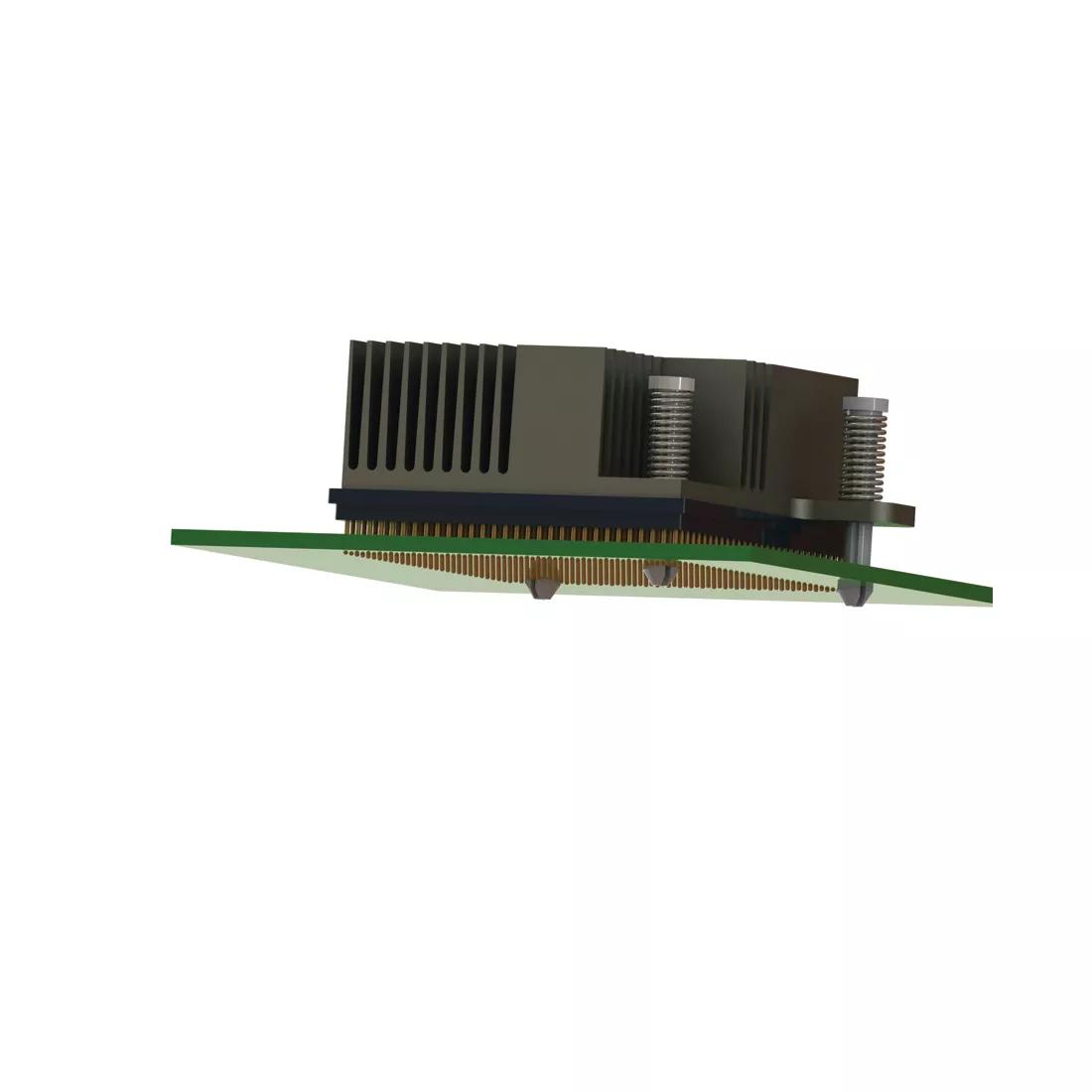

Heat Sink Rivets are spring mounted. They are used to fasten a heat sink to a processor chip on a PCB. The metal spring provides continuous pressure to the heat sink until thermal adhesive cures.

Our range has two options. One has a Chrome Plated Steel spring and the other a Stainless Steel spring. The Stainless Steel option can also be installed using a cross head screwdriver.

  • Material: Nylon 6/6
  • Color: Natural
  • UL94 V2 Material Flammability Rating

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Maximum Heat Sink Hole Diameter Buy
HSR-2
$0.3107 - $0.3368 9000 In stock
0.140 in
HSR-1
$0.2939 - $0.3184 34000 In stock
0.157 in

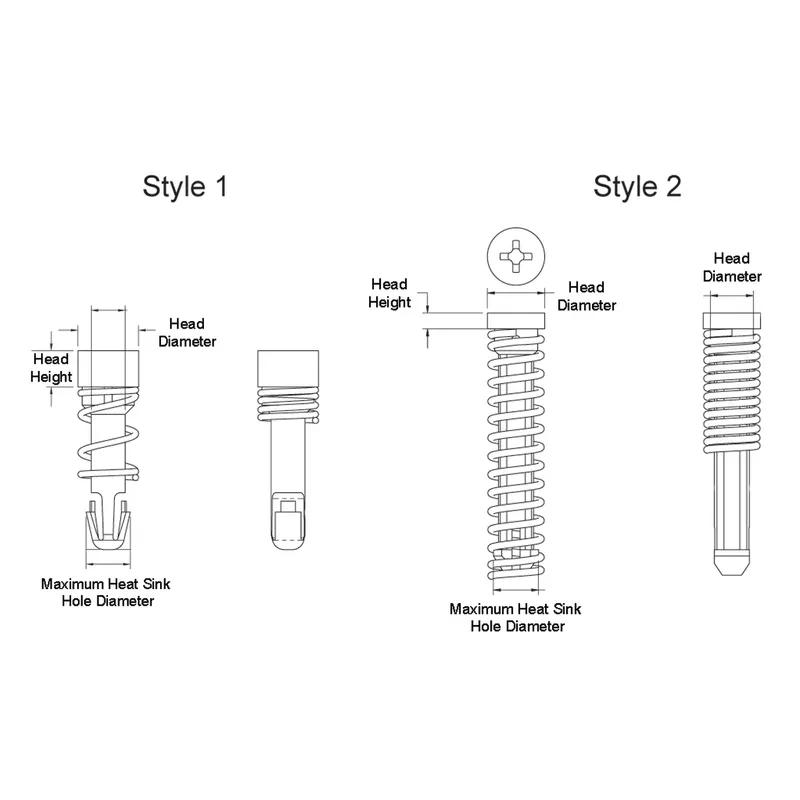

Heat Sink Push-In Rivet- Heat Sink Hole Diameter Range 3 - 3.6 mm | 0.120 - 0.140 in; ; Panel Thickness9.1 mm | 0.360 in

HSR-2

Price Range
$0.3368 - $0.3107

Stock Levels
9000 In stock
Attributes
  • Compatible Hole Diameter Range
    0.122 in
  • Head Diameter
    0.180 in
  • Head Height
    0.050 in
  • Heat Sink Hole Diameter Range
    0.120 - 0.140 in
  • Panel Thickness
    0.360 in
Heat Sink Push-In Rivet- Heat Sink Hole Diameter Range 3.2 - 4 mm | 0.125 - 0.157 in; ; Panel Thickness7.9 mm | 0.310 in

HSR-1

Price Range
$0.3184 - $0.2939

Stock Levels
34000 In stock
Attributes
  • Compatible Hole Diameter Range
    0.118 in
  • Head Diameter
    0.197 in
  • Head Height
    0.118 in
  • Heat Sink Hole Diameter Range
    0.125 - 0.157 in
  • Panel Thickness
    0.310 in
