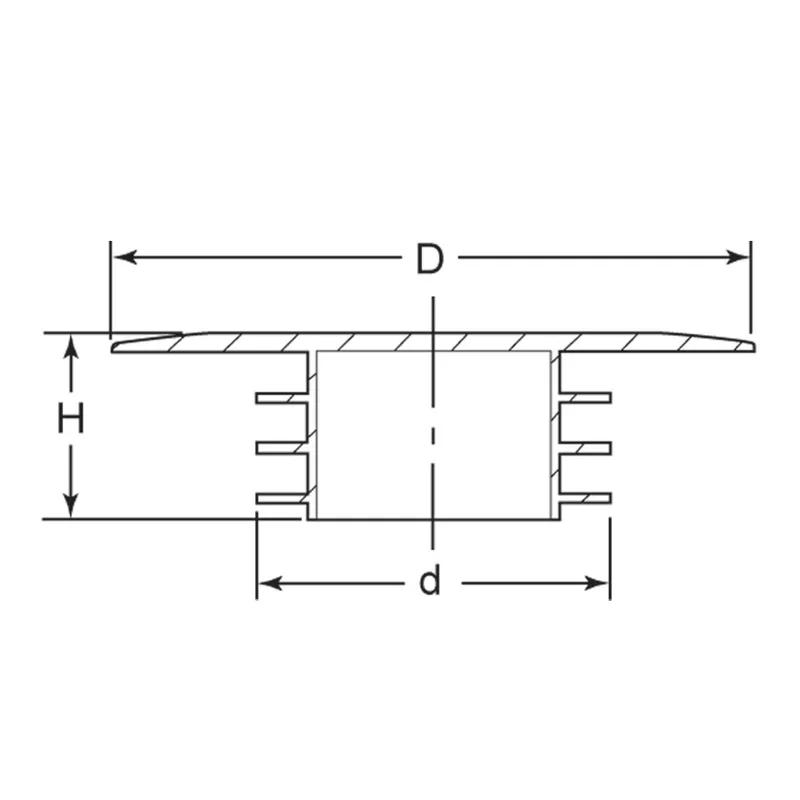

Push In Raised Face Flange Protectors - Line Drawing
Push In Raised Face Flange Protectors - Line Drawing

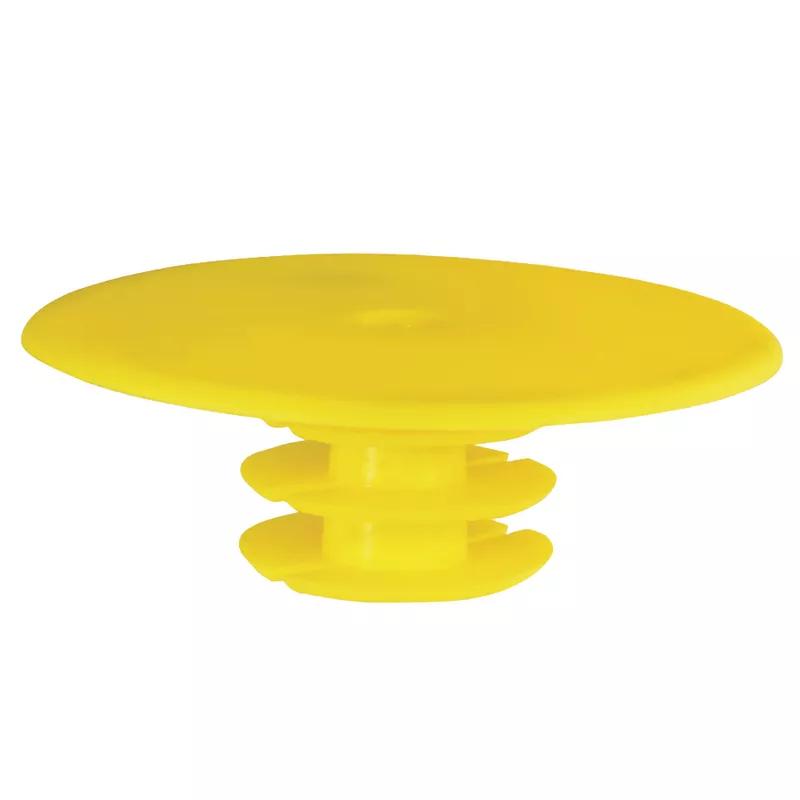

Push-In Raised Face Flange Protectors

In stock

Raised-face Flange Protectors have a simple push-in design for easy fitting. They feature flexible fins that ensure a snug fit into the bore, every single time.

These flange protectors protect raised face against dirt, moisture, paint and sandblasting. They require no fasteners for fitting.

Part fits 150, 300, 600, 900, 1500 and 250 pound (lb) flanges. Suitable for ANSI and DIN flanges.

Ensure you select an appropriate protector by first measuring both the Outside Diameter and Bolt Circle Diameter of your flange.

  • Material: Polyethylene (PE)
  • Color: Yellow

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Compatible Nominal Pipe Sizes (All) All
Show more Show less
Class Pressure Rating (All) All
14 results

Sort by

None
Product SKUs information
Item Code Price range Availability Class Pressure Rating (All) Compatible Nominal Pipe Sizes (All) View
$0.5373 - $1.3418 58 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 25, ANSI 1
$3.2323 - $8.0844 79 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 150, ANSI 6
$0.4296 - $1.0743 1599 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 20, ANSI 3/4
$0.3751 - $0.9391 450 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 15, ANSI 1/2
$2.2528 - $5.659 250 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 100, ANSI 4
$1.2369 - $3.0939 820 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 65, ANSI 2-1/2
PIR494287A $0.6996 - $1.7413 600 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 40, ANSI 1-1/2
$12.9287 - $32.2904 877 In stock
150, 300, 600, 900, 1500, 2500
DN 300, 12.000 in
$2.6865 - $6.7162 Request the lead time here
150, 300, 400, 600, 900, 1500, 2500
DN 125, ANSI 5
$0.6452 - $1.617 1000 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 32, ANSI 1-1/4
$4.5195 - $11.3025 93 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 200, ANSI 8
PIR494288A $0.9684 - $2.4254 Request the lead time here
150, 300, 400, 600, 900, 1500, 2500
DN 50, ANSI 2
$7.5277 - $18.8271 35 In stock
150, 300, 400, 600, 900, 1500, 2500
DN 250, ANSI 10
PIR494290A $1.3994 - $3.4981 Request the lead time here
150, 300, 400, 600, 900, 1500, 2500
DN 80, ANSI 3
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 25, ANSI 1

PIR494285A

Price Range
$1.3418 - $0.5373

Stock Levels
58 In stock
Attributes
  • Fin Diameter
    1.181 in
  • Head Diameter
    2.756 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 150, ANSI 6

PIR494293A

Price Range
$8.0844 - $3.2323

Stock Levels
79 In stock
Attributes
  • Fin Diameter
    6.693 in
  • Head Diameter
    8.465 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 20, ANSI 3/4

PIR494284A

Price Range
$1.0743 - $0.4296

Stock Levels
1599 In stock
Attributes
  • Fin Diameter
    0.945 in
  • Head Diameter
    2.283 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 15, ANSI 1/2

PIR494283A

Price Range
$0.9391 - $0.3751

Stock Levels
450 In stock
Attributes
  • Fin Diameter
    0.748 in
  • Head Diameter
    1.772 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 100, ANSI 4

PIR494291A

Price Range
$5.659 - $2.2528

Stock Levels
250 In stock
Attributes
  • Fin Diameter
    4.685 in
  • Head Diameter
    6.417 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 65, ANSI 2-1/2

PIR494289A

Price Range
$3.0939 - $1.2369

Stock Levels
820 In stock
Attributes
  • Fin Diameter
    2.835 in
  • Head Diameter
    4.803 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 40, ANSI 1-1/2

PIR494287A

Price Range
$1.7413 - $0.6996

Stock Levels
600 In stock
Attributes
  • Fin Diameter
    1.772 in
  • Head Diameter
    3.465 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 300, 12.000 in

PIR494296A

Price Range
$32.2904 - $12.9287

Stock Levels
877 In stock
Attributes
  • Fin Diameter
    12.795 in
  • Head Diameter
    16.063 in
  • Class Pressure Rating (All)
    150, 300, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 125, ANSI 5

PIR494292A

Price Range
$6.7162 - $2.6865

Stock Levels
Request the lead time here
Attributes
  • Fin Diameter
    5.630 in
  • Head Diameter
    7.480 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 32, ANSI 1-1/4

PIR494286A

Price Range
$1.617 - $0.6452

Stock Levels
1000 In stock
Attributes
  • Fin Diameter
    1.535 in
  • Head Diameter
    3.071 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 200, ANSI 8

PIR494294A

Price Range
$11.3025 - $4.5195

Stock Levels
93 In stock
Attributes
  • Fin Diameter
    8.701 in
  • Head Diameter
    10.630 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 50, ANSI 2

PIR494288A

Price Range
$2.4254 - $0.9684

Stock Levels
Request the lead time here
Attributes
  • Fin Diameter
    2.205 in
  • Head Diameter
    4.016 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 250, ANSI 10

PIR494295A

Price Range
$18.8271 - $7.5277

Stock Levels
35 In stock
Attributes
  • Fin Diameter
    10.827 in
  • Head Diameter
    13.583 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
Push-In Raised Face Flange Protector - Compatible Nominal Pipe Sizes (All) DN 80, ANSI 3

PIR494290A

Price Range
$3.4981 - $1.3994

Stock Levels
Request the lead time here
Attributes
  • Fin Diameter
    3.346 in
  • Head Diameter
    5.433 in
  • Class Pressure Rating (All)
    150, 300, 400, 600, 900, 1500, 2500
  • Color
    Yellow
  • Compatible Flanges
    Class 150;BS5504
Quick View
View Product >
