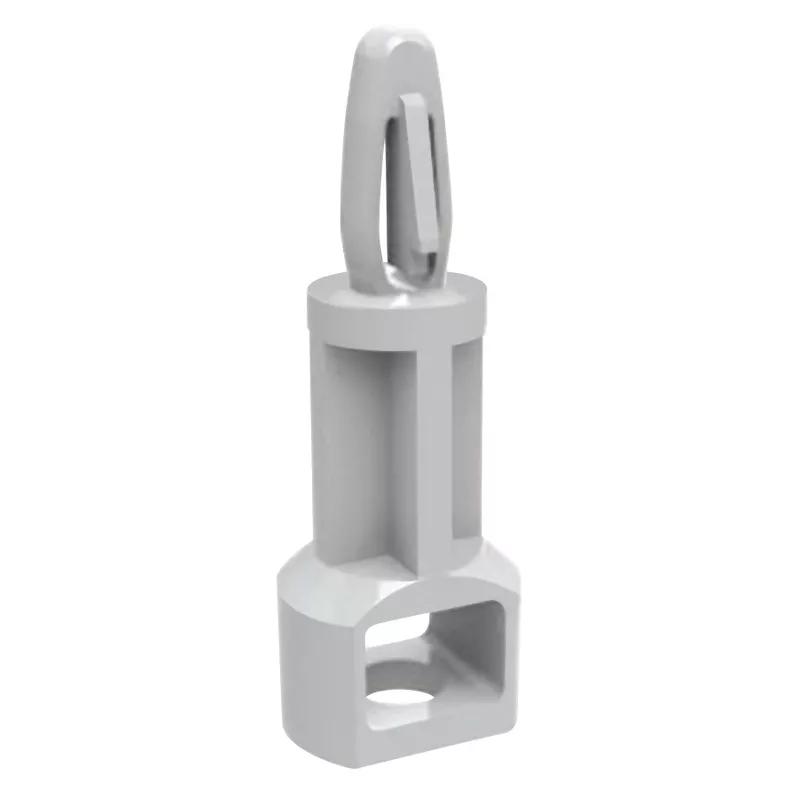

PCB Support Pillars - Rivet Locking/Boyonet Nose
In stock
Designed to mount easily on chassis with plastic SR snap rivet. Allows mounting to a range of panel thicknesses, up to .341” thick. Button head on rivet for minimal protrusion on chassis underside
Request a quote
For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Price range | Availability | Hole Diameter A | Hole Diameter B | Panel Thickness A Range | Panel Thickness B Range | Spacer Length | View | |
|---|---|---|---|---|---|---|---|---|
| SRLCBS-6-01 | $0.1654 - $0.1983 | 56000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.028 - 0.063 in
|
0.374 in
|
|
| SRLCBS-12-01 | $0.2028 - $0.2434 | 1000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.185 - 0.224 in
|
0.752 in
|
|
| $0.2281 - $0.2737 | 52000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.283 - 0.343 in
|
1 in
|
||
| $0.2155 - $0.2585 | 12000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.224 - 0.264 in
|
0.874 in
|
||
| $0.1718 - $0.2064 | 48000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.059 - 0.106 in
|
0.437 in
|
||
| SRLCBS-8-01 | $0.1779 - $0.2135 | 63000 In stock |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.106 - 0.146 in
|
0.5 in
|
|
| $0.1902 - $0.2283 | Request the lead time here |
0.157 in
|
0.161 in
|
0.063 - 0.062 in
|
0.146 - 0.185 in
|
0.626 in
|
||
Snap Rivet Locking Support - 4 mm | 0.157 in ; 9.5 mm | 0.375 in
- Price Range
- $0.1983 - $0.1654
- Stock Levels
- 56000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.063 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 19.1 mm | 0.750 in
- Price Range
- $0.2434 - $0.2028
- Stock Levels
- 1000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.224 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 25.4 mm | 1.000 in
- Price Range
- $0.2737 - $0.2281
- Stock Levels
- 52000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.343 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 22.2 mm | 0.875 in
- Price Range
- $0.2585 - $0.2155
- Stock Levels
- 12000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.264 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 11.1 mm | 0.438 in
- Price Range
- $0.2064 - $0.1718
- Stock Levels
- 48000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.106 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 12.7 mm | 0.500 in
- Price Range
- $0.2135 - $0.1779
- Stock Levels
- 63000 In stock
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.146 in
Snap Rivet Locking Support - 4 mm | 0.157 in ; 15.9 mm | 0.625 in
- Price Range
- $0.2283 - $0.1902
- Stock Levels
- Request the lead time here
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.402 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
0.185 in
