Masking Cones

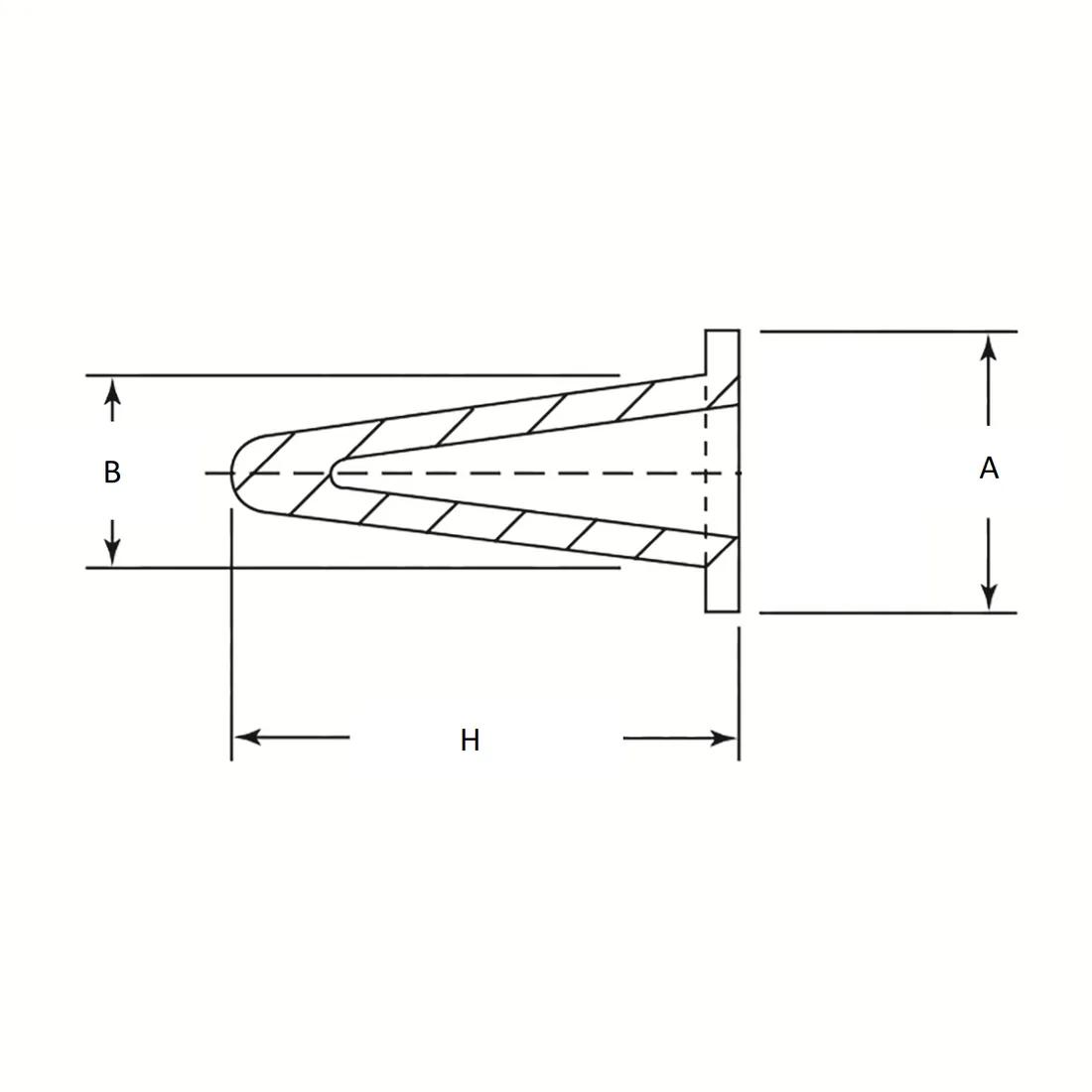

Masking Cones - Line Drawing

Masking Cones

In stock

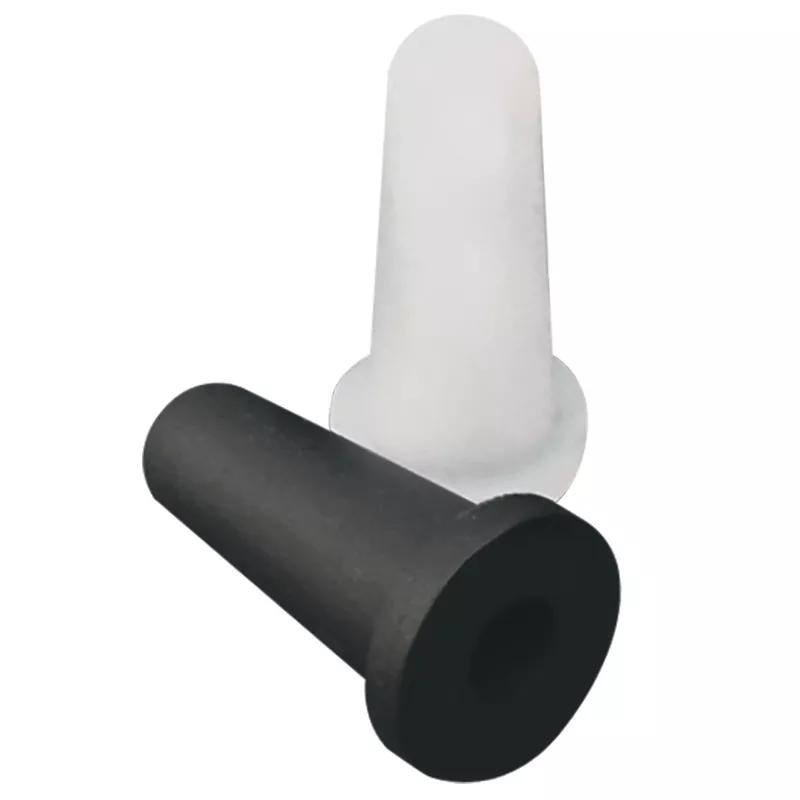

Masking Cone Plugs are a versatile masking solution that can be used as a plug or as a cap. The tapered design allows the part to plug a range of inside diameter sizes and to cap a range of outside diameter sizes. These plugs are ideal for a range of masking applications, including; powder coating, e-coating, plating and anodizing.

The range is available in a choice of materials that include premium Silicone and economical EPDM. Silicone benefits from a high temperature rating and can be used multiple times. EPDM is also reusable with a lower heat resistance, but superior chemical resistance.

  • Materials: Ethylene Propylene Diene Monomer (EPDM) and Silicone Rubber
  • Colors: Black and Natural

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
20 results

Sort by

None
Product SKUs information
Item Code Price range Availability Cap Diameter Flange Diameter Plug Diameter Maximum Temperature View
$0.4663 - $2.8693 2500 In stock
0.750 in
0.750 in
0.551 in
600 °F
$0.1782 - $1.10 4000 In stock
0.130 in
0.500 in
0.250 in
600 °F
$0.3628 - $2.2318 1000 In stock
0.230 in
0.635 in
0.400 in
600 °F
$0.6156 - $3.8057 422 In stock
0.980 in
0.980 in
0.689 in
600 °F
$0.7553 - $4.6824 2000 In stock
0.63 in
1.220 in
0.866 in
425 °F
$0.1243 - $0.7712 52005 In stock
0.130 in
0.500 in
0.250 in
425 °F
$0.2531 - $1.562 850 In stock
0.230 in
0.635 in
0.400 in
425 °F
$0.6238 - $3.8456 242 In stock
0.583 in
1.000 in
0.819 in
425 °F
SCON394197A $0.3686 - $2.2714 3000 In stock
0.650 in
0.650 in
0.394 in
600 °F
SCON767532A $0.8608 - $5.3201 150 In stock
1.100 in
1.100 in
0.767 in
600 °F
$0.1421 - $0.8749 9000 In stock
0.216 in
0.500 in
0.316 in
425 °F
SCON316216A $0.2034 - $1.2515 9000 In stock
0.500 in
0.500 in
0.316 in
600 °F
SCON866630A $1.0799 - $6.6949 200 In stock
0.63 in
1.220 in
0.866 in
600 °F
$0.2989 - $1.843 Request the lead time here
0.625 in
0.625 in
0.335 in
600 °F
$0.3248 - $2.0125 2000 In stock
0.315 in
0.748 in
0.551 in
425 °F
$0.2093 - $1.2892 1150 In stock
0.177 in
0.625 in
0.335 in
425 °F
SCON394197B $0.259 - $1.5979 2000 In stock
0.197 in
0.650 in
0.394 in
425 °F
$0.6018 - $3.7259 2496 In stock
0.532 in
1.100 in
0.767 in
425 °F
$0.4306 - $2.6701 745 In stock
0.453 in
0.980 in
0.689 in
425 °F
$0.8909 - $5.4793 400 In stock
1.000 in
1.000 in
0.819 in
600 °F
Masking Cone Caps - Cap Diameter - 19.1 mm | 0.750 in ; Plug Diameter - 14 mm | 0.551 in ; Natural ; Silicone

SCON551315A

Price Range
$2.8693 - $0.4663

Stock Levels
2500 In stock
Attributes
  • Cap Diameter
    0.750 in
  • Flange Diameter
    0.750 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.417 in
  • Plug Diameter
    0.551 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 3.3 mm | 0.130 in ; Plug Diameter - 6.4 mm | 0.250 in ; Natural ; Silicone

SCON250130A

Price Range
$1.10 - $0.1782

Stock Levels
4000 In stock
Attributes
  • Cap Diameter
    0.130 in
  • Flange Diameter
    0.500 in
  • Maximum Temperature
    600 °F
  • Overall Height
    0.906 in
  • Plug Diameter
    0.250 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 5.8 mm | 0.230 in ; Plug Diameter - 10.2 mm | 0.400 in ; Natural ; Silicone

SCON400230A

Price Range
$2.2318 - $0.3628

Stock Levels
1000 In stock
Attributes
  • Cap Diameter
    0.230 in
  • Flange Diameter
    0.635 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.100 in
  • Plug Diameter
    0.400 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 24.9 mm | 0.980 in ; Plug Diameter - 17.5 mm | 0.689 in ; Natural ; Silicone

SCON689453A

Price Range
$3.8057 - $0.6156

Stock Levels
422 In stock
Attributes
  • Cap Diameter
    0.980 in
  • Flange Diameter
    0.980 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.500 in
  • Plug Diameter
    0.689 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 16 mm | 0.63 in ; Plug Diameter - 22 mm | 0.866 in ; Black ; EPDM

SCON866630C

Price Range
$4.6824 - $0.7553

Stock Levels
2000 In stock
Attributes
  • Cap Diameter
    0.63 in
  • Flange Diameter
    1.220 in
  • Maximum Temperature
    425 °F
  • Overall Height
    2.087 in
  • Plug Diameter
    0.866 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 3.3 mm | 0.130 in ; Plug Diameter - 6.4 mm | 0.250 in ; Black ; EPDM

SCON250130B

Price Range
$0.7712 - $0.1243

Stock Levels
52005 In stock
Attributes
  • Cap Diameter
    0.130 in
  • Flange Diameter
    0.500 in
  • Maximum Temperature
    425 °F
  • Overall Height
    0.906 in
  • Plug Diameter
    0.250 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 5.8 mm | 0.230 in ; Plug Diameter - 10.2 mm | 0.400 in ; Black ; EPDM

SCON400230B

Price Range
$1.562 - $0.2531

Stock Levels
850 In stock
Attributes
  • Cap Diameter
    0.230 in
  • Flange Diameter
    0.635 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.100 in
  • Plug Diameter
    0.400 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 14.8 mm | 0.583 in ; Plug Diameter - 20.8 mm | 0.819 in ; Black ; EPDM

SCON819583C

Price Range
$3.8456 - $0.6238

Stock Levels
242 In stock
Attributes
  • Cap Diameter
    0.583 in
  • Flange Diameter
    1.000 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.929 in
  • Plug Diameter
    0.819 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 16.5 mm | 0.650 in ; Plug Diameter - 10 mm | 0.394 in ; Natural ; Silicone

SCON394197A

Price Range
$2.2714 - $0.3686

Stock Levels
3000 In stock
Attributes
  • Cap Diameter
    0.650 in
  • Flange Diameter
    0.650 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.102 in
  • Plug Diameter
    0.394 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 27.9 mm | 1.100 in ; Plug Diameter - 19.5 mm | 0.767 in ; Natural ; Silicone

SCON767532A

Price Range
$5.3201 - $0.8608

Stock Levels
150 In stock
Attributes
  • Cap Diameter
    1.100 in
  • Flange Diameter
    1.100 in
  • Maximum Temperature
    600 °F
  • Overall Height
    2.009 in
  • Plug Diameter
    0.767 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 5.5 mm | 0.216 in ; Plug Diameter - 8 mm | 0.316 in ; Black ; EPDM

SCON316216B

Price Range
$0.8749 - $0.1421

Stock Levels
9000 In stock
Attributes
  • Cap Diameter
    0.216 in
  • Flange Diameter
    0.500 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.000 in
  • Plug Diameter
    0.316 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 12.7 mm | 0.500 in ; Plug Diameter - 8 mm | 0.316 in ; Natural ; Silicone

SCON316216A

Price Range
$1.2515 - $0.2034

Stock Levels
9000 In stock
Attributes
  • Cap Diameter
    0.500 in
  • Flange Diameter
    0.500 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.000 in
  • Plug Diameter
    0.316 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 16 mm | 0.63 in ; Plug Diameter - 22 mm | 0.866 in ; Natural ; Silicone

SCON866630A

Price Range
$6.6949 - $1.0799

Stock Levels
200 In stock
Attributes
  • Cap Diameter
    0.63 in
  • Flange Diameter
    1.220 in
  • Maximum Temperature
    600 °F
  • Overall Height
    2.087 in
  • Plug Diameter
    0.866 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 15.9 mm | 0.625 in ; Plug Diameter - 8.5 mm | 0.335 in ; Natural ; Silicone

SCON335177A

Price Range
$1.843 - $0.2989

Stock Levels
Request the lead time here
Attributes
  • Cap Diameter
    0.625 in
  • Flange Diameter
    0.625 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.000 in
  • Plug Diameter
    0.335 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 8 mm | 0.315 in ; Plug Diameter - 14 mm | 0.551 in ; Black ; EPDM

SCON551315C

Price Range
$2.0125 - $0.3248

Stock Levels
2000 In stock
Attributes
  • Cap Diameter
    0.315 in
  • Flange Diameter
    0.748 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.417 in
  • Plug Diameter
    0.551 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 4.5 mm | 0.177 in ; Plug Diameter - 8.5 mm | 0.335 in ; Black ; EPDM

SCON335177C

Price Range
$1.2892 - $0.2093

Stock Levels
1150 In stock
Attributes
  • Cap Diameter
    0.177 in
  • Flange Diameter
    0.625 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.000 in
  • Plug Diameter
    0.335 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 5 mm | 0.197 in ; Plug Diameter - 10 mm | 0.394 in ; Black ; EPDM

SCON394197B

Price Range
$1.5979 - $0.259

Stock Levels
2000 In stock
Attributes
  • Cap Diameter
    0.197 in
  • Flange Diameter
    0.650 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.102 in
  • Plug Diameter
    0.394 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 13.5 mm | 0.532 in ; Plug Diameter - 19.5 mm | 0.767 in ; Black ; EPDM

SCON767532B

Price Range
$3.7259 - $0.6018

Stock Levels
2496 In stock
Attributes
  • Cap Diameter
    0.532 in
  • Flange Diameter
    1.100 in
  • Maximum Temperature
    425 °F
  • Overall Height
    2.009 in
  • Plug Diameter
    0.767 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 11.5 mm | 0.453 in ; Plug Diameter - 17.5 mm | 0.689 in ; Black ; EPDM

SCON689453C

Price Range
$2.6701 - $0.4306

Stock Levels
745 In stock
Attributes
  • Cap Diameter
    0.453 in
  • Flange Diameter
    0.980 in
  • Maximum Temperature
    425 °F
  • Overall Height
    1.500 in
  • Plug Diameter
    0.689 in
Quick View
View Product >
Masking Cone Caps - Cap Diameter - 25.4 mm | 1.000 in ; Plug Diameter - 20.8 mm | 0.819 in ; Natural ; Silicone

SCON819583A

Price Range
$5.4793 - $0.8909

Stock Levels
400 In stock
Attributes
  • Cap Diameter
    1.000 in
  • Flange Diameter
    1.000 in
  • Maximum Temperature
    600 °F
  • Overall Height
    1.929 in
  • Plug Diameter
    0.819 in
Quick View
View Product >
