LED Light Pipes

In production

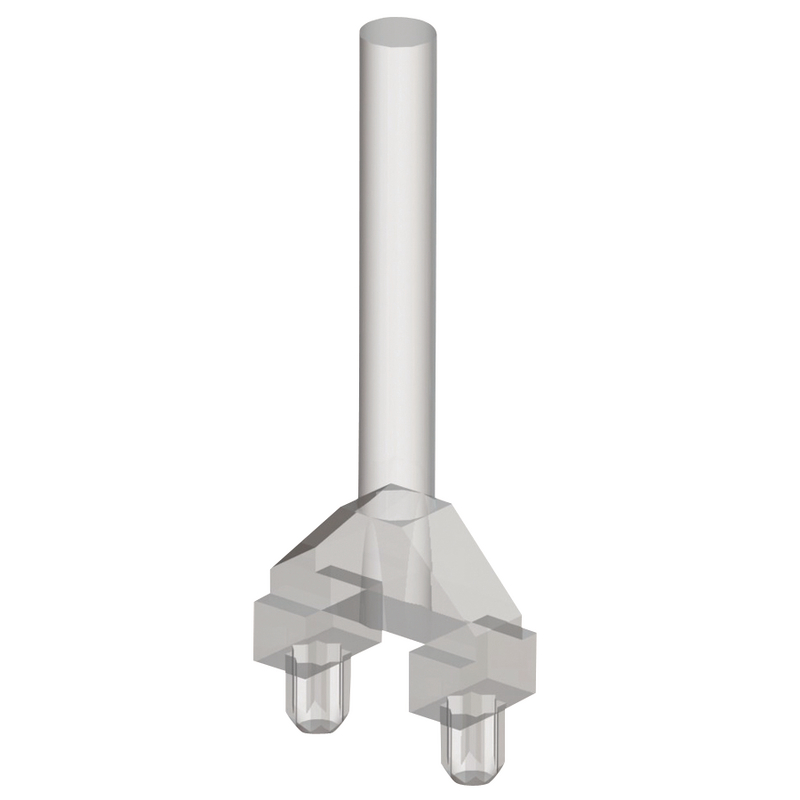

Vertical Light Pipes are a type of LED Light Pipe that act as a conduit to transport light from an LED to another location, while minimizing the loss of light, and making it crystal clear. LED Pipe products also provide Electrostatic Discharge (ESD) protection by isolating the PCB from potential contact.

Domed and Flat front shapes allow for flexibility of design and the Light Pipe is surface mount LED compatible. The LED Pipe is made from clear Polycarbonate (PC), which has a flame resistance rating of UL94 V0.

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Pipe Length Head Shape Hole Diameter Buy
VLP1-D-3
$0.3947 - $0.4737 1000 In stock
0.65 in
Dome
0.059 in
VLP2-D-3
$0.3947 - $0.4737 1000 In stock
0.65 in
Dome
0.094 in
VLP1-F-1
$0.3693 - $0.4431 In production
0.5 in
Flat
0.059 in
VLP2-D-1
$0.3693 - $0.4431 In production
0.5 in
Dome
0.094 in
VLP2-D-6
$0.5456 - $0.6546 In production
2.165 in
Dome
0.094 in
VLP1-D-4
$0.4196 - $0.5035 1000 In stock
0.858 in
Dome
0.059 in
VLP1-F-4
$0.4196 - $0.5035 In production
0.858 in
Flat
0.059 in
VLP2-D-4
$0.4196 - $0.5035 1000 In stock
0.858 in
Dome
0.094 in
VLP2-F-2
$0.3947 - $0.4737 In production
0.591 in
Flat
0.094 in
VLP2-F-6
$0.5456 - $0.6546 In production
2.165 in
Flat
0.094 in
VLP1-F-3
$0.3947 - $0.4737 In production
0.65 in
Flat
0.059 in
VLP2-F-1
$0.3693 - $0.4431 In production
0.5 in
Flat
0.094 in
VLP2-F-5
$0.445 - $0.534 In production
1.028 in
Flat
0.094 in
VLP1-D-1
$0.3693 - $0.4431 In production
0.5 in
Dome
0.059 in
VLP2-F-4
$0.4196 - $0.5035 In production
0.858 in
Flat
0.094 in
VLP1-D-5
$0.445 - $0.534 1000 In stock
1.028 in
Dome
0.059 in
VLP1-F-5
$0.445 - $0.534 In production
1.028 in
Flat
0.059 in
VLP2-D-5
$0.445 - $0.534 In production
1.028 in
Dome
0.094 in
VLP2-F-3
$0.3947 - $0.4737 In production
0.65 in
Flat
0.094 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-D-3

Price Range
$0.4737 - $0.3947

Stock Levels
1000 In stock
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-D-3

Price Range
$0.4737 - $0.3947

Stock Levels
1000 In stock
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-F-1

Price Range
$0.4431 - $0.3693

Stock Levels
In production
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-D-1

Price Range
$0.4431 - $0.3693

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-D-6

Price Range
$0.6546 - $0.5456

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-D-4

Price Range
$0.5035 - $0.4196

Stock Levels
1000 In stock
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-F-4

Price Range
$0.5035 - $0.4196

Stock Levels
In production
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-D-4

Price Range
$0.5035 - $0.4196

Stock Levels
1000 In stock
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-2

Price Range
$0.4737 - $0.3947

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-6

Price Range
$0.6546 - $0.5456

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-F-3

Price Range
$0.4737 - $0.3947

Stock Levels
In production
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-1

Price Range
$0.4431 - $0.3693

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-5

Price Range
$0.534 - $0.445

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-D-1

Price Range
$0.4431 - $0.3693

Stock Levels
In production
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-4

Price Range
$0.5035 - $0.4196

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-D-5

Price Range
$0.534 - $0.445

Stock Levels
1000 In stock
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in

VLP1-F-5

Price Range
$0.534 - $0.445

Stock Levels
In production
Attributes
  • Hole Diameter
    0.059 in
  • Hole Spacing Length
    0.185 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-D-5

Price Range
$0.534 - $0.445

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
LED Light Pipe - 2.4 mm | 0.094 in ; 10.0 mm | 0.394 in

VLP2-F-3

Price Range
$0.4737 - $0.3947

Stock Levels
In production
Attributes
  • Hole Diameter
    0.094 in
  • Hole Spacing Length
    0.295 in
  • Maximum Operating Temperature
    266 °F
  • Minimum Operating Temperature
    -40 °F
  • Minimum Panel Thickness
    0.031 in
