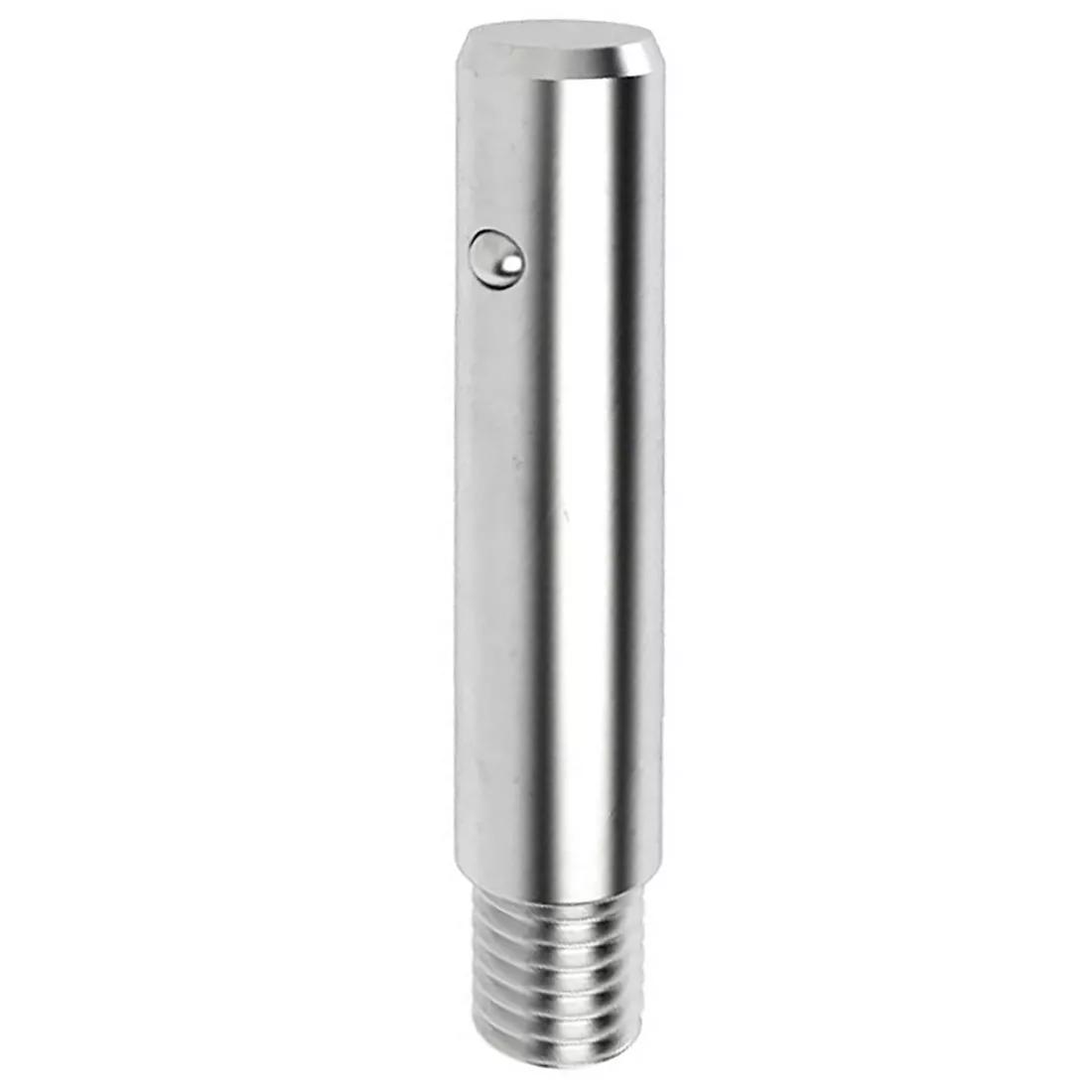

Thread Detent Pin Steel
Thread Detent Pin Steel
Threaded Detent Pin - Line Drawing

Detent Pins Threaded

In production

Threaded Detent Pins can be used on a variety of applications. The threaded ends can be equipped with a knob, handle, or secured to a work surface. They provide an economical and convenient way to adjust or remove accessories on equipment.

The pin material is made from Steel, which is an economical material providing good strength. Comes with a Clear Zinc Plating finish for added corrosion resistance.

They feature a chamfered tip that assists in quickly locating a hole, and the spring-loaded detent ball provides a handy and dependable quick-release mechanism that retracts when you push or pull the pin.

We have a wide range of standard threads, pin diameters and usable lengths to most any application. Other configurations, materials, and customizations are available upon request.

  • Pin Material: Grade 2 Low Carbon Steel with Clear Zinc Plating.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
19 results

Sort by

None
Product SKUs information
Item Code Price range Availability Pin Diameter Pin Material Usable Length Thread Size View
$1.15 - $1.35 In production
0.250 in
Steel
1.750 in
1/4-20
In production
0.250 in
Steel
2.750 in
1/4-20
$1.41 - $1.65 In production
0.250 in
Steel
4.000 in
1/4-20
$1.20 - $1.41 In production
0.375 in
Steel
1.000 in
3/8-16
In production
0.375 in
Steel
3.125 in
3/8-16
$1.46 - $1.73 In production
0.375 in
Steel
2.000 in
3/8-16
$1.50 - $1.75 In production
0.312 in
Steel
3.000 in
5/16-18
In production
0.250 in
Steel
1.500 in
1/4-20
In production
0.375 in
Steel
2.125 in
3/8-16
$2.44 - $2.85 In production
0.500 in
Steel
3.250 in
3/8-16
$1.44 - $1.68 In production
0.312 in
Steel
2.750 in
5/16-18
$1.38 - $1.62 In production
0.250 in
Steel
3.750 in
1/4-20
$1.73 - $2.02 In production
0.375 in
Steel
3.000 in
3/8-16
In production
0.250 in
Steel
3.000 in
1/4-20
$1.59 - $1.87 In production
0.375 in
Steel
2.500 in
3/8-16
In production
0.500 in
Steel
2.500 in
3/8-16
In production
0.250 in
Steel
2.000 in
1/4-20
$1.07 - $1.26 In production
0.250 in
Steel
1.000 in
1/4-20
$1.24 - $1.44 In production
0.250 in
Steel
2.500 in
1/4-20
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 44.5 mm | 1.750 in; Zinc-Plated; Steel

TD4C1750-----21

Price Range
$1.35 - $1.15

Stock Levels
In production
Attributes
  • Effective Length
    1.750 in
  • Usable Length
    1.750 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 69.9 mm | 2.750 in; Zinc-Plated; Steel

TD4C2750-----2R


Stock Levels
In production
Attributes
  • Effective Length
    2.750 in
  • Usable Length
    2.750 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 101.6 mm | 4.000 in; Zinc-Plated; Steel

TD4C4000-----21

Price Range
$1.65 - $1.41

Stock Levels
In production
Attributes
  • Effective Length
    4.000 in
  • Usable Length
    4.000 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 25.4 mm | 1.000 in; Zinc-Plated; Steel

TD6C1000-----21

Price Range
$1.41 - $1.20

Stock Levels
In production
Attributes
  • Effective Length
    1.000 in
  • Usable Length
    1.000 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 79.4 mm | 3.125 in; Zinc-Plated; Steel

TD6C3125-----2R


Stock Levels
In production
Attributes
  • Effective Length
    3.125 in
  • Usable Length
    3.125 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 50.8 mm | 2.000 in; Zinc-Plated; Steel

TD6C2000-----21

Price Range
$1.73 - $1.46

Stock Levels
In production
Attributes
  • Effective Length
    2.000 in
  • Usable Length
    2.000 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 7.9 mm | 0.312 in; Usable Length - 76.2 mm | 3.000 in; Zinc-Plated; Steel

TD5C3000-----21

Price Range
$1.75 - $1.50

Stock Levels
In production
Attributes
  • Effective Length
    3.000 in
  • Usable Length
    3.000 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.358 in
  • Thread Size
    5/16-18
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 38.1 mm | 1.500 in; Zinc-Plated; Steel

TD4C1500-----2R


Stock Levels
In production
Attributes
  • Effective Length
    1.500 in
  • Usable Length
    1.500 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 54 mm | 2.125 in; Zinc-Plated; Steel

TD6C2125-----2R


Stock Levels
In production
Attributes
  • Effective Length
    2.125 in
  • Usable Length
    2.125 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 12.7 mm | 0.500 in; Usable Length - 82.6 mm | 3.250 in; Zinc-Plated; Steel

TD8C3250-----21

Price Range
$2.85 - $2.44

Stock Levels
In production
Attributes
  • Effective Length
    3.250 in
  • Usable Length
    3.250 in
  • Ball Position
    0.500 in
  • Pin and Ball Height
    0.570 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 7.9 mm | 0.312 in; Usable Length - 69.9 mm | 2.750 in; Zinc-Plated; Steel

TD5C2750-----21

Price Range
$1.68 - $1.44

Stock Levels
In production
Attributes
  • Effective Length
    2.750 in
  • Usable Length
    2.750 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.358 in
  • Thread Size
    5/16-18
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 95.3 mm | 3.750 in; Zinc-Plated; Steel

TD4C3750-----21

Price Range
$1.62 - $1.38

Stock Levels
In production
Attributes
  • Effective Length
    3.750 in
  • Usable Length
    3.750 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 76.2 mm | 3.000 in; Zinc-Plated; Steel

TD6C3000-----21

Price Range
$2.02 - $1.73

Stock Levels
In production
Attributes
  • Effective Length
    3.000 in
  • Usable Length
    3.000 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 76.2 mm | 3.000 in; Zinc-Plated; Steel

TD4C3000-----2R


Stock Levels
In production
Attributes
  • Usable Length
    3.000 in
  • Thread Size
    1/4-20
  • Pin Diameter
    0.250 in
  • Pin Material
    Steel
  • Finish
    Zinc-Plated
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 63.5 mm | 2.500 in; Zinc-Plated; Steel

TD6C2500-----21

Price Range
$1.87 - $1.59

Stock Levels
In production
Attributes
  • Effective Length
    2.500 in
  • Usable Length
    2.500 in
  • Ball Position
    0.375 in
  • Pin and Ball Height
    0.426 in
  • Thread Size
    3/8-16
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 12.7 mm | 0.500 in; Usable Length - 63.5 mm | 2.500 in; Zinc-Plated; Steel

TD8C2500-----2R


Stock Levels
In production
Attributes
  • Usable Length
    2.500 in
  • Thread Size
    3/8-16
  • Pin Diameter
    0.500 in
  • Pin Material
    Steel
  • Finish
    Zinc-Plated
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 50.8 mm | 2.000 in; Zinc-Plated; Steel

TD4C2000-----2R


Stock Levels
In production
Attributes
  • Usable Length
    2.000 in
  • Thread Size
    1/4-20
  • Pin Diameter
    0.250 in
  • Pin Material
    Steel
  • Finish
    Zinc-Plated
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 25.4 mm | 1.000 in; Zinc-Plated; Steel

TD4C1000-----21

Price Range
$1.26 - $1.07

Stock Levels
In production
Attributes
  • Effective Length
    1.000 in
  • Usable Length
    1.000 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
Detent Pin - Threaded;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 63.5 mm | 2.500 in; Zinc-Plated; Steel

TD4C2500-----21

Price Range
$1.44 - $1.24

Stock Levels
In production
Attributes
  • Effective Length
    2.500 in
  • Usable Length
    2.500 in
  • Ball Position
    0.250 in
  • Pin and Ball Height
    0.286 in
  • Thread Size
    1/4-20
Quick View
View Product >
