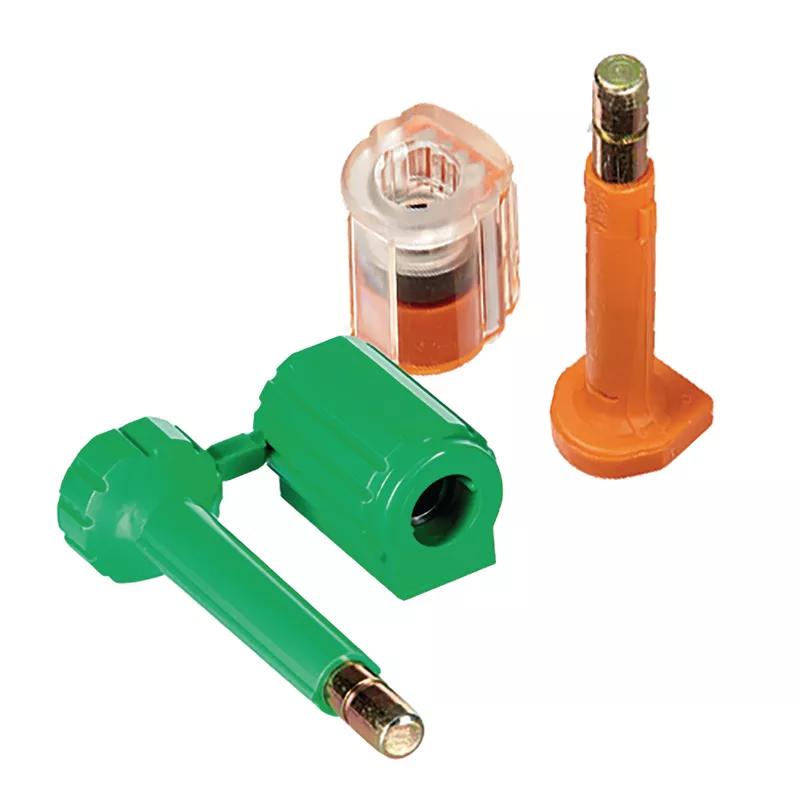

Bolt Seals

In stock

A high security Bolt Seal that is ideal for use for the securing import and export goods both domestically, and internationally. Applications include; shipping containers, cargo containers, trucks, trailer vehicle doors and rail freights.

These bolt seals features an 18mm insert and pin head that keeps the seal engaged on the applications latch when the plastic cover is intentionally or accidentally removed. It has limited 180 degree rotation when engaged. These seals prevent high-speed spinning attacks on the barrel. The bolt seal also features a label attachment.

The range includes different options, including pins that are either coated or uncoated. The coated pin has an additional layer of paint that gives it an extra layer of protection from chips and damage.The bolt seal barrel is made from high-quality ABS material, which benefits from impact resistance and also indicates evidence of tampering.

ISO 17712:2013 (coated pin option only) and C-TPAT compliant.

To Install;
1. Place pin into barrel
2. Press down on seal
3. Use bolt cutters to remove (sold separately).

  • Material: Acrylonitrile Butadiene Styrene (ABS) Barrel and Steel Pin
  • Colors: Blue, Green, Orange, Red and White

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
17 results
Product SKUs information
Item Code Price range Availability Maximum Tensile Strength Overall Length Color Material Type Minimum Tensile Strength View
1222236 960 In stock
White
Steel
HanaLock
2204.623 lbf
72 In stock
Red
Steel
HanaLock
2204.623 lbf
In production
White
Steel
HanaLock
2204.623 lbf
1250 In stock
3.425 in
Orange
PP
UnoLock
2866.009 lbf
In production
White
Steel
HanaLock
2204.623 lbf
In production
Blue
Steel
HanaLock
2204.623 lbf
604 In stock
Yellow
Steel
HanaLock
2204.623 lbf
500 In stock
3.425 in
Blue
PP
UnoLock
2866.009 lbf
1248 In stock
3.425 in
Yellow
PP
UnoLock
2866.009 lbf
1222259 In production
Orange
Steel
HanaLock
2204.623 lbf
725 In stock
Red
Steel
HanaLock
2204.623 lbf
485 In stock
Green
Steel
HanaLock
2204.623 lbf
In production
Yellow
Steel
HanaLock
2204.623 lbf
1222238 238 In stock
3.504 in
Yellow
Steel
HanaLock
2204.623 lbf
In production
Blue
Steel
HanaLock
2204.623 lbf
In production
Blue
Steel
HanaLock
2204.623 lbf
In production
Green
Steel
HanaLock
2204.623 lbf
HanaLock - White Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222236


Stock Levels
960 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Red Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222243


Stock Levels
72 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - White Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222254


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
Bolt Seal - Material : PP Classification : High-Security Seal Color : Orange Locking Mechanism : High Strength Steel Insert

1222579


Stock Levels
1250 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    UnoLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    High Strength Steel Insert
HanaLock - White Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222242


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Blue Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222239


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Yellow Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222244


Stock Levels
604 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
Bolt Seal - Material : PP Classification : High-Security Seal Color : Blue Locking Mechanism : High Strength Steel Insert

1222577


Stock Levels
500 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    UnoLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    High Strength Steel Insert
Bolt Seal - Material : PP Classification : High-Security Seal Color : Yellow Locking Mechanism : High Strength Steel Insert

1222576


Stock Levels
1248 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    UnoLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    High Strength Steel Insert
HanaLock - Orange Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222259


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Red Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222255


Stock Levels
725 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Green Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222246


Stock Levels
485 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Yellow Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222256


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
Bolt Seal - Color : Yellow Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222238


Stock Levels
238 In stock
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Blue Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222245


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Blue Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222257


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
HanaLock - Green Maximum Temperature : 120 °C | 248 °F Minimum Temperature : -40 °C | -40 °F Removability : Cutting tool required

1222240


Stock Levels
In production
Attributes
  • Classification
    High-Security Seal
  • Seal Type
    Bolt Seal
  • Type
    HanaLock
  • Removability
    Cutting tool required
  • Locking Mechanism
    Metal Insert
