PCB Card Guides - Vertical/Snap-In/Locking/Release Tab
In stock

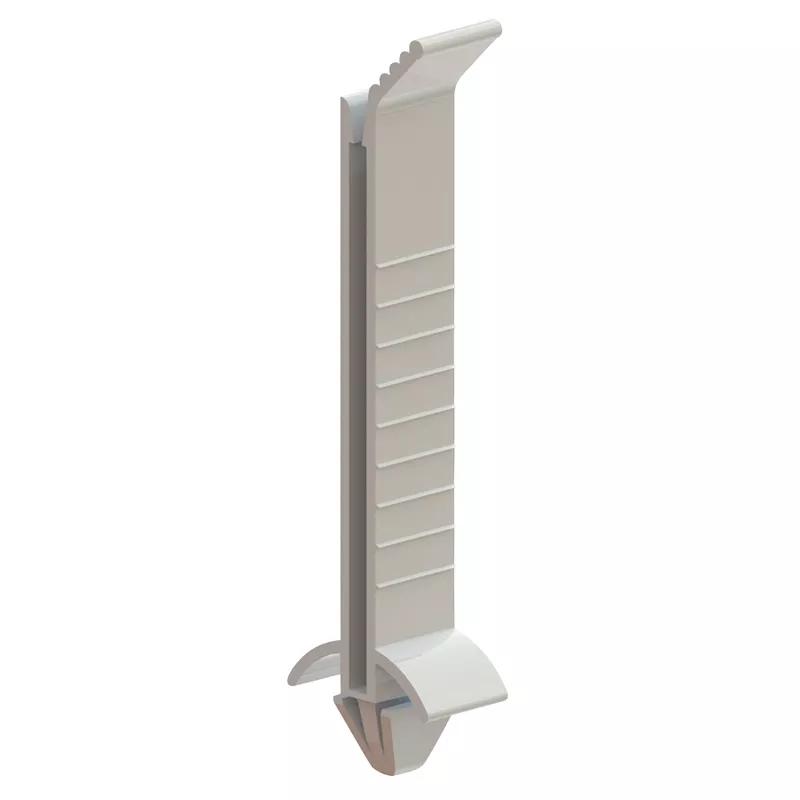

Snap-In Locking Vertical Card Guides with Release Tab hold PCB boards of any width vertically in place. These tension guides have a locking tab to hold the board securely in place and the double channel permits side-by-side mounting.
Request a quote
For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Item Code | Price range | Availability | PCB Vertical Hole Spacing (B) | Accepts Panel Thickness | Height | View |
|---|---|---|---|---|---|---|
| LCBG-3T-01 | $0.4446 - $0.9355 | 500 In stock |
|
0.063 in
|
2.875 in
|
|
| $0.4234 - $0.8909 | 15400 In stock |
|
0.063 in
|
1.375 in
|
||
| $0.4276 - $0.8995 | 23400 In stock |
|
0.063 in
|
1.870 in
|
||
| $0.4193 - $0.8822 | 18200 In stock |
|
0.063 in
|
0.880 in
|
||
Vertical Card Guide - UL94 V-2 ; Height 73 mm | 2.875 in
- Price Range
- $0.9355 - $0.4446
- Stock Levels
- 500 In stock
Attributes
-
Accepts Panel Thickness
0.063 in -
Height
2.875 in -
Maximum Operating Temperature
185 °F -
Minimum Operating Temperature
-40 °F -
Color
Natural
Vertical Card Guide - UL94 V-2 ; Height 34.9 mm | 1.375 in
- Price Range
- $0.8909 - $0.4234
- Stock Levels
- 15400 In stock
Attributes
-
Accepts Panel Thickness
0.063 in -
Height
1.375 in -
Maximum Operating Temperature
185 °F -
Minimum Operating Temperature
-40 °F -
Color
Natural
Vertical Card Guide - UL94 V-2 ; Height 47.5 mm | 1.870 in
- Price Range
- $0.8995 - $0.4276
- Stock Levels
- 23400 In stock
Attributes
-
Accepts Panel Thickness
0.063 in -
Height
1.870 in -
Maximum Operating Temperature
185 °F -
Minimum Operating Temperature
-40 °F -
Color
Natural
Vertical Card Guide - UL94 V-2 ; Height 22.4 mm | 0.880 in
- Price Range
- $0.8822 - $0.4193
- Stock Levels
- 18200 In stock
Attributes
-
Accepts Panel Thickness
0.063 in -
Height
0.880 in -
Maximum Operating Temperature
185 °F -
Minimum Operating Temperature
-40 °F -
Color
Natural
