Manual Hold-Down Clamps - Vertical

In stock

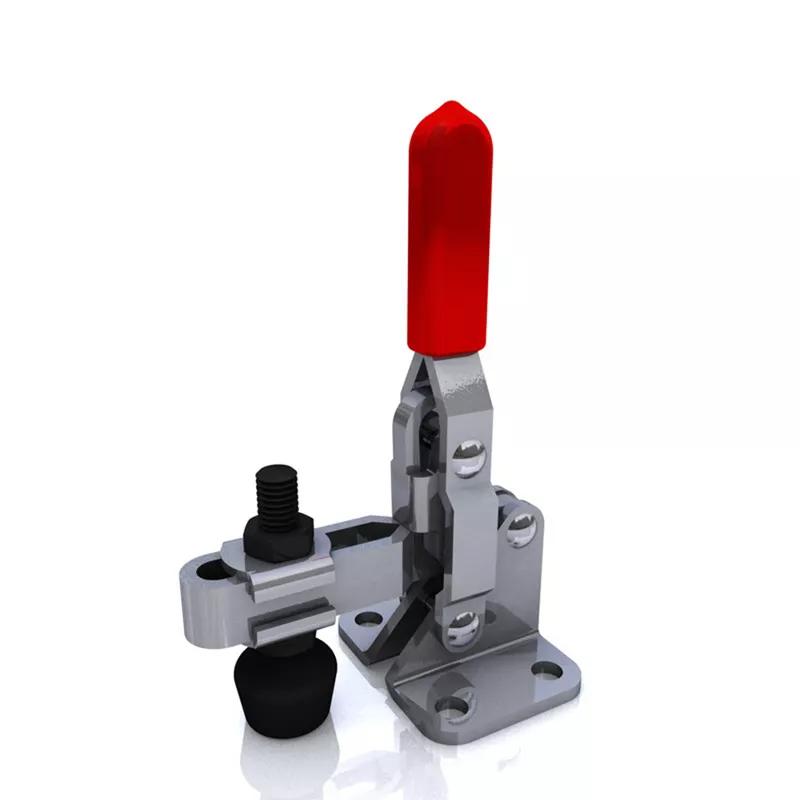

Vertical Hold Down Clamps, also known as Vertical Toggle Clamps, have the ability to hold large amounts of pressure. These Hold Down Clamps also save valuable space without sacrificing holding capacity or clamp performance.

Our Hold-Down Clamps feature a Red Polyvinyl Chloride (PVC) hand grip with a cushioned profile for improved user comfort. Pivot points are fitted with hardened Steel or Stainless Steel rivets to maintain accuracy, and to provide a long service life. The Clamps have adjustable spindles, and they are manufactured with a formed end to the arm.

Flanged Washers are supplied with all slotted arm versions.

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Height Under Bar Holding Force Overall Height Buy
EMC12147
$13.76 - $16.14 96 In stock
1.563 in
500 lbs
6.142 in
493805
$32.82 - $38.51 12 In stock
0.906 in
330.7 lbs
4.685 in
493804
$23.43 - $27.52 20 In stock
0.63 in
156.5 lbs
3.78 in
493779
$9.38 - $11.01 19 In stock
0.63 in
156.5 lbs
3.858 in
493778
$9.75 - $11.45 129 In stock
0.614 in
110.2 lbs
3.031 in
493781
$16.87 - $19.80 22 In stock
1.276 in
551.2 lbs
6.89 in
493780
$13.14 - $15.41 18 In stock
0.906 in
330.7 lbs
4.843 in
493803
$19.39 - $22.01 3 In stock
0.614 in
110.2 lbs
3.031 in
493782
$24.99 - $29.35 14 In stock
1.693 in
771.6 lbs
8.661 in
EMC12050U
$12.19 - $14.31 In production
0.894 in
200 lbs
4.094 in
EMC12050UL
$11.25 - $13.21 81 In stock
0.894 in
200 lbs
4.094 in
EMC11002B
$13.14 - $15.41 82 In stock
0.866 in
165 lbs
3.803 in
EMC12050
$9.75 - $11.45 25 In stock
0.878 in
200 lbs
4.094 in
EMC12055
$9.38 - $11.01 87 In stock
1.122 in
200 lbs
4.567 in
EMC12141
$13.76 - $16.14 93 In stock
1.252 in
500 lbs
4.173 in
EMC12265
$22.50 - $26.41 93 In stock
1.732 in
750 lbs
8.091 in
EMC13005
$13.00 - $14.15 95 In stock
0.5 in
150 lbs
1.402 in
Manual Hold Down Clamp: Height Under Bar - 39.7 mm | 1.563 in; Holding Force - 226.8 kg | 500 lbs; Overall Height : 156.0 mm | 6.142 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12147

Price Range
$16.14 - $13.76

Stock Levels
96 In stock
Attributes
  • Height Under Bar
    1.563 in
  • Holding Force
    500 lbs
  • Overall Height
    6.142 in
  • Overall Length
    5.933 in
  • Bar Type
    Straight
Manual Hold Down Clamp: Height Under Bar - 23.0 mm | 0.906 in; Holding Force - 150.0 kg | 330.7 lbs; Overall Height : 119.0 mm | 4.685 in ; Full Material : Stainless Steel;Polyvinyl Chloride

493805

Price Range
$38.51 - $32.82

Stock Levels
12 In stock
Attributes
  • Height Under Bar
    0.906 in
  • Holding Force
    330.7 lbs
  • Overall Height
    4.685 in
  • Overall Length
    4.843 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 16.0 mm | 0.63 in; Holding Force - 71.0 kg | 156.5 lbs; Overall Height : 96.0 mm | 3.78 in ; Full Material : Stainless Steel;Polyvinyl Chloride

493804

Price Range
$27.52 - $23.43

Stock Levels
20 In stock
Attributes
  • Height Under Bar
    0.63 in
  • Holding Force
    156.5 lbs
  • Overall Height
    3.78 in
  • Overall Length
    2.244 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 16.0 mm | 0.63 in; Holding Force - 71.0 kg | 156.5 lbs; Overall Height : 98.0 mm | 3.858 in ; Full Material : Zinc-Plated Steel

493779

Price Range
$11.01 - $9.38

Stock Levels
19 In stock
Attributes
  • Height Under Bar
    0.63 in
  • Holding Force
    156.5 lbs
  • Overall Height
    3.858 in
  • Overall Length
    4.843 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 15.6 mm | 0.614 in; Holding Force - 50.0 kg | 110.2 lbs; Overall Height : 77.0 mm | 3.031 in ; Full Material : Zinc-Plated Steel

493778

Price Range
$11.45 - $9.75

Stock Levels
129 In stock
Attributes
  • Height Under Bar
    0.614 in
  • Holding Force
    110.2 lbs
  • Overall Height
    3.031 in
  • Overall Length
    3.11 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 32.4 mm | 1.276 in; Holding Force - 250.0 kg | 551.2 lbs; Overall Height : 175.0 mm | 6.89 in ; Full Material : Zinc-Plated Steel

493781

Price Range
$19.80 - $16.87

Stock Levels
22 In stock
Attributes
  • Height Under Bar
    1.276 in
  • Holding Force
    551.2 lbs
  • Overall Height
    6.89 in
  • Overall Length
    6.89 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 23.0 mm | 0.906 in; Holding Force - 150.0 kg | 330.7 lbs; Overall Height : 123.0 mm | 4.843 in ; Full Material : Zinc-Plated Steel

493780

Price Range
$15.41 - $13.14

Stock Levels
18 In stock
Attributes
  • Height Under Bar
    0.906 in
  • Holding Force
    330.7 lbs
  • Overall Height
    4.843 in
  • Overall Length
    4.843 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 15.6 mm | 0.614 in; Holding Force - 50.0 kg | 110.2 lbs; Overall Height : 77.0 mm | 3.031 in ; Full Material : Stainless Steel;Polyvinyl Chloride

493803

Price Range
$22.01 - $19.39

Stock Levels
3 In stock
Attributes
  • Height Under Bar
    0.614 in
  • Holding Force
    110.2 lbs
  • Overall Height
    3.031 in
  • Overall Length
    2.008 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 43.0 mm | 1.693 in; Holding Force - 350.0 kg | 771.6 lbs; Overall Height : 220.0 mm | 8.661 in ; Full Material : Zinc-Plated Steel

493782

Price Range
$29.35 - $24.99

Stock Levels
14 In stock
Attributes
  • Height Under Bar
    1.693 in
  • Holding Force
    771.6 lbs
  • Overall Height
    8.661 in
  • Overall Length
    8.661 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 22.7 mm | 0.894 in; Holding Force - 90.7 kg | 200 lbs; Overall Height : 104.0 mm | 4.094 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12050U

Price Range
$14.31 - $12.19

Stock Levels
In production
Attributes
  • Height Under Bar
    0.894 in
  • Holding Force
    200 lbs
  • Overall Height
    4.094 in
  • Overall Length
    2.547 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 22.7 mm | 0.894 in; Holding Force - 90.7 kg | 200 lbs; Overall Height : 104.0 mm | 4.094 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12050UL

Price Range
$13.21 - $11.25

Stock Levels
81 In stock
Attributes
  • Height Under Bar
    0.894 in
  • Holding Force
    200 lbs
  • Overall Height
    4.094 in
  • Overall Length
    3.492 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 22 mm | 0.866 in; Holding Force - 74.8 kg | 165 lbs; Overall Height : 96.6 mm | 3.803 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC11002B

Price Range
$15.41 - $13.14

Stock Levels
82 In stock
Attributes
  • Height Under Bar
    0.866 in
  • Holding Force
    165 lbs
  • Overall Height
    3.803 in
  • Overall Length
    2.638 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 22.3 mm | 0.878 in; Holding Force - 90.7 kg | 200 lbs; Overall Height : 104.0 mm | 4.094 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12050

Price Range
$11.45 - $9.75

Stock Levels
25 In stock
Attributes
  • Height Under Bar
    0.878 in
  • Holding Force
    200 lbs
  • Overall Height
    4.094 in
  • Overall Length
    2.591 in
  • Bar Type
    Straight
Manual Hold Down Clamp: Height Under Bar - 28.5 mm | 1.122 in; Holding Force - 90.7 kg | 200 lbs; Overall Height : 116.0 mm | 4.567 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12055

Price Range
$11.01 - $9.38

Stock Levels
87 In stock
Attributes
  • Height Under Bar
    1.122 in
  • Holding Force
    200 lbs
  • Overall Height
    4.567 in
  • Overall Length
    2.602 in
  • Bar Type
    Straight
Manual Hold Down Clamp: Height Under Bar - 31.8 mm | 1.252 in; Holding Force - 226.8 kg | 500 lbs; Overall Height : 106.0 mm | 4.173 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12141

Price Range
$16.14 - $13.76

Stock Levels
93 In stock
Attributes
  • Height Under Bar
    1.252 in
  • Holding Force
    500 lbs
  • Overall Height
    4.173 in
  • Overall Length
    4.661 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 44.0 mm | 1.732 in; Holding Force - 340.2 kg | 750 lbs; Overall Height : 205.5 mm | 8.091 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC12265

Price Range
$26.41 - $22.50

Stock Levels
93 In stock
Attributes
  • Height Under Bar
    1.732 in
  • Holding Force
    750 lbs
  • Overall Height
    8.091 in
  • Overall Length
    5.492 in
  • Bar Type
    U-Bar
Manual Hold Down Clamp: Height Under Bar - 12.7 mm | 0.5 in; Holding Force - 68 kg | 150 lbs; Overall Height : 35.6 mm | 1.402 in Full Material : Zinc-Plated Steel;Polyvinyl Chloride

EMC13005

Price Range
$14.15 - $13.00

Stock Levels
95 In stock
Attributes
  • Height Under Bar
    0.5 in
  • Holding Force
    150 lbs
  • Overall Height
    1.402 in
  • Overall Length
    2.244 in
  • Bar Type
    U-Bar
