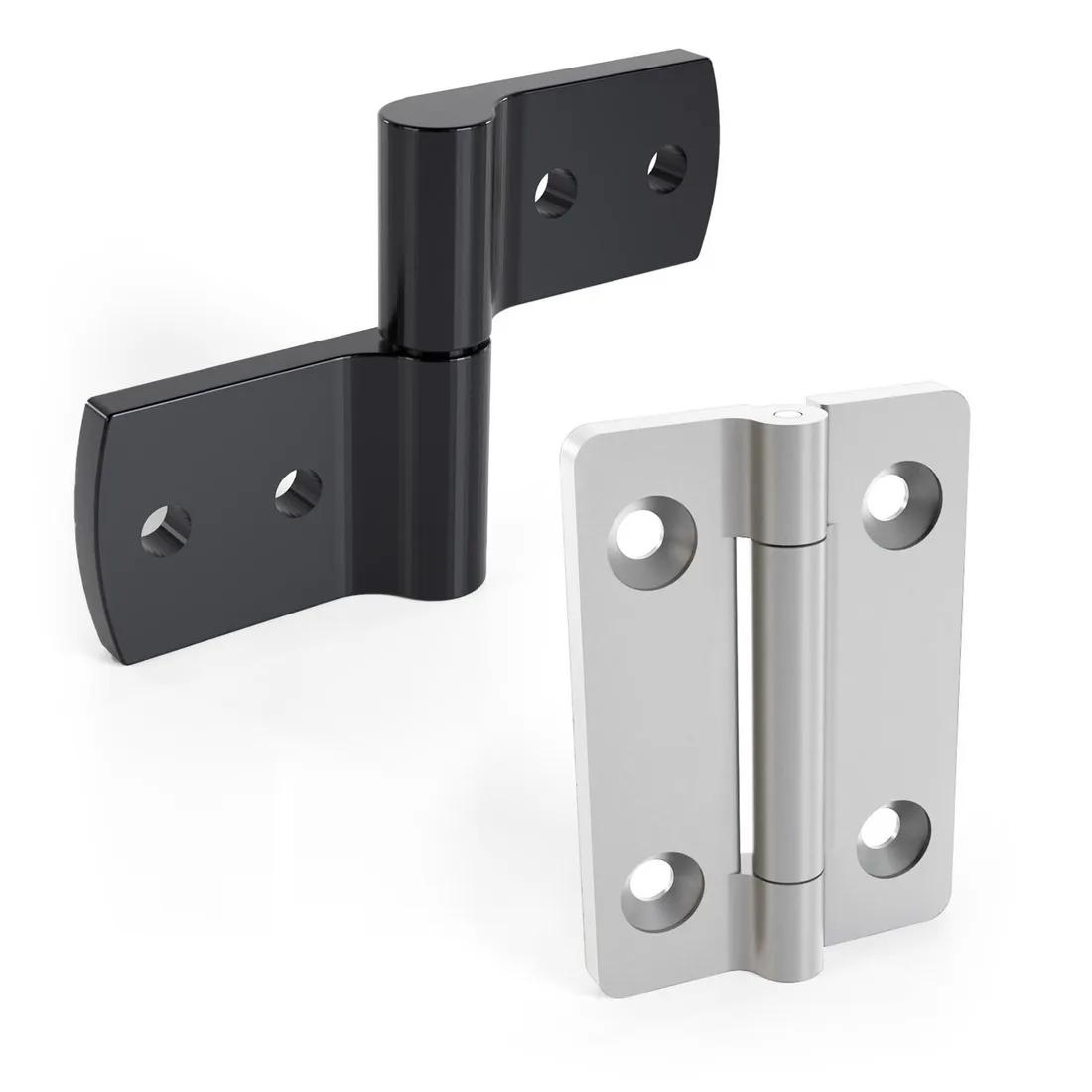

Torque Hinges - Fixed Force

In stock

Detent Hinges are Torque Hinges indented every 30 degrees allowing panels to be positioned and maintained withough auxiliary components. The torque is factory preset and cannot be modified by users. Made of Anodised Aluminiumm, a choice of finish is available for aesthetic appeal. Several torque values are available.

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

35 results

Sort by

None

Product SKUs information
Price range	Availability	Leaf Thickness	Overall Length	Maximum Torque	Overall Thickness	Overall Width
R 828,2784 - R 828,2784	1200 In stock - Delivery conditions may apply, visit our FAQs	0.118 in 3.0 mm	1.575 in 40.0 mm	2.3 Nm 2.3 Nm	0.394 in 10.0 mm	1.496 in 38.0 mm

R 242,9057 - R 500,2792	100 In stock - Delivery conditions may apply, visit our FAQs	0.394 in 10.0 mm	2.244 in 57.0 mm			2.047 in 52.0 mm

R 505,6419 - R 1 199,3459	Request the lead time here	0.197 in 5.0 mm	3.016 in 76.6 mm	2.94 Nm 2.94 Nm		2.016 in 51.2 mm

R 447,2956 - R 1 075,6712	Request the lead time here	0.138 in 3.5 mm	2.126 in 54.0 mm	0.45 Nm 0.45 Nm		1.323 in 33.6 mm

R 404,9706 - R 964,0049	Request the lead time here	0.138 in 3.5 mm	2.126 in 54.0 mm	0.90 Nm 0.90 Nm		1.323 in 33.6 mm

R 949,5818 - R 1 477,1274	125 In stock - Delivery conditions may apply, visit our FAQs	0.177 in 4.5 mm	2.244 in 57.0 mm	2.3 Nm 2.3 Nm	0.512 in 13.0 mm	2.008 in 51.0 mm

R 504,3563 - R 1 196,3438	Request the lead time here	0.118 in 3.0 mm	1.496 in 38.0 mm	2.3 Nm 2.3 Nm	0.394 in 10.0 mm	1.575 in 40.0 mm

R 1 561,8626 - R 3 581,8442	Request the lead time here	0.217 in 5.5 mm	3.937 in 100.0 mm	4.50 Nm 4.50 Nm		3.248 in 82.5 mm

R 1 627,4917 - R 3 732,3525	Request the lead time here	0.217 in 5.5 mm	3.937 in 100.0 mm	4.50 Nm 4.50 Nm		3.248 in 82.5 mm

R 566,9425 - R 1 249,9504	499 In stock - Delivery conditions may apply, visit our FAQs	0.118 in 3.0 mm	1.496 in 38.0 mm	0.9 Nm 0.9 Nm	0.394 in 10.0 mm	1.575 in 40.0 mm

R 578,4042 - R 1 371,9677	Request the lead time here	0.118 in 3.0 mm	1.496 in 38.0 mm	2.3 Nm 2.3 Nm	0.394 in 10.0 mm	1.575 in 40.0 mm

R 549,9189 - R 1 304,4201	44 In stock - Delivery conditions may apply, visit our FAQs	0.177 in 4.5 mm	2 in 50.8 mm	1.8 Nm 1.8 Nm	0.5 in 12.7 mm	2.248 in 57.1 mm

R 655,7419 - R 1 396,1572	Request the lead time here	0.138 in 3.5 mm	2.126 in 54.0 mm	0.68 Nm 0.68 Nm		1.323 in 33.6 mm

R 615,244 - R 1 414,4393	45 In stock - Delivery conditions may apply, visit our FAQs	0.177 in 4.5 mm	2 in 50.8 mm	2.3 Nm 2.3 Nm	0.5 in 12.7 mm	2.248 in 57.1 mm

R 504,9025 - R 1 187,8629	38 In stock - Delivery conditions may apply, visit our FAQs	0.197 in 5.0 mm	3.016 in 76.6 mm	2.26 Nm 2.26 Nm		2.016 in 51.2 mm

R 449,314 - R 1 065,7517	Request the lead time here	0.138 in 3.5 mm	2.126 in 54.0 mm	0.45 Nm 0.45 Nm		1.323 in 33.6 mm

R 575,9988 - R 1 388,0541	Request the lead time here	0.118 in 3.0 mm	1.496 in 38.0 mm	1.4 Nm 1.4 Nm	0.394 in 10.0 mm	1.575 in 40.0 mm

R 620,0041 - R 1 492,6528	Request the lead time here	0.177 in 4.5 mm	2 in 50.8 mm	4.5 Nm 4.5 Nm	0.5 in 12.7 mm	2.248 in 57.1 mm

R 577,5673 - R 1 358,9836	Request the lead time here	0.118 in 3.0 mm	1.496 in 38.0 mm	2.3 Nm 2.3 Nm	0.394 in 10.0 mm	1.575 in 40.0 mm

R 620,1681 - R 1 495,4798	35 In stock - Delivery conditions may apply, visit our FAQs	0.177 in 4.5 mm	2 in 50.8 mm	3.4 Nm 3.4 Nm	0.5 in 12.7 mm	2.248 in 57.1 mm
