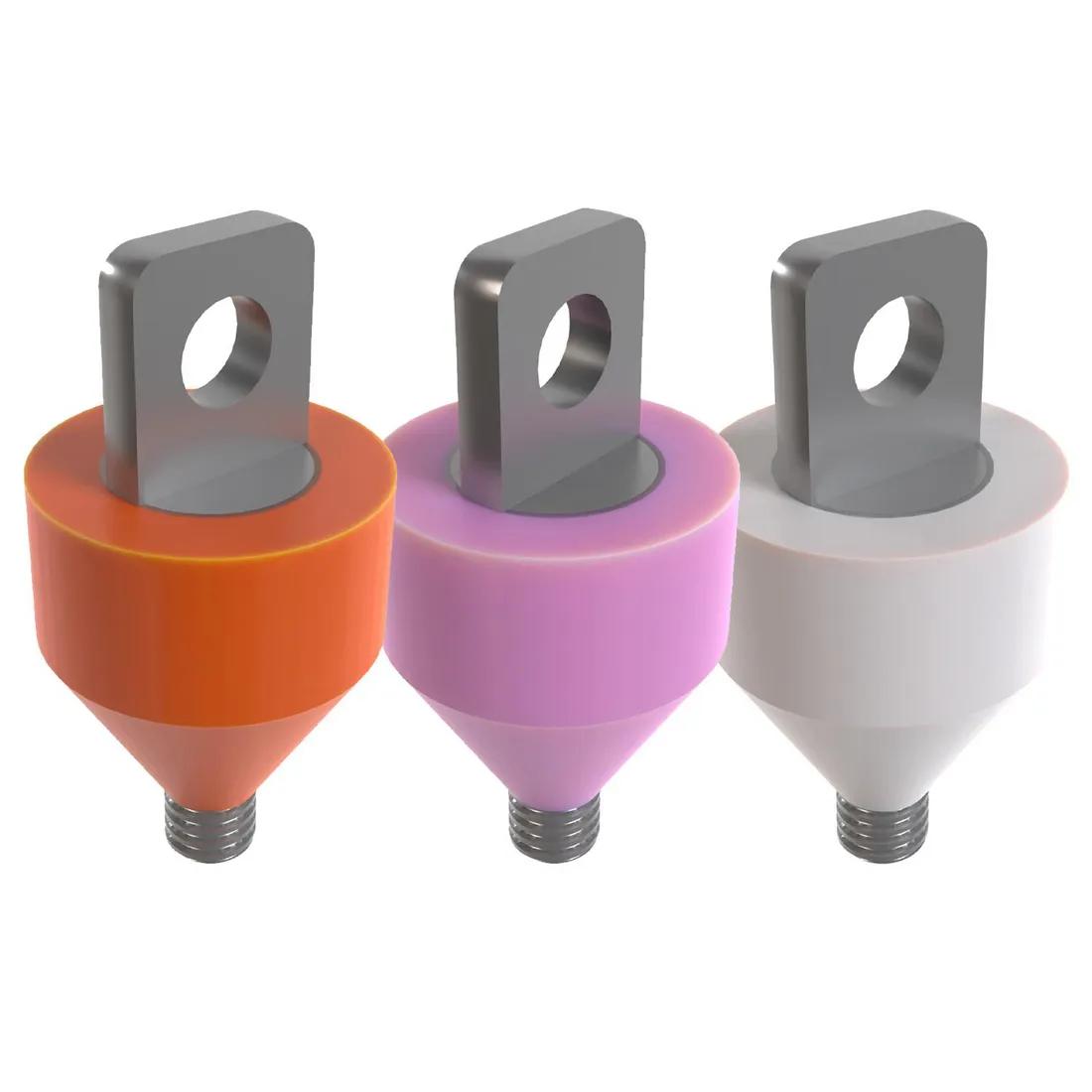

Masked Eye Bolts

In production

Masked Eye Bolts have a loop on one end, and are commonly used with hooks or other hanging systems. Used as a hanging solution for powder coating and painting. The tapered silicone provides a tight seal to the component, while a threaded insert secures the item.

An Eye Bolt is a type of bolt with a loop at one end and is typically used with a hook or other hanging systems. They are commonly used as a hanging solution during powder coating, painting, shot blasting and other surface treatment processes.

Silicone coating will protect the eye bolt during use, and extend its life cycle.

A highly economical and sustainable choice.

Material: Silicone Colour: Brown, Red, Purple, Green, White, Yellow, Orange, Transparent, Pink Series Code: SRF0062

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

9 results

Sort by

None

Product SKUs information

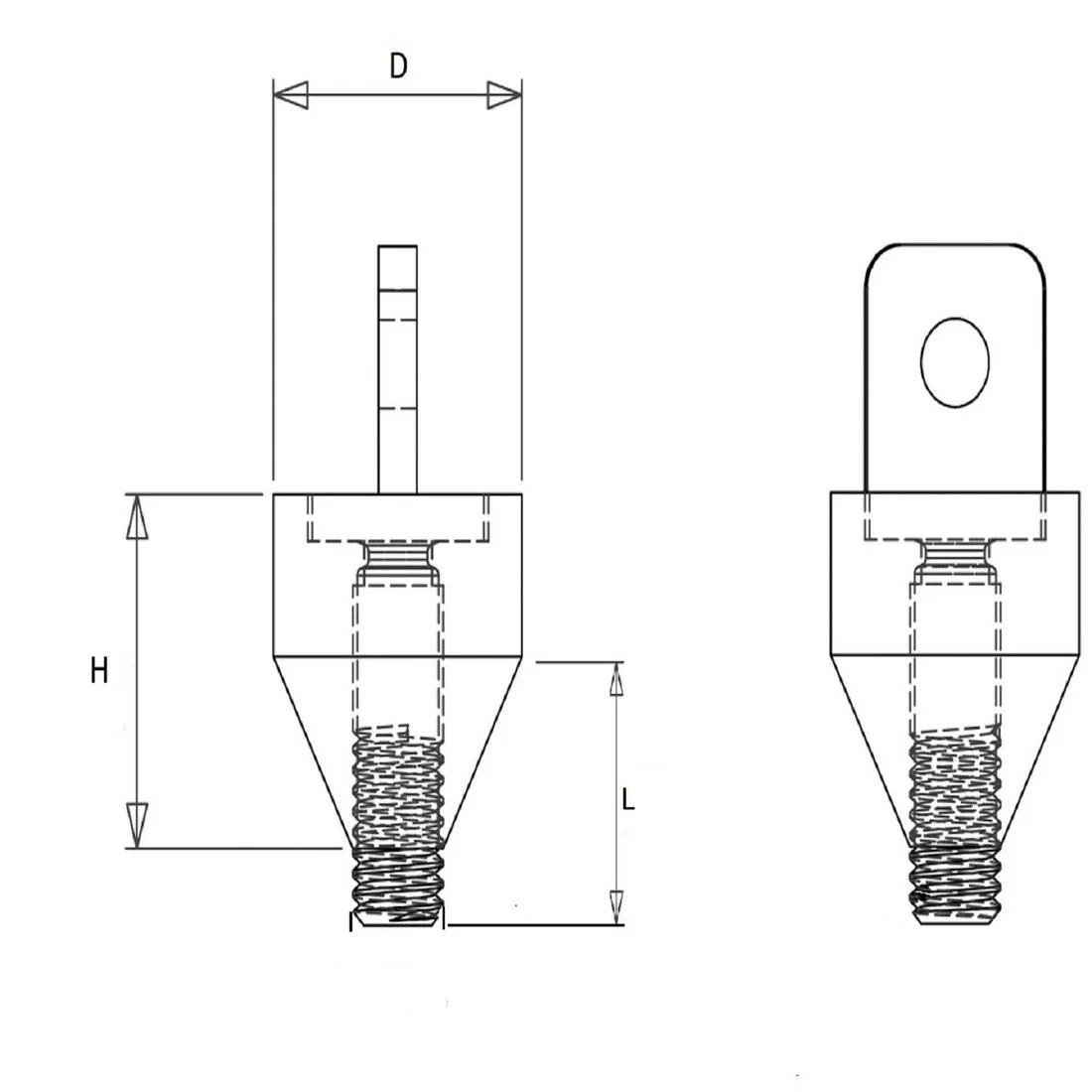

Price range	Availability	Thread Size	D	Colour	Material	H	L
R 26,0171 - R 66,4139	Request the lead time here	M8	0.709 in 18.0 mm	White	Silicone	0.709 in 18.0 mm	0.185 in 4.7 mm

R 54,6151 - R 139,1031	Request the lead time here	M20	1.102 in 28.0 mm	Brown	Silicone	1.102 in 28.0 mm	0.248 in 6.3 mm

R 38,1584 - R 96,7446	Request the lead time here	M12	0.866 in 22.0 mm	Green	Silicone	0.866 in 22.0 mm	0.228 in 5.8 mm

R 39,9206 - R 101,4511	Request the lead time here	M14	0.906 in 23.0 mm	Purple	Silicone	0.906 in 23.0 mm	0.228 in 5.8 mm

R 13,9868 - R 35,5602	Request the lead time here	M4	0.433 in 11.0 mm	Transparent	Silicone	0.433 in 11.0 mm	0.102 in 2.6 mm

R 41,6967 - R 106,1576	Request the lead time here	M16	0.945 in 24.0 mm	Red	Silicone	0.945 in 24.0 mm	0.268 in 6.8 mm

R 22,1319 - R 56,4779	Request the lead time here	M6	0.551 in 14.0 mm	Yellow	Silicone	0.551 in 14.0 mm	0.161 in 4.1 mm

R 19,2873 - R 49,0521	Request the lead time here	M5	0.433 in 11.0 mm	Orange	Silicone	0.433 in 11.0 mm	0.15 in 3.8 mm

R 12,2107 - R 31,0628	Request the lead time here	M3	0.394 in 10.0 mm	Pink	Silicone	0.433 in 11.0 mm	0.102 in 2.6 mm
