Conduit Edge Clips

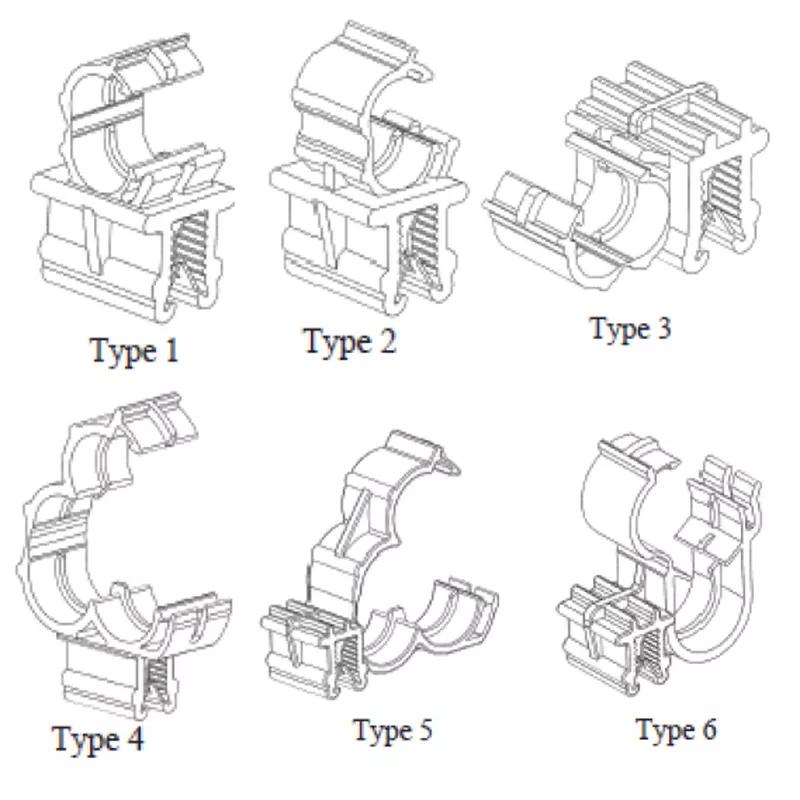

P110191 Conduit Fittings Corrugated Tube Mounting Clips - Line Drawing

Conduit Edge Clips

In production

These clips are designed to mount onto the edge of a panel, requiring no through hole. They come in several styles that hold different corrugated tube sizes.

Series Code :SR6262

Print page
Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
15 results

Sort by

None
Product SKUs information
Essentra Part Number Price range Availability Minimum Panel Thickness Overall Length Compatible Cable Diameter Maximum Panel Thickness Overall Width Type View
R 16,3156 - R 22,3434 Request the lead time here
3.0 mm
20.0 mm
10.0 mm
6.0 mm
22.0 mm
Corrugated
R 17,1306 - R 23,4819 Request the lead time here
0.7 mm
15.0 mm
13.0 mm
3.0 mm
15.0 mm
Corrugated
R 10,3029 - R 14,1049 Request the lead time here
0.7 mm
15.0 mm
4.5 mm
3.0 mm
15.0 mm
Corrugated
R 13,9782 - R 19,1651 Request the lead time here
3.0 mm
20.0 mm
4.5 mm
6.0 mm
20.0 mm
Corrugated
R 16,7128 - R 22,9092 Request the lead time here
3.0 mm
23.0 mm
13.0 mm
6.0 mm
13.0 mm
Corrugated
R 13,9782 - R 28,889 Request the lead time here
3.0 mm
20.0 mm
4.5 mm
6.0 mm
20.0 mm
Corrugated
R 16,3156 - R 33,7884 Request the lead time here
0.7 mm
15.0 mm
10.0 mm
3.0 mm
22.0 mm
Corrugated
R 16,3156 - R 22,3434 Request the lead time here
3.0 mm
22.0 mm
10.0 mm
6.0 mm
12.0 mm
Corrugated
R 16,3156 - R 22,3434 Request the lead time here
0.7 mm
41.0 mm
10.0 mm
3.0 mm
15.0 mm
Corrugated
R 15,5005 - R 21,2523 Request the lead time here
3.0 mm
15.0 mm
7.5 mm
6.0 mm
15.0 mm
Corrugated
R 15,9176 - R 21,7985 Request the lead time here
0.7 mm
34.0 mm
10.0 mm
3.0 mm
12.0 mm
Corrugated
R 16,7128 - R 22,9092 Request the lead time here
3.0 mm
20.0 mm
13.0 mm
6.0 mm
23.0 mm
Corrugated
R 10,3029 - R 14,1049 Request the lead time here
0.7 mm
15.0 mm
4.5 mm
3.0 mm
20.0 mm
Corrugated
R 16,3156 - R 22,3434 Request the lead time here
0.7 mm
15.0 mm
10.0 mm
3.0 mm
30.0 mm
Corrugated
R 10,3029 - R 21,2303 Request the lead time here
0.7 mm
15.0 mm
4.5 mm
3.0 mm
15.0 mm
Corrugated
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10300688

Price Range
R 22,3434 - R 16,3156

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Height to Ball Center
    8.9 mm
  • Overall Length
    20.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300718

Price Range
R 23,4819 - R 17,1306

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    13.0 mm
  • Height to Ball Center
    10.5 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300602

Price Range
R 14,1049 - R 10,3029

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    4.5 mm
  • Height to Ball Center
    15.5 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10300640

Price Range
R 19,1651 - R 13,9782

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    4.5 mm
  • Height to Ball Center
    18.5 mm
  • Overall Length
    20.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10628942

Price Range
R 22,9092 - R 16,7128

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    13.0 mm
  • Height to Ball Center
    20.0 mm
  • Overall Length
    23.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10300633

Price Range
R 28,889 - R 13,9782

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    4.5 mm
  • Height to Ball Center
    7.7 mm
  • Overall Length
    20.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300671

Price Range
R 33,7884 - R 16,3156

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Height to Ball Center
    8.7 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10300664

Price Range
R 22,3434 - R 16,3156

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Height to Ball Center
    18.5 mm
  • Overall Length
    22.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300695

Price Range
R 22,3434 - R 16,3156

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Height to Ball Center
    13.6 mm
  • Overall Length
    41.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10300657

Price Range
R 21,2523 - R 15,5005

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    7.5 mm
  • Height to Ball Center
    17.5 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10553886

Price Range
R 21,7985 - R 15,9176

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Height to Ball Center
    19.4 mm
  • Overall Length
    34.0 mm
Quick View
View Product >
Corrugated Tube Clip 3.0 mm 6.0 mm (T) PA

10628959

Price Range
R 22,9092 - R 16,7128

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    13.0 mm
  • Height to Ball Center
    23.3 mm
  • Overall Length
    20.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300626

Price Range
R 14,1049 - R 10,3029

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    4.5 mm
  • Height to Ball Center
    6.5 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300701

Price Range
R 22,3434 - R 16,3156

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    10.0 mm
  • Overall Length
    15.0 mm
  • Overall Width
    30.0 mm
Quick View
View Product >
Corrugated Tube Clip 0.7 mm 3.0 mm (T) PA

10300619

Price Range
R 21,2303 - R 10,3029

Stock Levels
Request the lead time here
Attributes
  • Colour
    Black
  • Mounting Method
    Edge Mount
  • Compatible Cable Diameter
    4.5 mm
  • Height to Ball Center
    15.5 mm
  • Overall Length
    15.0 mm
Quick View
View Product >
