Push-In Rivets - Two Piece

In stock

Two-Piece Rivets is part of a two piece fastening solution that is used with an Edge Connector assembly (available to buy separately).

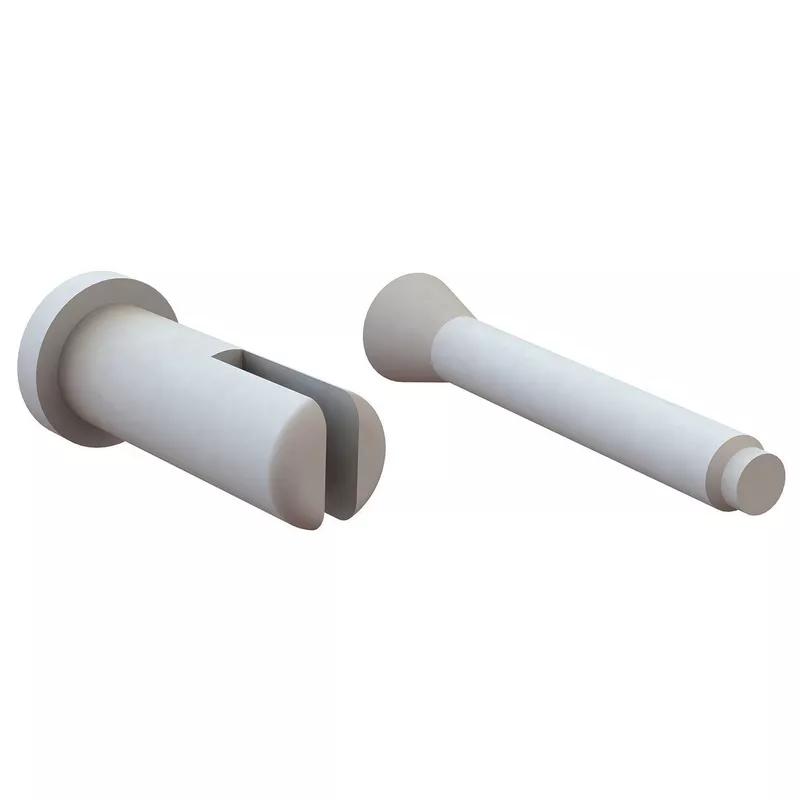

The range comprises of a Body (piece "A") and a Pin (piece "B"), which are sold separately. The Body is inserted through the connector and through the application chassis. The Pin is then pushed or tapped into the Body to secure the connector to the chassis.

The Pin can later be removed to allow for connector replacement or maintenance.

  • Material: Nylon 6/6
  • Color: Natural
  • UL94 V2 flame rated

Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
8 results
Product SKUs information
Item Code Price range Availability Pin Diameter Overall Body Width Compatible Part Numbers View
$0.0212 - $0.0291 Request the lead time here
0.069 in
$0.0264 - $0.0362 Request the lead time here
0.069 in
$0.0864 - $0.1185 Request the lead time here
0.110 in
$0.0855 - $0.1173 21000 In stock
0.096 in
$0.0215 - $0.0296 Request the lead time here
0.069 in
$0.0213 - $0.0293 Request the lead time here
0.062 in
$0.0846 - $0.1161 Request the lead time here
0.109 in
$0.1056 - $0.1449 Request the lead time here
0.110 in
Natural Nylon Pin Two Piece N/A - Body Length 8.4 mm | 0.330 in

27TPF0001B

Price Range
$0.0291 - $0.0212

Stock Levels
Request the lead time here
Attributes
  • Type
    Pin
  • Body Length
    0.330 in
  • Pin Diameter
    0.069 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Pin Two Piece N/A - Body Length 11.6 mm | 0.455 in

27TPF0003B

Price Range
$0.0362 - $0.0264

Stock Levels
Request the lead time here
Attributes
  • Type
    Pin
  • Body Length
    0.455 in
  • Pin Diameter
    0.069 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Body Two Piece N/A - Body Length 8.9 mm | 0.350 in

27TPF0002A

Price Range
$0.1185 - $0.0864

Stock Levels
Request the lead time here
Attributes
  • Type
    Body
  • Body Length
    0.350 in
  • Overall Body Width
    0.110 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Body Two Piece N/A - Body Length 8.6 mm | 0.340 in

27TPF0004A

Price Range
$0.1173 - $0.0855

Stock Levels
21000 In stock
Attributes
  • Type
    Body
  • Body Length
    0.340 in
  • Overall Body Width
    0.096 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Pin Two Piece N/A - Body Length 9.1 mm | 0.360 in

27TPF0002B

Price Range
$0.0296 - $0.0215

Stock Levels
Request the lead time here
Attributes
  • Type
    Pin
  • Body Length
    0.360 in
  • Pin Diameter
    0.069 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Pin Two Piece N/A - Body Length 8.6 mm | 0.340 in

27TPF0004B

Price Range
$0.0293 - $0.0213

Stock Levels
Request the lead time here
Attributes
  • Type
    Pin
  • Body Length
    0.340 in
  • Pin Diameter
    0.062 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Body Two Piece N/A - Body Length 7.7 mm | 0.305 in

27TPF0001A

Price Range
$0.1161 - $0.0846

Stock Levels
Request the lead time here
Attributes
  • Type
    Body
  • Body Length
    0.305 in
  • Overall Body Width
    0.109 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
Natural Nylon Body Two Piece N/A - Body Length 12.2 mm | 0.480 in

27TPF0003A

Price Range
$0.1449 - $0.1056

Stock Levels
Request the lead time here
Attributes
  • Type
    Body
  • Body Length
    0.480 in
  • Overall Body Width
    0.110 in
  • Material
    Nylon
  • Full Material
    Nylon 6/6
