N/A - Black; UL94 V-2; Nylon; Compatible Hole Diameter Range 5.1 - 5.2 mm | 0.202 - 0.206 in

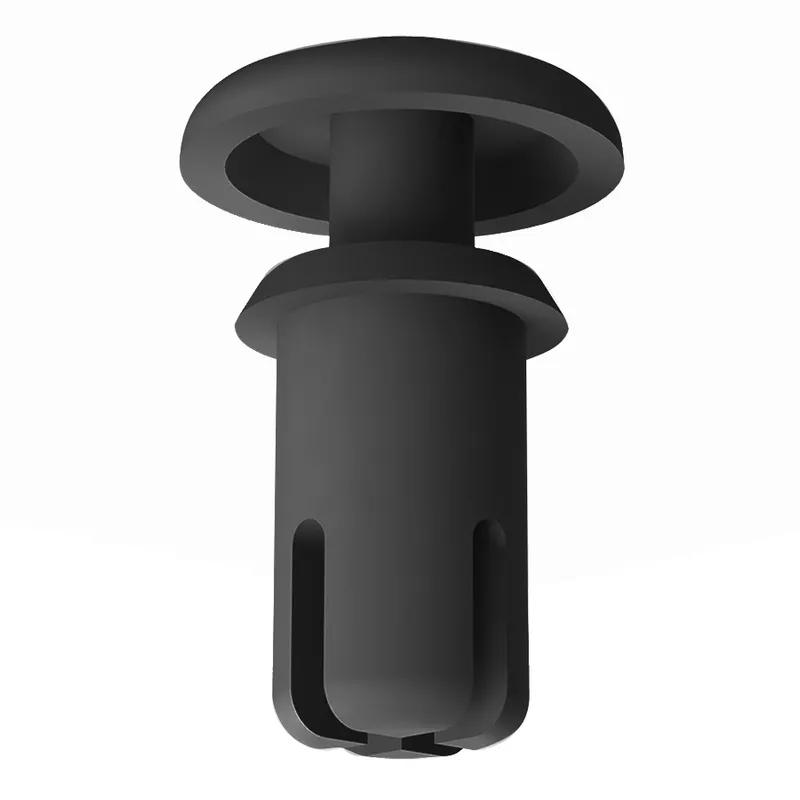

Snap Rivets are a quick and easy fastener solution that can be installed without tools! Fast and economical, they have specially designed legs that expand and firmly lock the component parts permanently in place. They fit with a simple push, and have a tidy and smooth finish. Ideal for panel fastening and server rack applications. They provide a solid connections by means of blind fixing.
Useful Information
Documents
Certificates
Specifications
Imperial
Metric
| Anchor Length | 0.330 in |
|---|---|
| Head Diameter | 0.356 in |
| Head Height | 0.085 in |
| Compatible Hole Diameter Range | 0.202 - 0.206 in |
| Compatible Panel Thickness Range | 0.217 - 0.256 in |
| Colour | Black |
| Full Material | Nylon 6/6 |
| Rivet Type | Snap |
| Rivet Head Shape | Round |
| Rivet Fitting Style | Push-In |
| Material Flammability Standard | UL94 V-2 |
