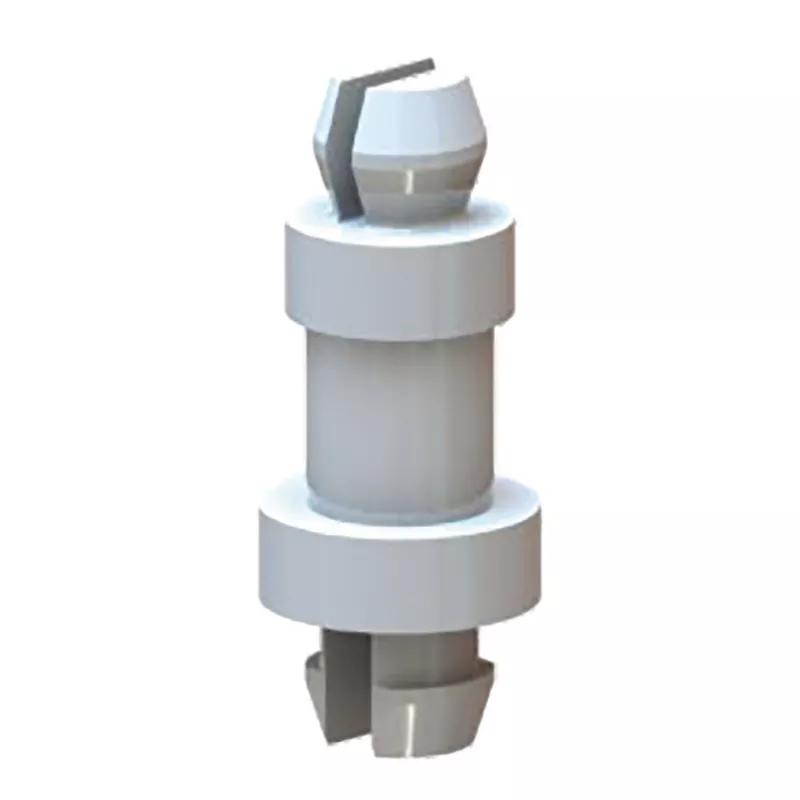

PCB Support Pillars - Two Prong Snap Lock Large Base/Two Prong Snap Fit

In stock

These spacers are mounted on both sides with a low profile two prong fixing. One side is locking and the other is a releasable snap fit. They have a shoulder at the base for locating purposes to facilitate automated assemble. These come in several styles and spacers

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Spacer Length All
Show more Show less
Hole Diameter A All
Panel Thickness A Range All
Hole Diameter B All
Panel Thickness B Range All
Material Flammability Standard All
Show less filters Show more filters
24 results

Sort by

None
Product SKUs information
Item Code Price range Availability Material Flammability Standard Hole Diameter A Hole Diameter B Panel Thickness A Range Panel Thickness B Range Spacer Length View
$0.1944 - $0.2103 Request the lead time here
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.126 in
$0.2805 - $0.3039 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.874 in
$0.2646 - $0.2867 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.752 in
$0.321 - $0.3477 Request the lead time here
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
1.374 in
$0.2106 - $0.2282 2000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.374 in
MSPE-8-01 $0.2331 - $0.2523 Request the lead time here
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.5 in
$0.3059 - $0.3314 1000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.874 in
$0.2534 - $0.2747 68000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.5 in
$0.249 - $0.2697 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.626 in
$0.2795 - $0.3029 4000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.689 in
$0.2069 - $0.2241 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.311 in
MSPE-3-01 $0.2015 - $0.218 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.189 in
$0.206 - $0.2231 3000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.252 in
$0.2709 - $0.2934 Request the lead time here
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.626 in
$0.2573 - $0.2789 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.689 in
$0.2205 - $0.2388 1000 In stock
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
0.437 in
$0.2888 - $0.3125 1000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.752 in
$0.2198 - $0.2381 10000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.189 in
$0.3117 - $0.3377 Request the lead time here
UL94 V-2
0.154 in
0.154 in
0.063 in
0.063 in
1.252 in
$0.2271 - $0.246 4000 In stock
UL94 V-2
0.157 in
0.157 in
0.063 in
0.063 in
0.311 in
    • of 2
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 3.2 mm | 0.125 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-2-01

Price Range
$0.2103 - $0.1944

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 22.2 mm | 0.875 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-14-01

Price Range
$0.3039 - $0.2805

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 19.1 mm | 0.750 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-12-01

Price Range
$0.2867 - $0.2646

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 34.9 mm | 1.375 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-22-01

Price Range
$0.3477 - $0.321

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 9.5 mm | 0.375 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-6-01

Price Range
$0.2282 - $0.2106

Stock Levels
2000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 12.7 mm | 0.500 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-8-01

Price Range
$0.2523 - $0.2331

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 22.2 mm | 0.875 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-14-01

Price Range
$0.3314 - $0.3059

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 12.7 mm | 0.500 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-8-01

Price Range
$0.2747 - $0.2534

Stock Levels
68000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 15.9 mm | 0.625 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-10-01

Price Range
$0.2697 - $0.249

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 17.5 mm | 0.688 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-11-01

Price Range
$0.3029 - $0.2795

Stock Levels
4000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 8 mm | 0.313 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-5-01

Price Range
$0.2241 - $0.2069

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 4.7 mm | 0.187 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-3-01

Price Range
$0.218 - $0.2015

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 6.4 mm | 0.250 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-4-01

Price Range
$0.2231 - $0.206

Stock Levels
3000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 15.9 mm | 0.625 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-10-01

Price Range
$0.2934 - $0.2709

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 17.5 mm | 0.688 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-11-01

Price Range
$0.2789 - $0.2573

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 11.1 mm | 0.438 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-7-01

Price Range
$0.2388 - $0.2205

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 19.1 mm | 0.750 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-12-01

Price Range
$0.3125 - $0.2888

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 4.7 mm | 0.187 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-3-01

Price Range
$0.2381 - $0.2198

Stock Levels
10000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 3.9 mm | 0.152 in ; PA ; Spacer Length 31.8 mm | 1.250 in ; Style 4 ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPE-20-01

Price Range
$0.3377 - $0.3117

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.154 in
  • Hole Diameter B
    0.154 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
PCB Support - Hole Diameter A 4 mm | 0.157 in ; PA ; Spacer Length 8 mm | 0.313 in ; Style MSPS ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

MSPS-5-01

Price Range
$0.246 - $0.2271

Stock Levels
4000 In stock
Attributes
  • Body Diameter
    0.181 in
  • Hole Diameter A
    0.157 in
  • Hole Diameter B
    0.157 in
  • Locking Head Height A
    0.142 in
  • Locking Head Height B
    0.142 in
Quick View
View Product >
