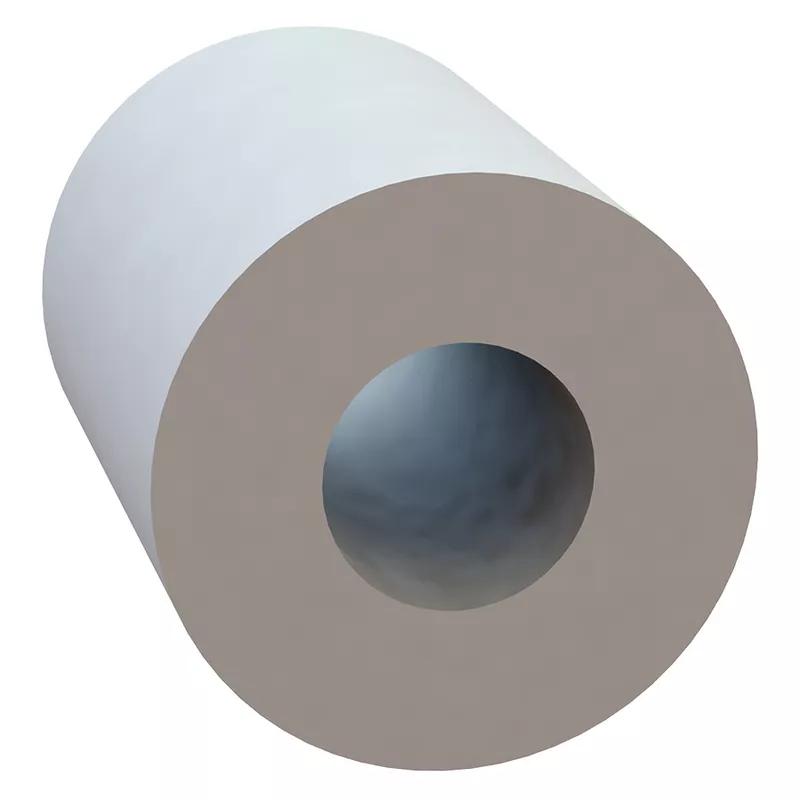

Spacer - 3.6 mm | 0.140 in ; 7.9 mm | 0.312 in ; 10.3 mm | 0.406 in
This round non-threaded spacer product provides physical spacing between components, as well as providing thermal and electrical insulation. Flame resistance rating UL94 V2.
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2508 |
| 10000 - 24999 | $0.2258 |
| 25000 + | $0.2033 |
Useful Information
Documents
Specifications
Imperial
Metric
| Inside Diameter | 0.140 in |
|---|---|
| Maximum Operating Temperature | 185 °F |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Outside Diameter | 0.312 in |
| Spacer Length | 0.406 in |
| Colour | Natural |
| Compatible Thread Sizes (All) | #6 (M3.5) |
| Full Material | Nylon 6/6 |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
| Spacer Shape | Round |
