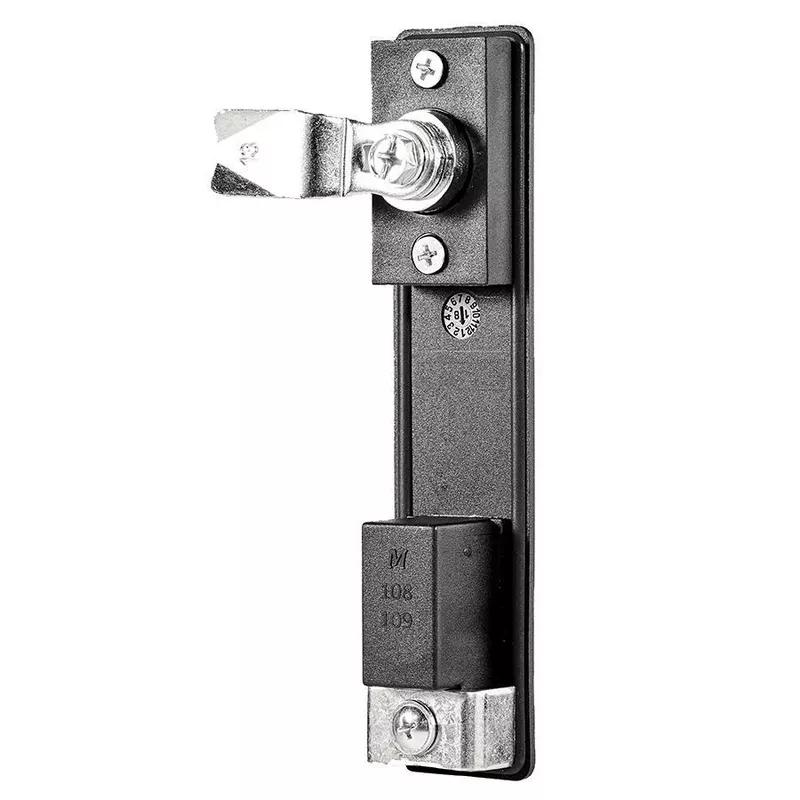

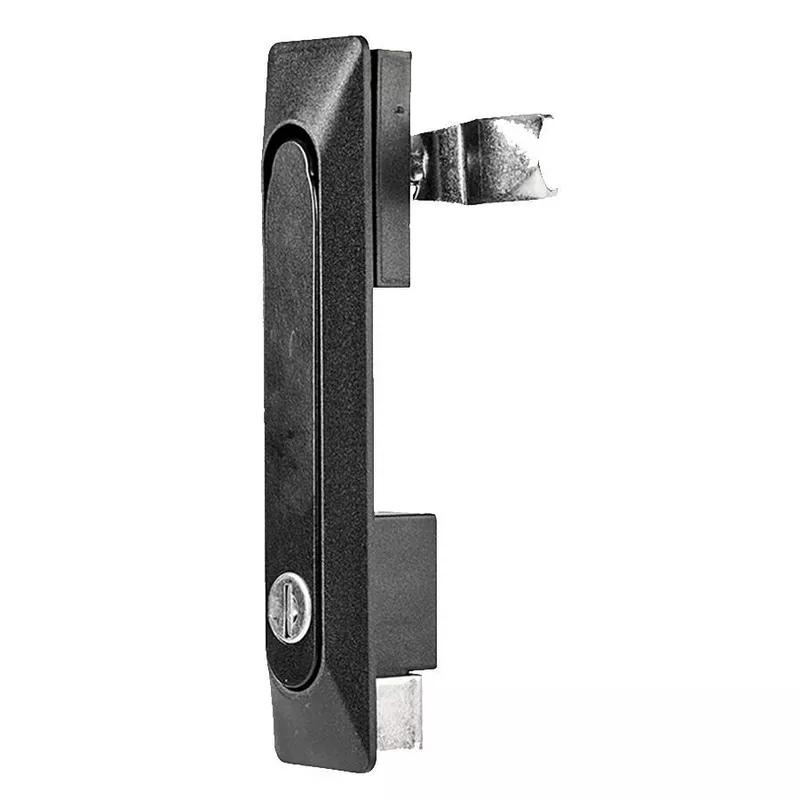

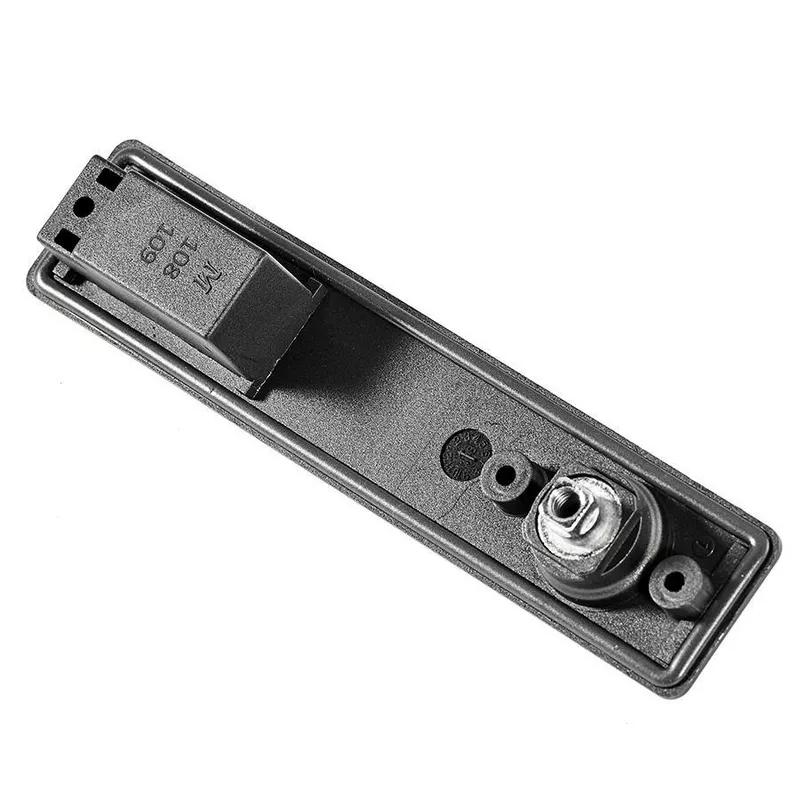

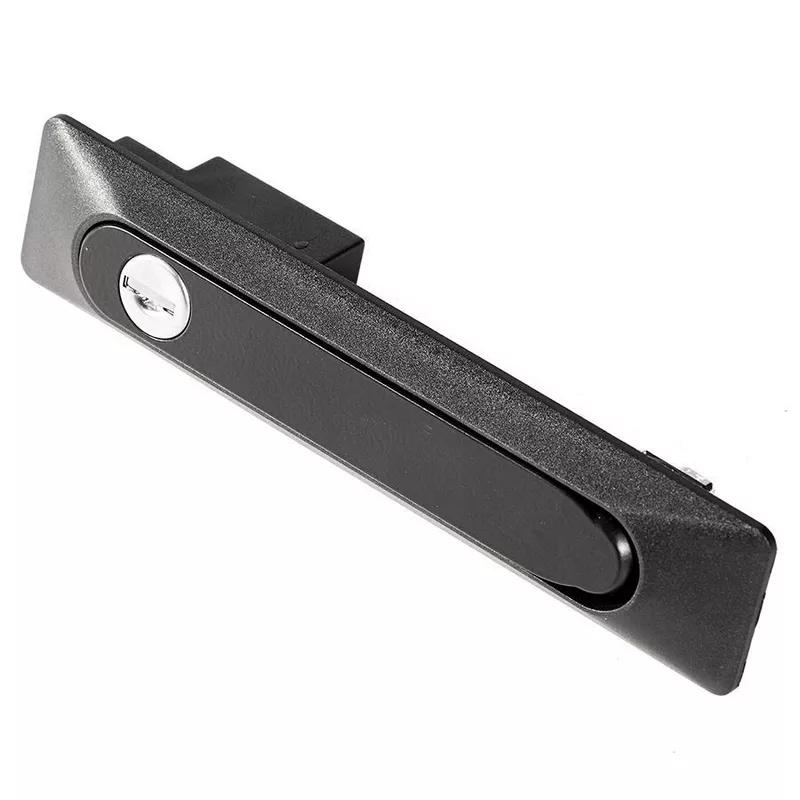

Swing Handle Keyed Alike 28.5 mm PA Natural
Lift and Turn Latches and Locks feature a low profile that can be stowed away when not in use. Features grip range adjustment, compression action and easy assembly. Ideal for a range of indoor and outdoor applications, including panels and enclosures. Several styles to choose from, with different key options and a choice of materials and finishes.
Loading...
| Quantity | Unit price |
|---|---|
| 1 - 24 | R 1 131,3869 |
| 25 - 49 | R 636,5411 |
| 50 + | R 620,2137 |
Useful Information
Documents
Specifications
Imperial
Metric

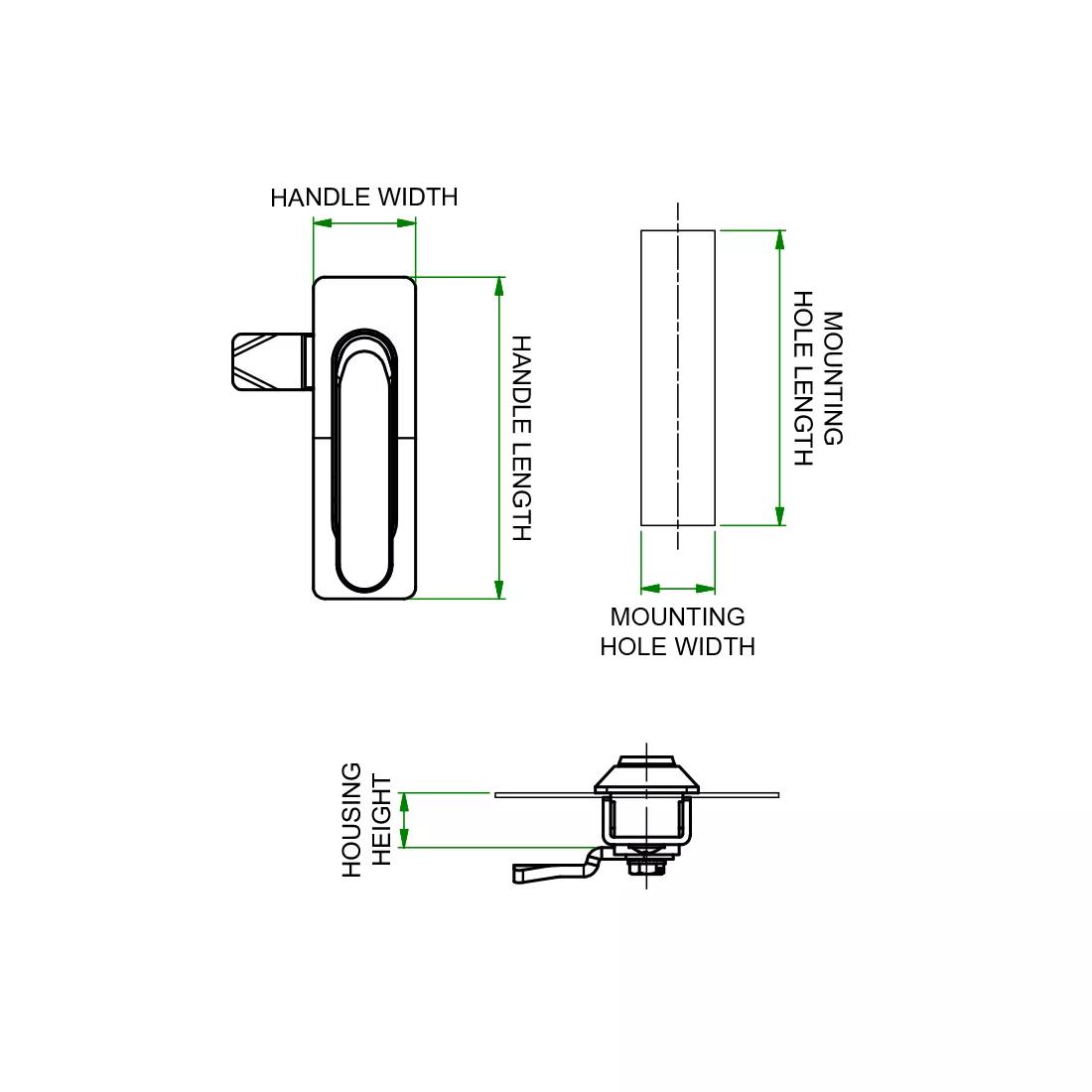

| Handle Length | 160.0 mm |
|---|---|
| Handle Width | 35.0 mm |
| Head Height | 9.0 mm |
| Housing Height | 18.5 mm |
| Maximum Grip | 28.5 mm |
| Mounting Hole Length | 50.0 mm |
| Mounting Hole Width | 25.0 mm |
| Finish | Chrome Plated |
| Handle Type | Swinghandle Key Operated |
| Includes | Two keys supplied with each latch |
| Key Type | Euro Key |
| Latch Material | PA |
| Mounting Orientation | Universal |
| Specifications | Does Not Compress |
| Commodity Code | 7907000090 |
