Soft Knurled Caps
ASSET_REFERENCE_PRIMARY_LD

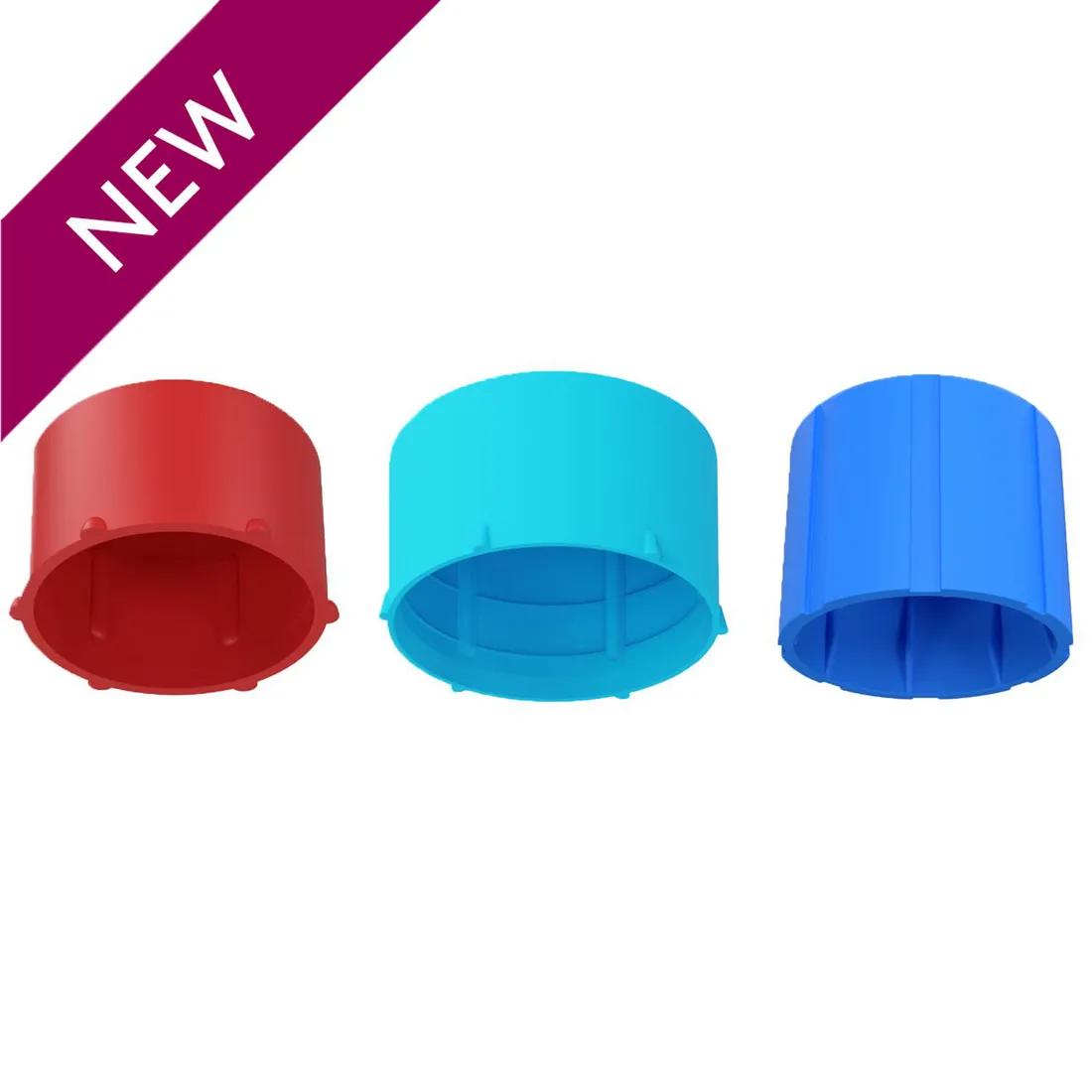

Soft Knurled Caps

In production

Soft Knurled Caps are a simple and economical way of protecting metric and UNF threads during painting, assembly or transportation. They have a knurled exterior and are manufacured from a soft, durable TPE that provides a better grip and a tight fit. Protects pipe ends from damage, and keeps dirt and debris out.

Easy to install and remove. They can operate in a temperature from -60 C up to 135 C.

Commonly used in plumbing, HVAC, and industrial applications.

  • Simple and economical way of protecting metric and UNF threads.
  • Easy to install and remove.
  • Operatures in temperatures from mimimum -60 C up to maximum 135 C.
Material: TPE Colour: Blue Series Code: SRF0010

Print page
Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
20 results

Sort by

None
Product SKUs information
Essentra Part Number Price range Availability ID Thread Size Colour Material D H Thread Standard View
R 3,0295 - R 7,929 Request the lead time here
17.0 mm
M16 ; 3/8 in
Blue
TPE
19.3 mm
13.7 mm
Metric Threads
R 2,0307 - R 6,9711 Request the lead time here
13.0 mm
M14 ; 1/4 in ; 5/8 in
Blue
TPE
15.0 mm
13.0 mm
UNF Threads
R 4,747 - R 17,6673 Request the lead time here
25.8 mm
Non Threaded
Blue
TPE
22.0 mm
Non Threaded
R 3,2076 - R 8,8868 Request the lead time here
21.0 mm
M20 ; M22 ; 1/2 in
Blue
TPE
23.4 mm
18.7 mm
Metric Threads
R 2,5437 - R 17,6673 Request the lead time here
25.0 mm
M25 ; M26 ; 3/4 in
Blue
TPE
27.4 mm
22.5 mm
Metric Threads
R 4,9715 - R 17,9333 Request the lead time here
37.5 mm
M40 ; 1-1/4 in ; 1-1/2 in
Blue
TPE
20.8 mm
Metric Threads
R 8,3611 - R 27,4056 Request the lead time here
59.0 mm
Non Threaded
Blue
TPE
28.0 mm
Non Threaded
R 7,1142 - R 15,8047 Request the lead time here
31.7 mm
M32 ; M36 ; 1 in ; 1-3/8 in
Blue
TPE
21.5 mm
UNF Threads
R 6,9205 - R 7,6126 Request the lead time here
8.1 mm
M8 . 3/8 . 7/16
Blue
TPE
9.3 mm
12.9 mm
UNF Threads
R 6,6437 - R 23,6273 Request the lead time here
44.3 mm
M50 ; 1-1/2 in
Blue
TPE
26.4 mm
Metric Threads
R 1,8703 - R 6,0132 Request the lead time here
11.0 mm
M10 ; M12 ; 1/8 in ; 1/2 in ; 9/16 in
Blue
TPE
13.0 mm
13.0 mm
UNF Threads
R 0,9353 - R 1,455 Request the lead time here
11.3 mm
M10 - M12; 3/8 - 7/16 in; 1/8 in
Blue
TPE
11.3 mm
12.4 mm
UNF
R 1,0109 - R 1,5726 Request the lead time here
13.0 mm
M14; 1/2 - 9/16 in; 1/4 in
Blue
TPE
13.0 mm
12.4 mm
UNF
R 1,1861 - R 1,845 Request the lead time here
17.3 mm
M169; 5/8 in; 3/8 in
Blue
TPE
17.3 mm
13.0 mm
UNF
R 2,9016 - R 4,5136 Request the lead time here
35.4 mm
M32 - M36; 1 in; 1-3/8 in
Blue
TPE
35.4 mm
21.5 mm
Metric
R 4,2947 - R 6,6806 Request the lead time here
48.5 mm
M50; 1-1/2 in
Blue
TPE
48.5 mm
26.4 mm
UNF
R 3,222 - R 5,012 Request the lead time here
41.3 mm
M40; 1-1/4 in; 1-1/2 in
Blue
TPE
41.3 mm
20.8 mm
UNF
R 5,646 - R 8,7827 Request the lead time here
62.0 mm
M56 - M58; 2 in
Blue
TPE
62.0 mm
28.0 mm
Metric
R 1,5383 - R 2,393 Request the lead time here
20.8 mm
M20-M22; 1/2 in
Blue
TPE
20.8 mm
18.6 mm
Metric
R 2,3185 - R 3,6065 Request the lead time here
25.6 mm
M25-M26; 3/4 in
Blue
TPE
25.6 mm
22.0 mm
Metric
Soft Knurled Cap 15.6 mm 17.3 mm Blue TPE

10093993

Price Range
R 7,929 - R 3,0295

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M16 ; 3/8 in
  • Thread Standard
    BSP Threads
  • Thread Standard
    Metric Threads
  • D
    19.3 mm
  • d
    15.6 mm
Quick View
View Product >
Soft Knurled Cap 12.3 mm 13.3 mm Blue TPE

10093986

Price Range
R 6,9711 - R 2,0307

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M14 ; 1/4 in ; 5/8 in
  • Thread Standard
    UNF Threads
  • Thread Standard
    BSP Threads
  • Thread Standard
    Metric Threads
  • D
    15.0 mm
Quick View
View Product >
Soft Knurled Cap 25.2 mm 26.4 mm Blue TPE

10094020

Price Range
R 17,6673 - R 4,747

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    Non Threaded
  • Thread Standard
    Non Threaded
  • d
    25.2 mm
  • H
    22.0 mm
  • ID
    25.8 mm
Quick View
View Product >
Soft Knurled Cap 19.8 mm 20.8 mm Blue TPE

10094006

Price Range
R 8,8868 - R 3,2076

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M20 ; M22 ; 1/2 in
  • Thread Standard
    Metric Threads
  • Thread Standard
    BSP Threads
  • D
    23.4 mm
  • d
    19.8 mm
Quick View
View Product >
Soft Knurled Cap 24.4 mm 25.6 mm Blue TPE

10094013

Price Range
R 17,6673 - R 2,5437

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M25 ; M26 ; 3/4 in
  • Thread Standard
    BSP Threads
  • Thread Standard
    Metric Threads
  • D
    27.4 mm
  • d
    24.4 mm
Quick View
View Product >
Soft Knurled Cap 37.5 mm 41.3 mm Blue TPE

10094044

Price Range
R 17,9333 - R 4,9715

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M40 ; 1-1/4 in ; 1-1/2 in
  • Thread Standard
    Metric Threads
  • Thread Standard
    BSP Threads
  • H
    20.8 mm
  • h
    20.8 mm
Quick View
View Product >
Soft Knurled Cap 59.0 mm 63.5 mm Blue TPE

10094068

Price Range
R 27,4056 - R 8,3611

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    Non Threaded
  • Thread Standard
    Non Threaded
  • H
    28.0 mm
  • h
    28.0 mm
  • ID
    59.0 mm
Quick View
View Product >
Soft Knurled Cap 31.7 mm 35.4 mm Blue TPE

10094037

Price Range
R 15,8047 - R 7,1142

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M32 ; M36 ; 1 in ; 1-3/8 in
  • Thread Standard
    Metric Threads
  • Thread Standard
    UNF Threads
  • Thread Standard
    BSP Threads
  • H
    21.5 mm
Quick View
View Product >
Soft Knurled Cap 7.6 mm 8.1 mm Blue TPE

10093962

Price Range
R 7,6126 - R 6,9205

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M8 . 3/8 . 7/16
  • Thread Standard
    UNF Threads
  • Thread Standard
    Metric Threads
  • D
    9.3 mm
  • d
    7.6 mm
Quick View
View Product >
Soft Knurled Cap 44.3 mm 48.5 mm Blue TPE

10094051

Price Range
R 23,6273 - R 6,6437

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M50 ; 1-1/2 in
  • Thread Standard
    Metric Threads
  • Thread Standard
    BSP Threads
  • H
    26.4 mm
  • h
    26.4 mm
Quick View
View Product >
Soft Knurled Cap 9.6 mm 11.3 mm Blue TPE

10093979

Price Range
R 6,0132 - R 1,8703

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M10 ; M12 ; 1/8 in ; 1/2 in ; 9/16 in
  • Thread Standard
    BSP Threads
  • Thread Standard
    UNF Threads
  • Thread Standard
    Metric Threads
  • D
    13.0 mm
Quick View
View Product >
Soft Knurled Cap 9.6 mm 11.3 mm Blue TPE

20592660

Price Range
R 1,455 - R 0,9353

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M10 - M12; 3/8 - 7/16 in; 1/8 in
  • Thread Standard
    Metric
  • Thread Standard
    UNF
  • Thread Standard
    GAS
  • D
    11.3 mm
Quick View
View Product >
Soft Knurled Cap 12.3 mm 13.0 mm Blue TPE

20592677

Price Range
R 1,5726 - R 1,0109

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M14; 1/2 - 9/16 in; 1/4 in
  • Thread Standard
    UNF
  • Thread Standard
    GAS
  • Thread Standard
    Metric
  • D
    13.0 mm
Quick View
View Product >
Soft Knurled Cap 15.6 mm 17.3 mm Blue TPE

20592684

Price Range
R 1,845 - R 1,1861

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M169; 5/8 in; 3/8 in
  • Thread Standard
    UNF
  • Thread Standard
    GAS
  • Thread Standard
    Metric
  • D
    17.3 mm
Quick View
View Product >
Soft Knurled Cap 31.7 mm 35.4 mm Blue TPE

20592714

Price Range
R 4,5136 - R 2,9016

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M32 - M36; 1 in; 1-3/8 in
  • Thread Standard
    Metric
  • Thread Standard
    GAS
  • D
    35.4 mm
  • d
    31.7 mm
Quick View
View Product >
Soft Knurled Cap 44.3 mm 48.5 mm Blue TPE

20592738

Price Range
R 6,6806 - R 4,2947

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M50; 1-1/2 in
  • Thread Standard
    GAS
  • Thread Standard
    UNF
  • Thread Standard
    Metric
  • D
    48.5 mm
Quick View
View Product >
Soft Knurled Cap 37.5 mm 41.3 mm Blue TPE

20592721

Price Range
R 5,012 - R 3,222

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M40; 1-1/4 in; 1-1/2 in
  • Thread Standard
    GAS
  • Thread Standard
    UNF
  • Thread Standard
    Metric
  • D
    41.3 mm
Quick View
View Product >
Soft Knurled Cap 59.2 mm 62.0 mm Blue TPE

20592745

Price Range
R 8,7827 - R 5,646

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M56 - M58; 2 in
  • Thread Standard
    GAS
  • Thread Standard
    Metric
  • D
    62.0 mm
  • d
    59.2 mm
Quick View
View Product >
Soft Knurled Cap 19.8 mm 20.8 mm Blue TPE

20592691

Price Range
R 2,393 - R 1,5383

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M20-M22; 1/2 in
  • Thread Standard
    Metric
  • Thread Standard
    GAS
  • D
    20.8 mm
  • d
    19.8 mm
Quick View
View Product >
Soft Knurled Cap 24.4 mm 25.6 mm Blue TPE

20592707

Price Range
R 3,6065 - R 2,3185

Stock Levels
Request the lead time here
Attributes
  • Thread Size
    M25-M26; 3/4 in
  • Thread Standard
    Metric
  • Thread Standard
    GAS
  • D
    25.6 mm
  • d
    24.4 mm
Quick View
View Product >
