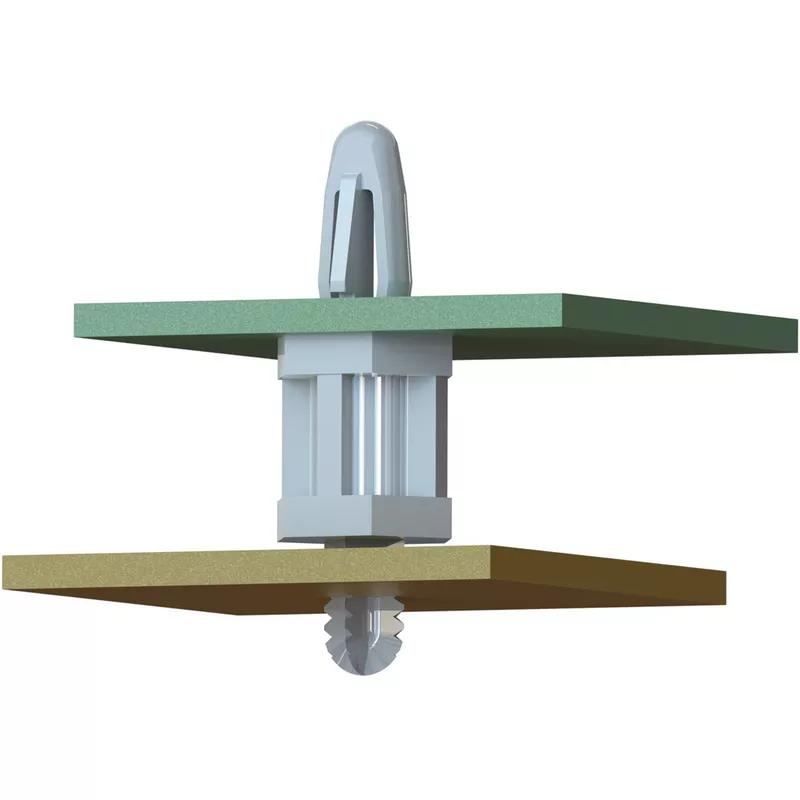

Screw & Lock Support 12.7 mm UL94 V-2 PA Natural
This spacer has a unique self-threading bottom fixing. The threaded hole acts as a die and threads the bottom end when screwed in. They can be used in either a #8 or M4 threaded hole.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 4,0134 |
| 5000 - 9999 | R 3,9508 |
| 10000 + | R 3,8566 |
Useful Information
Documents
Specifications
Imperial
Metric

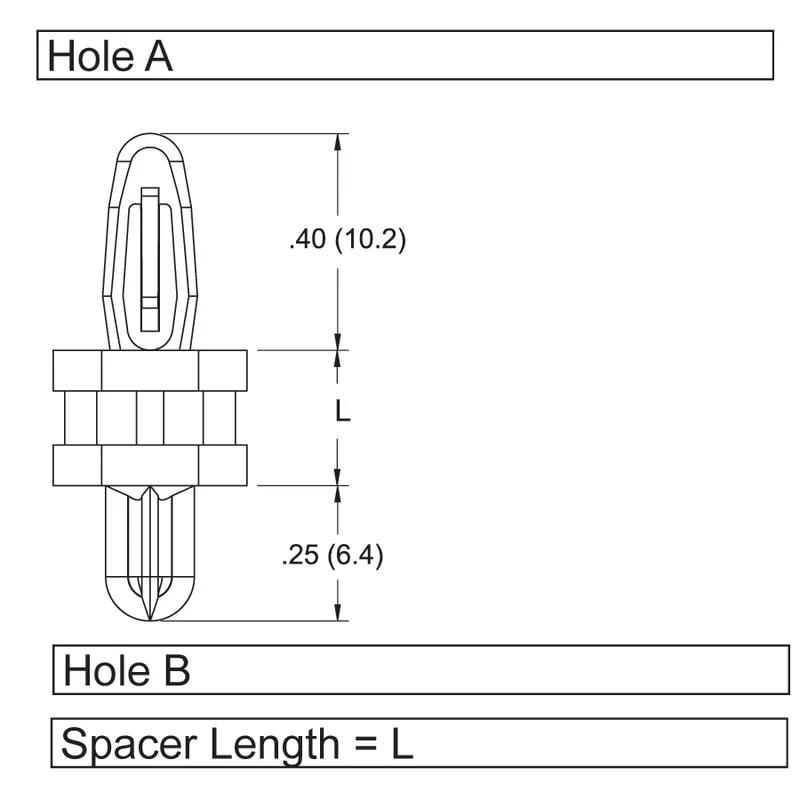

| Colour | Natural |
|---|---|
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Male Thread Fix |
| Compatible Thread Sizes (All) | #8,M4 |
| Distance Across Flats | 7.9 mm |
| Hole Diameter A | 4.0 mm |
| Spacer Length | 12.7 mm |
| Thread Length | 6.4 mm |
| Full Material | Polyamide 6.6 |
| Material Flammability Standard | UL94 V-2 |
| Locking Head Height A | 10.2 mm |
| Commodity Code | 3926909790 |
