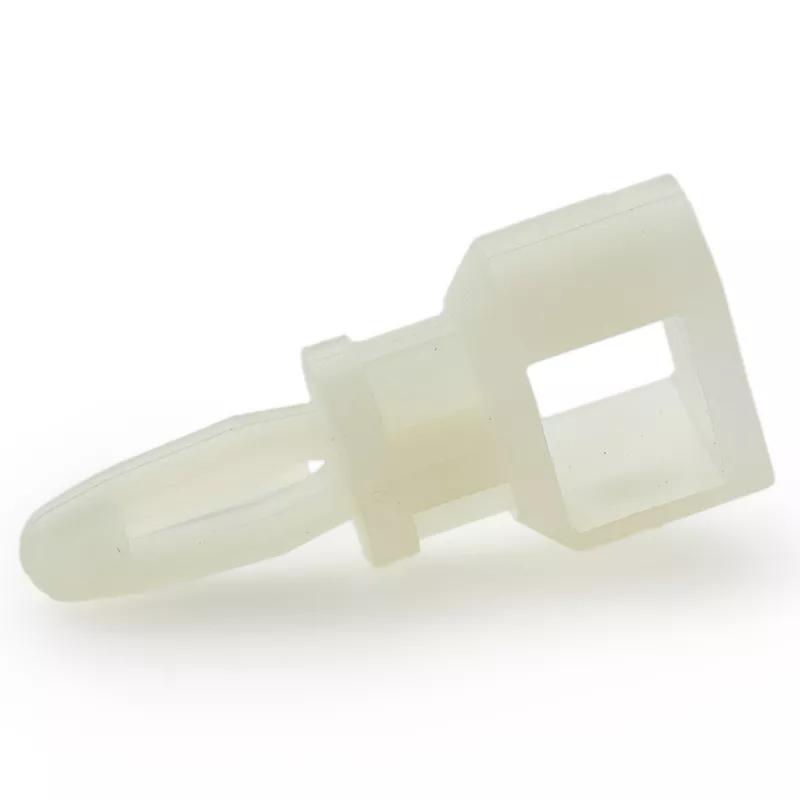

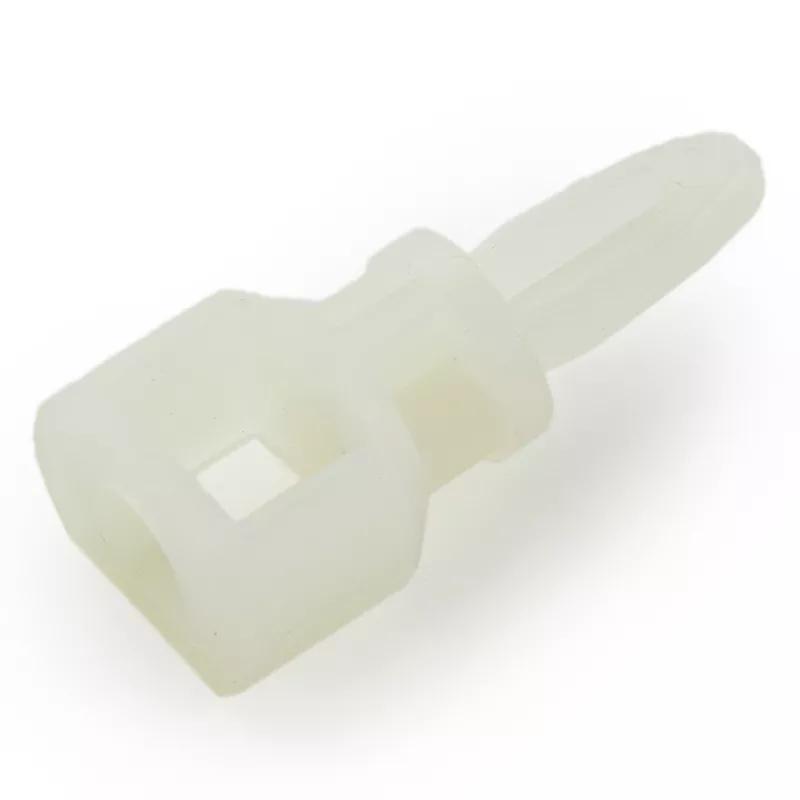

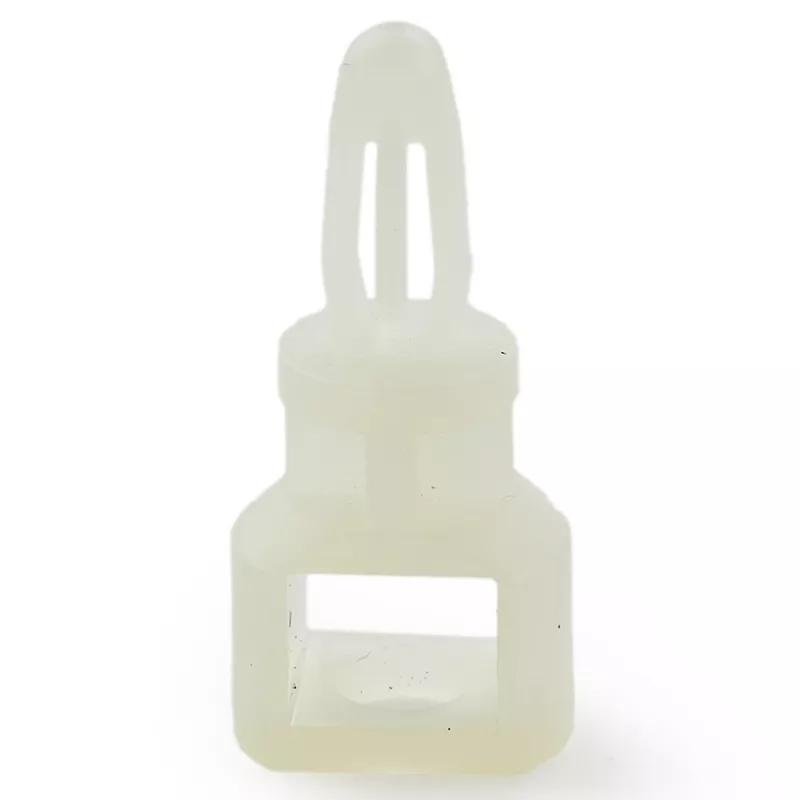

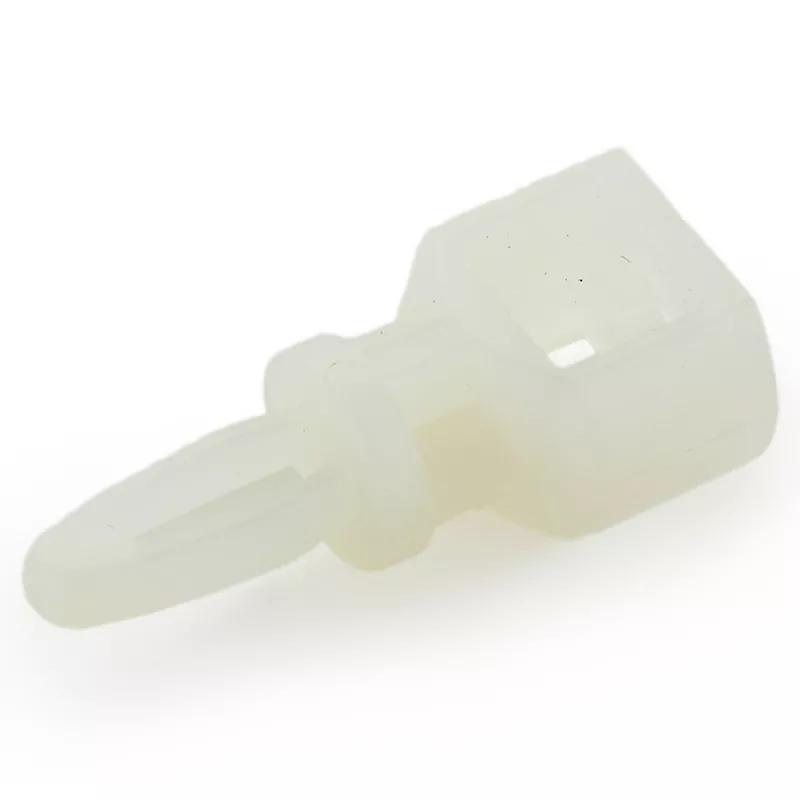

Snap Rivet Locking Support 11.1 mm PA

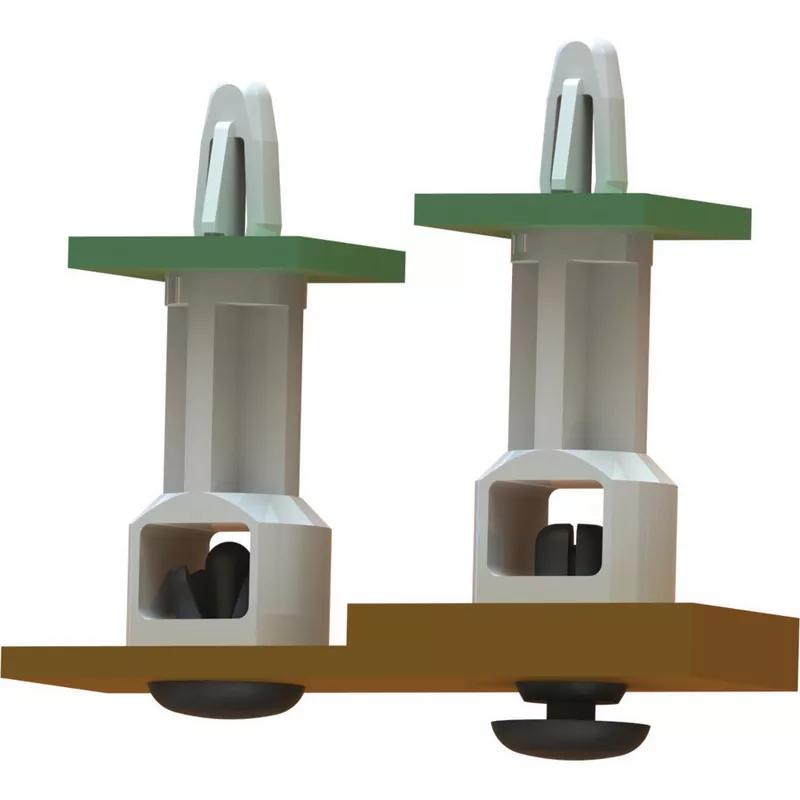

This locking circuit board support is designed to be fixed to a panel with a snap rivet from our SR range. This item is manufactured from material rated UL94 V-2.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 2,0712 |
| 5000 - 9999 | R 1,605 |
| 10000 - 24999 | R 1,4096 |
| 25000 + | R 1,2463 |
Useful Information
Specifications
Imperial
Metric

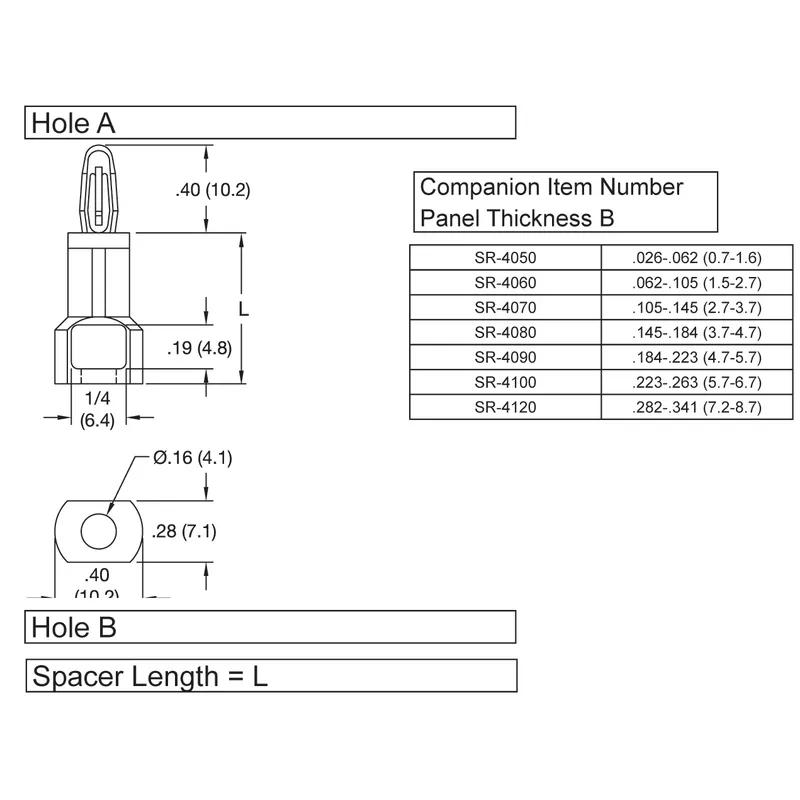

| Colour | Natural |
|---|---|
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Hole Fix |
| Hole Diameter A | 4.0 mm |
| Locking Head Height A | 10.2 mm |
| Panel Thickness A Range | 1.6 mm |
| Panel Thickness B Range | 0.7 - 2.7 mm |
| Spacer Length | 11.1 mm |
| Full Material | Polyamide 6.6 |
| Material Flammability Standard | UL94 V-2 |
| Hole Diameter B | 4.1 mm |
| Commodity Code | 3926909790 |
