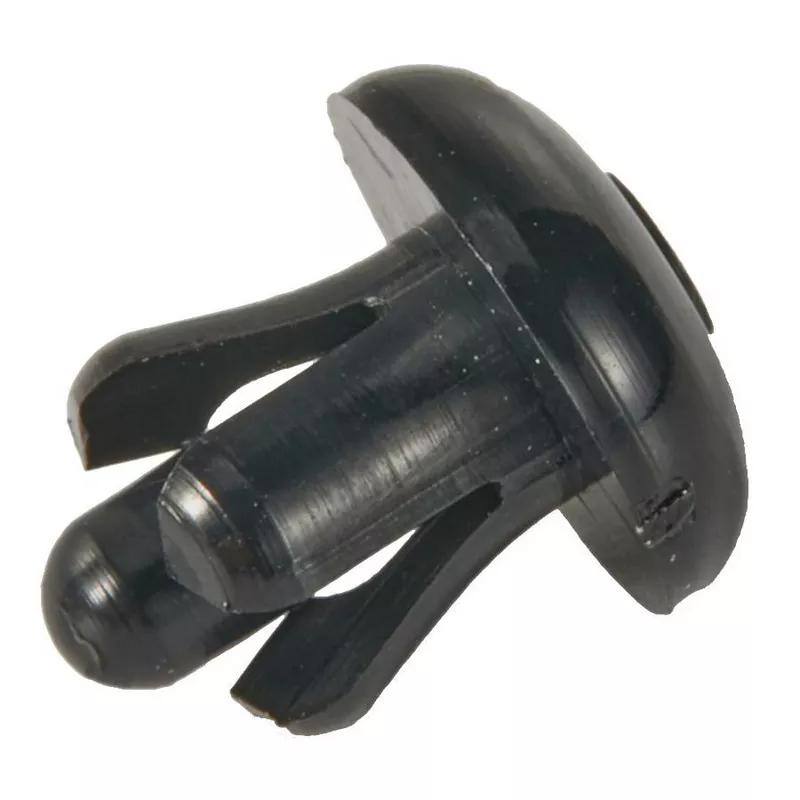

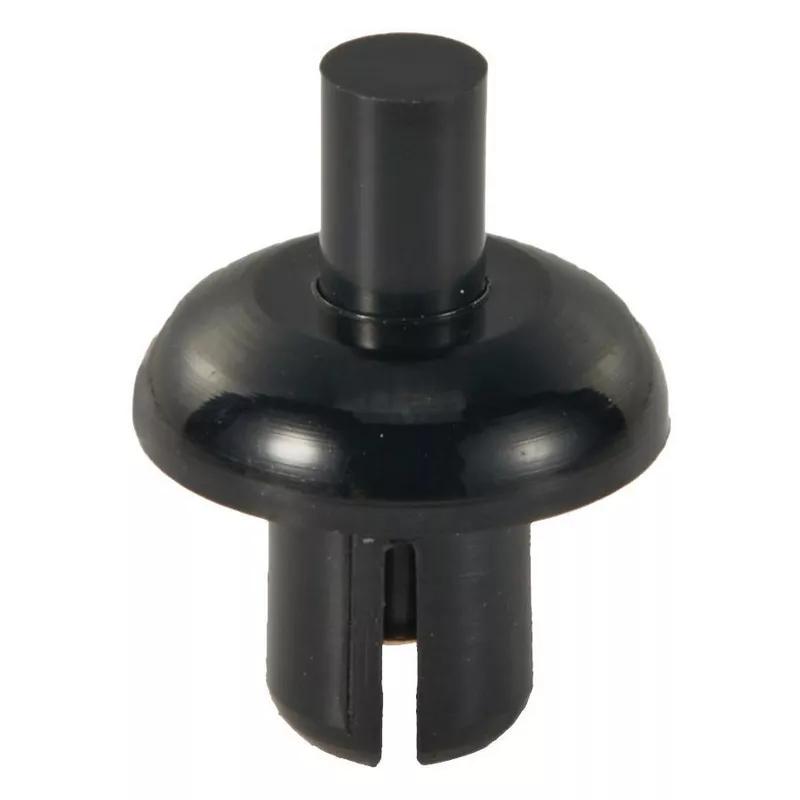

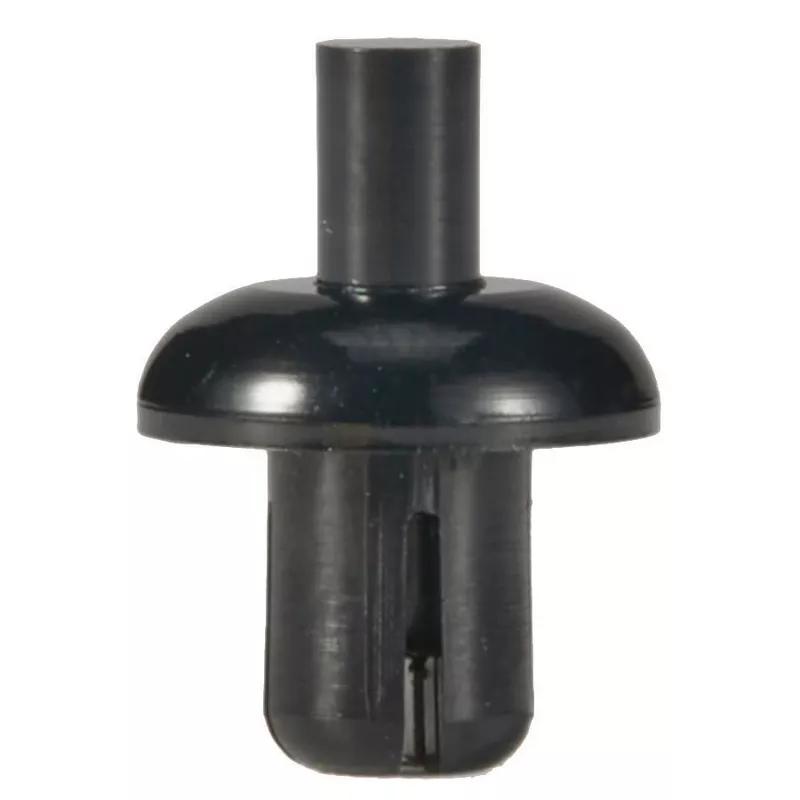

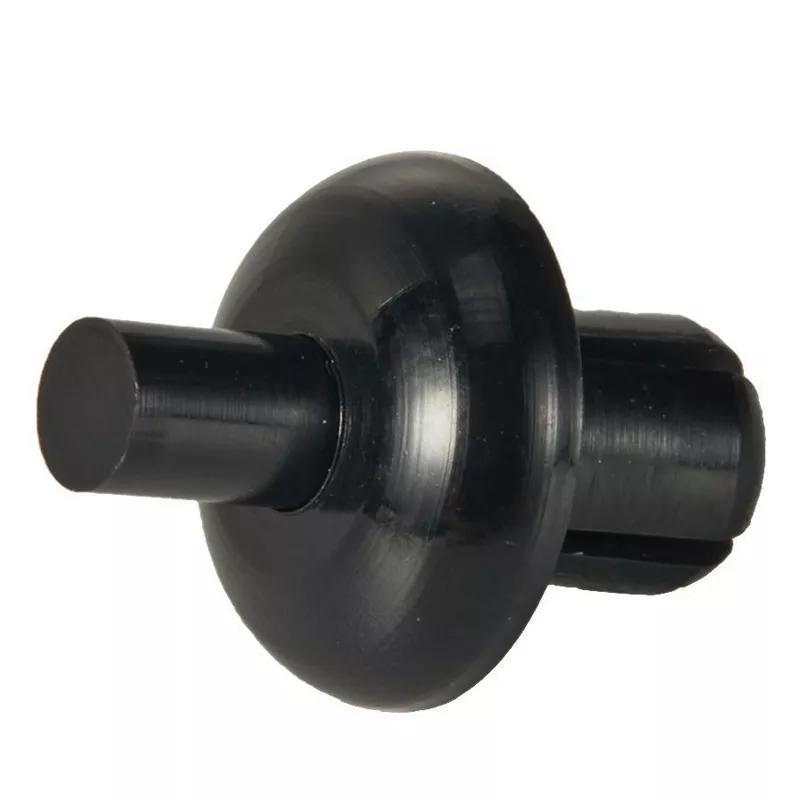

Push-In Rivet 5.0 mm 1.5 mm 5.0 mm Nylon Black

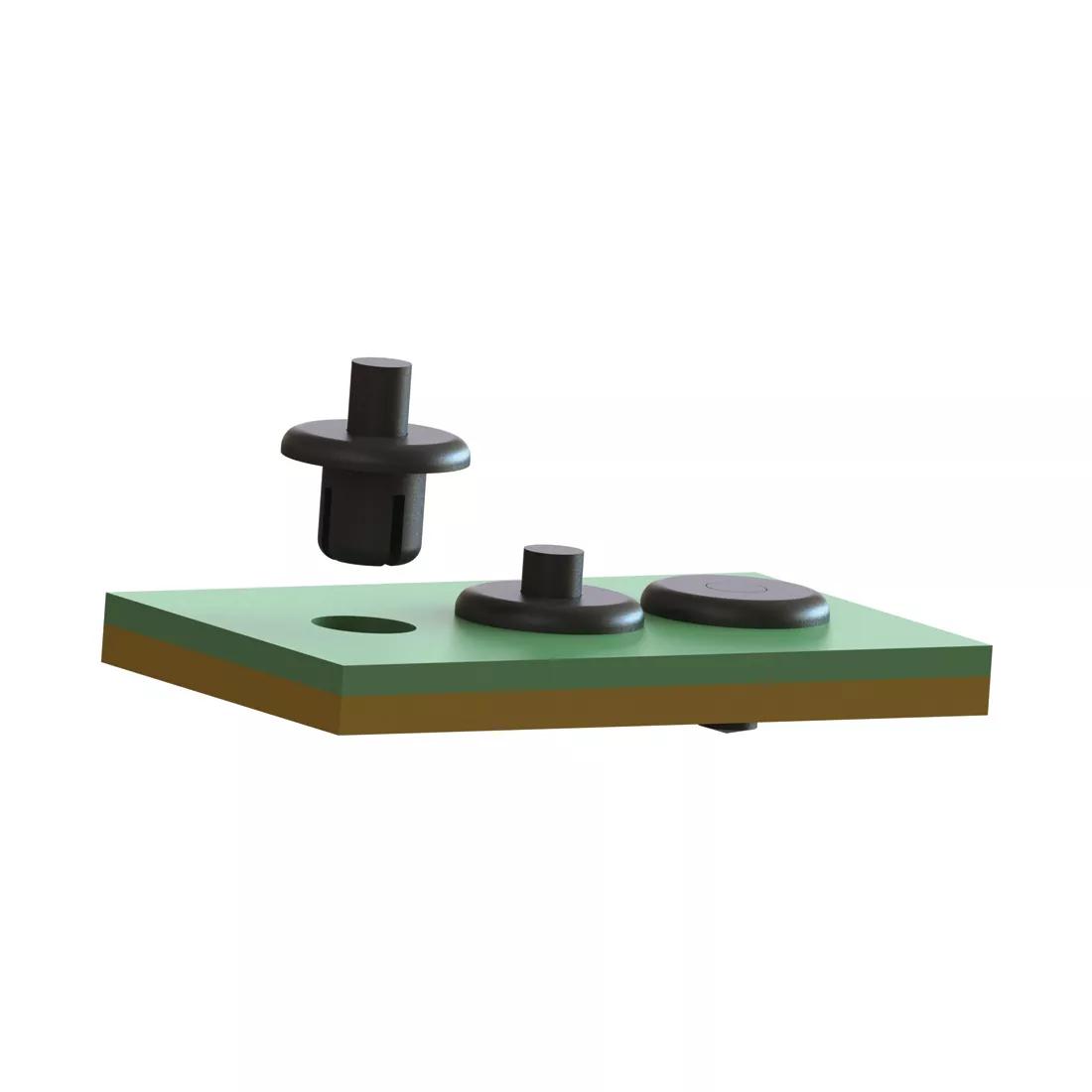

Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing.
| Quantity | Unit price |
|---|---|
| 1000 + | R 14,2167 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 7.4 mm |
|---|---|
| Compatible Hole Diameter | 5.0 mm |
| Compatible Panel Thickness Range | 1.5 - 5.0 mm |
| Head Diameter | 7.1 mm |
| Head Height | 2.0 mm |
| Rivet Type | Drive Fastener |
| Rivet Fitting Style | Push-In |
| Colour | Black |
| Full Material | Nylon 6/6 |
| Commodity Code | 3926909790 |
