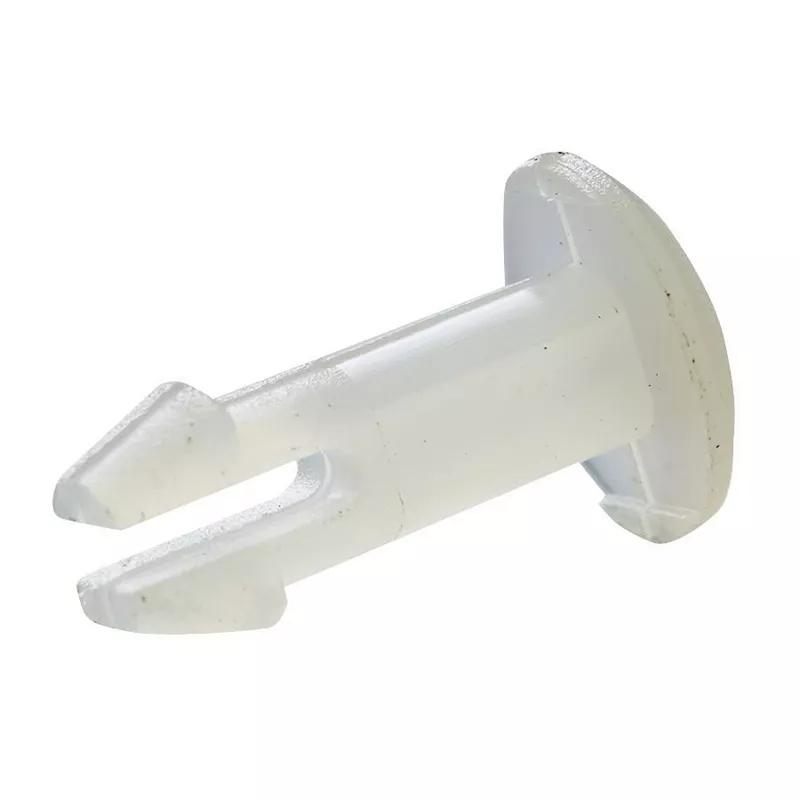

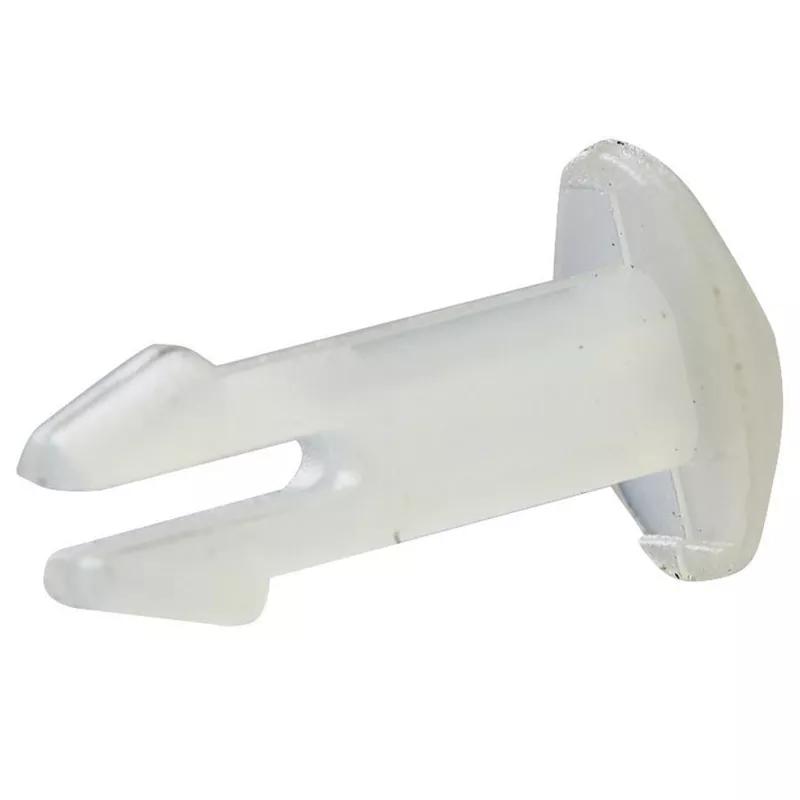

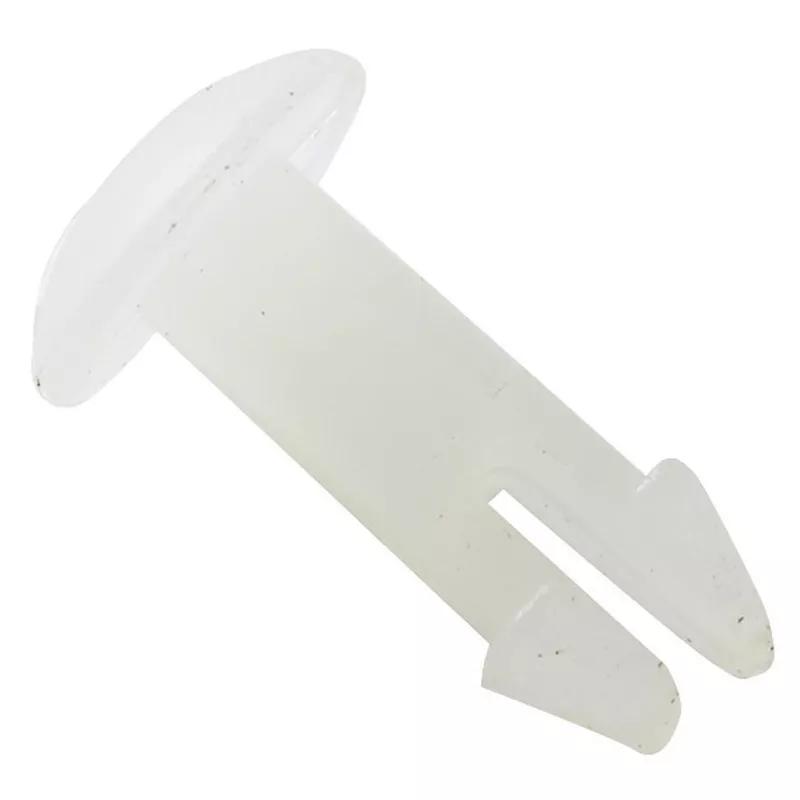

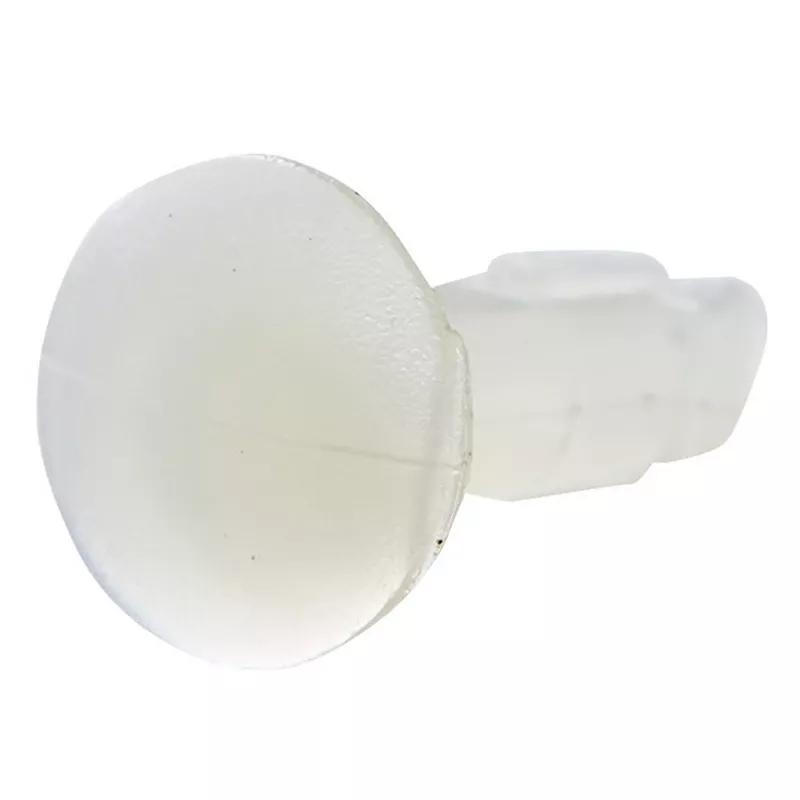

Snap Rivet 2.5 mm 10.5 mm 10.5 mm Nylon Natural
Snap Lock Pin made from Natural Nylon with a flame resistance rating of UL94 V2. Creates a quick and easy to assemble fast joint, and is ideal for applications that do not allow screws and nuts to be used. Can be used for fixing connectors to PCB before soldering, as well as a standard push in fastener. Install by easily pushing into a panel hole. No tools necessary.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 3,3251 |
| 5000 - 9999 | R 3,0853 |
| 10000 - 19999 | R 2,9147 |
| 20000 + | R 2,75 |
Useful Information
Specifications
Imperial
Metric
| Anchor Length | 12.5 mm |
|---|---|
| Compatible Panel Thickness Range | 10.5 mm |
| Head Diameter | 5.3 mm |
| Head Height | 1.3 mm |
| Minimum Operating Temperature | -40 °C |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Truss |
| Rivet Type | Snap Lock Pins |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
