Push-In Rivet 4.2 mm 5.5 mm 6.5 mm Nylon White

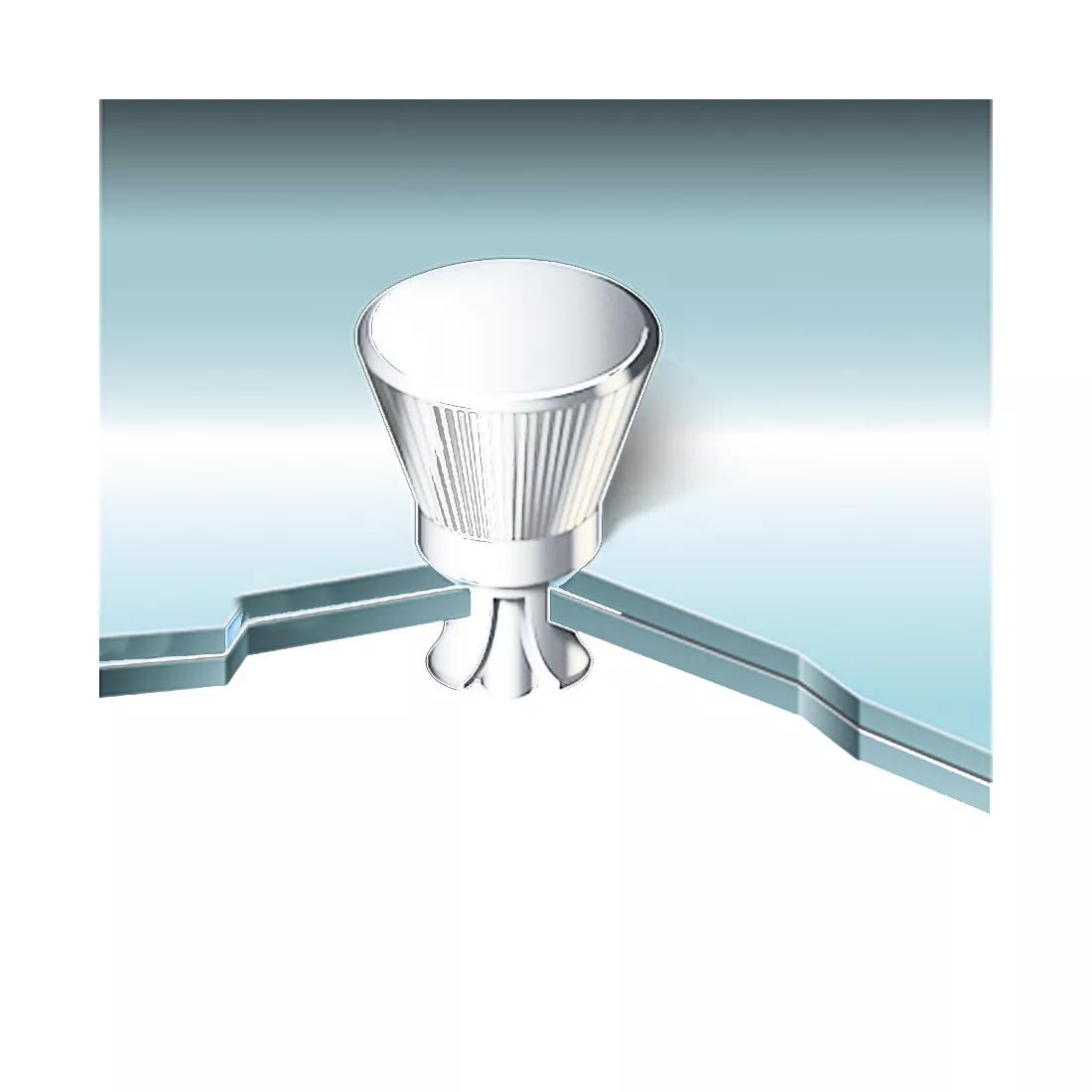

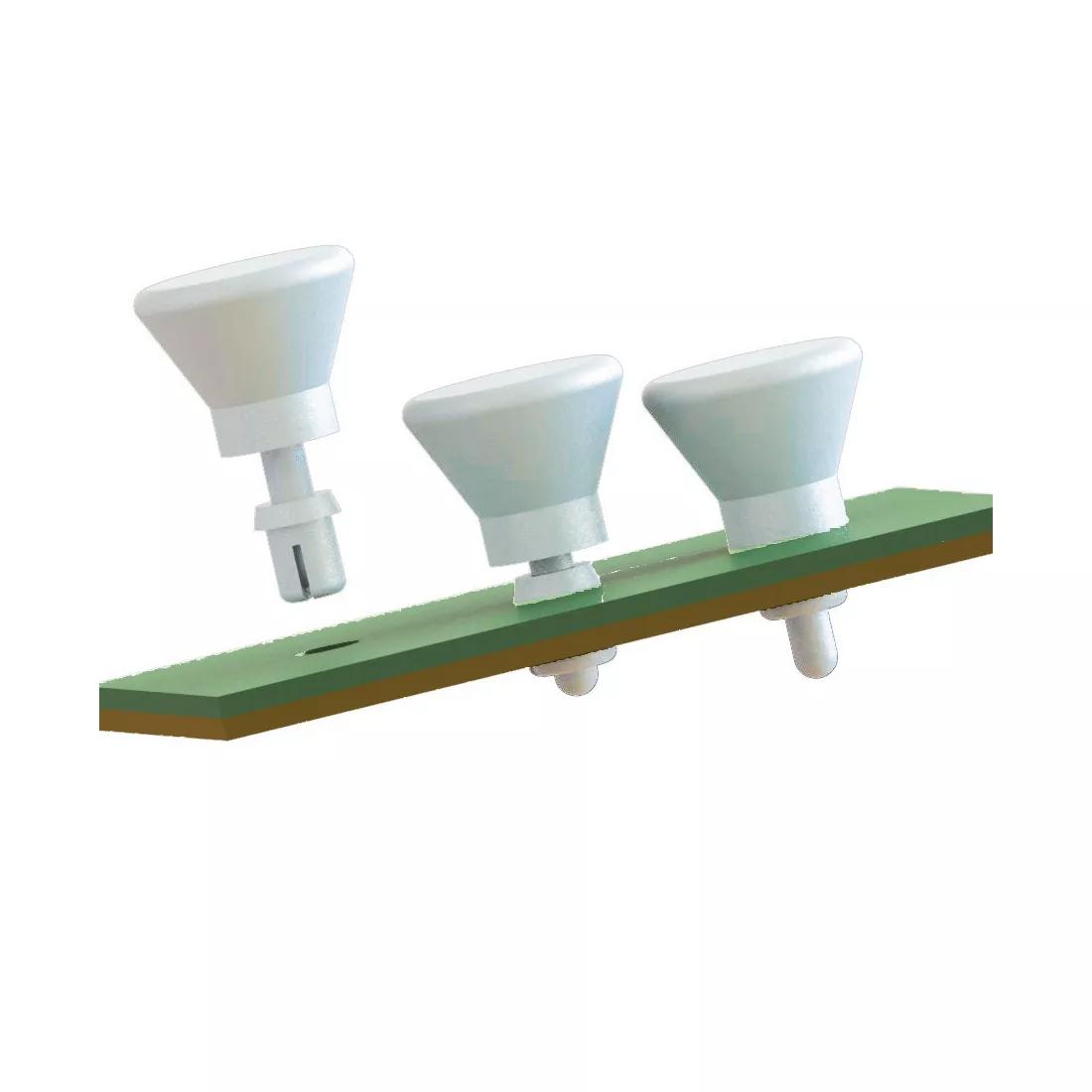

A "T" style rivet that features a large knob shaped head for quick and easy installation and removal. Just push or pull the rivet from the panel hole. This push-pull design lets the rivet snap in and out of the application up to 25 times. Ideal for applications in need of regular maintenance, or fast assembly and disassembly. Manufactured from UL rated Nylon 6.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 4,4926 |
| 5000 - 9999 | R 3,5428 |
| 10000 + | R 3,0906 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 8.0 mm |
|---|---|
| Head Diameter | 12.0 mm |
| Head Height | 8.0 mm |
| Compatible Hole Diameter Range | 4.1 - 4.2 mm |
| Compatible Panel Thickness Range | 5.5 - 6.5 mm |
| Operating Temperature Range | -40 - 115 °C |
| Pin Head Diameter | 12.0 mm |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Knob |
| Colour | White |
| Full Material | Nylon 6 |
| Material Flammability Standard | UL94 V-2 |
| Commodity Code | 3926909790 |
Product SRT-4080W replaces:
Detachable rivet 4.0 mm 5.5 mm 6.5 mm Nylon White
Item code:
462644
