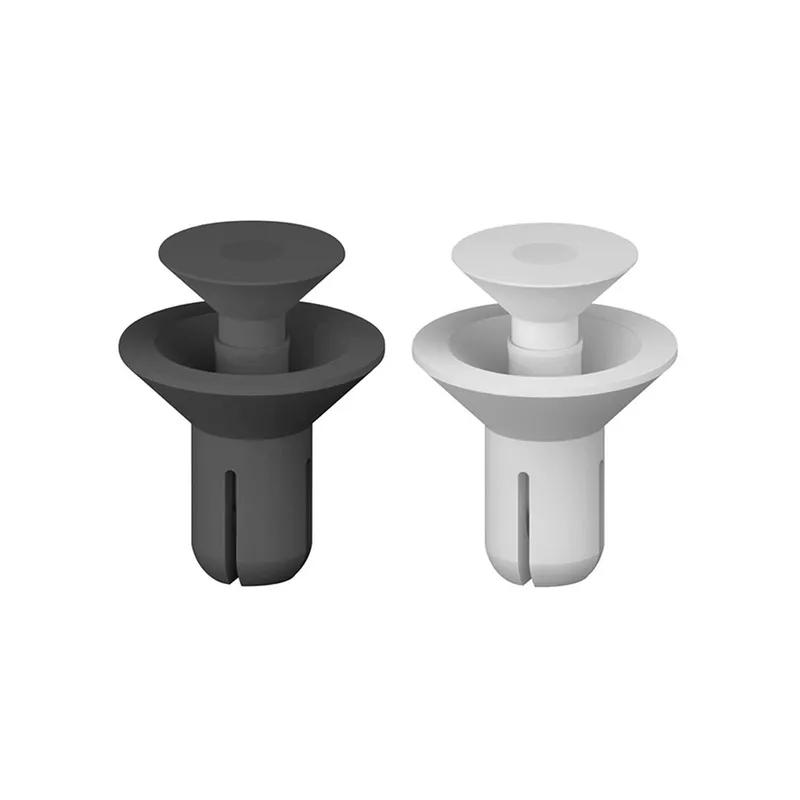

Push-In Rivets - Countersunk
Push-In Rivets - Countersunk - Line Drawing
Push-In Rivets - Countersunk - Application Shot
Push-In Rivets - Countersunk | Essentra Components
Push-In Rivets - Countersunk - Application Shot
Push-In Rivets - Countersunk - Application Shot
Push-In Rivets - Countersunk - Line Drawing

Push-In Rivets - Countersunk

In stock

Countersunk Rivets are used in countersunk holes and other applications that require a flat finish. Their design allows them to sit flush to a surface, meaning the rivet head will not protrude once installed. They are ideal for sliding track applications.

These rivets also benefit from a tamper resistant design and they are able to accommodate countersunk hole specification DIN ISO 7721.

  • Material: Nylon 6
  • Colours: Black and White
  • UL94 V2 Material Flammability Rating

Print page
Need a quote?

For large volumes and customised products, add to your cart and click request a quote, or email sales@essentracomponents.co.za and we will respond within 2 working days

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
12 results

Sort by

None
Product SKUs information
Item Code Price range Availability Counterbore Hole Size Compatible Hole Diameter Colour Head Diameter Compatible Panel Thickness Range View
R 1,6576 - R 3,0113 12080 In stock - Delivery conditions may apply, visit our FAQs
9.4 mm
Black
8.8 mm
4.5 - 5.5 mm
R 3,2087 - R 4,349 82 In stock - Delivery conditions may apply, visit our FAQs
9.4 mm
Black
8.8 mm
5.5 - 6.5 mm
R 1,6852 - R 3,0804 In production
9.4 mm
Black
8.8 mm
7.5 - 8.5 mm
R 1,7543 - R 1,8648 986 In stock - Delivery conditions may apply, visit our FAQs
9.4 mm
White
8.8 mm
4.5 - 5.5 mm
R 1,2252 - R 2,0167 In production
9.4 mm
White
8.8 mm
6.5 - 7.5 mm
R 1,1962 - R 2,8455 In production
10.4 mm
White
9.8 mm
3.5 - 4.5 mm
R 1,1893 - R 1,9615 8995 In stock - Delivery conditions may apply, visit our FAQs
9.4 mm
White
8.8 mm
3.5 - 4.5 mm
R 1,6714 - R 3,0527 In production
9.4 mm
Black
8.8 mm
6.5 - 7.5 mm
R 1,699 - R 3,0804 In production
10.4 mm
Black
9.8 mm
3.5 - 4.5 mm
R 1,6438 - R 2,9975 33 In stock - Delivery conditions may apply, visit our FAQs
9.4 mm
Black
8.8 mm
3.5 - 4.5 mm
R 1,2169 - R 1,9891 In production
9.4 mm
White
8.8 mm
5.5 - 6.5 mm
R 1,6852 - R 3,0804 In production
9.4 mm
White
8.8 mm
7.5 - 8.5 mm
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 4.5 - 5.5 mm | 0.177 - 0.217 in; Black; Nylon

SRCS-4070B

Price Range
R 3,0113 - R 1,6576

Stock Levels
12080 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    4.5 - 5.5 mm
  • Anchor Length
    7.2 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 5.5 - 6.5 mm | 0.217 - 0.256 in; Black; Nylon

SRCS-4080B

Price Range
R 4,349 - R 3,2087

Stock Levels
82 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    5.5 - 6.5 mm
  • Anchor Length
    8.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 7.5 - 8.5 mm | 0.295 - 0.335 in; Black; Nylon

SRCS-4100B

Price Range
R 3,0804 - R 1,6852

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    7.5 - 8.5 mm
  • Anchor Length
    10.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 4.5 - 5.5 mm | 0.177 - 0.217 in; White; Nylon

SRCS-4070W

Price Range
R 1,8648 - R 1,7543

Stock Levels
986 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    4.5 - 5.5 mm
  • Anchor Length
    7.2 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 6.5 - 7.5 mm | 0.256 - 0.295 in; White; Nylon

SRCS-4090W

Price Range
R 2,0167 - R 1,2252

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    6.5 - 7.5 mm
  • Anchor Length
    9.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 5.1 - 5.2 mm | 0.201 - 0.205 in; Compatible Panel Thickness Range 3.5 - 4.5 mm | 0.138 - 0.177 in; White; Nylon

SRCS-5065W

Price Range
R 2,8455 - R 1,1962

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    5.1 - 5.2 mm
  • Counterbore Hole Size
    10.4 mm
  • Compatible Panel Thickness Range
    3.5 - 4.5 mm
  • Anchor Length
    6.5 mm
  • Head Diameter
    9.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 3.5 - 4.5 mm | 0.138 - 0.177 in; White; Nylon

SRCS-4060W

Price Range
R 1,9615 - R 1,1893

Stock Levels
8995 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    3.5 - 4.5 mm
  • Anchor Length
    6.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 6.5 - 7.5 mm | 0.256 - 0.295 in; Black; Nylon

SRCS-4090B

Price Range
R 3,0527 - R 1,6714

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    6.5 - 7.5 mm
  • Anchor Length
    9.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 5.1 - 5.2 mm | 0.201 - 0.205 in; Compatible Panel Thickness Range 3.5 - 4.5 mm | 0.138 - 0.177 in; Black; Nylon

SRCS-5065B

Price Range
R 3,0804 - R 1,699

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    5.1 - 5.2 mm
  • Counterbore Hole Size
    10.4 mm
  • Compatible Panel Thickness Range
    3.5 - 4.5 mm
  • Anchor Length
    6.5 mm
  • Head Diameter
    9.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 3.5 - 4.5 mm | 0.138 - 0.177 in; Black; Nylon

SRCS-4060B

Price Range
R 2,9975 - R 1,6438

Stock Levels
33 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    3.5 - 4.5 mm
  • Anchor Length
    6.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 5.5 - 6.5 mm | 0.217 - 0.256 in; White; Nylon

SRCS-4080W

Price Range
R 1,9891 - R 1,2169

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    5.5 - 6.5 mm
  • Anchor Length
    8.0 mm
  • Head Diameter
    8.8 mm
Quick View
View Product >
Countersunk - Compatible Hole Diameter Range 4.1 - 4.2 mm | 0.161 - 0.165 in; Compatible Panel Thickness Range 7.5 - 8.5 mm | 0.295 - 0.335 in; White; Nylon

SRCS-4100W

Price Range
R 3,0804 - R 1,6852

Stock Levels
In production
Attributes
  • Compatible Hole Diameter Range
    4.1 - 4.2 mm
  • Counterbore Hole Size
    9.4 mm
  • Compatible Panel Thickness Range
    7.5 - 8.5 mm
  • Anchor Length
    10.0 mm
  • Head Diameter
    8.8 mm
Quick View
