Open Linear Ball Bushing Carriages
In stock

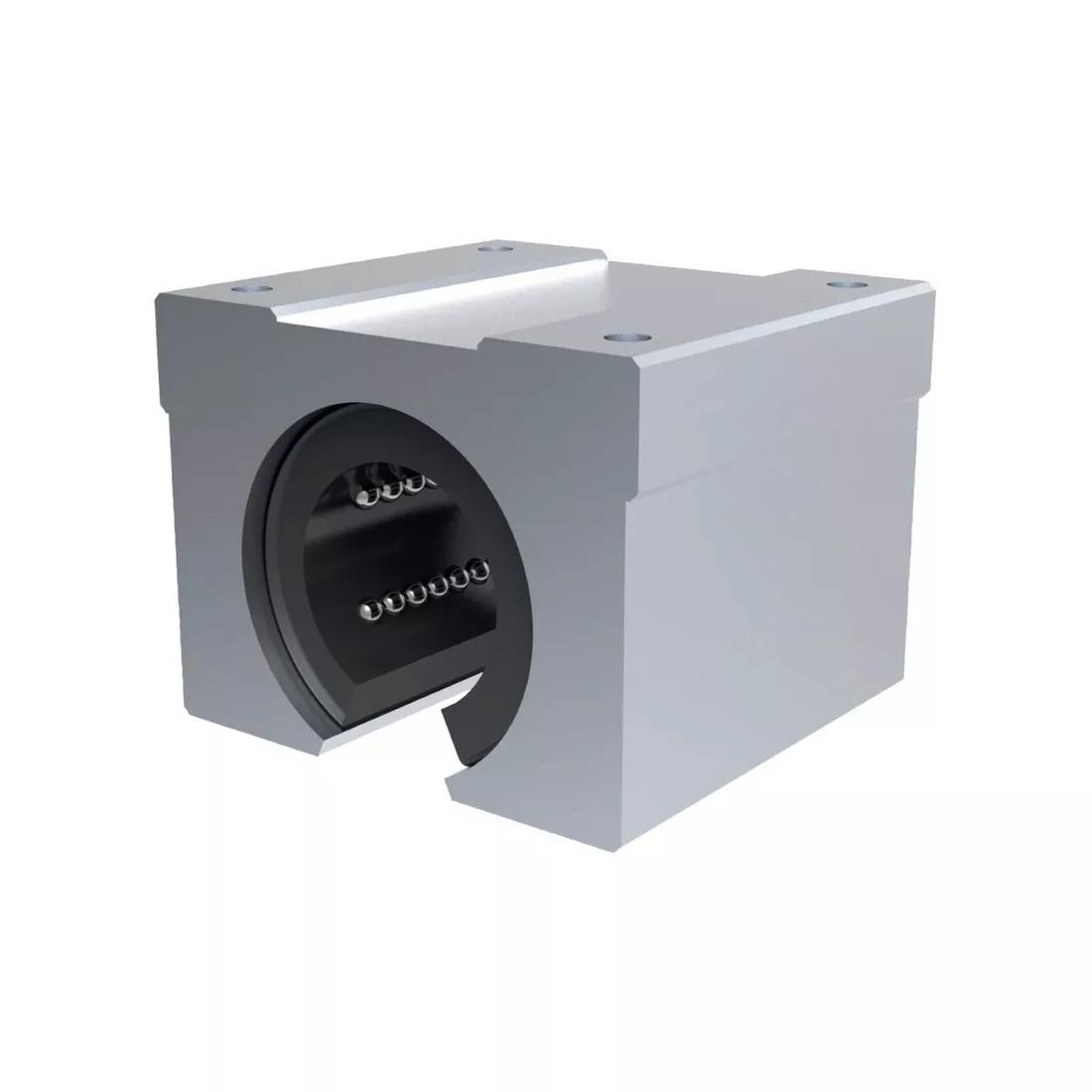

These Open Linear Ball Bushing Carriages are used in linear motion systems to guide and support moving parts. These are to be used only with hardened steel shafts and the ball bearings allow the carriage to move smoothly along the rail. They are particularly useful for heavy weights and long stroke applications.
The aluminium housing helps to keep the weight down whilst the hardened steel balls inside the bushing take the loads and facilitate the movement. Only to be used on hardened linear shafts.
Its unflanged design enables a simple compact installation and integration into existing systems. It can withstand temperatures from 20C to +80C. Commonly used in applications such as food packaging machines, printing machines, computers, or tool grinders.
- Useful for heavy weights and long stroke applications.
- It can withstand temperatures from 20C to +80C.
- It keeps the weight down, take the loads and facilitate the movement.
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Hide
Show
Filters
Show less filters
Show more filters

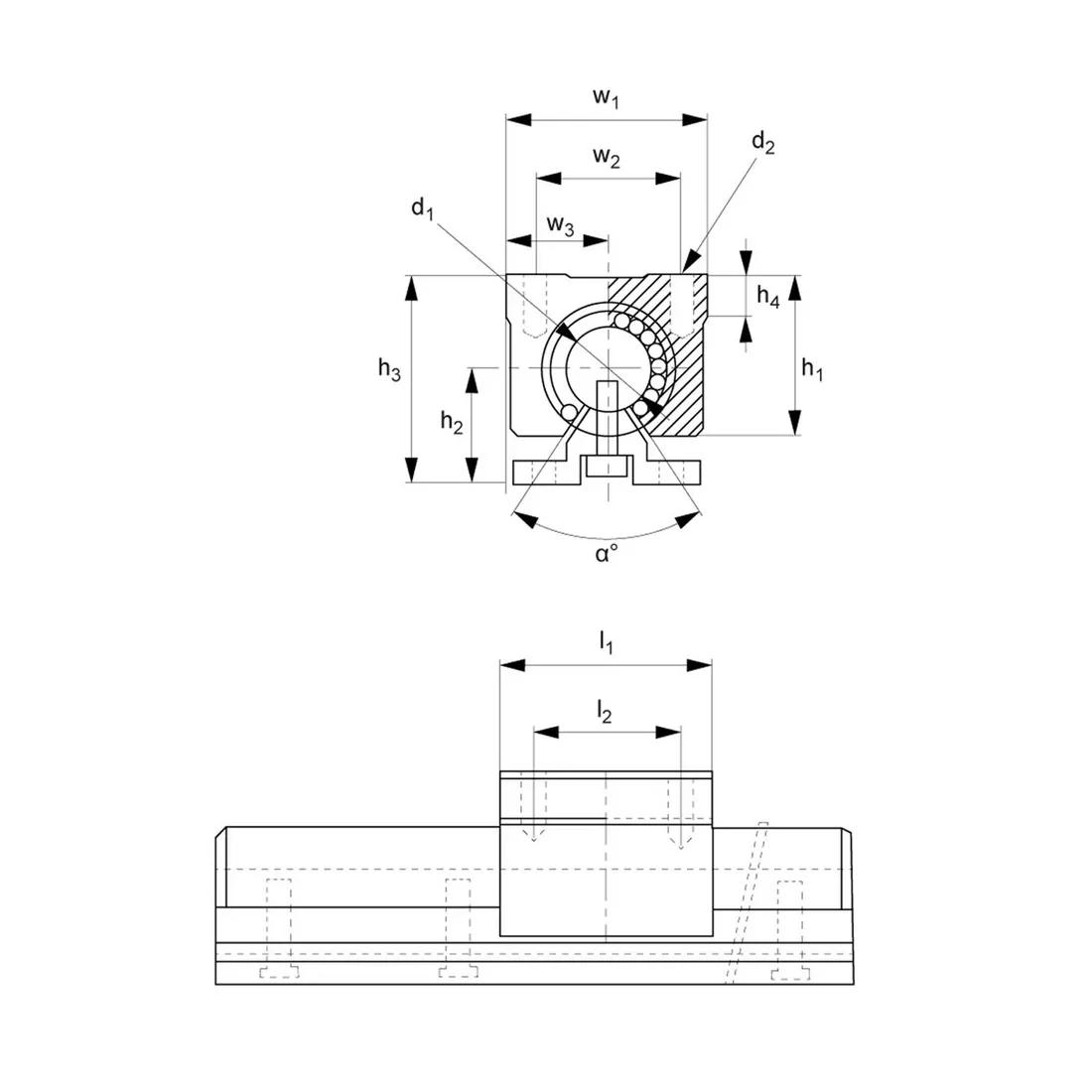

d1 tol H6
All
l1
All
d2
All
h1
All
h2
All
h3 ±005
All
h4
All
Sort by
None| Item Code | Price range | Availability | h2 | d1 tol H6 | h1 | h3 ±005 | l1 | d2 | h4 | View |
|---|---|---|---|---|---|---|---|---|---|---|
| R 1 429,305 - R 1 786,5771 | 20 In stock - Delivery conditions may apply, visit our FAQs |
36.0
|
25.0
|
47.0
|
62.0
|
65.0
|
M6x12
|
14.0
|
||
| R 2 478,3581 - R 3 097,9477 | 4 In stock - Delivery conditions may apply, visit our FAQs |
60.0
|
50.0
|
91.0
|
113.0
|
110.0
|
M10x20
|
25.0
|
||
| R 1 484,37 - R 1 855,5167 | 2 In stock - Delivery conditions may apply, visit our FAQs |
50.0
|
40.0
|
72.0
|
92.0
|
90.0
|
M10x20
|
20.0
|
||
| R 590,1059 - R 737,524 | 3 In stock - Delivery conditions may apply, visit our FAQs |
26.0
|
16.0
|
33.0
|
46.0
|
45.0
|
M5x12
|
9.0
|
||
| R 642,1358 - R 802,7782 | 22 In stock - Delivery conditions may apply, visit our FAQs |
32.0
|
20.0
|
39.0
|
55.0
|
50.0
|
M6x12
|
11.0
|
||
| R 1 031,493 - R 1 289,4746 | 12 In stock - Delivery conditions may apply, visit our FAQs |
42.0
|
30.0
|
56.0
|
75.0
|
70.0
|
M8x18
|
15.0
|
||
Open Linear Ball Bushing Carriage 25.0 65.0 M6x12 Aluminium
- Price Range
- R 1 786,5771 - R 1 429,305
- Stock Levels
- 20 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
25.0 -
l1
65.0 -
d2
M6x12 -
h1
47.0 -
h2
36.0
Open Linear Ball Bushing Carriage 50.0 110.0 M10x20 Aluminium
- Price Range
- R 3 097,9477 - R 2 478,3581
- Stock Levels
- 4 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
50.0 -
l1
110.0 -
d2
M10x20 -
h1
91.0 -
h2
60.0
Open Linear Ball Bushing Carriage 40.0 90.0 M10x20 Aluminium
- Price Range
- R 1 855,5167 - R 1 484,37
- Stock Levels
- 2 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
40.0 -
l1
90.0 -
d2
M10x20 -
h1
72.0 -
h2
50.0
Open Linear Ball Bushing Carriage 16.0 45.0 M5x12 Aluminium
- Price Range
- R 737,524 - R 590,1059
- Stock Levels
- 3 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
16.0 -
l1
45.0 -
d2
M5x12 -
h1
33.0 -
h2
26.0
Open Linear Ball Bushing Carriage 20.0 50.0 M6x12 Aluminium
- Price Range
- R 802,7782 - R 642,1358
- Stock Levels
- 22 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
20.0 -
l1
50.0 -
d2
M6x12 -
h1
39.0 -
h2
32.0
Open Linear Ball Bushing Carriage 30.0 70.0 M8x18 Aluminium
- Price Range
- R 1 289,4746 - R 1 031,493
- Stock Levels
- 12 In stock - Delivery conditions may apply, visit our FAQs
Attributes
-
d1 tol H6
30.0 -
l1
70.0 -
d2
M8x18 -
h1
56.0 -
h2
42.0
