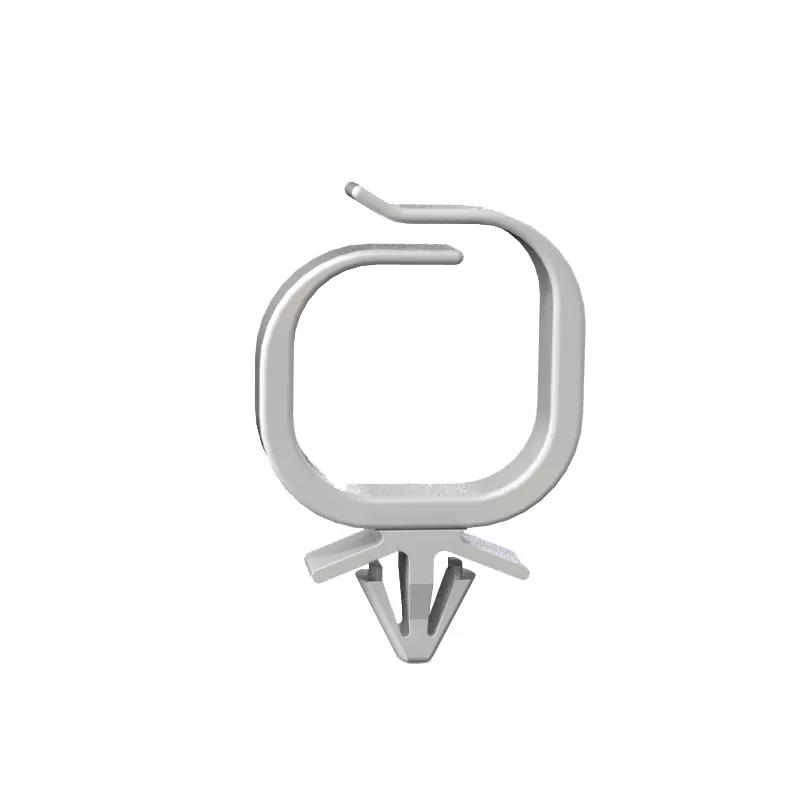

Non-Locking Wire Saddles

In stock

Non-Locking Wire Saddle manufactured from Natural Nylon 6/6. The wire saddle gathers and routes cables, keeping them clear of sensitive or sharp components. They also keep cables and wires tidy and free from clutter. Ideal for use in electronics applications.

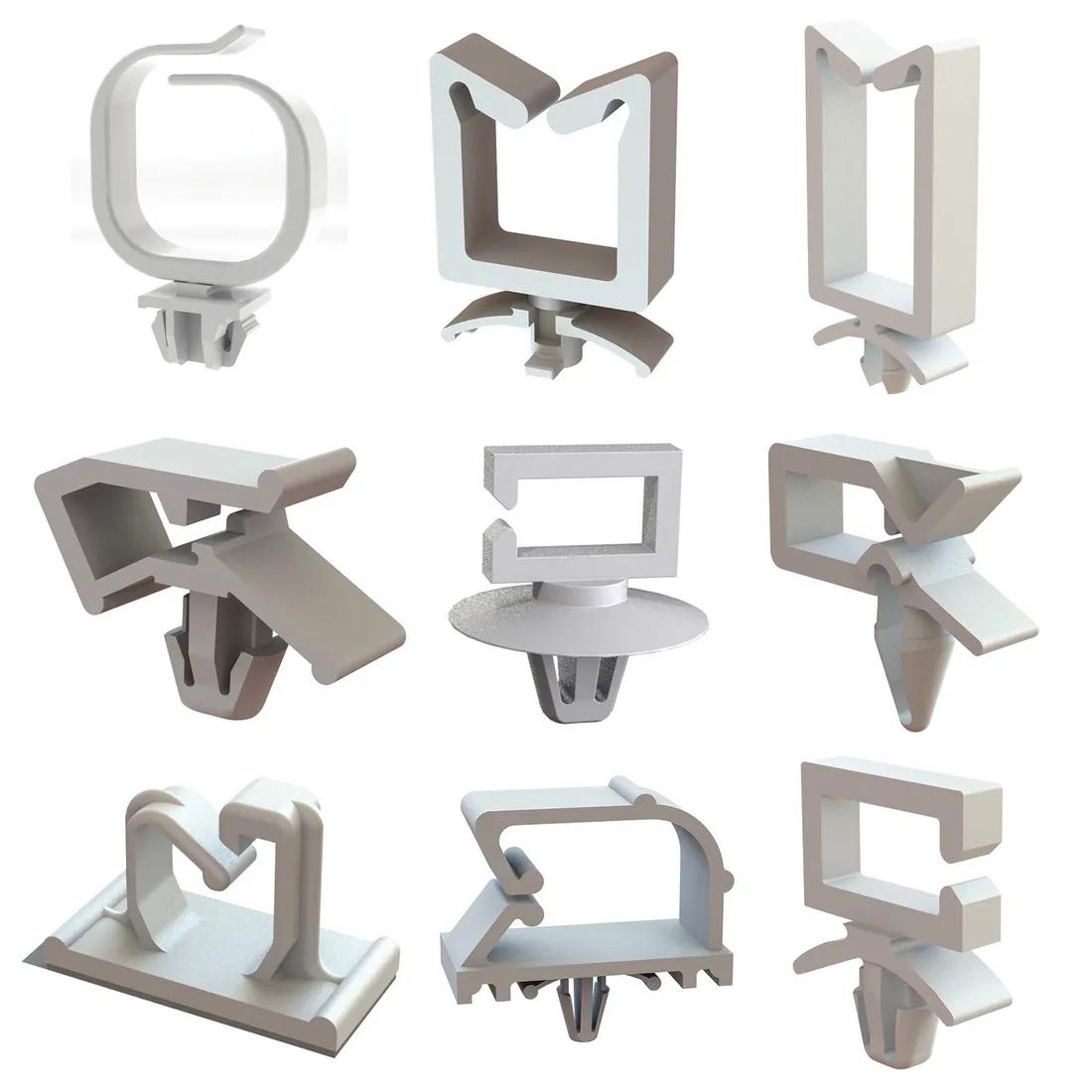

Several type options with alternative mounting styles. Options are available with smooth and round corners that help eliminate stress to fibre upon entry into the assembly. Side entry options that provide a low height where clearance is an issue are also included in this range. Options that mount in blind holes or with adhesive are also available in this varied range.

These wire saddles are suitable for a broad range of cable diameter sizes and are easy to mount.

Material: Nylon 6/6
Colour: Black and Natural
UL94 HB, UL94 V0 and UL94 V2 flame rated options.

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

108 results

Sort by

None

Product SKUs information

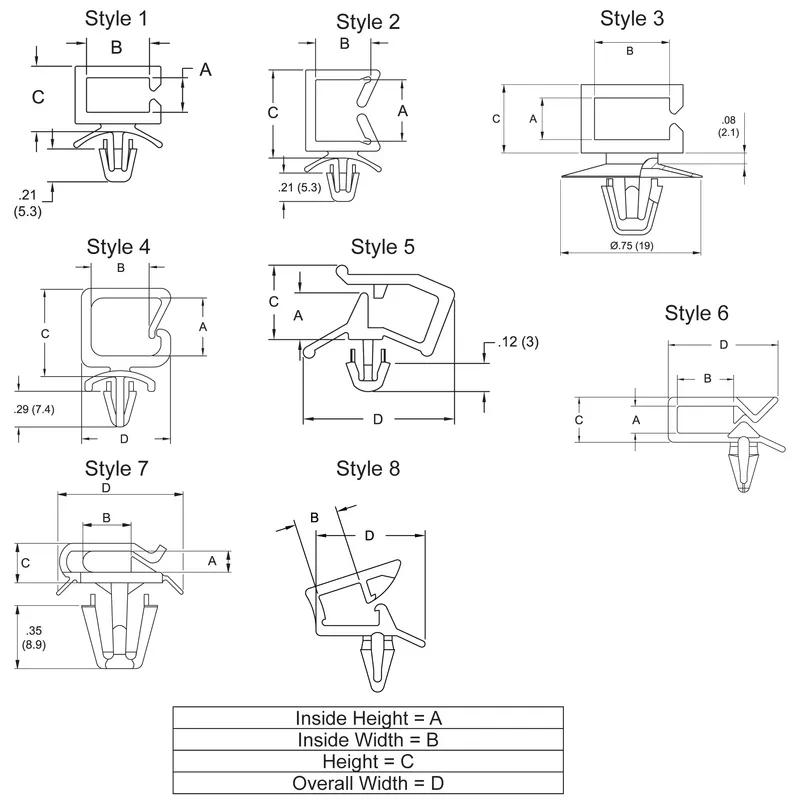

Price range	Availability	Inside Width	Compatible Hole Diameter	Base Width	Inside Height	Maximum Compatible Panel Thickness	Base Length
R 6,5389 - R 7,0888	Request the lead time here	0.437 in 11.1 mm			0.169 in 4.3 mm

R 7,4247 - R 8,0359	Request the lead time here	0.437 in 11.1 mm	0.15 in 3.8 mm	0.61 in 15.5 mm	0.169 in 4.3 mm		0.449 in 11.4 mm

R 6,5389 - R 7,0888	950 In stock - Delivery conditions may apply, visit our FAQs	0.437 in 11.1 mm			1.039 in 26.4 mm

R 6,5389 - R 7,0888	Request the lead time here	0.437 in 11.1 mm			0.358 in 9.1 mm

R 17,9776 - R 17,9776	Request the lead time here	0.437 in 11.1 mm	0.15 in 3.8 mm	0.61 in 15.5 mm	1.039 in 26.4 mm		1.311 in 33.3 mm

R 7,8579 - R 10,2466	Request the lead time here	0.402 in 10.2 mm			0.22 in 5.6 mm

R 5,4246 - R 6,697	Request the lead time here	0.465 in 11.8 mm	0.228 in 5.8 mm	0.476 in 12.1 mm	0.256 in 6.5 mm		1 in 25.4 mm

R 4,717 - R 5,8235	Request the lead time here	0.465 in 11.8 mm	0.228 in 5.8 mm	0.476 in 12.1 mm	0.256 in 6.5 mm		1 in 25.4 mm

R 8,845 - R 8,845	Request the lead time here	0.402 in 10.2 mm			0.449 in 11.4 mm

R 6,9969 - R 7,547	Request the lead time here			0.984 in 25.0 mm			0.984 in 25.0 mm

R 10,3277 - R 11,2135	Request the lead time here	1.13 in 28.7 mm	0.031 in 0.8 mm	0.748 in 19.0 mm	0.988 in 25.1 mm		0.984 in 25.0 mm

R 6,5389 - R 7,0888	Request the lead time here	0.437 in 11.1 mm			0.728 in 18.5 mm

R 7,4247 - R 8,0359	Request the lead time here	0.437 in 11.1 mm	0.15 in 3.8 mm	0.61 in 15.5 mm	0.358 in 9.1 mm		0.642 in 16.3 mm

R 8,4422 - R 9,6457	Request the lead time here	0.335 in 8.5 mm	0.335 in 8.5 mm	0.63 in 16.0 mm	0.335 in 8.5 mm		2.354 in 59.8 mm

R 8,7037 - R 9,9304	Request the lead time here	0.445 in 11.3 mm	0.445 in 11.3 mm	0.72 in 18.3 mm	0.445 in 11.3 mm		0.815 in 20.7 mm

R 5,3384 - R 5,5441	Request the lead time here	0.370 in 9.4 mm	0.374 in 9.5 mm	0.374 in 9.5 mm	0.450 in 11.4 mm		0.374 in 9.5 mm

R 4,7055 - R 5,3468	Request the lead time here	1.13 in 28.7 mm			0.988 in 25.1 mm	0.063 in 1.6 mm

R 8,7387 - R 9,533	Request the lead time here	1.13 in 28.7 mm	0.031 in 0.8 mm	0.748 in 19.0 mm	0.988 in 25.1 mm		0.984 in 25.0 mm

R 8,6469 - R 9,6552	Request the lead time here	0.835 in 21.2 mm	0.031 in 0.8 mm	0.748 in 19.0 mm	0.748 in 19.0 mm		0.984 in 25.0 mm

R 5,4114 - R 6,1488	Request the lead time here	0.835 in 21.2 mm		1.055 in 26.8 mm	0.748 in 19.0 mm	0.079 in 2.0 mm	1.11 in 28.2 mm
