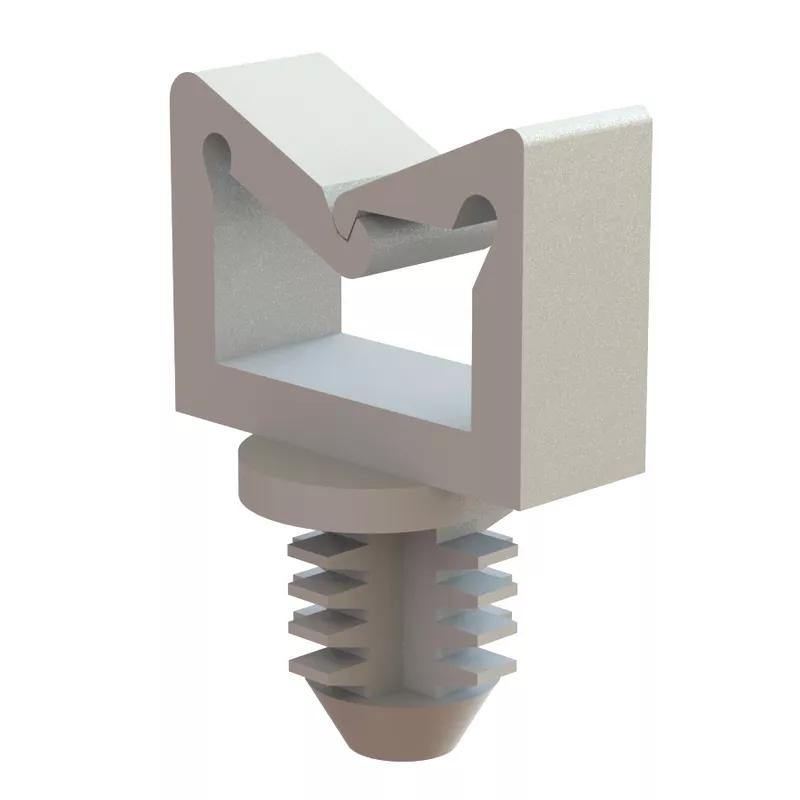

Cable Grommet 3.6 mm 11.1 mm PA Natural

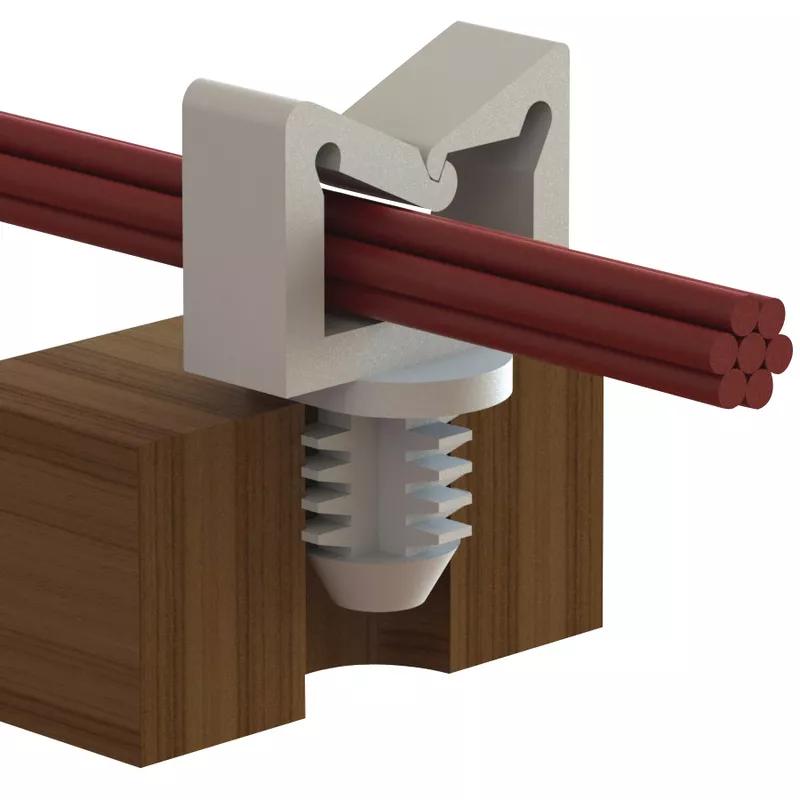

Locking Wire Saddle snaps into place. Holds and directs wires to help keep them clear of sensitive components and provides a clean build. Features a locking top entry system with easy finger-tip pressure installation.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 4,9428 |
| 5000 - 9999 | R 4,4485 |
| 10000 - 24999 | R 4,0037 |
| 25000 + | R 3,6032 |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Material | PA |
| Compatible Hole Diameter | 7.9 mm |
| Depth | 5.6 mm |
| Inside Height | 3.6 mm |
| Inside Width | 11.1 mm |
| Maximum Panel Thickness | 6.4 mm |
| Overall Width | 13.3 mm |
| Panel Thickness Range | 6.4 mm |
| Full Material | Polyamide |
| Material Flammability Standard | UL94 V-2 |
| UL/CSA Description | UL E71558 |
