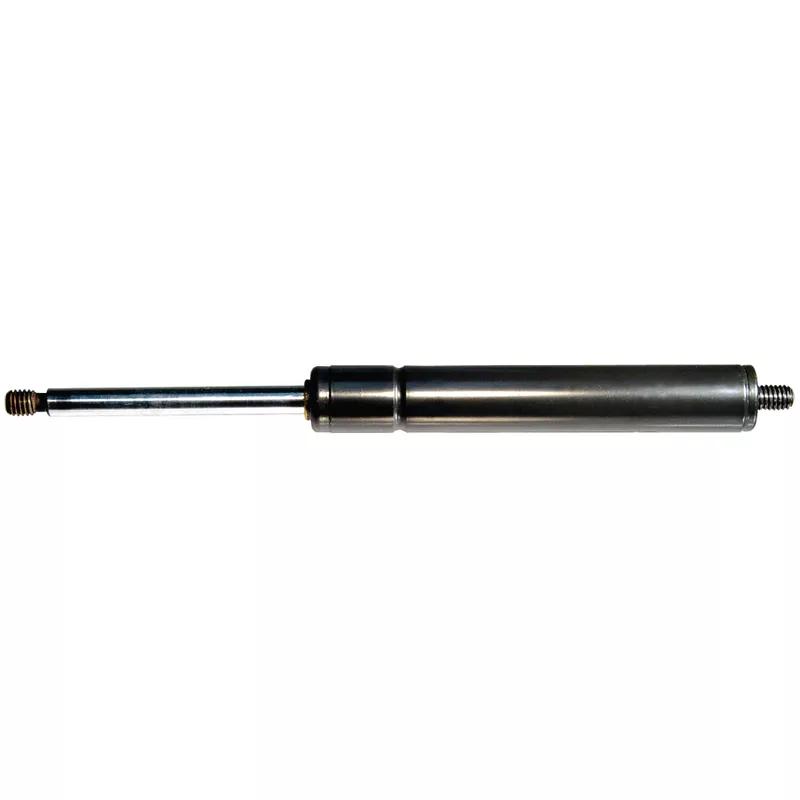

Gas Springs - Fixed Force

In stock

Fixed Force Gas Springs, also are also known as a Forced Spring Gas Strut or a Gas Spring, are self-contained and maintenance free. Gas pressure internal to the strut provides a push or pull force depending on configuration, and additionally has a dampening circuit that controls the motion speed in one or both directions.

Gas Springs are safe to use with easy positional control. They are best suited for use on applications such as access panels, lids, bonnets and hatch covers.

  • Thread Sizes: M5 and M6
  • Rod and Tube Material: Steel
  • Rod Finish: Black Nitrided
  • Tube Finish: Black Epoxy Powder Coated.

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
97 results
Product SKUs information
Item Code Price range Availability Tube Diameter Maximum Force Tube Length View
R 1 307,5063 - R 2 089,3971 Request the lead time here
18.0 mm
300.0 N
295.0 mm
R 1 219,1407 - R 1 948,4244 4 In stock - Delivery conditions may apply, visit our FAQs
18.0 mm
350.0 N
195.0 mm
R 1 257,2006 - R 1 257,2006 Request the lead time here
18.0 mm
150.0 N
245.0 mm
R 668,054 - R 1 185,6712 28 In stock - Delivery conditions may apply, visit our FAQs
15.0 mm
400.0 N
130.0 mm
R 1 609,2407 - R 2 571,813 Request the lead time here
23.0 mm
850.0 N
345.0 mm
R 1 860,6837 - R 2 973,2903 Request the lead time here
28.0 mm
750.0 N
255.0 mm
R 1 815,3012 - R 1 815,3012 Request the lead time here
28.0 mm
1250.0 N
555.0 mm
R 1 609,2407 - R 2 571,813 Request the lead time here
23.0 mm
550.0 N
345.0 mm
R 1 717,1577 - R 1 717,1577 Request the lead time here
28.0 mm
1250.0 N
155.0 mm
R 1 860,6837 - R 2 973,2903 Request the lead time here
28.0 mm
750.0 N
555.0 mm
R 1 307,5063 - R 2 089,3971 Request the lead time here
18.0 mm
550.0 N
295.0 mm
R 1 408,0608 - R 2 250,2024 Request the lead time here
23.0 mm
1200.0 N
145.0 mm
R 1 508,6579 - R 2 411,0077 Request the lead time here
23.0 mm
300.0 N
245.0 mm
R 1 558,9493 - R 2 490,8743 Request the lead time here
23.0 mm
800.0 N
295.0 mm
R 1 508,6579 - R 2 411,0077 Request the lead time here
23.0 mm
600.0 N
245.0 mm
R 1 257,2006 - R 1 257,2006 Request the lead time here
18.0 mm
650.0 N
245.0 mm
R 1 275,6159 - R 1 275,6159 Request the lead time here
18.0 mm
600.0 N
295.0 mm
R 1 458,3664 - R 1 458,3664 10 In stock - Delivery conditions may apply, visit our FAQs
23.0 mm
250.0 N
195.0 mm
R 1 609,2407 - R 2 571,813 Request the lead time here
23.0 mm
1200.0 N
345.0 mm
R 1 860,6837 - R 2 973,2903 Request the lead time here
28.0 mm
1250.0 N
255.0 mm
  • of 5
Gas Spring 250.0 mm 8.0 mm 300.0 N Steel

551914

Price Range
R 2 089,3971 - R 1 307,5063

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    295.0 mm
  • Maximum Force
    300.0 N
Gas Spring 150.0 mm 8.0 mm 350.0 N Steel

551897

Price Range
R 1 948,4244 - R 1 219,1407

Stock Levels
4 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    150.0 mm
  • Tube Length
    195.0 mm
  • Maximum Force
    350.0 N
Gas Spring 200.0 mm 8.0 mm 150.0 N Steel

551905

Price Range
R 1 257,2006 - R 1 257,2006

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    245.0 mm
  • Maximum Force
    150.0 N
Gas Spring 100.0 mm 6.0 mm 400.0 N Steel

551877

Price Range
R 1 185,6712 - R 668,054

Stock Levels
28 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Rod Diameter
    6.0 mm
  • Tube Diameter
    15.0 mm
  • Stroke Length
    100.0 mm
  • Tube Length
    130.0 mm
  • Maximum Force
    400.0 N
Gas Spring 300.0 mm 10.0 mm 850.0 N Steel

551949

Price Range
R 2 571,813 - R 1 609,2407

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    300.0 mm
  • Tube Length
    345.0 mm
  • Maximum Force
    850.0 N
Gas Spring 200.0 mm 14.0 mm 750.0 N Steel

551957

Price Range
R 2 973,2903 - R 1 860,6837

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    14.0 mm
  • Tube Diameter
    28.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    255.0 mm
  • Maximum Force
    750.0 N
Gas Spring 250.0 mm 14.0 mm 1250.0 N Steel

551965

Price Range
R 1 815,3012 - R 1 815,3012

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    14.0 mm
  • Tube Diameter
    28.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    555.0 mm
  • Maximum Force
    1250.0 N
Gas Spring 300.0 mm 10.0 mm 550.0 N Steel

551947

Price Range
R 2 571,813 - R 1 609,2407

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    300.0 mm
  • Tube Length
    345.0 mm
  • Maximum Force
    550.0 N
Gas Spring 100.0 mm 14.0 mm 1250.0 N Steel

551955

Price Range
R 1 717,1577 - R 1 717,1577

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    14.0 mm
  • Tube Diameter
    28.0 mm
  • Stroke Length
    100.0 mm
  • Tube Length
    155.0 mm
  • Maximum Force
    1250.0 N
Gas Spring 250.0 mm 14.0 mm 750.0 N Steel

551963

Price Range
R 2 973,2903 - R 1 860,6837

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    14.0 mm
  • Tube Diameter
    28.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    555.0 mm
  • Maximum Force
    750.0 N
Gas Spring 250.0 mm 8.0 mm 550.0 N Steel

551919

Price Range
R 2 089,3971 - R 1 307,5063

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    295.0 mm
  • Maximum Force
    550.0 N
Gas Spring 100.0 mm 10.0 mm 1200.0 N Steel

551927

Price Range
R 2 250,2024 - R 1 408,0608

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    100.0 mm
  • Tube Length
    145.0 mm
  • Maximum Force
    1200.0 N
Gas Spring 200.0 mm 10.0 mm 300.0 N Steel

551935

Price Range
R 2 411,0077 - R 1 508,6579

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    245.0 mm
  • Maximum Force
    300.0 N
Gas Spring 250.0 mm 10.0 mm 800.0 N Steel

551943

Price Range
R 2 490,8743 - R 1 558,9493

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    295.0 mm
  • Maximum Force
    800.0 N
Gas Spring 200.0 mm 10.0 mm 600.0 N Steel

551937

Price Range
R 2 411,0077 - R 1 508,6579

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    245.0 mm
  • Maximum Force
    600.0 N
Gas Spring 200.0 mm 8.0 mm 650.0 N Steel

551911

Price Range
R 1 257,2006 - R 1 257,2006

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    245.0 mm
  • Maximum Force
    650.0 N
Gas Spring 250.0 mm 8.0 mm 600.0 N Steel

551920

Price Range
R 1 275,6159 - R 1 275,6159

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    8.0 mm
  • Tube Diameter
    18.0 mm
  • Stroke Length
    250.0 mm
  • Tube Length
    295.0 mm
  • Maximum Force
    600.0 N
Gas Spring 150.0 mm 10.0 mm 250.0 N Steel

551928

Price Range
R 1 458,3664 - R 1 458,3664

Stock Levels
10 In stock - Delivery conditions may apply, visit our FAQs
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    150.0 mm
  • Tube Length
    195.0 mm
  • Maximum Force
    250.0 N
Gas Spring 300.0 mm 10.0 mm 1200.0 N Steel

551951

Price Range
R 2 571,813 - R 1 609,2407

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    10.0 mm
  • Tube Diameter
    23.0 mm
  • Stroke Length
    300.0 mm
  • Tube Length
    345.0 mm
  • Maximum Force
    1200.0 N
Gas Spring 200.0 mm 14.0 mm 1250.0 N Steel

551959

Price Range
R 2 973,2903 - R 1 860,6837

Stock Levels
Request the lead time here
Attributes
  • Rod Diameter
    14.0 mm
  • Tube Diameter
    28.0 mm
  • Stroke Length
    200.0 mm
  • Tube Length
    255.0 mm
  • Maximum Force
    1250.0 N
