Fixing Plate 2.5 mm 70.0 mm Steel

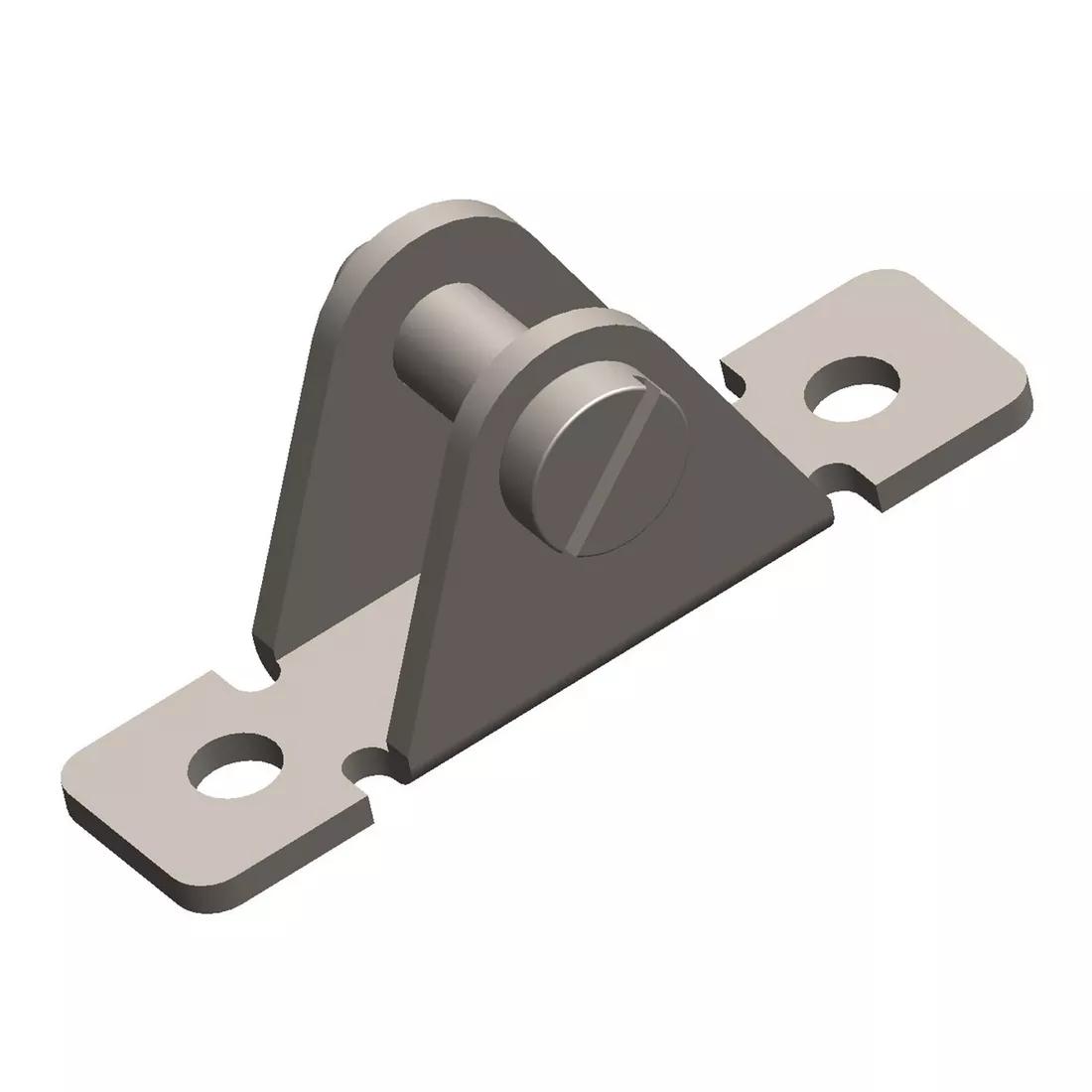

This Gas Spring Mounting Bracket is designed to provide a stable attachment as well as optional functionality for gas springs. The raised and U plated fitting is suitable for receiving eyes clevis forks. It is screwed in and made of carbon steel with Zinc.
Loading...
| Quantity | Unit price |
|---|---|
| 1 - 19 | R 1 137,8745 |
| 20 - 39 | R 631,1439 |
| 40 + | R 493,7407 |
Useful Information
Documents
Specifications
Imperial
Metric
| Type | 6 |
|---|---|
| Fitting Type | Eyes Clevis Fork |
| Full Material | Carbon Steel |

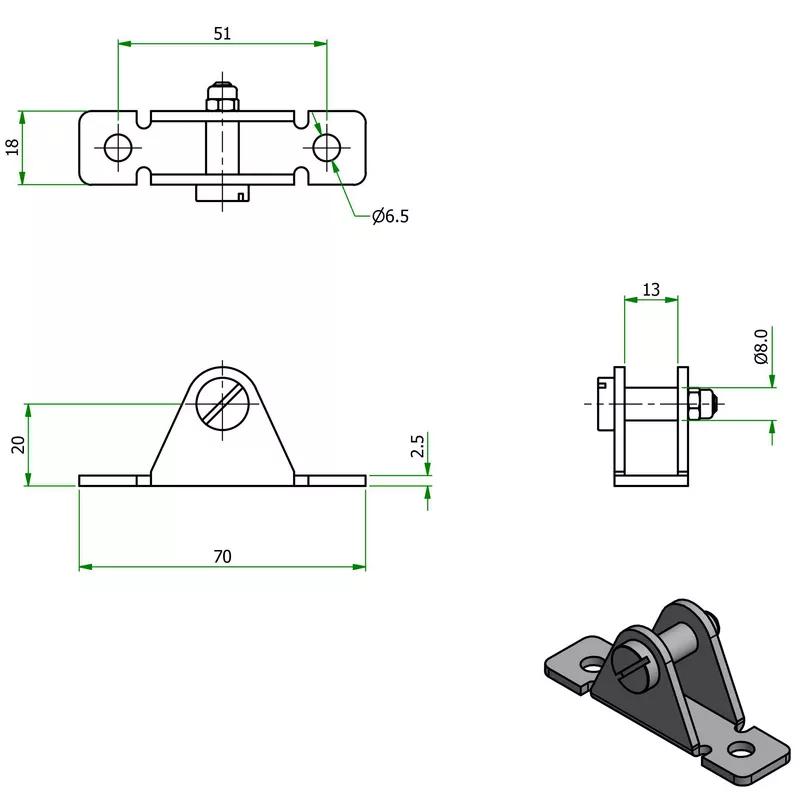

| Overall Length | 70.0 mm |
| Overall Width | 18.0 mm |
| Hole Diameter A | 6.5 mm |
| Plate Thickness | 2.5 mm |
| Distance Between Fixing Holes | 51.0 mm |
| Longest Distance Between Fixing Holes | 51.0 mm |
| Commodity Code | 7326909890 |
