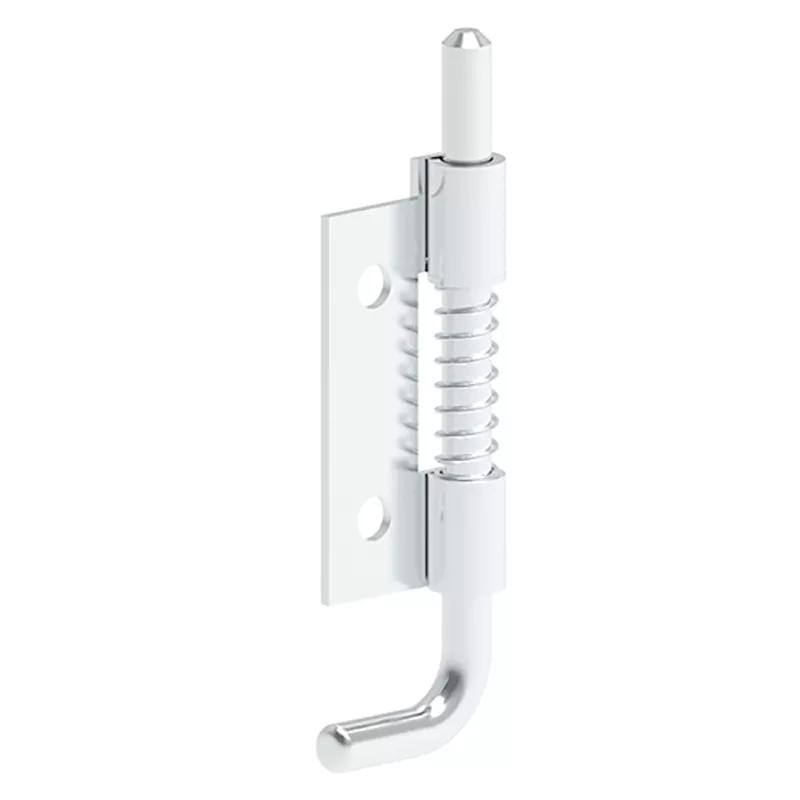

Spring Loaded Removable Concealed Hinges

In stock

Concealed Hinges for which left-hand and right-hand application is possible. Ideal for metal enclosures and machinery covers. Multiple types available in either Zinc Plated Steel or Stainless Steel AISI 304.

Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
14 results
Product SKUs information
Item Code Price range Availability Overall Length Colour Mounting Orientation Finish Body Material View
389 $3.30 - $3.90 557 In stock
1.26 in
Black
Universal
No Finish
Nylon
$5.70 - $7.50 3710 In stock
2.303 in
Silver
Right Handed
Zinc Plated
Steel
$3.30 - $3.30 300 In stock
2.028 in
Copper Apearance
Universal
Copper Plated
Steel
$5.70 - $7.50 4000 In stock
2.303 in
Silver
Left Handed
Zinc Plated
Steel
$2.80 - $2.80 900 In stock
2.028 in
Natural
Universal
Copper Plated
Steel
$7.50 - $9.90 639 In stock
3.307 in
Chrome
Left Handed
Zinc Plated
Steel
$3.60 - $4.50 340 In stock
1.138 in
Black
Universal
Nylon
$13.90 - $18.60 500 In stock
3.307 in
Silver
Right Handed
Natural
Stainless Steel
$0.60 - $0.80 2971 In stock
0.709 in
Natural
Right & Left handed
Steel
$4.10 - $4.10 383 In stock
2.657 in
Copper Apearance
Universal
Copper Plated
Steel
$8.90 - $11.80 500 In stock
2.303 in
Silver
Left Handed
Natural
Stainless Steel
$8.90 - $11.80 546 In stock
2.303 in
Silver
Right Handed
Natural
Stainless Steel
$7.50 - $9.90 464 In stock
3.307 in
Chrome
Right Handed
Zinc Plated
Steel
289402002 $13.90 - $18.60 498 In stock
3.307 in
Chrome
Left Handed
Natural
Stainless Steel
Spring Loaded Pin Hinges - Overall Length - 32.0 mm | 1.26 in; 110 °; Nylon; Black

389

Price Range
$3.90 - $3.30

Stock Levels
557 In stock
Attributes
  • Overall Length
    1.26 in
  • Pin Diameter
    0.138 in
  • Pin Length
    0.217 in
  • Body Material
    Nylon
  • Colour
    Black
Spring Loaded Pin Hinges - Overall Length - 58.5 mm | 2.303 in ; Maximum Rotation - 135 ° ; Pin Length - 10.5 mm | 0.413 in ; Pin Diameter - 4.0 mm | 0.157 in

289631001

Price Range
$7.50 - $5.70

Stock Levels
3710 In stock
Attributes
  • Overall Length
    2.303 in
  • Overall Width
    0.512 in
  • Pin Diameter
    0.157 in
  • Pin Length
    0.413 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 51.5 mm | 2.028 in ; Maximum Rotation - 110 ° ; Pin Length - 10.0 mm | 0.394 in ; Pin Diameter - 6.0 mm | 0.236 in

18912

Price Range
$3.30 - $3.30

Stock Levels
300 In stock
Attributes
  • Overall Length
    2.028 in
  • Overall Width
    0.472 in
  • Pin Diameter
    0.236 in
  • Pin Length
    0.394 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 58.5 mm | 2.303 in ; Maximum Rotation - 135 ° ; Pin Length - 10.5 mm | 0.413 in ; Pin Diameter - 4.0 mm | 0.157 in

289631002

Price Range
$7.50 - $5.70

Stock Levels
4000 In stock
Attributes
  • Overall Length
    2.303 in
  • Overall Width
    0.512 in
  • Pin Diameter
    0.157 in
  • Pin Length
    0.413 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 51.5 mm | 2.028 in; 110 °; Steel; Natural

18910

Price Range
$2.80 - $2.80

Stock Levels
900 In stock
Attributes
  • Overall Length
    2.028 in
  • Overall Width
    0.394 in
  • Pin Diameter
    0.236 in
  • Pin Length
    0.394 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 84.0 mm | 3.307 in; 135 °; Steel; Chrome

289632002

Price Range
$9.90 - $7.50

Stock Levels
639 In stock
Attributes
  • Overall Length
    3.307 in
  • Overall Width
    0.709 in
  • Pin Diameter
    0.197 in
  • Pin Length
    0.571 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 28.9 mm | 1.138 in ; Maximum Rotation - 110 ° ; Pin Length - 8.4 mm | 0.331 in ; Pin Diameter - 6.0 mm | 0.236 in

089

Price Range
$4.50 - $3.60

Stock Levels
340 In stock
Attributes
  • Overall Length
    1.138 in
  • Overall Width
    0.579 in
  • Pin Diameter
    0.236 in
  • Pin Length
    0.331 in
  • Body Material
    Nylon
Spring Loaded Pin Hinges - Overall Length - 84.0 mm | 3.307 in ; Maximum Rotation - 135 ° ; Pin Length - 14.5 mm | 0.571 in ; Pin Diameter - 5.0 mm | 0.197 in

289402001

Price Range
$18.60 - $13.90

Stock Levels
500 In stock
Attributes
  • Overall Length
    3.307 in
  • Overall Width
    0.709 in
  • Pin Diameter
    0.197 in
  • Pin Length
    0.571 in
  • Body Material
    Stainless Steel
Concealed Hinge - Overall Length - 18.0 mm | 0.709 in ; Overall Width - 10.0 mm | 0.394 in ; Mounting Orientation-Right & Left handed

32003192

Price Range
$0.80 - $0.60

Stock Levels
2971 In stock
Attributes
  • Overall Length
    0.709 in
  • Overall Width
    0.394 in
  • Body Material
    Steel
  • Coating
    Zinc Plated
  • Colour
    Natural
Spring Loaded Pin Hinges - Overall Length - 67.5 mm | 2.657 in ; Maximum Rotation - 110 ° ; Pin Length - 14.5 mm | 0.571 in ; Pin Diameter - 9.0 mm | 0.354 in

18915

Price Range
$4.10 - $4.10

Stock Levels
383 In stock
Attributes
  • Overall Length
    2.657 in
  • Overall Width
    0.591 in
  • Pin Diameter
    0.354 in
  • Pin Length
    0.571 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 58.5 mm | 2.303 in ; Maximum Rotation - 135 ° ; Pin Length - 10.5 mm | 0.413 in ; Pin Diameter - 4.0 mm | 0.157 in

289401002

Price Range
$11.80 - $8.90

Stock Levels
500 In stock
Attributes
  • Overall Length
    2.303 in
  • Overall Width
    0.512 in
  • Pin Diameter
    0.157 in
  • Pin Length
    0.413 in
  • Body Material
    Stainless Steel
Spring Loaded Pin Hinges - Overall Length - 58.5 mm | 2.303 in ; Maximum Rotation - 135 ° ; Pin Length - 10.5 mm | 0.413 in ; Pin Diameter - 4.0 mm | 0.157 in

289401001

Price Range
$11.80 - $8.90

Stock Levels
546 In stock
Attributes
  • Overall Length
    2.303 in
  • Overall Width
    0.512 in
  • Pin Diameter
    0.157 in
  • Pin Length
    0.413 in
  • Body Material
    Stainless Steel
Spring Loaded Pin Hinges - Overall Length - 84.0 mm | 3.307 in; 135 °; Steel; Chrome

289632001

Price Range
$9.90 - $7.50

Stock Levels
464 In stock
Attributes
  • Overall Length
    3.307 in
  • Overall Width
    0.709 in
  • Pin Diameter
    0.197 in
  • Pin Length
    3.307 in
  • Body Material
    Steel
Spring Loaded Pin Hinges - Overall Length - 84.0 mm | 3.307 in; 135 °; Stainless Steel; Chrome

289402002

Price Range
$18.60 - $13.90

Stock Levels
498 In stock
Attributes
  • Overall Length
    3.307 in
  • Overall Width
    0.709 in
  • Pin Diameter
    0.197 in
  • Pin Length
    3.307 in
  • Body Material
    Stainless Steel
