Home // PCB Mounting Pillars // PCB Corner Edge Locking Supports
Edge Locking Corner/Edge Locking Support - Screw Mount

PCB Corner Edge Locking Supports

In stock

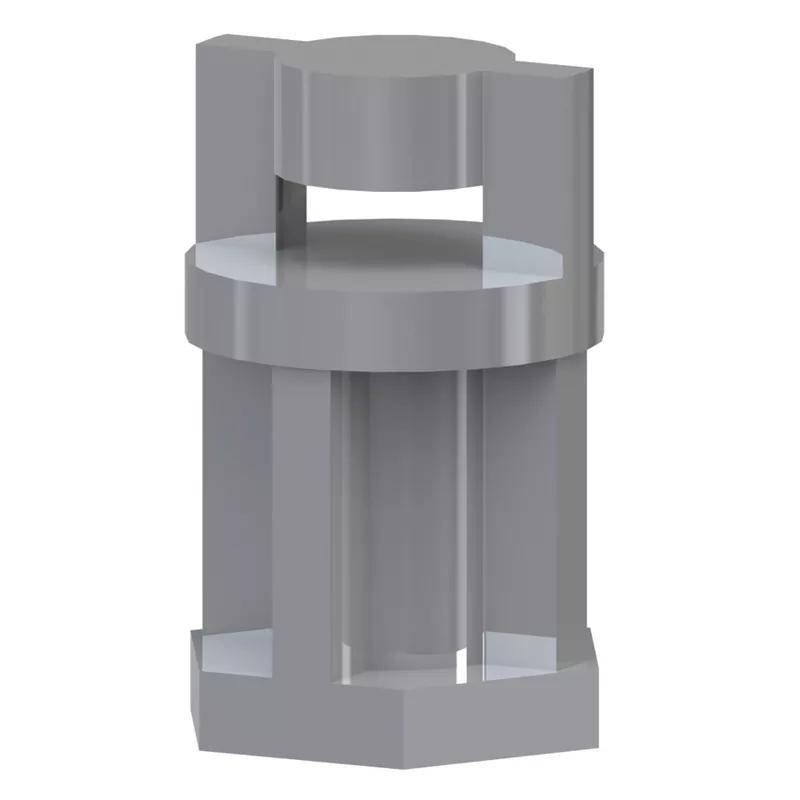

These are Corner/Edge locking supports. They can be mounted to either the corner or the edge of a PCB requiring no holes or slots on the board. They are mounted on the bottom with a #6 self-tapping screw for a strong hold.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
6 results

Sort by

None
Product SKUs information
Item Code Price range Availability Panel Thickness A Range Thread Length Compatible Thread Sizes (All) Spacer Length View
TCEHCBS-6-01 $0.4013 - $0.4814 Request the lead time here
0.063 in
#6
0.374 in
$0.4638 - $0.5565 1000 In stock
0.063 in
#6
0.874 in
$0.4472 - $0.5364 1000 In stock
0.063 in
#6
0.752 in
TCEHCBS-10-01 $0.4316 - $0.518 2000 In stock
0.063 in
#6
0.626 in
TCEHCBS-4-01 $0.3914 - $0.5889 11000 In stock
0.063 in
#6
0.252 in
$0.4133 - $0.4959 4000 In stock
0.063 in
#6
0.5 in
Edge Locking Support - #6 ; 9.5 mm | .375 in

TCEHCBS-6-01

Price Range
$0.4814 - $0.4013

Stock Levels
Request the lead time here
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
Edge Locking Support - #6 ; 22.2 mm | 0.875 in

TCEHCBS-14-01

Price Range
$0.5565 - $0.4638

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
Edge Locking Support - #6 ; 19.1 mm | .750 in

TCEHCBS-12-01

Price Range
$0.5364 - $0.4472

Stock Levels
1000 In stock
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
Edge Locking Support - #6 ; 15.9 mm | 0.625 in

TCEHCBS-10-01

Price Range
$0.518 - $0.4316

Stock Levels
2000 In stock
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
Edge Locking Support - #6 ; 6.4 mm | 0.250 in

TCEHCBS-4-01

Price Range
$0.5889 - $0.3914

Stock Levels
11000 In stock
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
Edge Locking Support - #6 ; 12.7 mm | 0.500 in

TCEHCBS-8-01

Price Range
$0.4959 - $0.4133

Stock Levels
4000 In stock
Attributes
  • Body Diameter
    0.327 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
  • Panel Thickness A Range
    0.063 in
Quick View
View Product >
