PCB Support - ; Snap Lock ; Spacer Length 10.0 mm | 0.394 in ; ; -40 - 85 °C | -40 - 185 °F

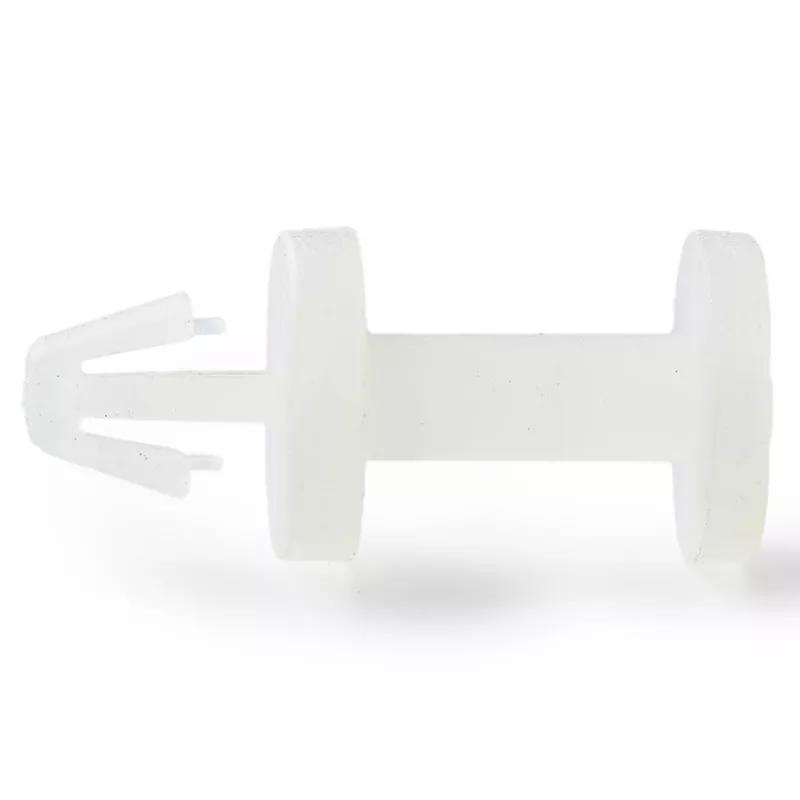

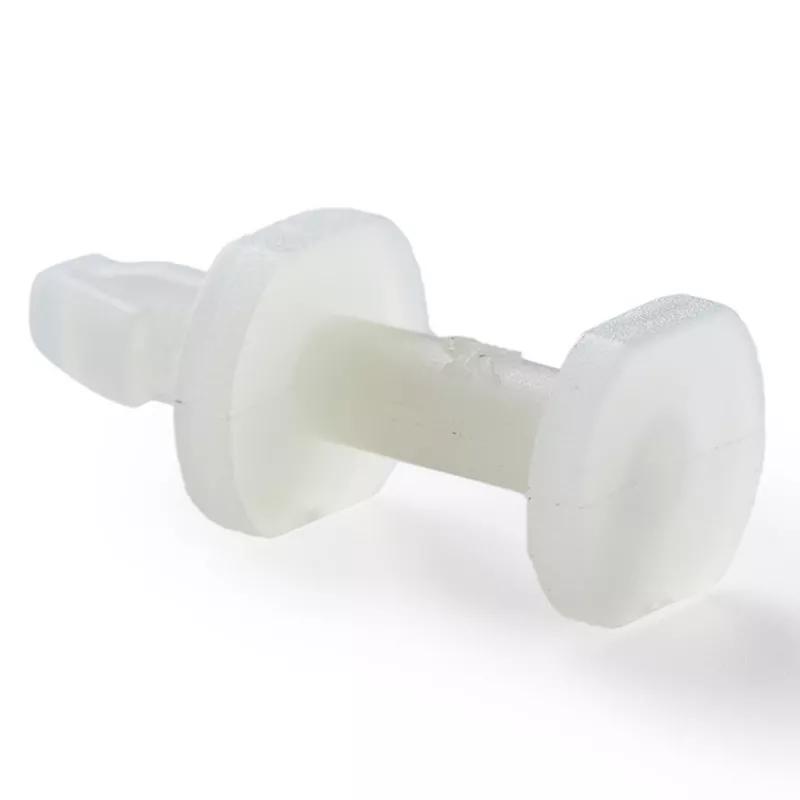

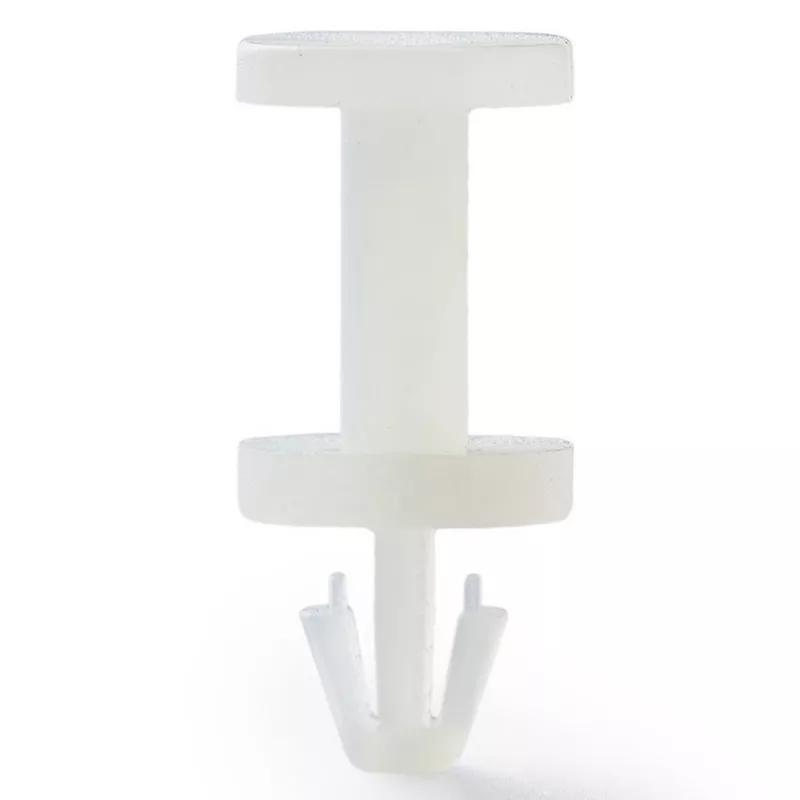

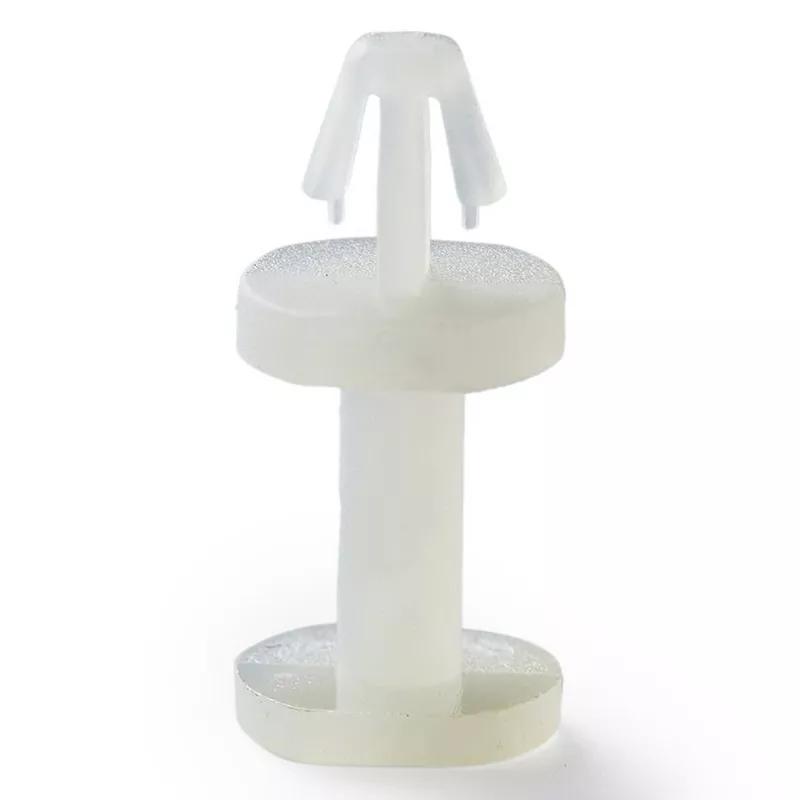

This solid body spacer has a snap-in clip with wide base for added stability and a flat rest top. Perfect for boards that don't require fixing or larger boards that need extra support. This item is manufactured with material rated UL94 V-2
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2198 |
| 10000 - 24999 | $0.2066 |
| 25000 + | $0.1931 |
Useful Information
Specifications
Imperial
Metric
| Fixing Type | Locking Arrowhead Fix |
|---|---|
| Body Diameter | 0.098 in |
| Flange Diameter | 0.236 in |
| Locking Head Height | 0.138 in |
| Maximum Operating Temperature | 185 °F |
| Panel Thickness Range | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 0.394 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
