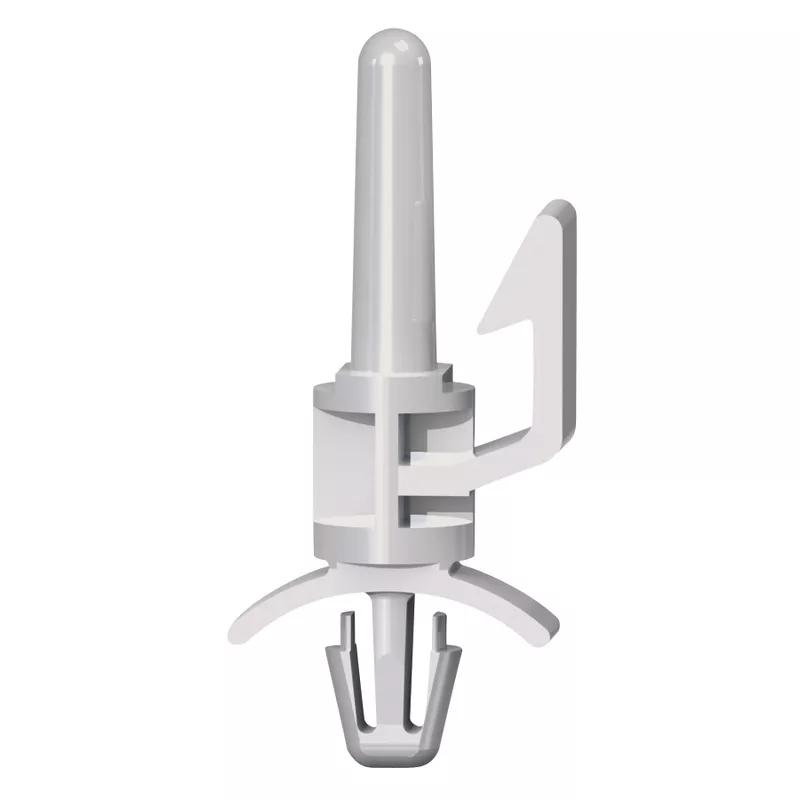

PCB Edge Locking Supports - Snap In
In stock
Edge Locking Supports provide a secure hold on the side of the PCB and the snap in fitting and locating nose are ideal for quick assembly. The PCB is easily removed for service.
Request a quote
For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Item Code | Price range | Availability | Hole Diameter A | Hole Diameter B | Panel Thickness A Range | Panel Thickness B Range | Spacer Length | View |
|---|---|---|---|---|---|---|---|---|
| $0.4392 - $0.5268 | 1000 In stock |
0.157 in
|
0.189 in
|
0.063 in
|
0.030 - 0.079 in
|
0.311 in
|
||
| $0.4215 - $0.6189 | 2000 In stock |
0.157 in
|
0.189 in
|
0.063 in
|
0.030 - 0.079 in
|
0.311 in
|
||
| $0.5571 - $0.6684 | Request the lead time here |
0.157 in
|
|
0.062 in
|
.062 in
|
.661 in
|
||
Edge Locking Support - Spacer Length 8 mm | 0.313 in ; Arm Length 7.4 mm | 0.29 in ; 85 °C | 185 °F
- Price Range
- $0.5268 - $0.4392
- Stock Levels
- 1000 In stock
Attributes
-
Arm Length
0.295 in -
Hole Diameter A
0.157 in -
Locking Head Height A
0.598 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.063 in
Edge Locking Support - Spacer Length 8 mm | 0.313 in ; Arm Length 6.1 mm | 0.24 in ; 85 °C | 185 °F
- Price Range
- $0.6189 - $0.4215
- Stock Levels
- 2000 In stock
Attributes
-
Arm Length
0.24 in -
Hole Diameter A
0.157 in -
Locking Head Height A
0.24 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.063 in
Edge Locking Support - Spacer Length 16.8 mm | .661 in
- Price Range
- $0.6684 - $0.5571
- Stock Levels
- Request the lead time here
Attributes
-
Hole Diameter A
0.157 in -
Locking Head Height A
0.290 in -
Maximum Operating Temperature
185 °F -
Maximum Panel Thickness A
0.062 in -
Maximum Panel Thickness B
.062 in
