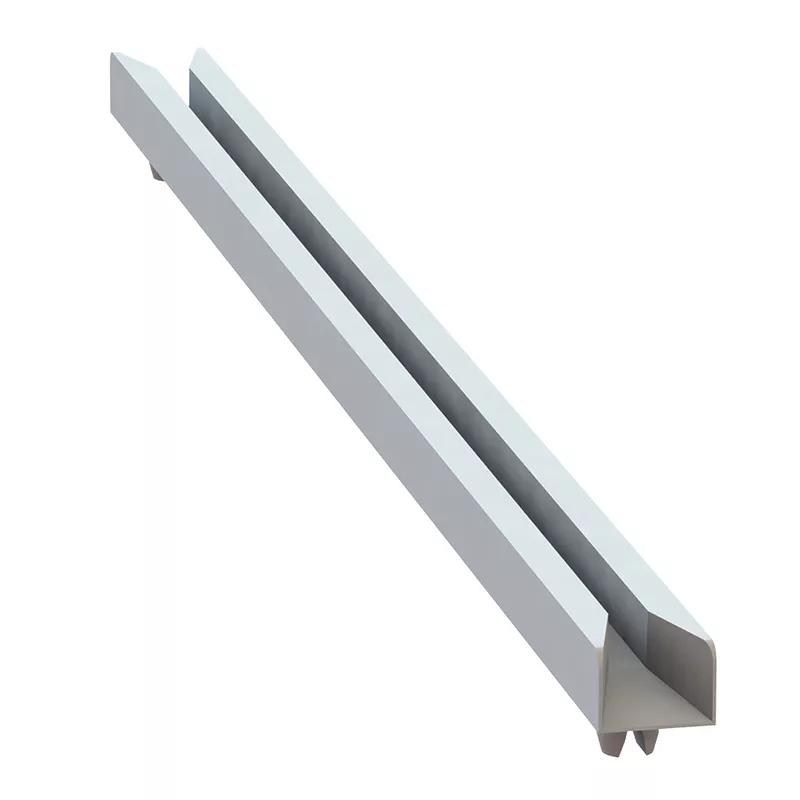

N/A - Natural ; Nylon 6/6 ; Accepts Panel Thickness1.6 mm | 0.062 in ; Overall Length 139.7 mm | 5.500 in
The narrow width of the product allows for higher density or optimum air flow, the overall length is 139.7 mm | 5.500 in. It is designed to hold a PCB with a maximum thickness of 0.062 in
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.8702 |
| 10000 - 24999 | $0.8178 |
| 25000 + | $0.7659 |
Useful Information
Documents
Certificates
Specifications
Imperial
Metric
| Accepts Panel Thickness | 0.062 in |
|---|---|
| Distance Between Fixing Holes | 5.000 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness | 0.085 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.047 in |
| Operating Temperature Range | -40 - 185 °F |
| Overall Length | 5.500 in |
| Panel Thickness Range | 0.047 - 0.085 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Mounting Method | Push Fit |
| Material Flammability Standard | UL94 V-2 |
