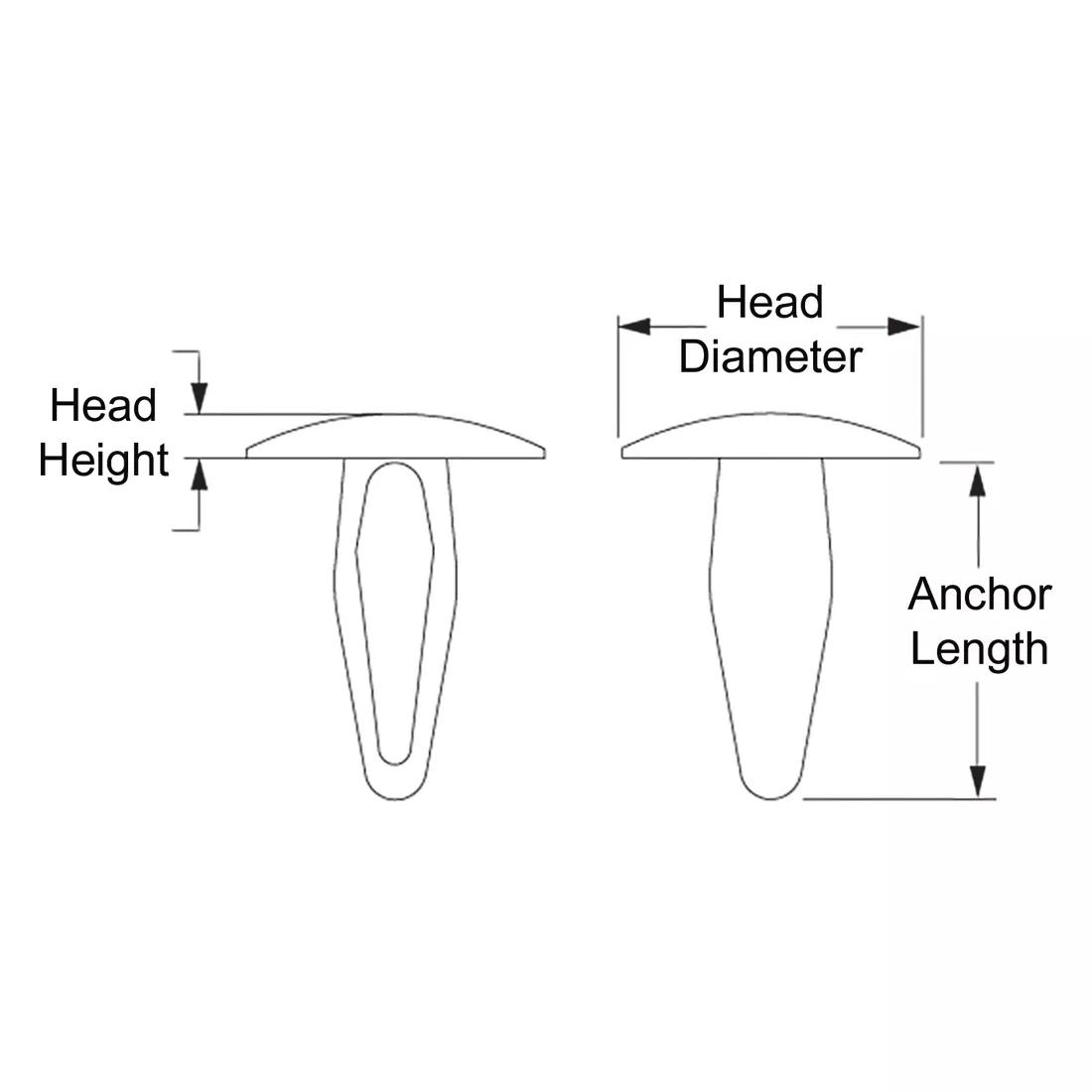

Push-In Rivets - Arrow Clip - Line Drawing

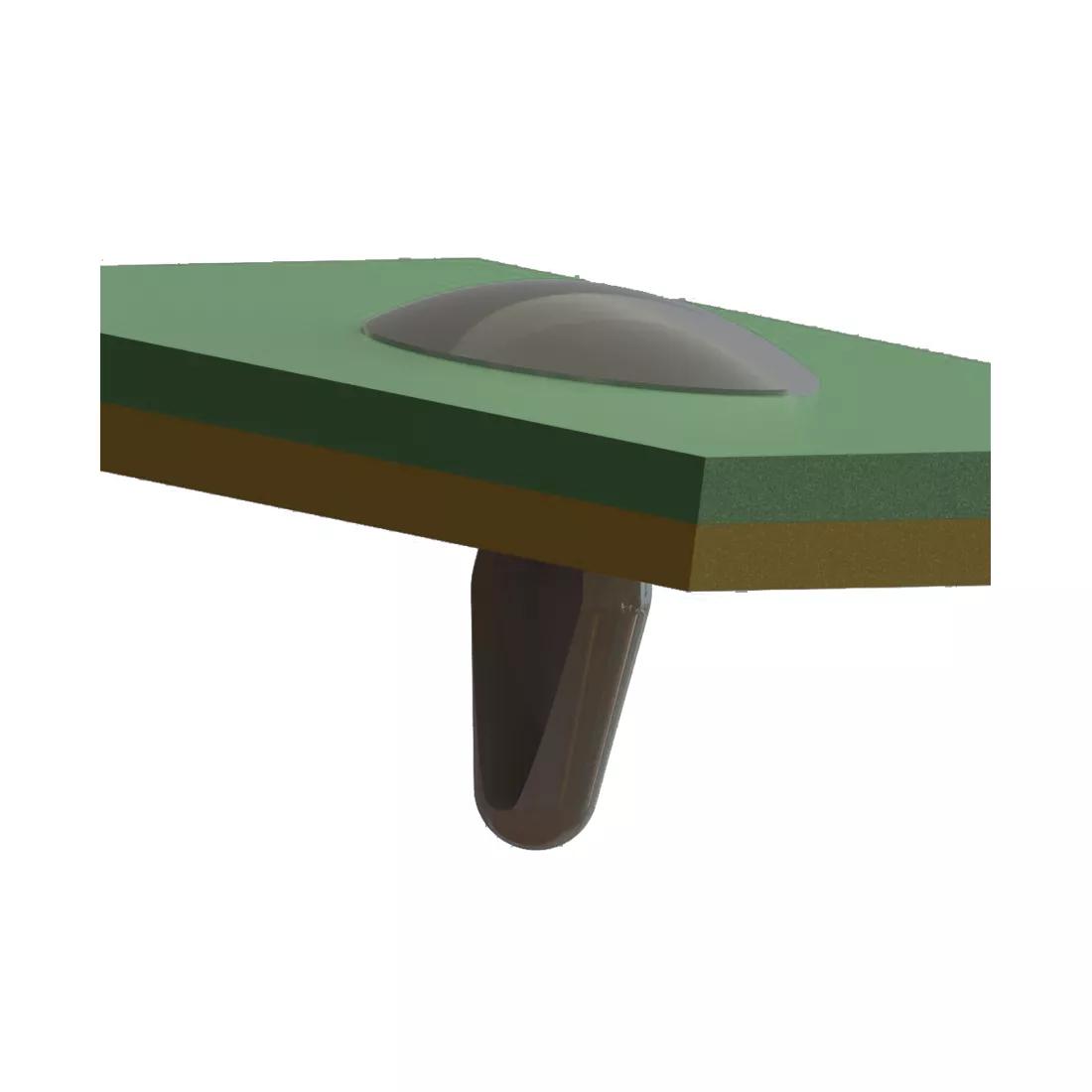

Push-In Rivets - Arrow Clip - Application Shot

Push-In Rivets - Arrow Clip

In stock

Canoe Clips are a low-cost fastener, designed to work in the same way as a rivet or a screw. The design of these clips means they are easier to remove than other rivets. The range features a variety of styles, including those with a fully hollow anchor, or those that have a partially hollow anchor.

Suitable for front panel mounting, these economical clips easily snap into round holes and cover a smaller surface area. They are ideal for securely holding a variety of materials in place, including both metals and plastics. No tools are required for installation - simply apply thumb pressure over the flat round-shaped head.

Our range offers good electric insulation, as well as vibration, abrasion and corrosion resistance. They can be used on electronic, automotive or machine applications. Canoe Clips insert neatly into panel holes, and are ideal for long-term signs and displays. They can be removed and reused on occasion; however, thanks to their extra firm grip, they are better suited to applications that do not change very often.

Material: Nylon 6/6
Colours: Grey, Black and Natural
UL94 V2 Flame Rated options

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

48 results

Sort by

None

Product SKUs information
Price range	Availability	Minimum Compatible Hole Diameter	Maximum Compatible Hole Diameter	Colour	Minimum Compatible Panel Thickness	Anchor Length	Maximum Compatible Panel Thickness
$0.0332 - $0.0349	In production	0.138 in 3.5 mm	0.138 in 3.5 mm	Natural	0.035 in 0.9 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.0342 - $0.0361	In production	0.189 in 4.8 mm	0.189 in 4.8 mm	Black	0.031 in 0.8 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.0368 - $0.0387	In production	0.197 in 5.0 mm	0.197 in 5.0 mm	Natural	0.02 in 0.5 mm	0.567 in 14.4 mm	0.118 in 3.0 mm

$0.068 - $0.0716	In production	0.228 in 5.8 mm	0.228 in 5.8 mm	Natural	0.236 in 6.0 mm	0.709 in 18.0 mm	0.335 in 8.5 mm

$0.039 - $0.0411	In production	0.138 in 3.5 mm	0.138 in 3.5 mm	Black	0.035 in 0.9 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.0685 - $0.0722	In production	0.228 in 5.8 mm	0.228 in 5.8 mm	Black	0.236 in 6.0 mm	0.709 in 18.0 mm	0.335 in 8.5 mm

$0.0477 - $0.0502	14 In stock	0.26 in 6.6 mm	0.26 in 6.6 mm	Black	0.031 in 0.8 mm	0.571 in 14.5 mm	0.197 in 5.0 mm

$0.123 - $0.1295	In production	0.37 in 9.4 mm	0.37 in 9.4 mm	Natural	0.118 in 3.0 mm	0.945 in 24.0 mm	0.354 in 9.0 mm

$0.03 - $0.0316	20 In stock	0.138 in 3.5 mm	0.138 in 3.5 mm	Black	0.094 in 2.4 mm	0.512 in 13.0 mm	0.228 in 5.8 mm

$0.0295 - $0.0311	In production	0.138 in 3.5 mm	0.138 in 3.5 mm	Black	0.035 in 0.9 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.0328 - $0.0344	In production	0.189 in 4.8 mm	0.189 in 4.8 mm	Natural	0.031 in 0.8 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.0361 - $0.038	In production	0.197 in 5.0 mm	0.197 in 5.0 mm	Black	0.02 in 0.5 mm	0.567 in 14.4 mm	0.118 in 3.0 mm

$0.0475 - $0.05	In production	0.283 in 7.2 mm	0.283 in 7.2 mm	Natural	0.079 in 2.0 mm	0.669 in 17.0 mm	0.217 in 5.5 mm

$0.026 - $0.0274	16 In stock	0.11 in 2.8 mm	0.11 in 2.8 mm	Natural	0.031 in 0.8 mm	0.472 in 12.0 mm	0.142 in 3.6 mm

$0.0376 - $0.0396	In production	0.138 in 3.5 mm	0.138 in 3.5 mm	Natural	0.035 in 0.9 mm	0.433 in 11.0 mm	0.157 in 4.0 mm

$0.036 - $0.0379	21 In stock	0.197 in 5.0 mm	0.197 in 5.0 mm	Natural	0.118 in 3.0 mm	0.567 in 14.4 mm	0.236 in 6.0 mm

$0.0464 - $0.0488	In production	0.26 in 6.6 mm	0.26 in 6.6 mm	Natural	0.031 in 0.8 mm	0.571 in 14.5 mm	0.197 in 5.0 mm

$0.1168 - $0.1229	10 In stock	0.37 in 9.4 mm	0.37 in 9.4 mm	Black	0.118 in 3.0 mm	0.945 in 24.0 mm	0.354 in 9.0 mm

$0.103 - $0.1084	In production	0.181 in 4.6 mm	0.187 in 4.7 mm	Black	0.098 in 2.5 mm	0.429 in 10.9 mm	0.157 in 4.0 mm

$0.1193 - $0.1255	In production	0.197 in 5.0 mm	0.210 in 5.3 mm	Natural	0.098 in 2.5 mm	0.551 in 14.0 mm	0.157 in 4.0 mm
