Locating Plates
In stock

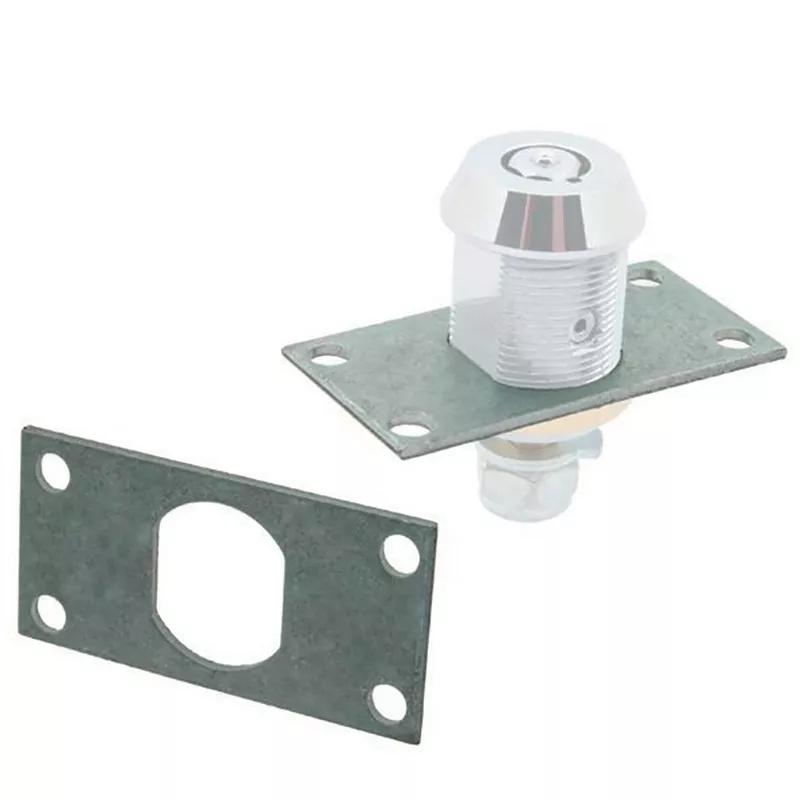

Cam Lock Wood Washer and Cam Lock Locating Plates are supported by the display locks range. The wood washer prevents a cam lock from rotating in wooden applications where it is convenient to drill are round hole for fitting the lock. The locating or mounting plate is steel and enable a cam lock with a 19mm x 15.9mm double D profile to be fixed securely
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Item Code | Price range | Availability | Hole Dimensions | Overall Length | Material | Overall Width | Thickness | View |
|---|---|---|---|---|---|---|---|---|
| $0.1316 - $0.1386 | Request the lead time here |
|
22.0 mm
|
Nylon
|
9.0 mm
|
|
||
| $0.1587 - $0.167 | Request the lead time here |
|
21.0 mm
|
Nylon
|
12.0 mm
|
|
||
| $2.065 - $2.2881 | 20 In stock |
|
34.0 mm
|
Steel
|
34.0 mm
|
|
||
| $4.4925 - $4.7289 | Request the lead time here |
|
50.0 mm
|
Steel
|
25.0 mm
|
|
||
Locating Plate - Overall Length - 22.0 mm | 0.866 in ; Overall Width - 9.0 mm | 0.354 in ; Overall Height - 10.0 mm | 0.394 in
- Price Range
- $0.1386 - $0.1316
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Grey -
Material
Nylon -
Overall Height
10.0 mm -
Overall Length
22.0 mm -
Overall Width
9.0 mm
Locating Plate - Overall Length - 21.0 mm | 0.827 in ; Overall Width - 12.0 mm | 0.472 in ; Overall Height - 6.5 mm | 0.256 in
- Price Range
- $0.167 - $0.1587
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Material
Nylon -
Overall Height
6.5 mm -
Overall Length
21.0 mm -
Overall Width
12.0 mm
Locating Plate - Overall Length - 34.0 mm | 1.339 in ; Overall Width - 34.0 mm | 1.339 in ;
- Price Range
- $2.2881 - $2.065
- Stock Levels
- 20 In stock
Attributes
-
Colour
Natural -
Material
Steel -
Mounting Hole Length
19.0 mm -
Mounting Hole Width
16.2 mm -
Overall Length
34.0 mm
Locating Plate - Overall Length - 50.0 mm | 1.969 in ; Overall Width - 25.0 mm | 0.984 in ;
- Price Range
- $4.7289 - $4.4925
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Material
Steel -
Mounting Hole Length
19.0 mm -
Mounting Hole Width
16.0 mm -
Overall Length
50.0 mm
