Compression Latches - Adjustable
In stock
Compression Latches that feature a wide grip range with adjustable screw. The latch provides good compression and is available in a choice of pre-set compression options that include; 4mm and 6mm for improved noise isolation.
The latch has noise dampening properties and offers better sealing under vibration and shock conditions. The latch is rated per DIN-EN 61373.

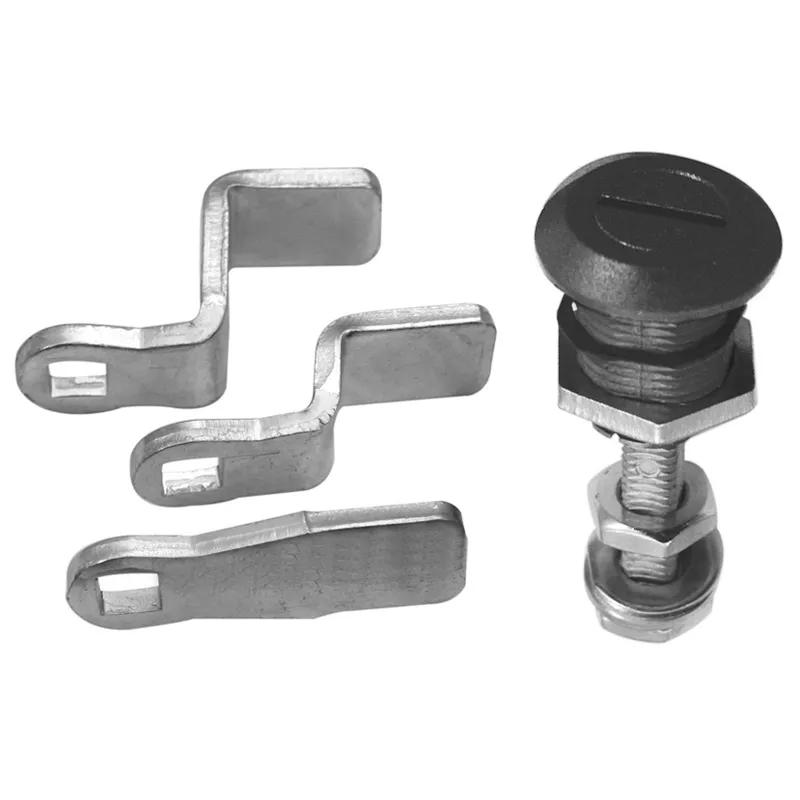

The range features latches with a quarter turn cam operation and a choice of locking and non-locking options. Cams and driver keys are sold separately.
- Materials: Die Cast Zinc Alloy and Stainless Steel
- Finish Options: Chrome Plated, Powder Coating, Matt and Stainless Steel
- Left Hand and Right Hand mounting
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Item Code | Price range | Availability | Mounting Hole Width | Maximum Compression | Mounting Orientation | Latch Material | Key Type | Maximum Compatible Door Thickness | View |
|---|---|---|---|---|---|---|---|---|---|
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Hex Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Slotted Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Square Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Triangle Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Hex Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Square Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Triangle Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Hex Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Triangle Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Slotted Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Square Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Hex Key
|
|
||
| $20.4885 - $22.7019 | Request the lead time here |
|
6.0 mm
|
|
|
Slotted Key
|
|
||
| $150.4196 - $277.0889 | Request the lead time here |
20.2 mm
|
6.0 mm
|
Left Handed
|
Stainless Steel
|
Double Bit Key
|
18.0 mm
|
||
| $18.4937 - $34.0674 | Request the lead time here |
19.2 mm
|
6.0 mm
|
Left Handed
|
Zamak
|
Triangle Key
|
18.0 mm
|
||
| $25.5771 - $47.1157 | Request the lead time here |
19.2 mm
|
6.0 mm
|
Left Handed
|
Zinc Alloy
|
No Key
|
18.0 mm
|
||
| $21.0335 - $38.7459 | Request the lead time here |
20.2 mm
|
6.0 mm
|
Left Handed
|
Zamak
|
Hex Key
|
18.0 mm
|
||
| $20.8232 - $38.3585 | Request the lead time here |
19.2 mm
|
6.0 mm
|
Left Handed
|
Zamak
|
Tubular Key
|
18.0 mm
|
||
| $28.8843 - $53.2081 | Request the lead time here |
19.2 mm
|
6.0 mm
|
Left Handed
|
Zamak
|
Double Bit Key
|
18.0 mm
|
||
| $12.5913 - $13.9516 | Request the lead time here |
20.2 mm
|
6.0 mm
|
Left Handed
|
Zamak
|
Slotted Key
|
18.0 mm
|
||
Compression Cam Latch - Finish: Chrome Plated ; Minimum Grip - 28.0 mm | 1.102 in ; Maximum Grip - 44.0 mm | 1.732 in ; Latch Style - Offset
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Finish
Chrome Plated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy -
Certification
IP65
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 28.0 mm | 1.102 in ; Maximum Grip - 44.0 mm | 1.732 in ; Latch Style - Offset
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Tool Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 40.0 mm | 1.575 in ; Maximum Grip - 57.0 mm | 2.244 in ; Latch Style - Flat
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 11.0 mm | 0.433 in ; Maximum Grip - 29.0 mm | 1.142 in ; Latch Style - Deep
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Chrome Plated ; Minimum Grip - 40.0 mm | 1.575 in ; Maximum Grip - 57.0 mm | 2.244 in ; Latch Style - Flat
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Finish
Chrome Plated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy -
Certification
IP65
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 11.0 mm | 0.433 in ; Maximum Grip - 29.0 mm | 1.142 in ; Latch Style - Deep
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 40.0 mm | 1.575 in ; Maximum Grip - 57.0 mm | 2.244 in ; Latch Style - Flat
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 11.0 mm | 0.433 in ; Maximum Grip - 29.0 mm | 1.142 in ; Latch Style - Deep
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 28.0 mm | 1.102 in ; Maximum Grip - 44.0 mm | 1.732 in ; Latch Style - Offset
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 40.0 mm | 1.575 in ; Maximum Grip - 57.0 mm | 2.244 in ; Latch Style - Flat
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Tool Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 28.0 mm | 1.102 in ; Maximum Grip - 44.0 mm | 1.732 in ; Latch Style - Offset
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Finish: Chrome Plated ; Minimum Grip - 11.0 mm | 0.433 in ; Maximum Grip - 29.0 mm | 1.142 in ; Latch Style - Deep
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Finish
Chrome Plated -
Handle Type
Key Operated Handle -
Housing Material
Zinc Alloy -
Certification
IP65
Compression Cam Latch - Finish: Powder Coated ; Minimum Grip - 11.0 mm | 0.433 in ; Maximum Grip - 29.0 mm | 1.142 in ; Latch Style - Deep
- Price Range
- $22.7019 - $20.4885
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Tool Operated Handle -
Housing Material
Zinc Alloy
Compression Cam Latch - Double Bit Key; Maximum Grip : 58.0 mm | 2.283 in; Stainless Steel
- Price Range
- $277.0889 - $150.4196
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Stainless Steel -
Handle Type
Key Operated Handle -
Housing Material
Stainless Steel -
Latch Material
Stainless Steel -
Certification
IP65
Compression Cam Latch - Triangle Key; Maximum Grip : 85.0 mm | 3.346 in; Steel
- Price Range
- $34.0674 - $18.4937
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Black Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zamak
Compression Cam Latch - No Key; Minimum Grip - 55.0 mm | 2.165 in; Maximum Grip - 72.0 mm | 2.835 in; Zinc Alloy
- Price Range
- $47.1157 - $25.5771
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Non-Locking Handle -
Housing Material
Zamak
Compression Cam Latch - Hex Key; Maximum Grip : 85.0 mm | 3.346 in; Steel
- Price Range
- $38.7459 - $21.0335
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Finish
Chrome Plated -
Handle Type
Key Operated Handle -
Housing Material
Zamak -
Latch Material
Zamak
Compression Cam Latch - Tubular Key; Maximum Grip : 72.0 mm | 2.835 in; Steel
- Price Range
- $38.3585 - $20.8232
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Black Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zamak
Compression Cam Latch - Double Bit Key; Maximum Grip : 85.0 mm | 3.346 in; Steel
- Price Range
- $53.2081 - $28.8843
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Black Powder Coated -
Handle Type
Key Operated Handle -
Housing Material
Zamak
Compression Cam Latch - Slotted Key; Maximum Grip : 72.0 mm | 2.835 in; Steel
- Price Range
- $13.9516 - $12.5913
- Stock Levels
- Request the lead time here
Attributes
-
Cam Material
Steel -
Colour
Black -
Finish
Powder Coated -
Handle Type
Locking Handle -
Housing Material
Zamak
