A guide to hinge sizing and selection

Getting the hinges right is fundamental. The way a hinge is sized, measured, and specified determines how efficiently loads are transferred and how long the assembly will last. This guide sets out how to measure hinges, calculate the loads they’ll carry, and select the right hinge dimensions for each application. The same principles apply whether you’re specifying industrial hinges for heavy equipment or cabinet hinges for precision enclosures. In this guide, we’ll cover:

Why detailed hinge measurement is important
Hinge basic analysis & terminology
Hinge-size calculation step by step
Measuring hinge height and width
Determining the hinge thickness
Common problems with wrong hinge sizes
How to choose the right hinge for your needs
Conclusion



Why detailed hinge measurement is important

Most moving assemblies fail at the hinges first. They take the load every time the part moves, so the way they’re measured decides how long they last. If the geometry is even slightly off, the errors show up as uneven wear, extra friction, or loss of alignment. When the numbers are right, the hinges behave predictably no matter how many cycles they run. Each set of hinge dimensions defines the relationship between materials, tolerances, and the forces that act across the joint throughout its life.

Measurement as a design discipline

Accurate hinge dimensions show how a designer thinks about control, not just accuracy. It’s the point where intent meets the limits of real materials and machining. When drawings become parts, knowing how to measure hinges properly tells you whether the model holds up or needs correction. Keeping those numbers consistent across production is what gives industrial hinges and cabinet hinges their repeatable feel and long-term reliability.

The intersection of performance and perception

Engineers know that motion communicates quality. The way a door closes or a panel opens conveys precision to the user, and that experience begins with the hinges. When hinge dimensions are properly controlled, forces are transferred cleanly, friction is managed, and alignment remains true. A well measured set of cabinet hinges allows the designed motion to express intent without compromise.

Integration and system behaviour

No hinge operates in isolation. It forms part of a larger mechanical dialogue involving frames, fasteners, and surface interfaces. Detailed measurement ensures that these relationships are predictable. It also allows designers to anticipate the effects of thermal expansion, vibration, and load cycling. The result is a system that behaves as expected over its lifecycle rather than one that drifts out of tolerance through cumulative error.

Browse our range of hinges

Hinge basic analysis and terminology

Analysing types of hinges begins with how they carry load and manage motion. Every hinge has two leaves, a pin, and a knuckle assembly that defines the axis of rotation. The geometry of these parts determines how forces are transferred and how well the joint maintains alignment under stress.

Load paths and movement

When hinges operate, the pin serves as the bearing surface while the leaves resist shear and bending. The distance between the mounting holes and the knuckle sets the lever arm that governs torque. Any clearance between the pin and knuckle affects play, which influences both the feel of movement and long-term wear.

Browse our range of leaf hinges

Key terms and measurements

The following hinge dimensions define hinge behaviour and compatibility with its mounting structure:
●    Leaf width: Distance from the knuckle centre to the outer edge of the leaf.

●    Knuckle length: Axial length of each rolled or machined knuckle segment.

●    Pin diameter: Size of the central pin that carries the bearing load.

●    Pitch: Distance between the centres of adjacent knuckles.

Analytical considerations

When you break down hinges, look at what actually carries the load. Check the fit between the pin and knuckle, then see how the leaves deflect once the weight comes on. Run a few open–close cycles and watch for fretting or uneven wear along the bearing line. Surface finish and lubrication always change friction more than the numbers suggest, so rely on physical checks before trusting the model.

Balancing geometry and performance

A well analysed hinge aligns geometry, material, and tolerance so that the joint moves freely without sacrificing stability. When those fundamentals are controlled, the hinge performs predictably across its service life and across different scales of design.

Hinge-size calculation step by step

Below is a practical, engineering-grade method showing how to measure hinges and size them correctly. The formulas give you the forces each hinge must carry. You then choose a hinge whose rated capacity — and pin/bearing limits — meets or exceeds those forces with an appropriate safety factor.

The moment (torque) is only an intermediate step used to convert the door’s weight and lever arm into the extra force on the end hinges. After the calculations, confirm fixings, substrate, and geometry before shortlisting a catalogue part or specifying a custom hinge.

Step 1: Gather the facts you need
●    Panel height H and width W [mm]

●    Mass m [kg]

●    Number of hinges n (2, 3 or 4 are typical)

●    Distance between top and bottom hinge centres L [m]

●    Mounting orientation (usually vertical)

●    Expected use and environment (light, heavy, slam, wind, indoor, outdoor)

Step 2: Convert mass to weight
Size hinges based on weight, not mass.

Wt = m × 9.81

Wₜ = door weight in newtons (N)

Example: 30 kg → 30×9.81=294 N

Step 3: Estimate the lever arm
Find the distance from the hinge line to the door’s centre of gravity.

a ≈ W / 2

Convert W to metres.

Example: 600 mm wide → a = 0.30 m

Step 4: Calculate the basic moment
This is the twisting effect of the door’s weight.

Mg = Wt × a

Example: 294 × 0.30 = 88.2 N·m

This is the basic moment the hinges must resist.

Step 5: Share the weight equally
Each hinge carries roughly its share of the door’s weight.

Weight per hinge = Wt  / n

Step 6: Give the end hinges a bit extra for the twist
The door’s weight makes it want to twist around the hinge line. That twisting effect (the moment) turns into an extra force on the top and bottom hinges.
1.    Work out the extra force:
Fc= Mg / L
where
●    Fc = extra twisting force on each end hinge [N]

●    Mg = basic moment (Wt x a) [N·m]

●    L = distance between top and bottom hinge centres [m]

         2. Find the total force each hinge must carry:

Top hinge Rtop = Wt / n + Fc
Bottom hinge Rtbot = Wt / n
Any middle hinge Rmid = Wt / n + Fc

Where:
●    Rtop1 , Rtbot1, and Rmid are the reaction loads — the total forces each hinge must carry.

Why the end hinges get more:
They are furthest apart and act like the ends of a lever that resists the door’s twisting.
The middle hinge mainly shares the weight, so it doesn’t take the extra FcF_cFc.

If you have four hinges, you can spread the extra moment more evenly along the stile: 35–15–15–35 means the top hinge carries 35% of the twisting load, the next one 15%, the third 15%, and the bottom hinge 35%. This smooths out the load instead of giving it all to the top and bottom hinges.

Step 7: Apply a safety factor
Multiply each hinge’s load by a safety factor that matches how the door will be used.

●    Light use, indoor: × 1.5

●    General use: × 2.0

●    Heavy use, slam or wind risk: × 3.0

This gives you the design load per hinge.

Step 8: Check the hinge ratings
Choose hinges whose load rating per hinge is equal to or greater than your design load.

Also check:
1.    Bearings and pin are strong enough.

2.    Fixings and substrate can hold that load.

3.    Geometry (leaf width, knuckle size, throw) fits your design.

Step 9: Quick worked example
●    Door: H = 2000 mm, W = 600 mm, m = 30 kg, n = 3, L = 1.8 m

●    Wt = 30 × 9.81 = 294 N

●    a = 0.30

●    Mg = 294 × 0.30 = 88.2 N·m

●    Weight per hinge = 294/3 = 98 N

●    Extra on each end hinge = 88.2 / 1.8 = 49 N

●    Rtop  = 98  + 49 = 147 N

●    Rmid  =  98 N

●    Rbot = 147 N

Apply a × 2.0 safety factor:
●    Top and bottom ≈ 294 N

●    Middle ≈ 196 N

Pick hinges rated above these loads.

Step 10: Know when to refine
Stop here if loads are comfortably below hinge ratings. Refine only if:
●    Hinges are unevenly spaced

●    The door is unusually wide or heavy

●    There are shocks, slams, or wind pressure

Then apply a higher safety factor.

Measuring for hinge height and width

To size a hinge properly, start with the door’s weight and overall proportions. Height and width must suit the way the load sits on the stile and how the door moves through its arc. Getting that balance right keeps the motion smooth and stops the frame from twisting over time.

Determining hinge height

The hinge thickness (or leaf gauge) is a major factor in durability and fit. Thicker industrial hinges offer greater strength for heavy-duty doors, while thinner cabinet hinges suit lightweight furniture and enclosures.

Understanding how to measure hinges includes verifying leaf thickness and rebate depth, which affect alignment across different types of hinges.



Door thickness	Door width	Approx. hinge height	Typical use
35 mm	Up to 810 mm	75 mm	Lightweight internal doors
35 mm	810–915 mm	100 mm	Standard hollow-core doors
44 mm	Up to 915 mm	100 mm	Solid timber doors
44 mm	915–1220 mm	125 mm	Heavier or solid-core doors
55 mm+	Over 1220 mm	150 mm	Extra-heavy or commercial doors

Important: For doors over 44 mm thick or wider than 1 m, fit at least three hinges to distribute the weight evenly and reduce strain on the frame.

Determining hinge width

The hinge width (also known as the leaf span) is measured across the open hinge, from the outer edge of one leaf to the outer edge of the other. It governs how far the door sits from the frame when closed and how wide it can swing open.

You can estimate the required width using this simple formula:

(Door thickness – backset) × 2 + clearance = overall hinge width

Where:
●    Backset is the distance from the edge of the door to the centre of the hinge knuckle (typically 6 mm for 35–44 mm doors).

●    Clearance is the space required between the door and architrave for free movement (usually 2–4 mm).

Use the chart below as a general reference:



Door thickness	Typical backset	Clearance	Approx. hinge width
35 mm	6 mm	2–3 mm	75 mm
44 mm	6 mm	3–4 mm	100 mm
50 mm	8 mm	3–4 mm	125 mm
60 mm	8–10 mm	4 mm	150 mm



When the calculated size doesn’t correspond to a standard hinge dimension, round up to the next available size for adequate bearing strength.

Determining the hinge thickness

The hinge thickness (sometimes called the leaf gauge or leaf thickness) is a key factor in both the durability of the hinge and how the door fits into the frame. It affects how deeply the hinge must be recessed into the door and frame, as well as the hinge’s load-bearing capacity.

Why hinge thickness matters

A thicker hinge leaf offers greater strength and resistance to bending under load — essential for heavier or frequently used doors. However, if the hinge is too thick for the door’s material or rebate depth, it can prevent the door from closing flush or cause misalignment over time.

The rebate (also called the hinge mortice) is the shallow recess cut into the edge of the door and the frame where the hinge leaf sits flush. The correct balance ensures that the hinge sits level in its mortice and allows the door to move freely without binding.

Typical hinge thickness guidelines

Hinge thickness increases in proportion to both hinge height and the door’s weight rating. The table below gives approximate ranges for common hinge sizes and applications:

Hinge height	Typical leaf thickness	Suitable for
75 mm	2.0–2.2 mm	Lightweight internal doors
100 mm	2.5–3.0 mm	Standard interior or solid timber doors
125 mm	3.0–3.5 mm	Heavy solid-core or external doors
150 mm	3.5–4.0 mm	Extra-heavy or high-traffic doors
200 mm +	4.0 mm and above	Commercial or security applications

These measurements are general industry norms; always refer to the manufacturer’s specifications. Some architectural or fire-rated hinges use thicker leaves for additional strength or compliance.

Checking the rebate depth

Before fitting, measure the rebate depth in both the door and frame. The rebate should match the hinge leaf thickness closely.  Typically allow a tolerance of 0.5 mm to ensure the hinge sits flush without excessive play. If the rebate is too shallow, the hinge will protrude and prevent the door from closing fully. If too deep, the hinge may bind or distort under load.

Common problems with wrong hinge sizes

An undersized or oversized hinge throws the whole system off. It can make the door sag, twist, or wear unevenly around the pin. Most of these faults trace back to load or geometry being ignored during sizing.

1. Door sagging or dropping

Undersized hinges may not provide sufficient bearing strength to support the door’s weight. Over time, this causes the door to sag on the hanging edge, resulting in uneven gaps at the top or latch side. Once sagging occurs, it can distort the frame and strain the screws or hinge knuckles, making the door difficult to close properly.

2. Binding against the frame or floor

If the hinge is too small, the door won’t follow its correct swing path. In most cases it hits the frame first, or scuffs the floor near the opening edge. Check the clearance and the hinge recess — if the hinge sits too shallow or too deep, the door will never close square.

3. Misalignment and uneven gaps

Incorrect hinge dimensions, especially mismatched hinge widths, can shift the door’s position within the frame, creating uneven clearances around the edges. This is often visible as a tight gap on one side and an excessive gap on the other, giving the installation a poor finish and compromising weather or acoustic seals.

4. Premature hinge wear or failure

If the hinge is too light for the job, the pin and knuckle start to wear early. You’ll notice side play or a dull click when the door moves. Once that starts, the wear accelerates and the hinge won’t hold alignment. Going too big isn’t ideal either — large hinges can split the edge or weaken the screw land.

5. Difficulty latching or locking

Incorrect hinge dimensions alter the door’s alignment relative to the latch and strike plate. Even a small misalignment can prevent the latch from engaging smoothly, causing sticking or incomplete closure. In fire-rated or security doors, this can compromise compliance and safety.

Comparison between hinges: materials & finishes

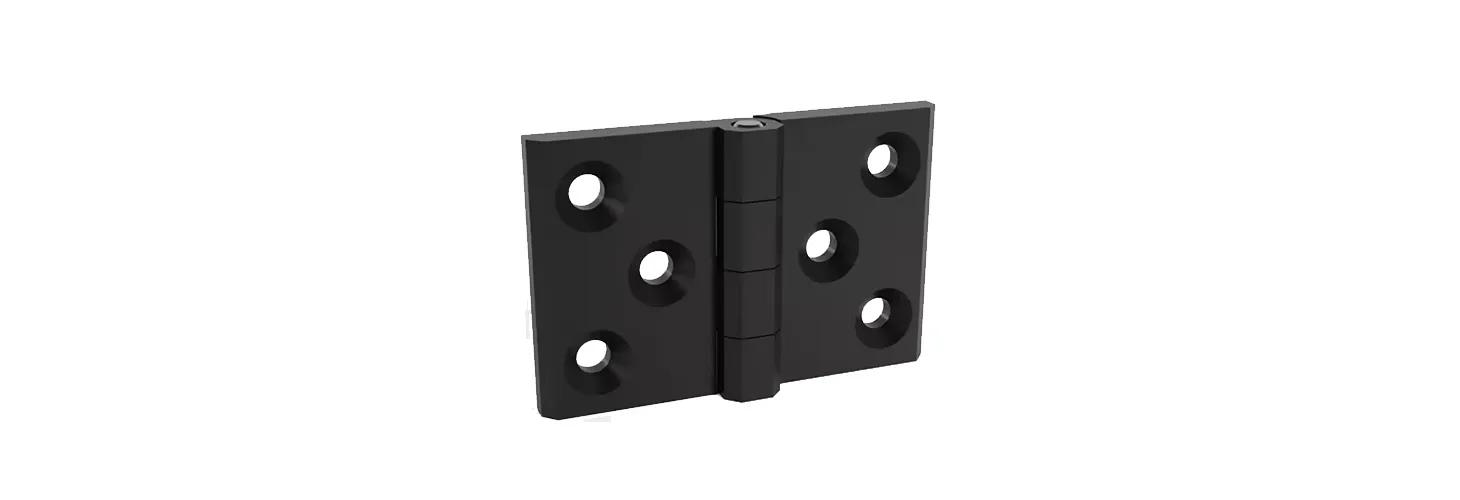

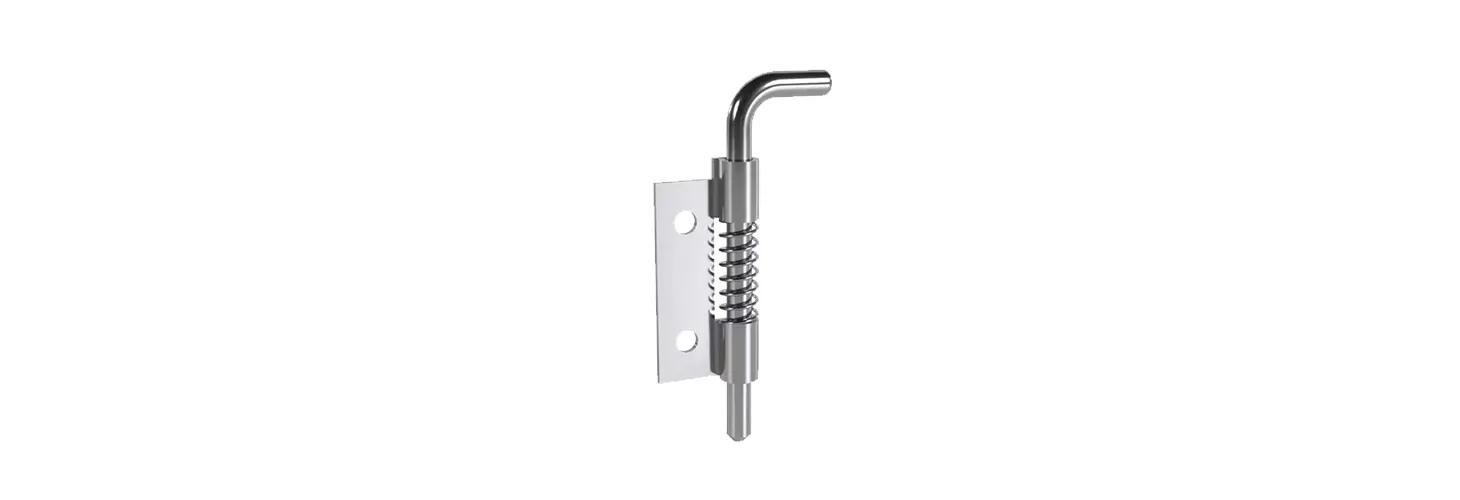

The choice of material determines how a hinge performs under load, resists corrosion and maintains its finish over time. Finishes are applied primarily to enhance protection or achieve a specific surface appearance. First, let’s look at three hinge types from our range.

Hinge materials and finishes

Material	Typical finish	Key characteristics	Hinges
Die-cast zinc alloy / Zamak	Black powder-coated	Good dimensional stability, moderate strength & corrosion resistance when coated	Free-swinging hinges
Stainless steel		Excellent corrosion & chemical resistance; maintains appearance over time; high load capacity	Free-swinging & concealed hinges
Aluminium		Lightweight with good torque stability & corrosion resistance; suitable for controlled-motion hinges	Position-control (torque) hinges
Steel		Strong & cost-effective, but requires protective coating to prevent corrosion; ideal for enclosed or interior use	Concealed hinges
Polyamide (engineering plastic)		Non-conductive, self-lubricating, corrosion-proof; stable friction properties under temperature variation	Position-control (torque) hinges
ABS		Lightweight, impact-resistant, quiet operation; limited to light-duty applications	Concealed hinges
Nylon		Tough, flexible & wear-resistant; provides smooth, quiet operation & excellent fatigue strength	Concealed hinges



Our experts take you through more hinges in Exploring different types of hinges: A comprehensive guide.

How to choose the right hinge for your needs

Selecting the right hinges means ensuring reliable performance for door weight, purpose, and environment. That goes for whether you’re fitting industrial hinges, cabinet hinges, or general-purpose architectural hinges.

Door weight and size

Work out the load first. The door weight decides the hinge dimensions, not the other way around. Light panels are fine on two hinges, but once the mass goes up, add a third to stop the door from twisting. Heavy or wide doors need larger industrial hinges with enough bearing area to keep the pin from wearing out.

Door function and frequency of use

Use the duty cycle as your guide. Doors that open all day need industrial hinges built for repeated loading. Light enclosures or furniture panels can use cabinet hinges as long as they stay aligned after cycling. If the door moves rarely, weight matters more than cycle count.

Opening direction and clearance

Choose types of hinges that fit how the door moves. One-way openings are fine on a standard butt pattern. Double-swing setups need centre or spring hinges. Check the clearance at the hinge side before fixing—too tight, and the edge will strike the jamb as soon as the door flexes.

Environment and location

Base the material on where it’s going. Stainless-steel industrial hinges hold up in damp or outdoor conditions. Indoors, plated steel or zinc alloy cabinet hinges are usually enough. If the environment changes with temperature or humidity, check for movement at the fixing points after installation.

Aesthetic and finish

Where the hinges are visible, match the finish to the rest of the fittings. Architectural hardware often uses satin or brushed finishes; furniture-grade cabinet hinges may need colour-matched coatings for a clean look.

Compliance and certification

On rated doors, use hinges that are certified for fire use. Check the stamp or label before fitting, not after. The screws and frame fixings need the same approval; if they don’t match, the door won’t pass inspection and the certification is void.

Conclusion

The performance and longevity of any moving assembly depend on the precision of its hinges. Understanding how to measure hinges correctly and applying the right hinge dimensions ensures reliable motion, alignment, and load support across all applications.

By matching the right size, material, and finish to each use case, designers can create systems that not only function smoothly but also communicate quality through every movement. The best types of hinges are those that quietly do their job, maintaining performance, safety, and design integrity for years to come.

Expert resources

1. British Standards Institution (BSI) – BS EN 1935: Single-axis hinges (Overview)
An authoritative specification covering performance requirements, test methods, and classification for hinges used on doors and windows.

2. European Committee for Standardisation (CEN) – EN Standards for Building Hardware
Lists the key European norms governing hinge performance, corrosion resistance, and load classification.

3. Guidelines for the right application of plastic hinges” (Elesa-Ganter PDF)
Covers material choice, hinge specification for plastics.

4. Fire Door Hinge Markings Explained (PDF)
Concise guide to interpreting CE/UKCA markings for single-axis hinges to BS EN 1935; useful for compliance sections.
