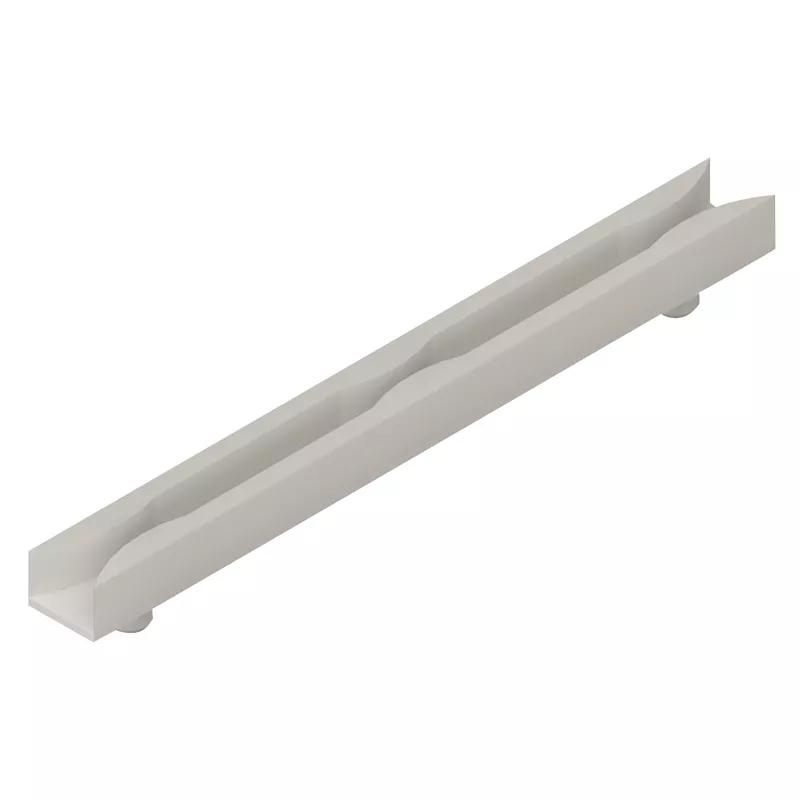

PCB Card Guides - Horizontal/Snap In/Double Tapered Ends/Grips
In stock
Two tapered ends for quick and easy insertion of the PCB from both sides. Side grips hold PCB in place. Hollow pin design eases insertion of the guide. Holds .062 thick PCB Snaps into 2 holes into a panel of .062" 8 lengths; from 2.5" to 6" Support boards horizontally in tight spaces like a PCB rack. UL94 V-2 Nylon 6/6, Natural, 500 per bag
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Price range | Availability | Material | Mounting Method | Overall Width | View | |
|---|---|---|---|---|---|---|
| $0.5151 - $0.5708 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.3963 - $0.4392 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.4771 - $0.5287 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.4086 - $0.4529 | 15 In stock |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.3208 - $0.3554 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.4442 - $0.4922 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.4987 - $0.5526 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
| $0.4916 - $0.5447 | Request the lead time here |
Nylon 6/6
|
Snap-In
|
6.1 mm
|
||
Horizontal Card Guide - Accepts Panel Thickness 4.0 mm | 0.157 in ; Overall Length 101.6 mm | 4 in
- Price Range
- $0.5708 - $0.5151
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
4.0 mm -
Distance Between Fixing Holes
88.9 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 4.0 mm | 0.157 in ; Overall Length 114.3 mm | 4.5 in
- Price Range
- $0.4392 - $0.3963
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
4.0 mm -
Distance Between Fixing Holes
101.6 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 3.0 mm | 0.118 in ; Overall Length 76.2 mm | 3 in
- Price Range
- $0.5287 - $0.4771
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
3.0 mm -
Distance Between Fixing Holes
63.5 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 5.0 mm | 0.197 in ; Overall Length 152.4 mm | 6 in
- Price Range
- $0.4529 - $0.4086
- Stock Levels
- 15 In stock
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
5.0 mm -
Distance Between Fixing Holes
139.7 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 2.0 mm | 0.079 in ; Overall Length 63.5 mm | 2.5 in
- Price Range
- $0.3554 - $0.3208
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
2.0 mm -
Distance Between Fixing Holes
50.8 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 5.0 mm | 0.197 in ; Overall Length 139.7 mm | 5.5 in
- Price Range
- $0.4922 - $0.4442
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
5.0 mm -
Distance Between Fixing Holes
127.0 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 4.0 mm | 0.157 in ; Overall Length 127.0 mm | 5 in
- Price Range
- $0.5526 - $0.4987
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
4.0 mm -
Distance Between Fixing Holes
114.3 mm -
Maximum Operating Temperature
85 °C
Horizontal Card Guide - Accepts Panel Thickness 3.0 mm | 0.118 in ; Overall Length 88.9 mm | 3.5 in
- Price Range
- $0.5447 - $0.4916
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Mounting Method
Snap-In -
Accepts Panel Thickness
3.0 mm -
Distance Between Fixing Holes
76.2 mm -
Maximum Operating Temperature
85 °C
