What is fiber optic cable management?
Key aspects of fiber cable management
Fiber optic components and solutions
How do fiber optic cables work?
Materials explained
Applications & industries

What is fiber optic cable management?

The growing reliance on fiber puts greater importance on how networks are physically built and maintained. Cable management is the practical side of that: planning how fibr is routed, secured, and accessed to keep the network performing as it should and ready to expand when needed. Good fiber optic cable management means running fiber where it won’t be pinched, bent too tightly, or pulled out of place. It means leaving enough space to reach a connector without disturbing the rest. And it means labelling things in a way that makes sense to the next person who opens the panel.

Our experts explain more of what you should know in Fiber optics FAQs: the advantages, bend radius explained and more.

Key aspects of fiber cable management

The points below cover what needs to be built in from the start if you expect the physical layer to last.

Routing

Routing defines how fiber optic cables are physically laid out within a network environment. Good routing minimises bends, reduces physical stress, and keeps the path between points of connection clean and predictable. Engineers must design routing systems that comply with minimum bend radius specifications to avoid microbending and macrobending, which cause attenuation.

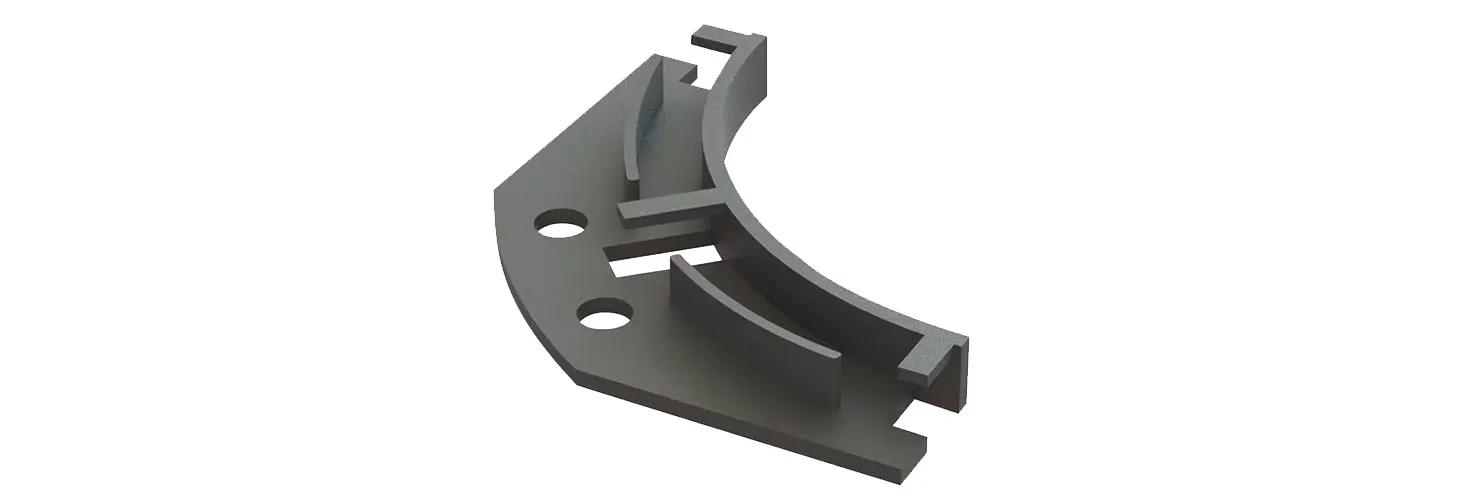

Fiber guides and fiber optic brackets do the simple but essential job of keeping cables exactly where they’re supposed to be. They prevent movement, sag, and contact with edges or other hardware that can wear the cable down over time. Well supported routing protects signal quality and makes the physical layer easier to service. Any install expected to last should include fiber guides and fiber optic brackets from the outset. They’re not optional. They’re part of the structure.

Protection

Fiber is strong under tension but weak under stress at the wrong points. It won’t tolerate sharp bends, crushing, or unsecured movement. Protection means planning for that. Use fiber reels to control slack so it doesn’t collect in coils on the floor or at the back of a panel. Use strain relief at connectors and entry points to keep movement and pull tension away from the fiber. Enclosures and conduit protect against knocks, dust, and other work going on around the cabling.

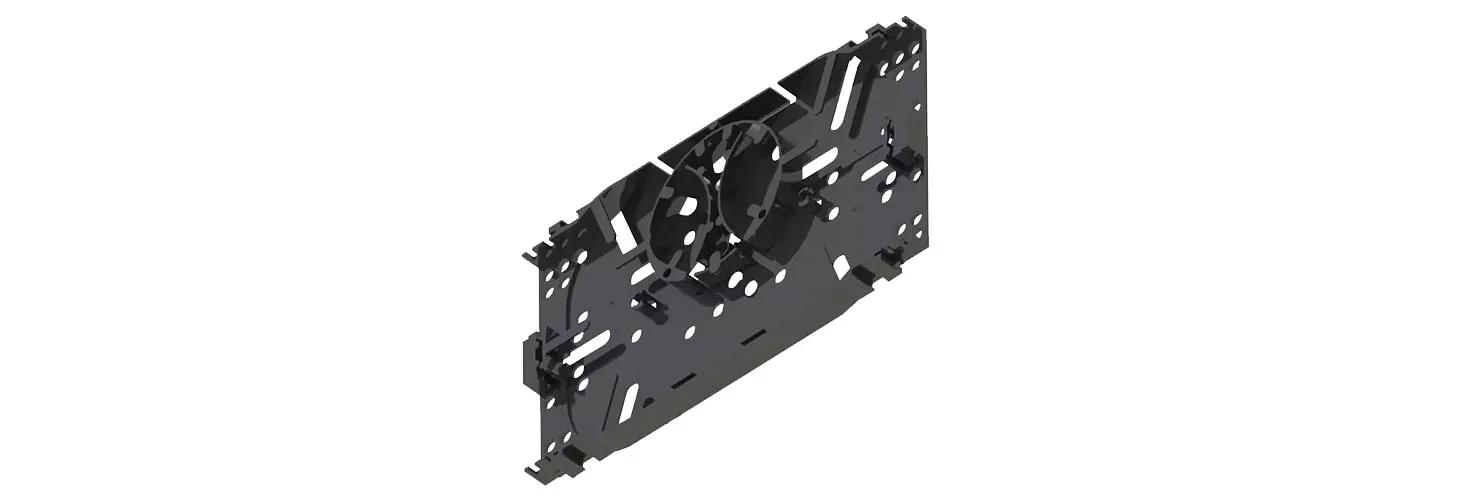

Splice trays protect the most fragile part of the link. The splice is where the glass has already been cut and fused. It’s solid, but only if it stays still. A good tray keeps the fiber fixed, with enough room to settle naturally, but not enough to shift. It also gives technicians access to the splice without disturbing other connections, something that becomes essential as systems scale.

Our experts explain more in our Guide to cable strain relief and protection.

Scalability and future readiness

100G and 400G systems are no longer the end game—they're the current baseline. As networks evolve toward 800G and Tbps-class speeds, the physical layer must be built to keep up. That starts with cable management. A scalable system uses modular layouts, structured routing, and forward-compatible fiber optic components that support higher densities and tighter tolerances.

Scalable infrastructure relies on the right fiber optic components from the start: patch panels that support MPO/MTP, enclosures with space for expansion, and routing hardware that maintains bend control under increased load. Without this foundation, upgrades become costly and disruptive. Scaling is faster and safer when the physical design anticipates growth instead of reacting to it.


Labelling should be systematic and standards-compliant, identifying both ends of every connection. Inside enclosures and fiber optic brackets, cables should be laid out in clear, repeatable patterns that make sense to any technician opening the panel for the first time. A consistent structure means less trial-and-error during routine work.

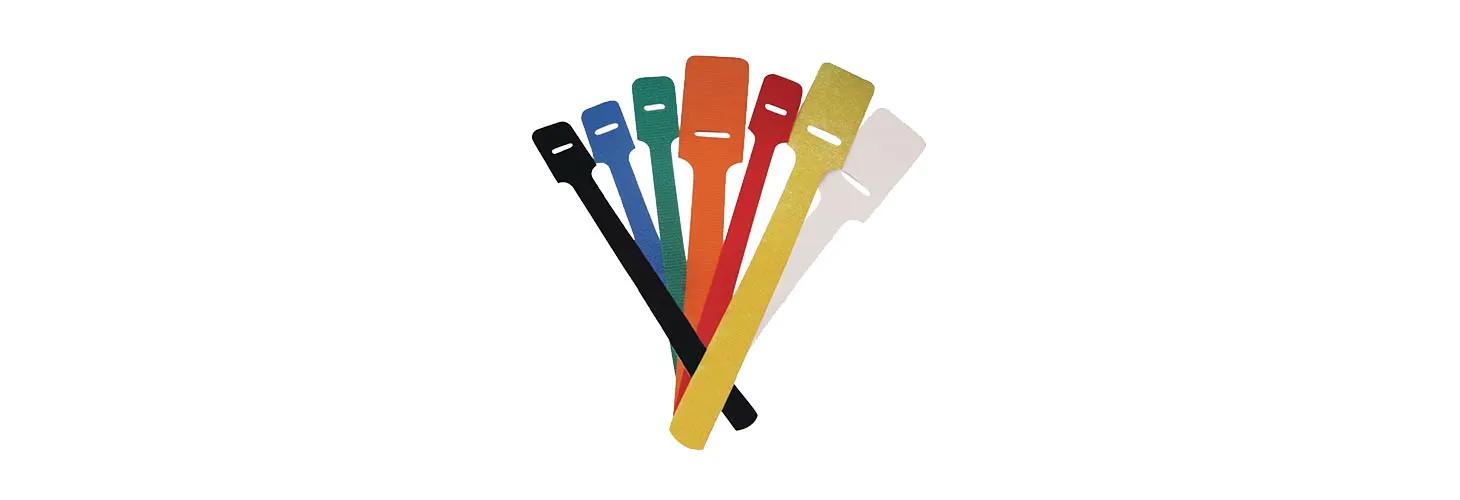

Browse our range of hook & loop cable ties

Accessibility

Access is a core part of fiber optic cable management. It’s worth repeating: If a technician can’t reach a cable without disturbing others, the routing layout needs to be rethought. Good fiber cable routing separates active and spare runs, avoids crowding, and leaves space for safe movement. Technicians need to get in and out without guessing, stretching, or moving unrelated hardware.

Use hardware built for this purpose: rack-mounted fiber enclosures, removable fiber guides, and splice trays that open without forcing nearby cables to shift. In data center fiber management, where density is high and uptime is critical, these details matter. Clean design protects live fiber during work and keeps fiber maintenance access simple, fast, and low-risk.


Improved network performance

Poor cable management shows up in the numbers. Tight bends, sloppy routing, and cables stuffed into trays all lead to higher insertion loss, increased back reflection, and elevated BER. These aren’t theoretical risks. They’re measurable and immediate. Keeping bend radius within spec, securing cables properly, and giving each run enough space are basic requirements if you're serious about performance.

Every element, from strain relief to enclosure layout, should be designed to support optimal transmission conditions. This ensures that the full performance potential of the fiber optic components is realized.

Reduced downtime

Networks that are built with care don’t fail as often and when they do, the fix is faster. If the fiber layout is clear, labeled properly, and easy to reach, less time is spent guessing and more time solving the problem. Good structure also makes it easier to avoid disrupting adjacent connections during service. It’s a simple way to prevent avoidable outages.

When issues do occur, tools like labeled fiber reels and modular splice trays simplify diagnostics and reduce mean time to repair (MTTR). In high-availability environments, that operational efficiency has real business value.

Lower operational costs

Well-managed fiber saves money during install, and every time someone touches it after. When routes are planned, labeled, and properly supported, crews spend less time on site. Fewer mistakes mean fewer callouts, and clean layouts reduce the risk of damage that leads to rework. Over time, that adds up to real savings in labor, materials, and downtime.

Using standardized fiber optic cable components, such as snap-in brackets, splice modules, and pre-defined service loops, also cuts down the time and labor needed to scale or modify the network. Repeatable physical designs are faster to deploy, easier to train on, and less likely to introduce errors.

Enhanced safety

Poor fiber optic cable management compromises safety. Unsecured cables block access panels, restrict airflow, and create trip hazards in comms rooms and data halls. These are basic failures of physical design. Effective systems use proper fiber optic cable components, such as fiber optic brackets and containment hardware to keep cables fixed, clear of access points, and out of working areas. This isn’t optional. It’s required if the space is expected to remain safe and serviceable over time.

Strain relief is equally critical. A connector under load is a failure waiting to happen—not just for the link, but for the technician handling it. Cables must be anchored to absorb movement, protect termination points, and reduce the risk of unexpected release during service. Safety in fiber systems is engineered at the physical layer. If it's not addressed in the design, it becomes a liability in the field.

Fiber optic components and solutions

Effective fiber optic cable management relies on precision hardware designed to maintain physical integrity, routing discipline, and long-term performance of the network. Each component serves a specific function in preserving bend radius, minimizing mechanical stress, and ensuring environmental isolation.

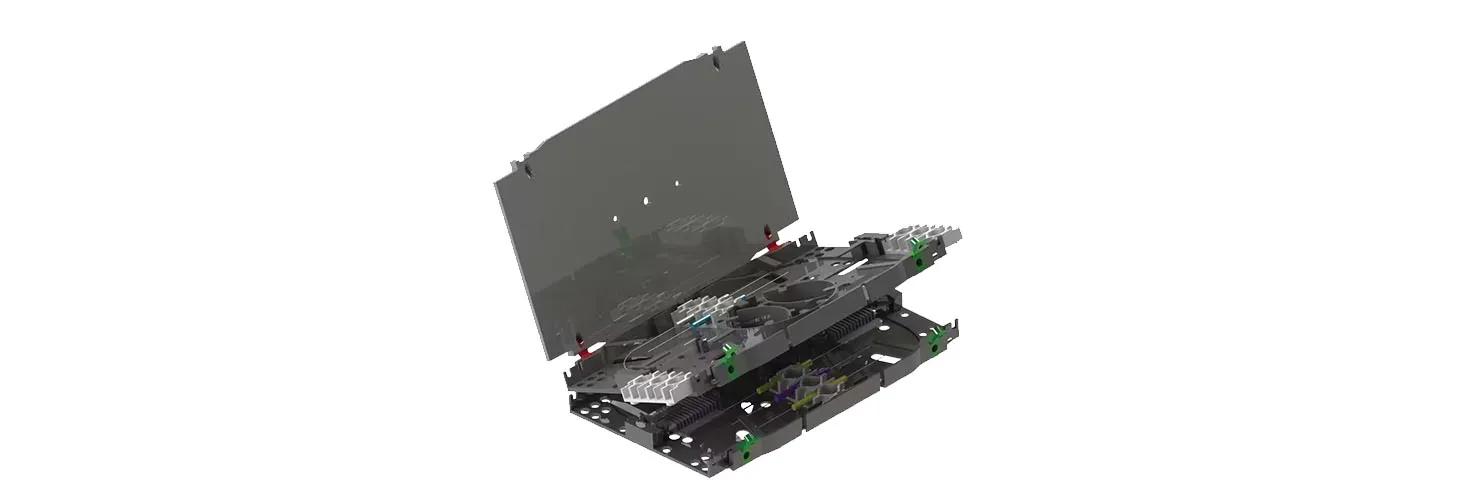

Without that control, even a clean splice can fail under minimal stress. Trays also help with routing, separating fibers clearly to avoid tangles or accidental damage during future work.

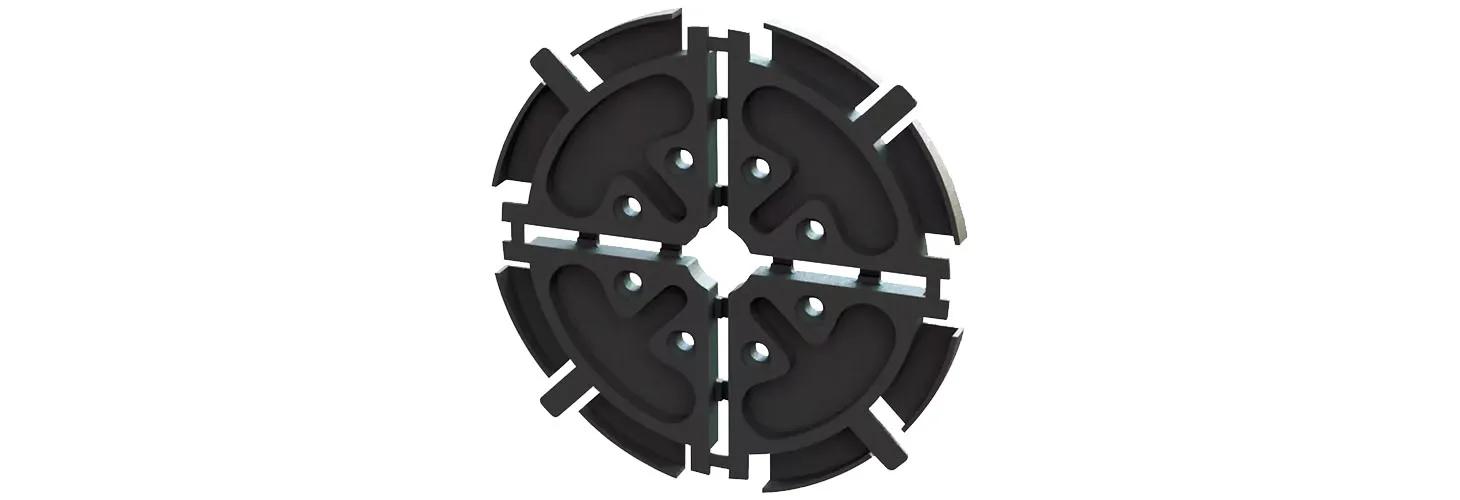

Our fiber guide solutions manage routing, bending, and slack control with precision. The range includes low-profile fiber reels for excess fiber on PCBs, modular guides for straight runs, and corner components for controlled 90° and 180° turns—all while maintaining defined bend radii. Components like stacking pillars and stand-offs allow for compact vertical builds, and the flexible spine design supports routing in multiple planes without risk of kinking or snagging.

Browse our range of fiber guides

Essentra’s range includes low-profile reels designed for board mounting, with options for stacking when multiple fiber runs need to be managed in the same footprint. Reels snap securely onto standoffs to stay clear of the board and avoid contamination. Stackable pillars and spring clips hold everything in position during installation and use. Some reels can also be broken apart to form fixed-radius 90° or 180° bends where tighter routing is needed.  Used in applications for manufacturing, and medical.

Browse our range of fiber reels

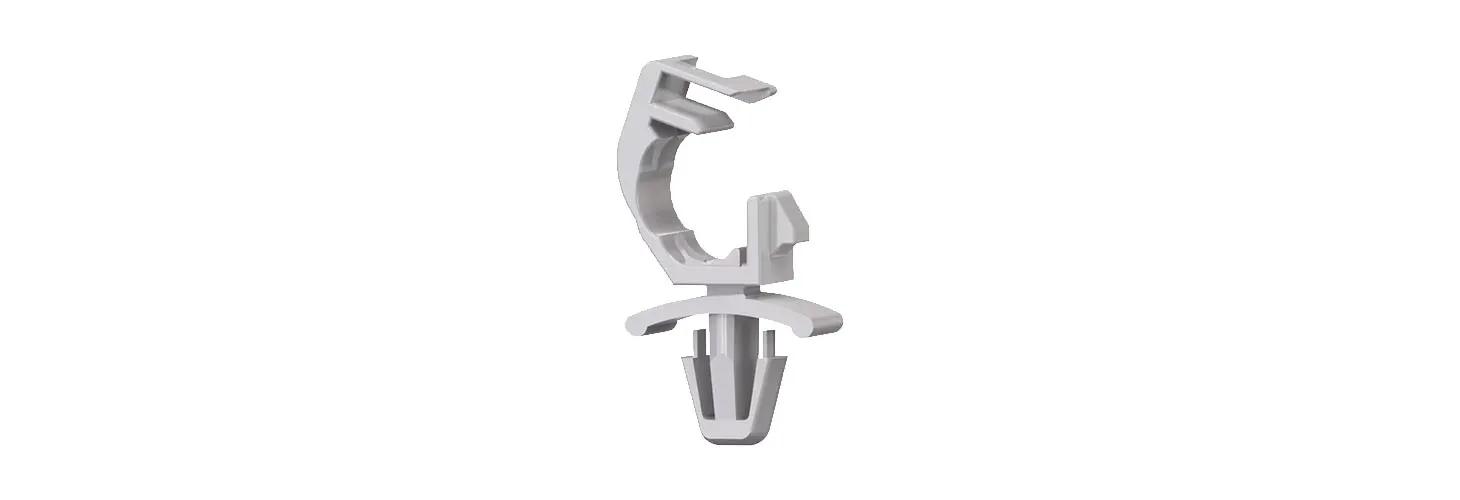

Essentra offers a broad range of brackets, clips, and holders designed for fiber routing in telecom, datacom, and industrial systems. The components are built for reliability under load, with mounting options for panels, rack systems, and PCB assemblies. They come in multiple profiles and sizes to match different cable specs and layout constraints, and are made from materials suited for both indoor and rugged environments. Each part is designed to be easy to install while meeting the mechanical demands of long-term use.

Browse our range of fiber optic brackets & clips

How do fiber optic cables work?

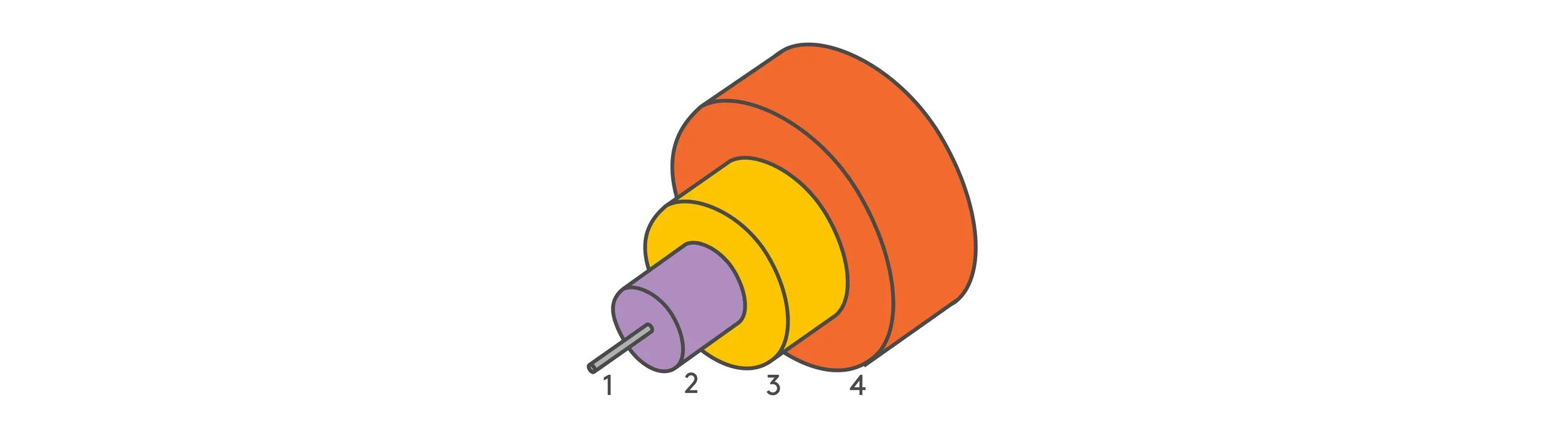

First, let’s look at the different parts that make up a fiber optic cable, as shown here:

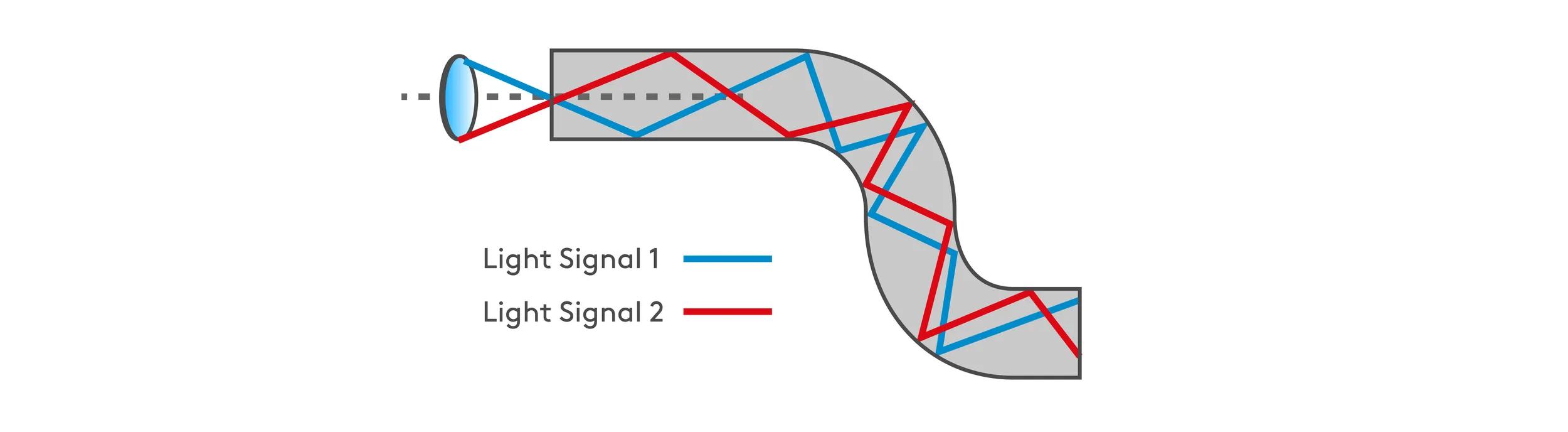

The visual below illustrates how data travels through a fiber optic cable in the form of light. A transmitter generates a modulated light beam—Signal Light 1—which is injected into the core of the fiber. As it moves forward, the beam reflects off the inner boundary between the core and cladding, a process known as total internal reflection. This allows the signal to maintain direction and speed even through bends and turns, without escaping the fiber.

Signal Light 2 represents that same beam after traveling through the fiber, showing how it preserves both integrity and alignment over long distances. The diagram also shows the supporting structure around the fiber: the cladding that maintains signal containment, the buffer coatings that isolate mechanical stress, and the outer jacket that protects against abrasion and moisture. At the far end, the light is received by a photodiode and converted into an electrical signal. The system works only because each layer performs a specific function—and because the optical path remains precisely controlled from start to finish.


You’ll also find it helpful to learn about the demands of fibre optics in our expert guide, Fiber optics and requirements in 5G infrastructure.

Materials explained

The core of a fiber optic cable carries the signal, usually a strand of glass, or plastic in some short-range systems. Surrounding it are layers with defined functions: cladding maintains internal reflection, coatings protect the fiber from handling stress, and strength members take on mechanical load during installation.

The outer jacket protects against moisture, abrasion, and environmental exposure. Material selection depends on where and how the cable will be used: indoors, underground, overhead, or in moving assemblies.

Core
●    Made from ultra-pure silica glass for long-distance, high-bandwidth transmission. Plastic cores are used in short-range or low-cost applications.

Cladding
●    Material: Silica glass with a slightly lower refractive index than the core
●    Purpose: Keeps the light confined to the core via total internal reflection, even as the fiber bends.

Primary coating
●    Material: Soft UV-cured acrylate polymers
●    Purpose: Provides cushioning and protects the glass fiber from microbending and handling damage.

Secondary coating / buffer
●    Material: Tight buffer (plastic, e.g., nylon or PVC) or loose tube (gel-filled plastic tube)
●    Purpose: Adds mechanical protection and may help isolate fibers from environmental stress or water ingress.

Strength members
●    Material: Aramid yarn, fiberglass, or steel wires
●    Purpose: Protects the fiber from tension during pulling and installation.

Outer jacket (sheath)
●    Material: Commonly PVC, LSZH (Low Smoke Zero Halogen), PE (Polyethylene), or TPU (Thermoplastic Polyurethane)
●    Purpose: Shields the entire cable from moisture, abrasion, chemicals, UV radiation, or flame, depending on environment.

Optional additions:
●    Water-blocking gels or tapes (in outdoor cables)
●    Rip cords for jacket removal
●    Armor (corrugated steel or aluminum) for high-risk or buried installations

Materials for fiber optic cable components

Fiber optic cable components depend on materials that can perform under mechanical load, thermal variation, and physical wear. The polymers used in these parts aren’t chosen for cost or convenience; they’re selected because they maintain shape, protect signal integrity, and survive the environments they’re built into. The table covers the most common materials used across the industry, with a focus on the properties that matter when performance and reliability are non-negotiable.

Material	Tensile Strength (PSI) (MPa)	Flexural Modulus (PSI) (MPa)	Max Service Temp (°F) (°C)	Water Absorption (%)	Dielectric Strength (V/mil) (kV/mm)	Thermal Expansion (µin/in·°F) (µin/in·°C)
Nylon	10878 75	398855 2750	212 100	1.2	500 19.69	44.45 80
Nylon 6/6	11893 82	435114 3000	221 105	1.0	500 19.69	44.45 80
GF nylon	21756 150	1015266 7000	248 120	0.7	400 15.75	16.67 30
PVC	7977 55	362595 2500	140 60	0.2	1000 39.37	38.89 70
Rubber	2176 15	1450 10	158 70	0.5	250 9.84	83.34 150
PBT1	8702 60	377099 2600	284 140	0.1	420 16.54	38.89 70
PP2	4351 30	217557 1500	212 100	0.01	700 27.56	55.56 100
PPS3	17405 120	1232823 8500	392 200	0.02	500  19.69	22.22 40
TPE4	1450 10	2901 20	257 125	0.4	300 11.81	66.67 120
ABS5	5802 40	319084 2200	185 85	0.3	400 15.75	50.0 90

1PBT: Polybutylene terephthalate
2PP: Polypropylene
3PPS: Polyphenylene
4TPE: Thermoplastic elastomer
5ABS: Acrylonitrile Butadiene Styrene

Applications and industries

Fiber optic cable components are used anywhere optical networks need to be protected, routed, or terminated in a controlled way. That includes systems handling data, control signals, or high-bandwidth communications, often under mechanical stress, space constraints, or environmental exposure. The choice of component depends on how the fiber is installed, what it’s exposed to, and how often it needs to be accessed or moved.

Fiber optic applications by industry

Industry	Common uses
Telecommunications	Splice trays, strain relief, fibre guides in enclosures and roadside cabinets
Data centers	High-density routing, modular trays, bend control for patching systems
Industrial & manufacturing	Tubing, fibre reels, and rugged strain relief for equipment vibration and motion
Medical equipment	Compact holders and bend-limiting components inside devices and consoles
