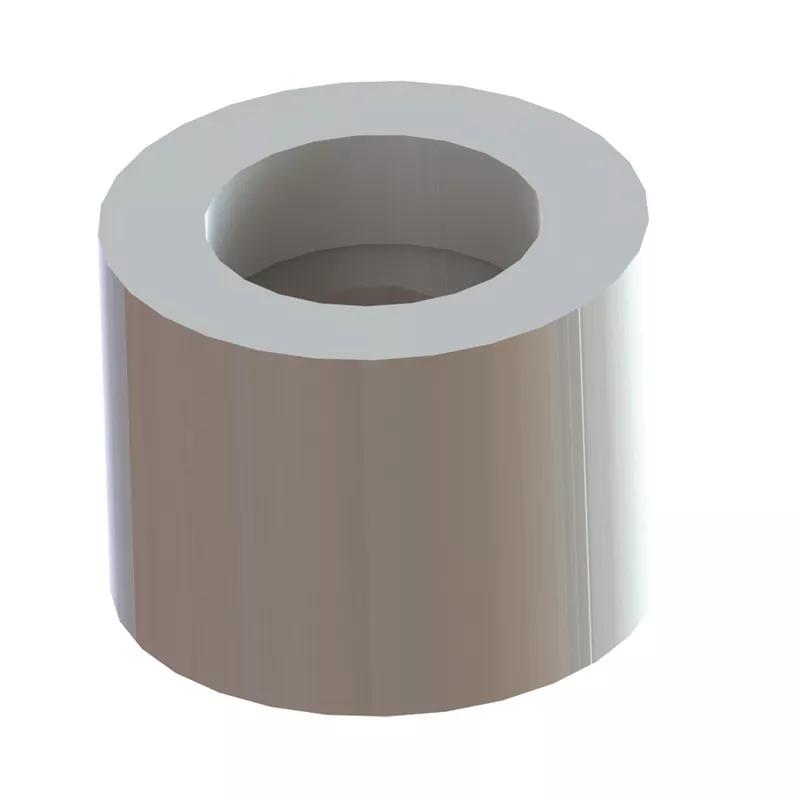

Screw & Lock Support 15.0 mm PA

Collar spacer is comprised of two separate parts the pin (CSP Series) and the retainer (CSR). The pin locks into the bottom retainer to capture PCB. Combination of the two mating parts forms a completely enclosed nylon spacer. Binder head screw is recommended but not required. Mating part CSP6-01.
Tuotekoodi:

CSR6-591-01

3056 Varastossa For more information Delivery & returns
Loading...
SKU-hintatiedot
Määrä Yksikköhinta
1000 - 4999 0,4011 €
5000 + 0,3737 €
Vakiopakkaus: 1000

Tilaa useita 1000

Kokonaishinta:

401,10 €

1000 x 0,4011 €

Lisää mallikappale +

Lisätietoa

Asiakirjat

Tekniset tiedot

Brittiläinen
Metrinen
SKU-määritteet
Colour Natural
Hole A Fix Type Snap Lock Fix
Hole B Fix Type Snap Lock Fix
Special Features Pin Snaps into Retainer
Type Retainer
Body Diameter 10.0 mm
Spacer Length 15.0 mm
Full Material Polyamide 6.6
Material Flammability Standard UL94 V-2
Style 2
Commodity Code 3926909790
