A guide to wire saddles
In any high-performance system, whether electrical, electronic, optical, or data-driven, cable stability is critical. Wire saddles provide a reliable solution for securing and organizing cables within control cabinets, equipment enclosures, and built environments. With multiple mounting styles, they help ensure safe, efficient operation by supporting clean layouts, minimizing wear, and maintaining signal integrity. In this guide, we’ll cover:
What are wire saddles?
Uses and applications for wire saddles
Types of wire & cable saddles
Mounting options
Wire saddle installation
What are wire saddles?
Wire saddles are essential components used to hold and route cables in place. By keeping wiring orderly and secure, they reduce wear from vibration, prevent tangling, and make future access easier.
Just as importantly, they play a critical role in system performance by allowing different types of cables to be grouped together, or kept apart, based on the signals they carry. These may include:
● Power (AC and DC)
● High-voltage and low-voltage lines
● Signal cables (analogue and digital)
● Data cables (electric)
● Optical fiber
● Coaxial
● Twisted pair
Each type carries signals with different levels of sensitivity to electromagnetic interference (EMI) or inductive noise. Wire saddles help maintain signal integrity by ensuring that cables are routed in a way that minimizes interference and avoids cross-talk. This promotes clean system operation, free from signal artifacts, and reduces the risk of failure.
Typically mounted to flat surfaces like panels, walls, or chassis, wire saddles act as small brackets or clips that support one or more wires. They’re often used alongside other cable management tools, such as zip ties, clamps, or adhesive mounts, to keep everything in place and running smoothly.
Browse our range of wire saddles
Cable clips are similar to wire saddles, but differ in design and functionality. Our experts explain more in What are wire clips and how to use them.
Uses and applications for wire saddles
Wire saddles are widely used across industries where secure, organized cable routing is essential for performance, safety, and maintenance. Their role extends far beyond basic cable management. They support system integrity in environments where signal clarity, heat control, and vibration resistance matter most.
1. Energy transformation
Wire saddles are used in equipment related to renewable power generation, grid infrastructure, and electric vehicle charging. By keeping power and signal cables properly routed and separated, they help reduce interference, improve safety, and ensure compliance with evolving energy standards.
2. Specialist vehicles
From emergency response units and military platforms to agricultural and construction machinery, wire saddles play a critical role in managing complex wiring harnesses. They protect cables from vibration, prevent disconnections, and make sure systems remain accessible in demanding mobile environments.
3. Data infrastructure
Wire saddles help manage dense cabling in data centres, network enclosures, and IT installations. They improve airflow, prevent clutter, and support high-performance data routing. This makes maintenance easier, reducing the risk of downtime caused by cable damage or signal interference.
4. Machine automation
In industrial automation systems, control panels, and production equipment, wire saddles organize power and signal cabling. The result is safer operation, reduced cable wear, and improved fault isolation. They contribute to clean, modular layouts that simplify repairs and upgrades.
5. Defence
Subject to stricter regulations and often requiring specialized components, defence systems also rely on wire saddles to manage internal cabling. Applications include ground-based systems, communications infrastructure, and support vehicles, where secure, reliable cable routing is essential.
Good cable management goes a long way. You can learn more from our experts in How to protect cables.

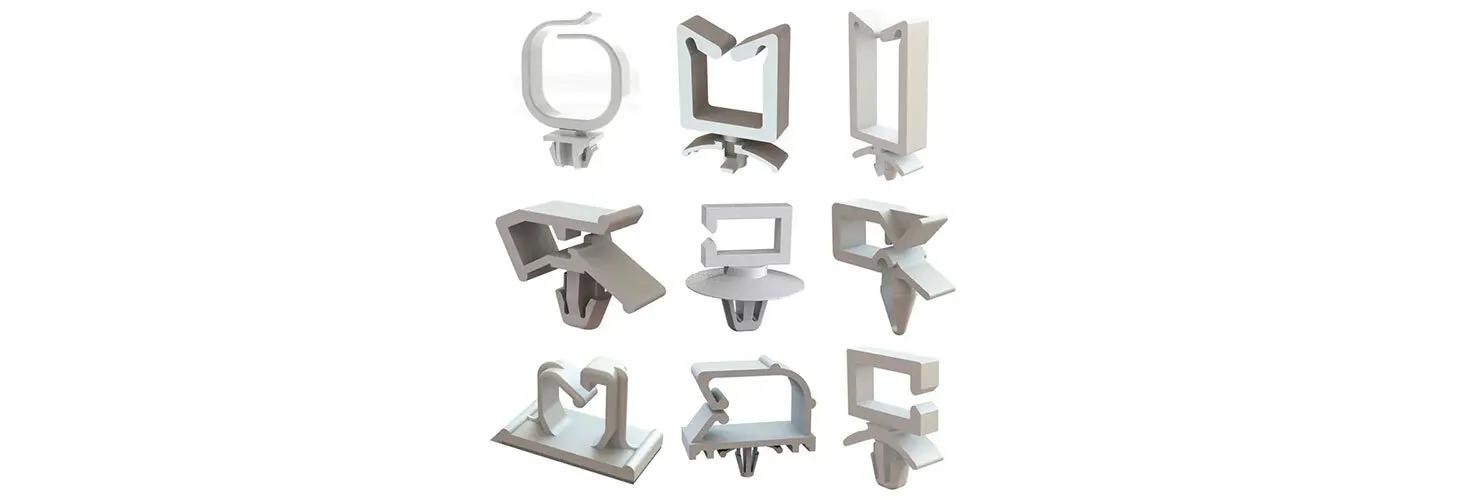

Types of wire & cable saddles
Wire and cable saddles come in a wide range of styles to suit different applications, cable types, and installation environments. From compact, non-locking designs to heavy-duty locking variants, each type offers specific benefits for managing cables efficiently and safely. The material, size, and mounting method all play a role in performance.
Choosing the right saddle depends on:
● The type of cable
● Whether shielding or separation is needed
● Whether cables need regular access or permanent fixing

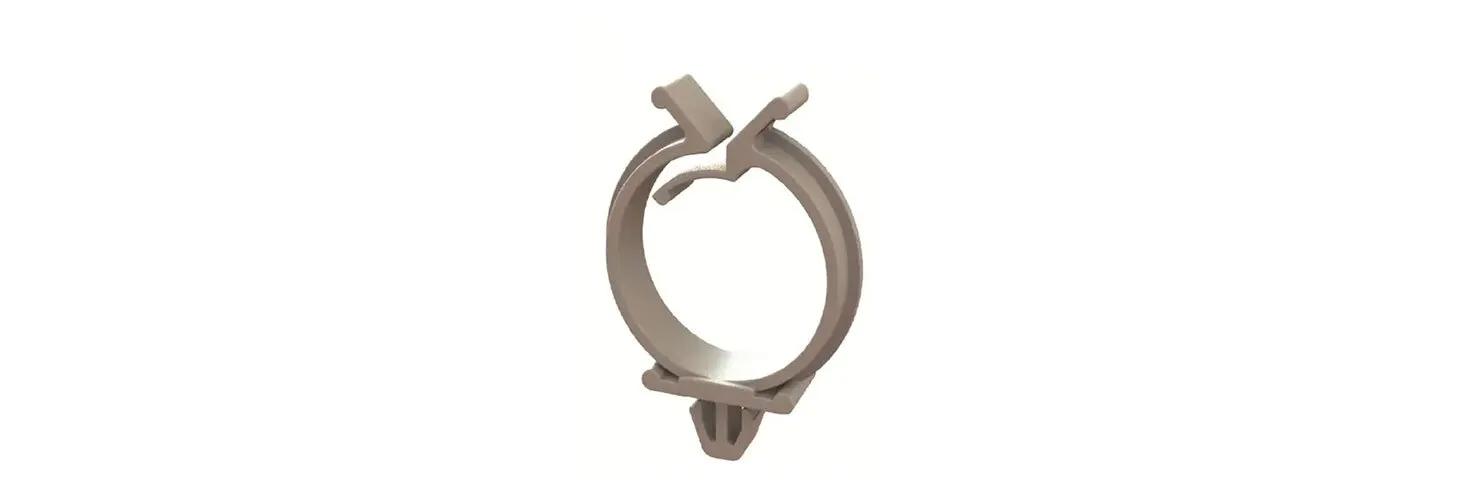

Cable clamps – plug-In, round wire saddle
Designed for quick, reliable cable management, this cable saddle clamp features a fir tree mount for secure, tool-free installation into pre-drilled holes. Made from durable nylon 6/6, it offers excellent resistance to wear, chemicals, and heat. The open, non-locking design allows for easy removal and replacement of wires. Ideal for setups that need flexibility or frequent maintenance.
Browse our range of cable clamps – plug-In, round wire saddle

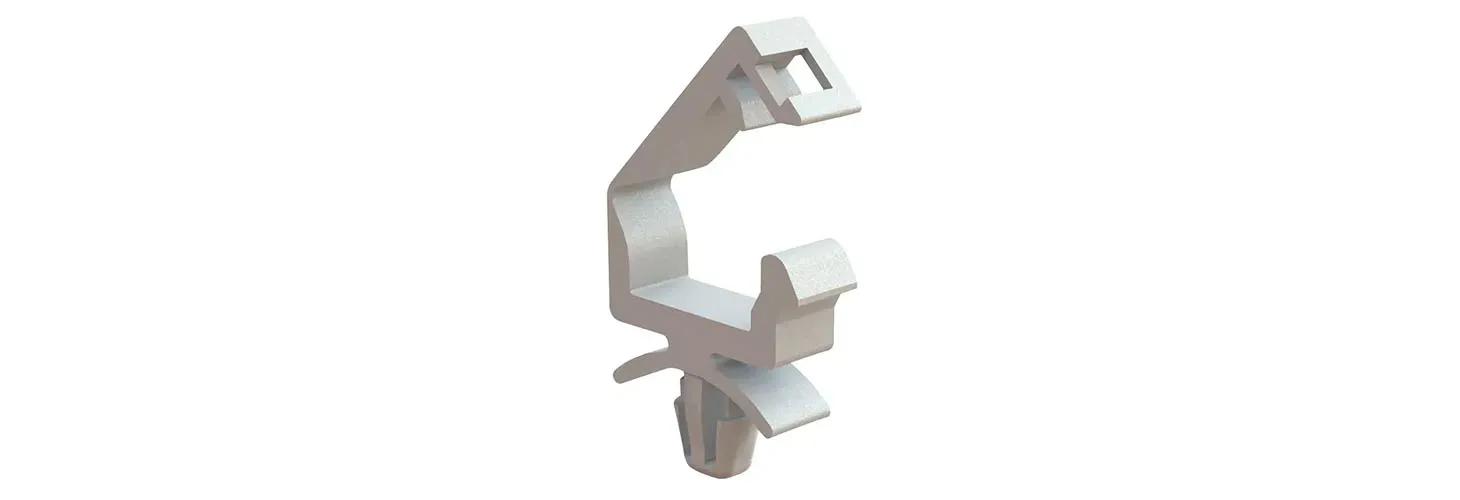

Wire saddle – hinged locking top, snap-in
This wire saddle features a hinged locking top that securely holds wires in place, making it ideal for permanent or semi-permanent installations. The snap-in fastening allows for quick and easy installation into panel holes without the need for tools. Nylon material offers strength, durability, and resistance to wear. Meets UL94 V-2 flammability standard for added safety in electrical and industrial environments. A reliable choice for secure cable management in tight or high-vibration spaces.
Browse our range of wire saddle – hinged locking top, snap-in

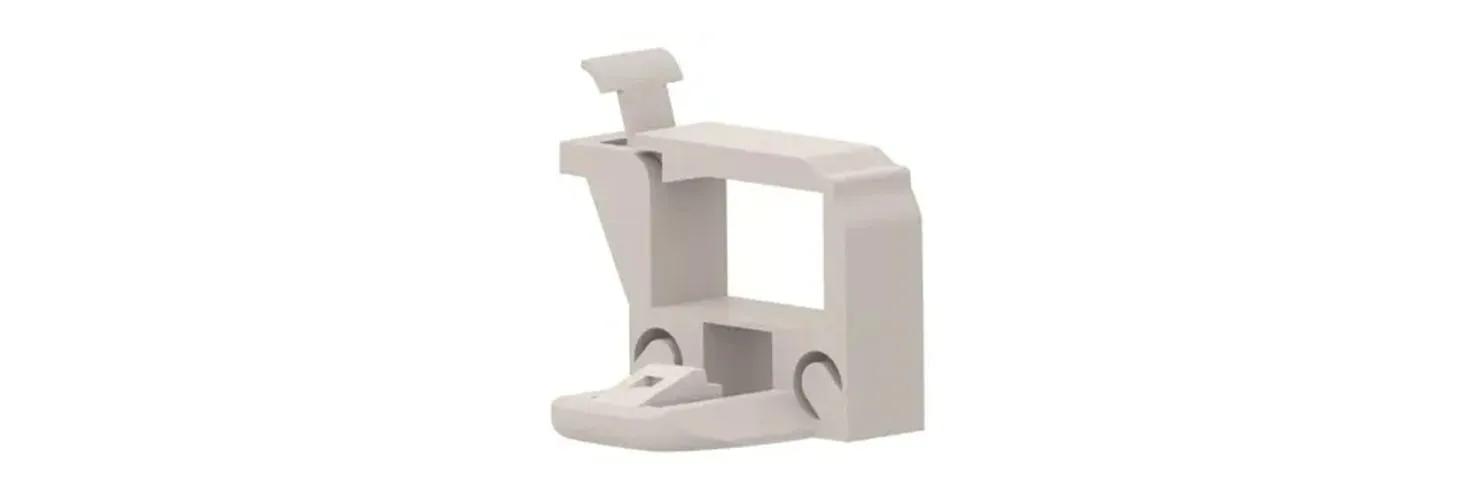

Wire saddle – hinged locking top, quarter-turn
This wire saddle offers a secure and efficient cable management solution with its hinged locking top, ensuring wires stay firmly in place. Designed for speed and convenience, these cable tie saddles lock into position with just a quarter turn, making installation quick and tool-free. Made from natural nylon, it’s durable, lightweight, and compliant with the UL94 V-2 flammability standard, for both safety and performance. An ideal choice for fast, reliable wire organization.
Wire saddle – locking, side-mount
Designed for tight or space-constrained installations, this side-mount cable saddle clip allows for easy side-entry cable routing, making it ideal where traditional top-entry isn’t practical. The built-in locking mechanism keeps wires securely in place, reducing movement and wear. Made from durable Nylon 6/6 and rated to UL94 V-0 for excellent flame resistance.
Wire saddle – mini, fir-tree mount
This mini wire saddle features a compact design and a fir tree mount for fast, tool-free installation into pre-drilled holes. Ideal for routing cables in electrical and electronic applications in tight spaces, it helps keep components organized, tidy, and accessible for future assembly or repair. Made from durable nylon and rated to UL94 V-2.

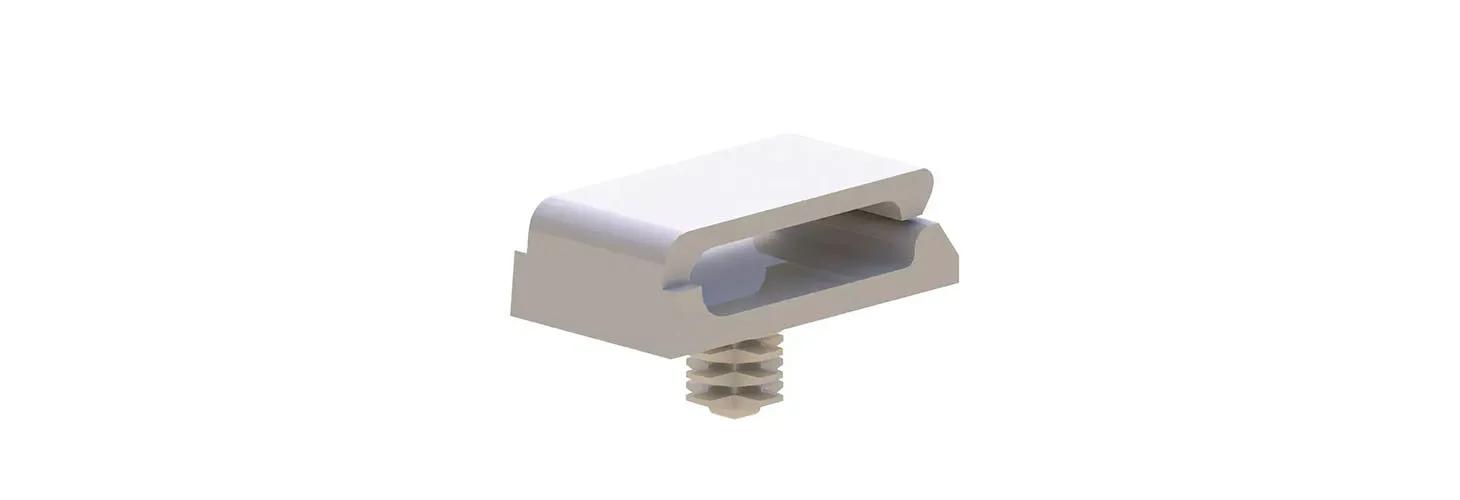

Wire saddle – optical fiber
Specifically designed for optical fiber management, this non-locking wire saddle gently secures delicate fiber wires while allowing for easy removal and repositioning. The push-in mount makes installation quick and hassle-free, helping to gather and route fibers away from sensitive components for a cleaner, more organized build. Ideal for electrical and electronic applications where fiber protection is critical. Made from Nylon 6/6. UL94 V-2 flammability standard.
Wire saddles — wide
This wide cable saddle features a snap-in arrowhead mount for quick and easy push-in installation into pre-drilled holes. Its non-locking design allows for effortless removal and replacement of wires, making it ideal for applications that require frequent access or reconfiguration. The wider profile offers added support for multiple or larger cables. Made from durable Nylon 6/6.
Mounting options
Wire saddles come in different mounting styles to suit different surfaces, environments, and installation needs. Choosing the right cable saddle mount ensures secure placement, long-term durability, and ease of maintenance.
Mounting style plays a role in how cables are isolated, spaced, and supported to avoid electromagnetic induction, physical stress, or overheating.
Fir-tree mount
This fastener features flexible barbs that grip the sides of a pre-drilled hole, making it easy to push in and secure without tools. Fir-tree mounts offer a strong hold and are commonly used in automotive and panel applications.
Snap-in mount
Snap-in wire saddles are designed to fit quickly into pre-formed holes, locking into place with minimal effort. They’re ideal for applications where speed and convenience are key, and are often used in electrical enclosures and equipment housings.
Screw mount
These cable tie saddle mounts are secured with screws, providing maximum strength and stability, especially in environments with vibration or heavy cable loads. Screw mounts are a go-to for permanent or semi-permanent installations.
Adhesive mount
Adhesive-backed wire saddles are perfect for smooth, flat surfaces where drilling isn’t possible or desired. They’re easy to apply, and the adhesive provides a firm hold for lightweight cables. Note that adhesive mounts have a limited shelf life and are best stored in cool, dry conditions.
Cable clips are also available with adhesive backing. You can learn more in the guide our experts have put together, Different Types of Adhesive Cable Clamps and Their Unique Benefits.
Side mount
Ideal for space-constrained areas, side-mount wire saddles allow cables to be routed from the side rather than the top. This option is especially useful in tight enclosures or behind equipment where access is limited.
Plug-in mount
Plug-in styles are pushed into pre-drilled holes or slots, offering a fast, tool-free installation similar to snap-in and fir tree mounts. They are a reliable choice for standard panel routing.
Edge mount
Edge mount saddles clip onto the edge of a panel or into panel cut-outs, eliminating the need for holes or adhesives. These are great for quick installs and are typically used when routing wires along the borders of panels or doors.
Wire saddle installation
Installing electrical cable saddles is a straightforward process. Doing it properly ensures long-term cable stability, safety, and a clean, professional finish. Depending on the mounting style, the cable saddle clamp installation may vary slightly, but the core steps remain similar across most applications.
Correct installation also supports proper wire grouping and shielding, helping prevent EMI and reducing signal noise or risk of failure.
1. Plan your cable route
Before installing any cable saddles, map out where your cables will run. Consider:
● Signal type and EMI sensitivity (keep power and signal cables apart)
● The number of cables being routed
● Proximity to moving parts, heat sources, or sharp edges
● The need for future access or adjustments
Spacing your saddles evenly along the route will help reduce sag and prevent stress on the wires.
2. Select the right saddle and mount type
Choose a wire saddle that matches your cable bundle size and environment. For example:
● Use adhesive mounts for smooth surfaces and light loads
● Use fir tree or snap-in mounts for pre-drilled holes
● Use screw mounts where maximum strength is needed
● Choose side-entry or edge mounts where cable segregation is required or space is limited
3. Prepare the surface or mounting point
● For adhesive mounts: Clean the surface thoroughly with isopropyl alcohol and allow it to dry. Avoid touching the adhesive pad before installation.
● For hole-based mounts: Ensure that holes are the correct diameter and free from debris.
● For edge or plug-in mounts: Check that the panel edge or cut-out matches the saddle specifications.
4. Install the wire saddle
● Push-in (fir tree, snap-In, plug-in): Insert the base into the hole and press firmly until it clicks or seats securely.
● Adhesive: Peel off the backing and press the saddle onto the surface, holding it in place for a few seconds to ensure good adhesion.
● Screw mount: Align the saddle with the pre-drilled hole and fasten it using the appropriate screw type.
● Edge mount: Clip the saddle onto the edge of the panel or into a cut-out using firm finger pressure.
5. Route and secure the wires
Once the saddles are in place:
● Gently lay the cables into the saddles
● Use additional cable ties if needed for larger bundles
● For locking styles, close the top lid or hinge to secure the wires
● For non-locking styles, wires can be easily removed or repositioned as needed
When handling mixed cable types, ensure that cable pathways minimise interference and follow standard segregation practices.
6. Test and inspect
Double-check that:
● All cables are seated securely
● No wires are under tension or being pinched
● All saddles are firmly mounted and aligned properly
A careful installation now will reduce the need for adjustments or repairs later, and help keep your cable runs safe and organised.
