How does a quarter-turn cam latch work?
A quarter-turn cam latch is a simple mechanical fastening device used to secure panels, doors, or enclosures. Its operation involves a rotational motion of 90 degrees – a quarter turn – which engages or disengages a cam (a rotating arm or lever) to lock or unlock the latch. In this guide, we’ll take a closer look at quarter-turn cam latches, covering:
Features of a quarter-turn cam latch
Uses & Applications
Types
How to choose the right quarter-turn cam latch
Features of a quarter-turn cam latch
It helps to first know what the parts are that make up a quarter-turn latch. Different designs allow for manual operation via a handle, key-operated systems for security, or even tool-based operation for restricted access. This example shows you a quarter-turn spring latch with an optional grounding clip.
The spring serves a crucial role in maintaining the latch's functionality and ensuring secure operation, ensuring that the quarter turn latch remains engaged or disengaged without manual adjustment.
Operation
1. Unlocking:
● When the actuator – that’s the head or key – is turned 90 degrees, the cam latch mechanism moves away from the engagement point, such as a frame or strike plate. This releases the quarter-turn latch and allows the door or panel to open.
2. Locking:
● Turning the actuator 90 degrees in the opposite direction rotates the cam latch mechanism into a position where it hooks or presses against the engagement point, securing the door or panel in place.
It pays to understand other latches so that you’re sure if a quarter-turn cam latch is right for your application. Our experts can help you with their Guide to latches.
What’s the difference between a quarter-turn lock and quarter-turn latch? <H3>
The terms quarter-turn lock and quarter-turn latch are often used interchangeably, and the difference largely depends on regional terminology or industry preference. But otherwise, there’s no difference between their functions.
View our range of cam locks and cam latches
You should also check out our experts’ Complete guide to locks and latches.
Uses & Applications
Quarter-turn latches are used across various industries due to their quick operation, secure locking, and compact design. Their simple quarter-turn action makes them ideal for applications requiring frequent access or quick release.
Electrical cabinets and enclosures
Cam quarter latches are frequently used on electrical panels, control boxes, and other enclosures to provide secure closure while allowing easy access for maintenance or inspection. The vibration resistance and secure closure are particularly important in these applications.
Industrial machinery
These turn latches secure access panels, guards, and doors on industrial equipment. Their quick operation minimizes downtime during maintenance or adjustments.
Transportation
A quarter-turn latch is often used for access panels, compartments, and interior fixtures. Their vibration resistance and secure locking are essential in transportation applications.
Data centers and server racks
A cam quarter latch provides quick and secure access to server racks and other data center equipment. Another great option is our swing handle locks.
Types
Quarter-turn latches come in different designs to suit different industries and use cases. Below are some of the most common types and their key characteristics.

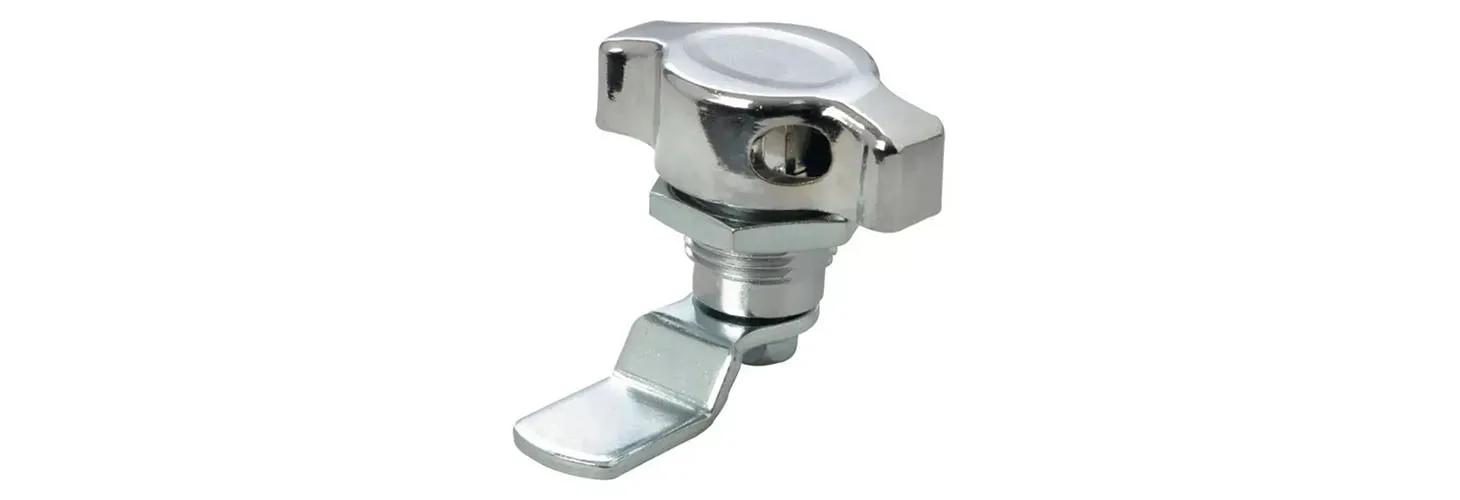

Quarter-turn latches – padlockable with wing knob
Quarter-turn cam latches allow the addition of a padlock to secure access points further, making them an excellent choice for applications where extra protection is required. The wing knob ensures easy manual operation by turning 90 degrees to engage or disengage the cam latch mechanism. The rubber gasket improves sealing to protect against dust, moisture, and environmental elements. Option to add a padlock.
Ideal for: Industrial machinery covers, electrical enclosures, storage lockers and cabinets, transportation compartments
View our range of quarter-turn latches – padlockable with wing knob

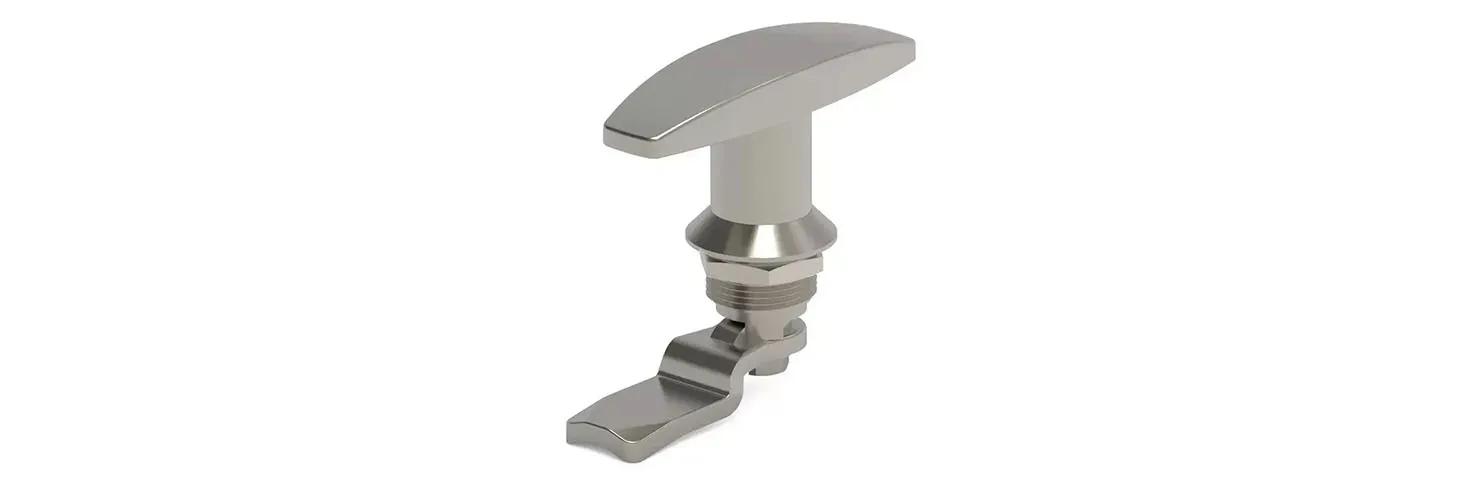

Quarter-turn T handle latches
Perfect for environments where reducing vibrations and sound transmission is critical. Compression cam latches feature a T-shaped handle and provide secure access to panels and doors through a rotating cam mechanism. The cam locks into place by engaging the frame or keeper on the rear side for a firm hold.
Ideal for: Industrial equipment cabinets, HVAC access panels, transportation storage compartments

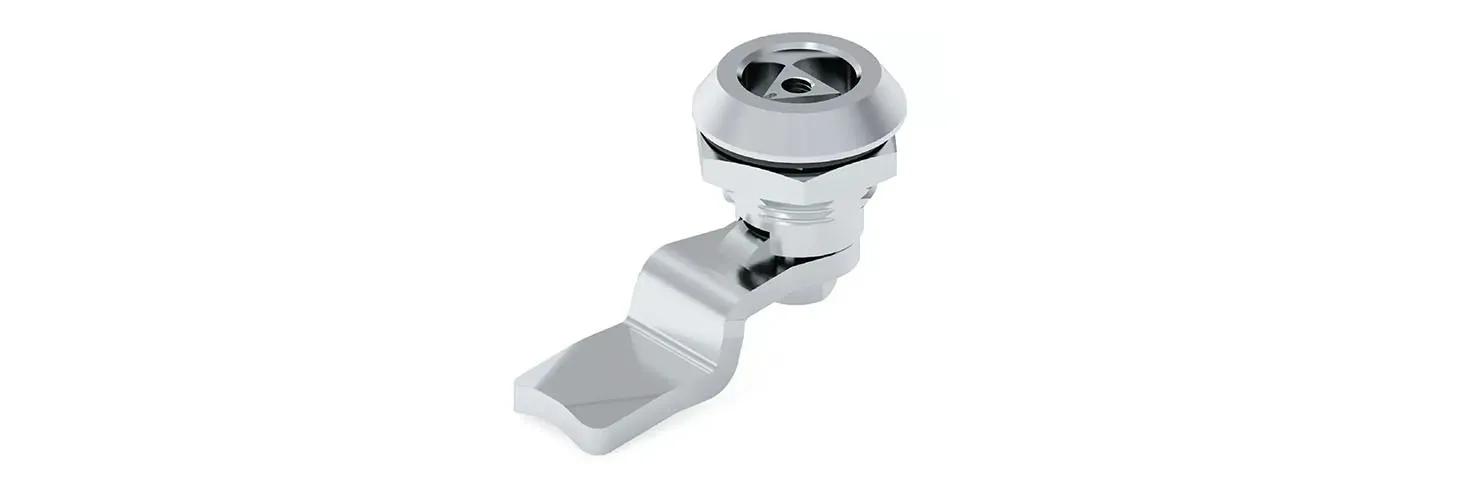

Mini quarter-turn locks – 45-degree mounting hole
Featuring an internal spring mechanism that delivers up to 1mm of compression for secure and reliable operation. This spring enhances performance by maintaining consistent pressure, ensuring the latch remains tightly fastened even in environments subject to vibrations or minor shifts.
The cam is positioned at a 45-degree angle to the housing. Available with various grip range options and head styles, allowing customization.
Ideal for: Server rack panels, small electrical enclosures, HVAC access panels
Quarter-turn latches – keyed wing knob
A practical solution for applications that need frequent opening and closing. Each latch comes equipped with an outer sealing gasket for added protection, an assembly nut for straightforward installation. These latches are designed to prevent unauthorized access while still providing convenient access when unlocked.
Easy and quick to install and available in various grip ranges, offering versatility for different needs.
Ideal for: Electrical enclosures, furniture cabinets, equipment covers

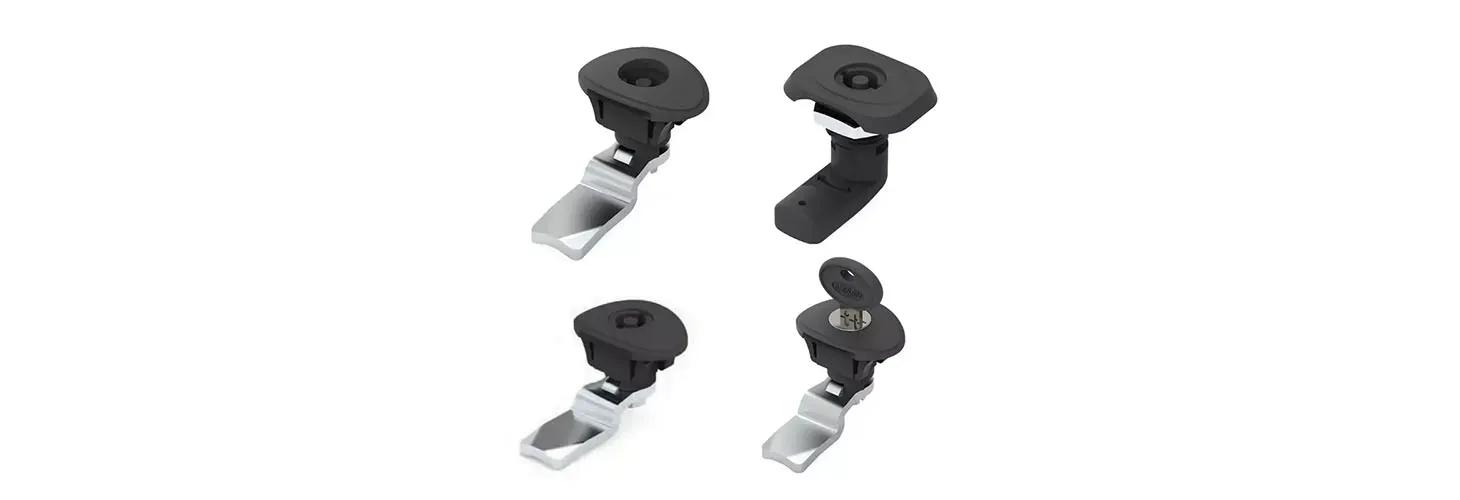

Quarter turn lock – easy fixing
Fits into a standard cut-out for quick assembly without the need for tools. Secured with the help of a clip. Suitable for left and right hand. The internal spring provides 1.5 mm compression. Used for panel thickness from 0.8 to 2.0 mm.
Ideal for: machinery housings, furniture cabinets, control panels

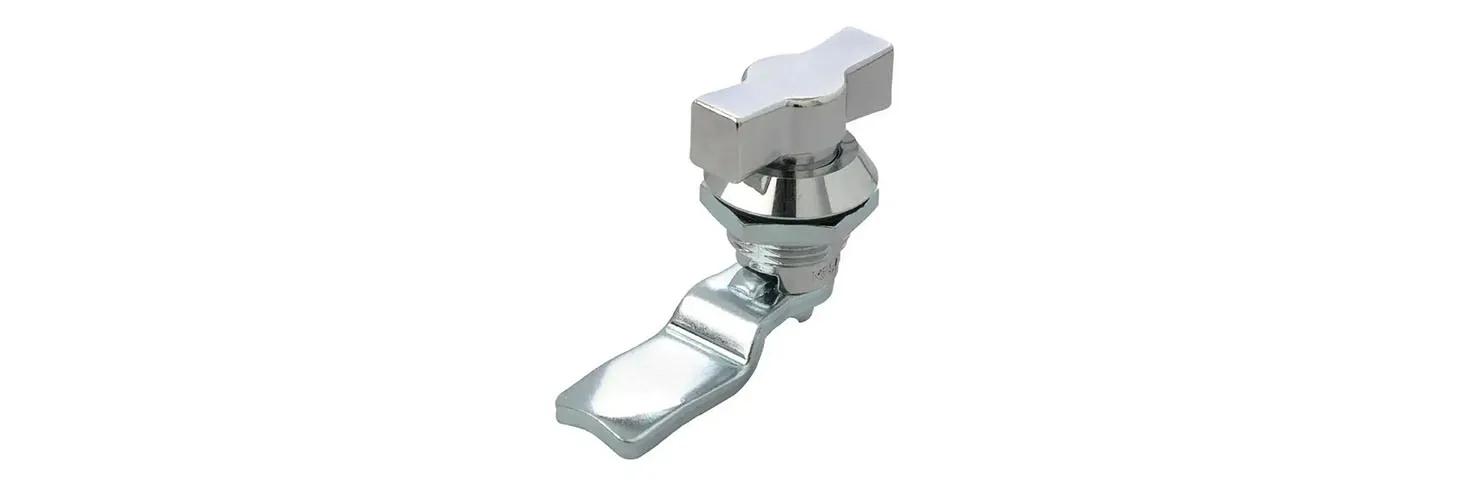

Quarter turn cam latches – wing knob
Designed to secure doors, cabinets, enclosures, and other access points. Includes an outer sealing gasket and an assembly nut. Installation is simple and quick: just insert the latch into the mounting hole and tighten the nut.
Ideal for: Electrical enclosures, furniture cabinets, equipment covers

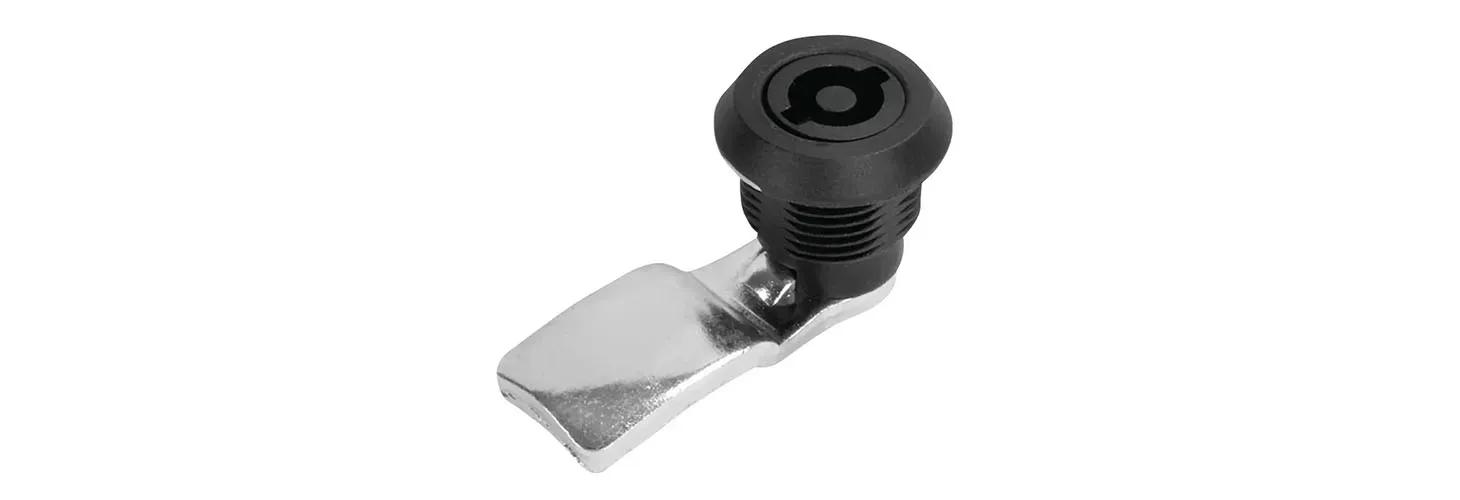

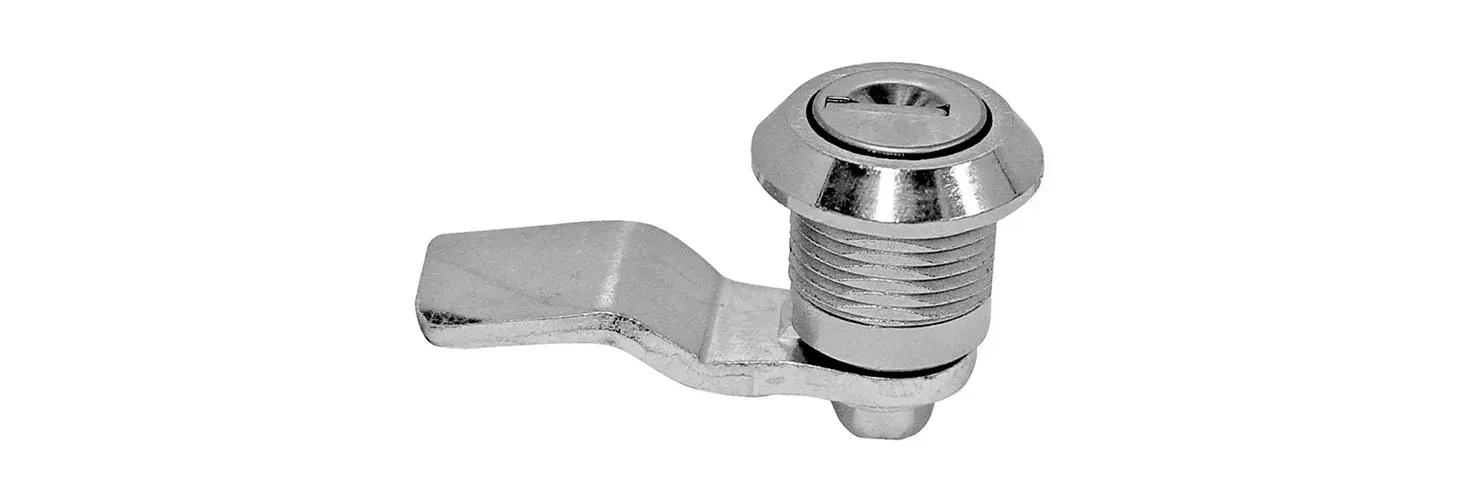

Quarter turn lock
Vibration-proof and compatible with both left and right-hand use. The lock can only be opened by pushing and rotating the driver with the key. Designed to fit a 16.5 x 19.0 mm cut-out.
Ideal for: Electrical enclosures, industrial machinery cabinets

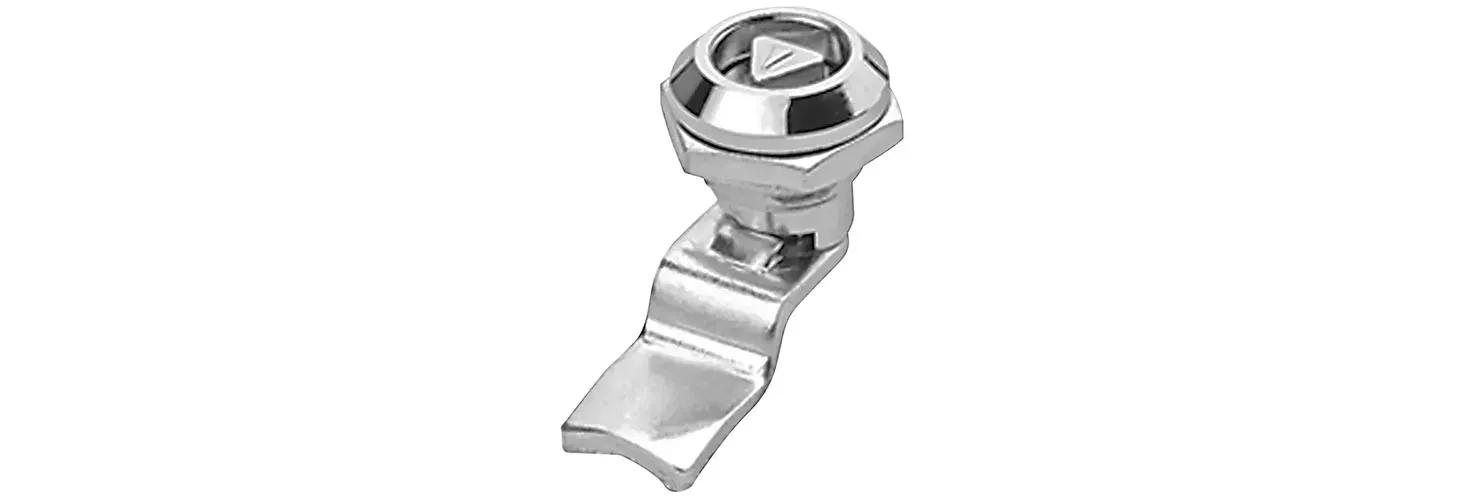

Quarter turn lock – modular handle
Handle turn cam latches provide outstanding durability and security, making them an excellent option for industrial, commercial, and high-demand settings. Installation is fast and simple, fitting doors of varying thicknesses. Perfectly suited for applications requiring quick and easy access, The handle is optional and removable and the lock can be opened with a 9mm triangular key.
Ideal for: Electronic panels, doors, cabinets

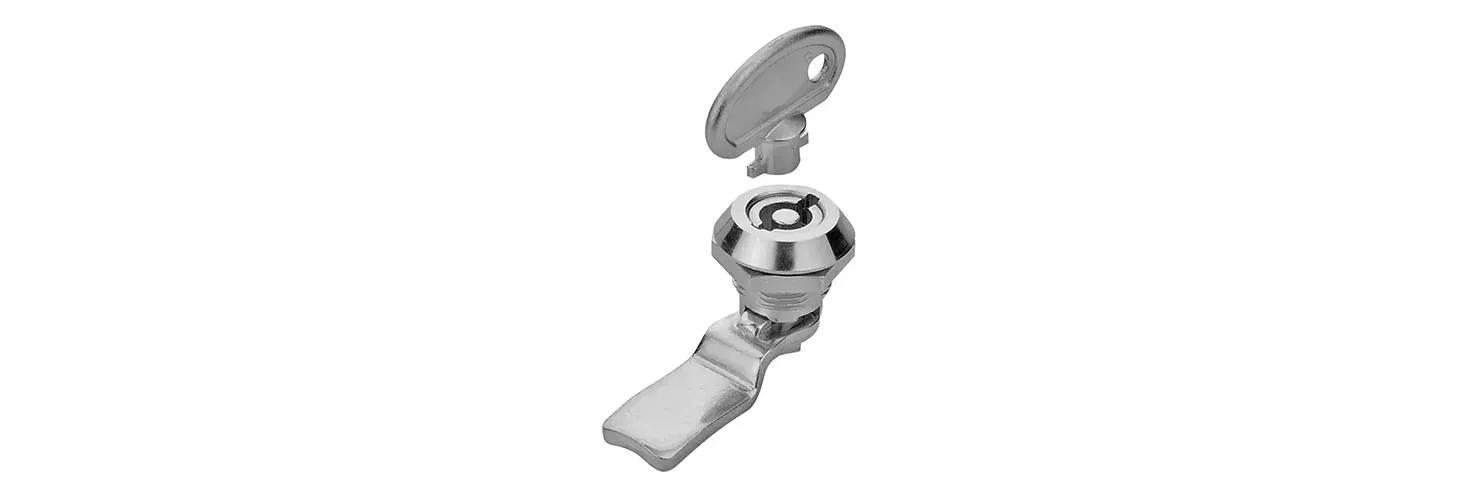

Quarter turn lock – secure
Our secure quarter turn lock is IP65-rated and can be used for both left and right-hand applications. When the lock is open, the key serves as a knob for easy operation. The key is unique to this lock and must be ordered with the lock.
Ideal for: Outdoor electrical enclosures, HVAC units, machinery access panels

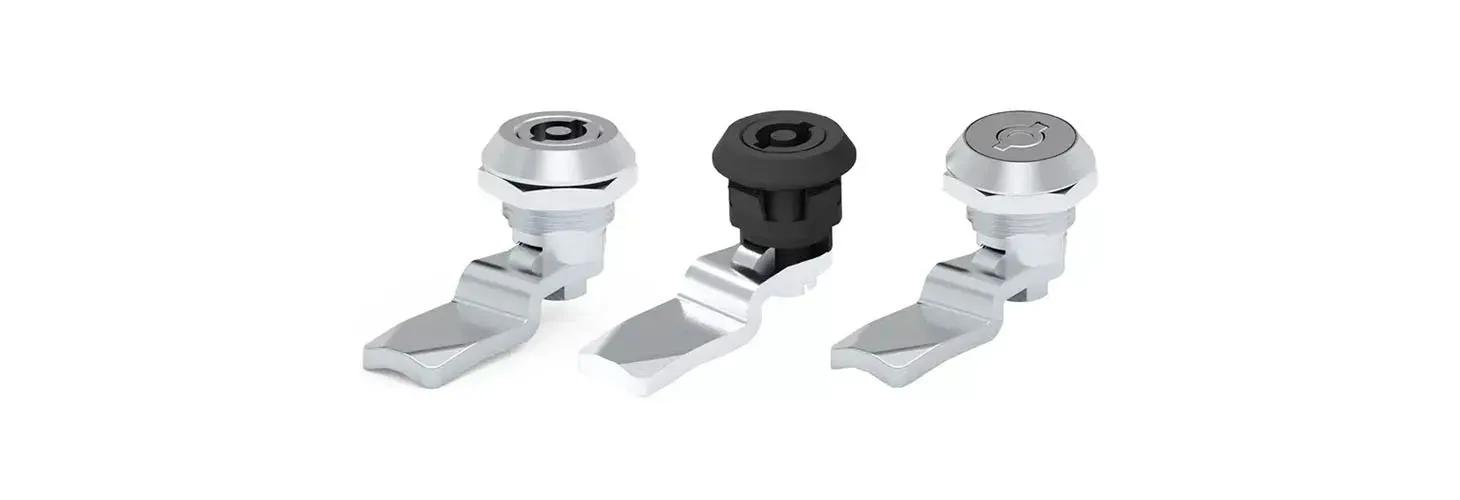

Quarter turn spring latches
Reliable access control rated IP65 for protection against dust, moisture, and water. These latches come in a variety of head styles and grip ranges, ensuring compatibility with a range of applications. Their design allows for quick and secure fastening, making them ideal for both routine and emergency access.
Ideal for: Electrical cabinets, enclosures
How to choose the right quarter-turn cam latch
Selecting the appropriate quarter-turn cam latch for your application involves considering several factors to ensure optimal performance and functionality. Here’s a step-by-step guide to help you make the right choice:
1. Understand the application requirements
● Determine the purpose of the latch: Is it for securing enclosures, panels, cabinets, or equipment covers?
● Assess environmental conditions, such as exposure to dust, moisture, or vibrations, which may require features like compression or sealing.
If vibration is an issue, we recommend you learn more by reading our experts’ guide, Understanding vibration isolation.
2. Material and finish
● Select materials that offer the required strength and resistance to environmental factors. For instance, stainless steel is ideal for corrosion resistance, while zinc alloy provides a more budget-friendly option.
● Consider various finishes such as chrome plated or powder coating for Zamak for enhanced durability, or polished stainless steel for a sleek, protective surface.
3. Grip range
● Consider the total distance the latch needs to accommodate, including any compression or sealing requirements. Adjust the grip range by choosing a cam with the appropriate offset for a secure and reliable fit.
4. Locking mechanism and security
● Decide if a locking feature is necessary. If no locking feature is needed, consider wing knobs for ease of access.
● Match the locking mechanism style (e.g., triangular, square, slotted) to your preferred access tool.
5. Compression or non-compression
● For applications needing noise isolation, vibration resistance, or enhanced sealing, opt for compression latches.
6. Head style
● Select a head style that meets both functional and aesthetic preferences, such as wing knobs, T-handles, or flush designs.
7. Installation and maintenance
● Look for latches with straightforward installation processes and minimal maintenance requirements, such as what our ranges offer. For installation speed saving, focus on snap-in and clip-on type options.
Download free CADs
Free CADs are available for most solutions, which you can download. If you’re not quite sure which quarter-turn cam latch will work best for your application, our experts are always happy to advise you. Whatever your requirements, you can depend on fast dispatch.
