Choosing the right push-to-close latch for your application
When selecting the perfect push-to-close latch for your application, understanding the options available and their unique features is essential. Whether you're working on industrial equipment, furniture, or appliances, we’ve designed this guide to help you choose the ideal push-to-close latch for your needs. We’ll cover:
What are push-to-close latches?
How do they work?
Where to use push-to-close latches
Types
What are push-to-close latches?
Push-to-close latches are a type of mechanical latch mechanism that allows a door, panel, or enclosure to be securely closed and latched simply by pushing it shut. These latches are designed to provide convenience, ease of use, and a sleek appearance in various applications.
Push-to-close latches offer several key features that make them highly effective and user-friendly. They enable automatic engagement, securing the closure effortlessly when the door or panel is pushed into position, eliminating the need for additional manual locking. These latches are designed for ease of operation, typically requiring only a simple pull or push of a release mechanism, such as a lever, button, or handle, to open.
View our range of push-to-close latches
How does a push-to-close latch compare to other latches? Our experts explain the different types to help you choose exactly what you need in our Guide to latches.
How do they work?
Push-to-close latches work using a combination of mechanical components designed to automatically engage and securely hold a door, panel, or enclosure in place when it’s pushed closed. Here's a breakdown of how these latches function:
Components of a push-to-close latch
1. Housing: The main body of the latch that houses the internal mechanism.
2. Latch mechanism: The moving part (e.g., a hook, pawl, or tongue) that catches and secures the door or panel.
3. Spring mechanism: A spring provides the necessary force to keep the latch engaged or reset it after operation.
4. Strike plate: A counterpart mounted on the door or frame that interacts with the latch to secure the closure.
5. Release mechanism: A button, lever, or pull handle used to disengage the latch when opening.
Operation process
1. Closing the door/panel
● When the door or panel is pushed shut, the strike plate aligns with the latch mechanism.
● As the door continues to move inward, the strike plate exerts force on the latch mechanism, which momentarily retracts or shifts position (often against spring resistance).
● Once the strike plate passes the point of engagement, the latch mechanism snaps back into place, locking the door or panel securely.
2. Securing the closure
● The spring inside the latch mechanism holds the latch in the engaged position, ensuring the door or panel remains securely closed, even under vibration or minor impacts.
3. Opening the door/panel
● To release the latch, the user activates the release mechanism (e.g., pushing a button or pulling a lever), which temporarily retracts or disengages the latch mechanism.
● This allows the strike plate to move freely, enabling the door or panel to open.
What’s the difference between a lock and a latch? Our experts explain what you need to know in The complete guide to locks and latches.
Where to use push-to-close latches
Push-to-close latches are versatile and used across various industries due to their ease of use, reliability, and sleek design. Some common applications include:
1. Automotive industry: Found in glove compartments, center consoles, and other interior panels, these latches provide secure closures and enhance user convenience.
2. Industrial equipment: Used in enclosures, machinery panels, and cabinets, ensuring easy access while maintaining a secure closure in demanding environments.
3. Furniture: Integrated into modern cabinets, drawers, and doors to create a clean, handle-free aesthetic with convenient functionality.
4. Electronics and enclosures: Commonly used in server racks, electronic enclosures, and protective cases to provide easy yet secure access.
5. Appliances: Found in home appliances such as washing machines, refrigerators, and ovens, offering smooth operation and durability.
Types
Push-to-close latches come in various types, each designed to suit specific applications and operational requirements. Below are some common types of push-to-close latches and their unique characteristics.

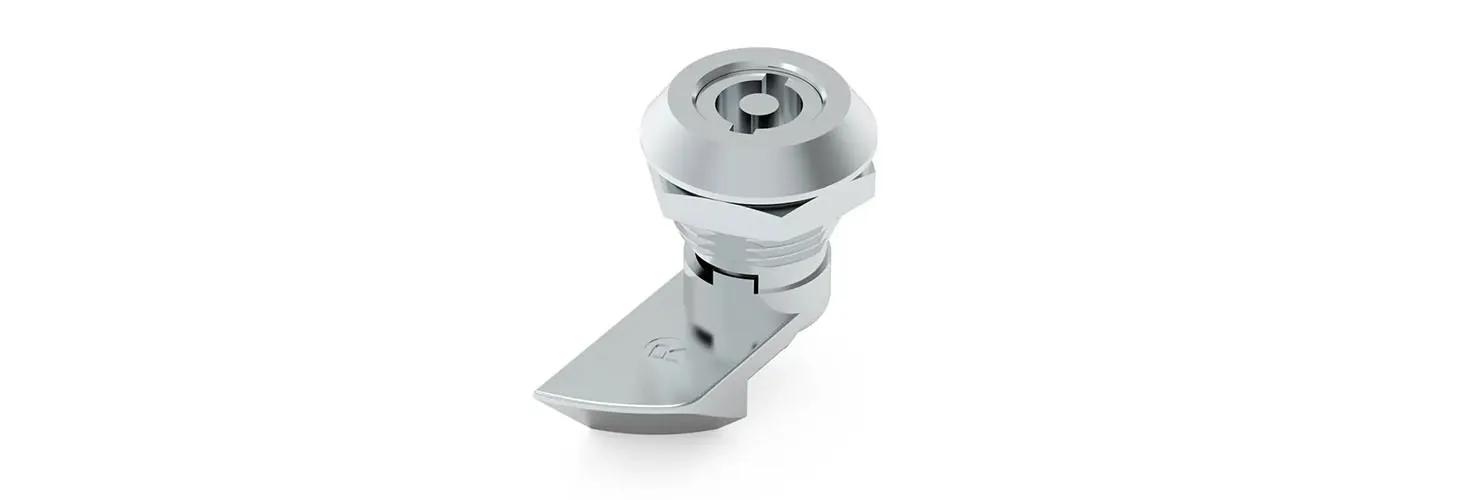

Quarter-turn slam shut latches
Quarter-turn slam shut latches combine the convenience of a push-to-close action with the security and reliability of a cam mechanism. These latches operate by leveraging a sprung cam that automatically returns to a secured position when the door or panel is closed.
Ideal for: Control panels, electrical cabinets, and machinery enclosures

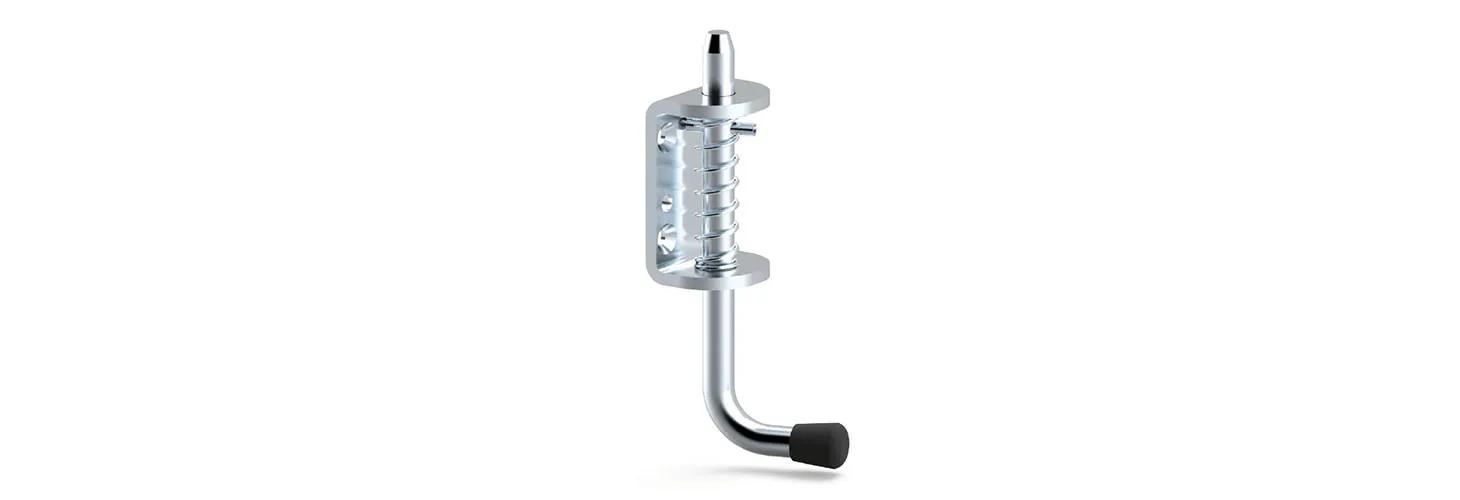

Spring-loaded slide latch
Designed for use with both wood and metal materials. This spring-loaded latch is straightforward to install, requiring a single mounting hole on both the frame and the door. Securely closes with a push or slam. Includes spring-loaded options with nose-up or nose-down configurations, with or without an integrated stud.
Ideal for: Utility boxes, sliding doors, or where extra force is needed during closure

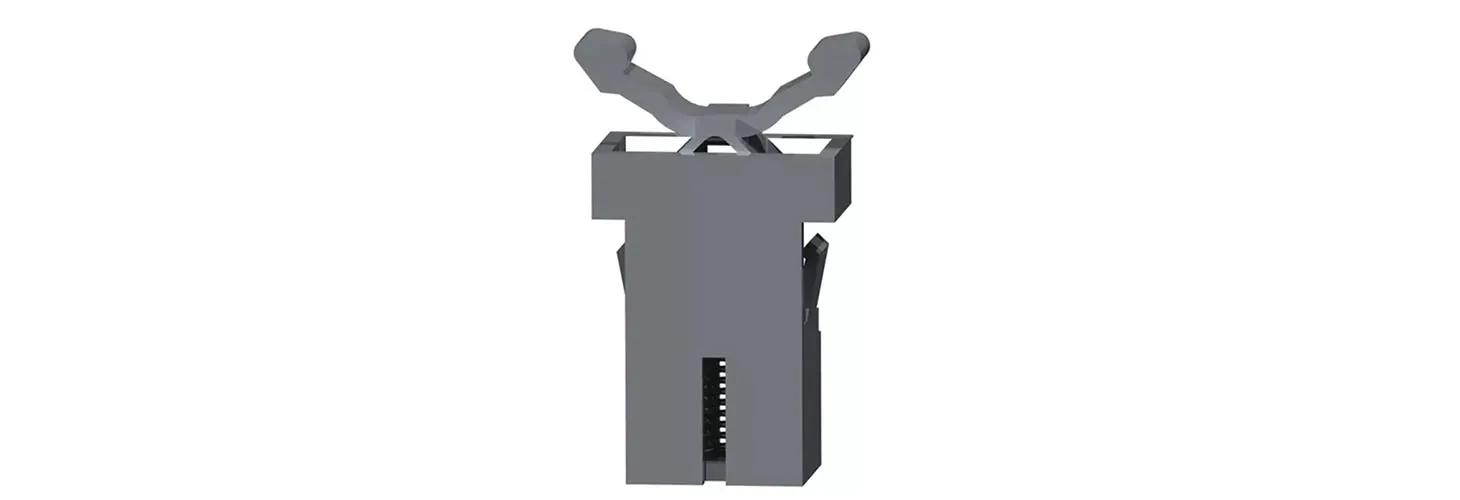

Female spring-loaded socket for striker catch
Designed to work with a spring system to lock and release striker catch effectively. It serves as a receptacle for the striker and plays a crucial role in ensuring a secure and reliable closure. When the striker is inserted into the socket, the spring mechanism engages, locking it in place. Audible lock and release.
Ideal for: Lightweight doors
View our range of female spring-loaded socket for striker catch
Panel strikes & assembly plates
Panel strikers function alongside a catch to ensure a secure closure. Designed for reliable latching, they provide a distinct audible click when locked or released, making them an effective solution for enclosures.
Ideal for: Cabinet doors and access panels
Panel catches
Panel catches work with a striker to ensure a secure closure. They provide a noticeable click when engaged or released, offering a reliable latching solution for enclosures.
Ideal for: Installed on cabinet doors or access panels

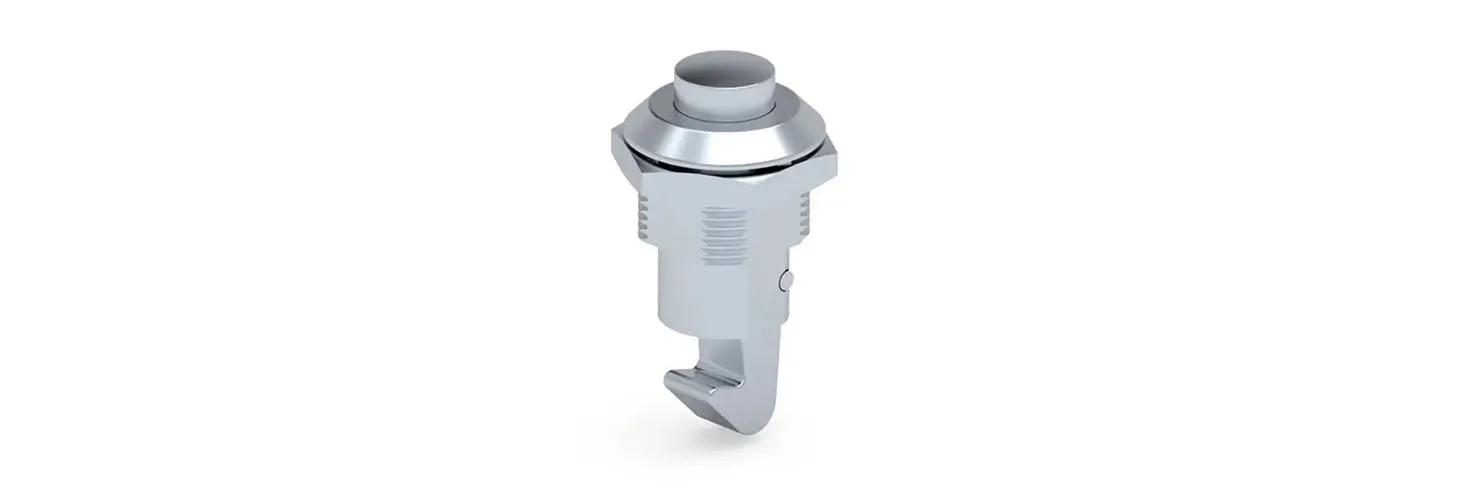

Key lock push-button slam shut latches
Features a convenient push-button mechanism for opening and slam-shut closure. Designed for easy installation, they require just a single hole and accommodate different panel thicknesses. Keyed and non-keyed versions available.
Ideal for: Access panels, industrial enclosures, and cabinets
You may also be interested in:

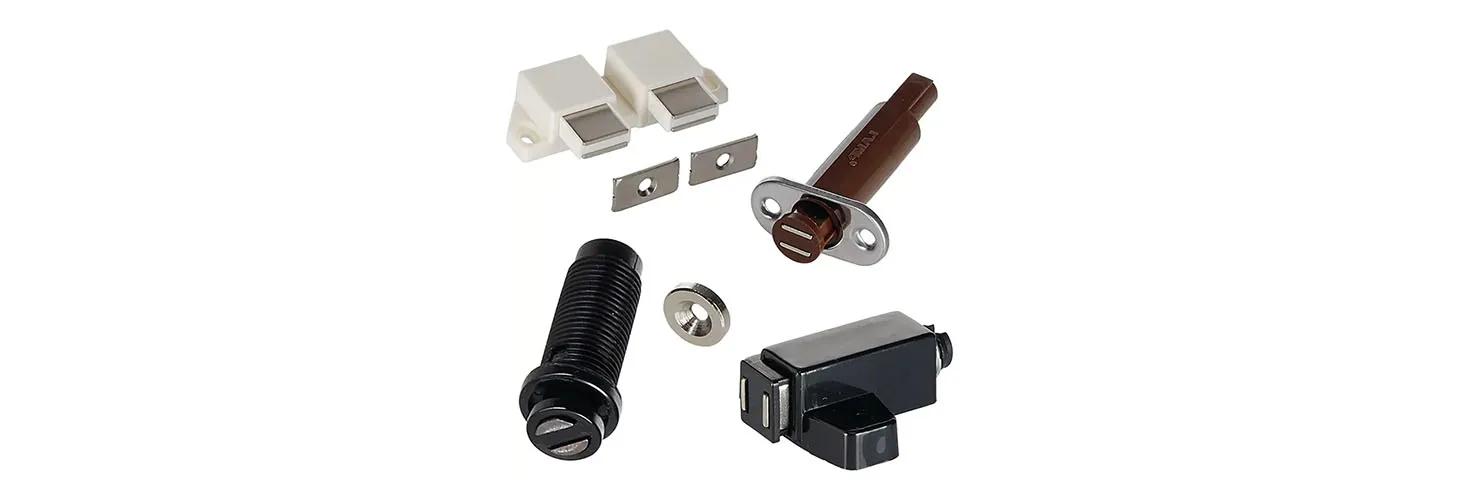

Magnetic touch latch
Designed to combine functionality with modern design aesthetics. These latches are particularly useful in applications where traditional knobs or handles are not suitable, such as minimalist furniture or spaces requiring a clean, seamless appearance.
The operation of a magnetic touch latch is simple and intuitive. A gentle push on the door or panel activates the internal mechanism, releasing the magnetic hold and allowing the door to open. To close, the panel is pushed back into place, and the magnet re-engages for a secure closure. Available in both surface-mounted and recessed fitting styles, offering flexibility for various installation needs. Quick installation
Ideal for: Furniture and cabinets
Download free CADs
Free CADs are available for most solutions, which you can download. If you’re not quite sure which push-to-close latch will work best for your application, our experts are always happy to advise you. Whatever your requirements, you can depend on fast dispatch.
