Swing handles: enclosures, and industrial & outdoor cabinets
Swing handles, also known as swing locks and lift and turn cam latches, are essential components for enclosures, and industrial and outdoor cabinets, offering a reliable solution for easy access and secure closure. These ergonomic handles enhance user convenience while providing durability and protection in demanding environments. In this guide, we’ll take a closer look, covering:
What is a swing handle?
Applications
Benefits of swing handles
How to choose a swing handle
What is a swing handle?
A swing handle is typically designed with a pivoting mechanism commonly found in server, control, and switch cabinets. While it shares similarities with cam latches in design, it features an extended lever. This lever provides greater torque, making it particularly effective for applications requiring extra force, such as securing doors tightly against seals.

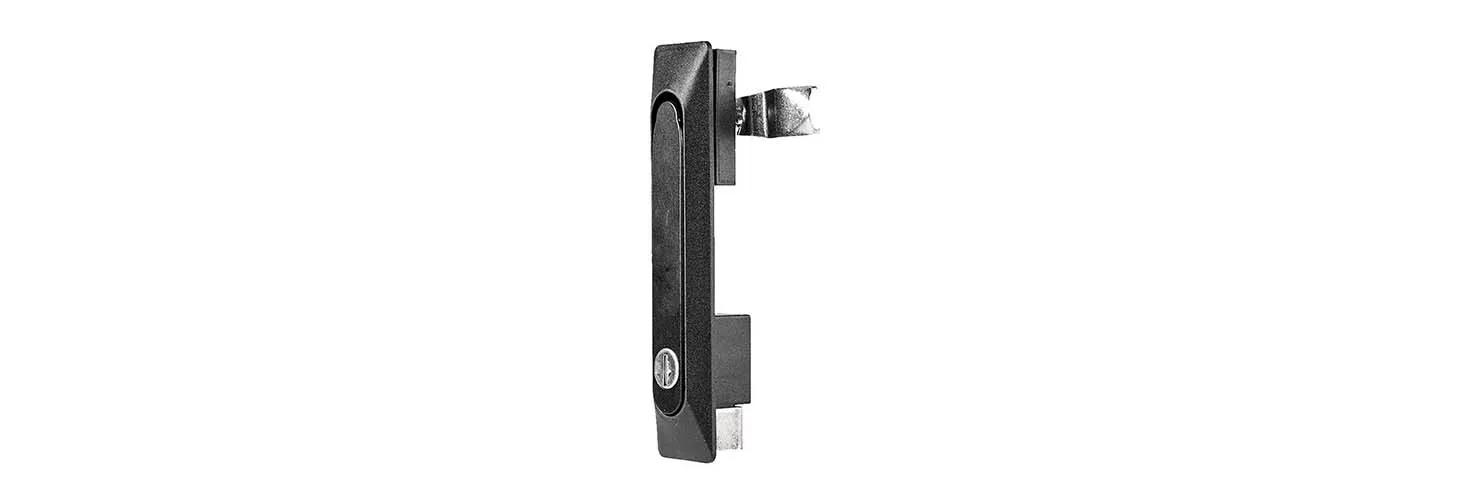

Our example swing handle shown here offers a retractable design for storage when not in use, protecting skin and clothing from snags. This unique style is unlocked with the touch of a button, and is used for internal applications.
Despite the name, swing handles offer locking options. If you’re not sure if a swing handle is best for your needs, see our Complete guide to locks and latches.
Applications
Swing handle cam locks are commonly used in enclosures, industrial cabinets, and outdoor cabinets for secure, ergonomic, and efficient access control.
| Application | Purpose |
| Electrical enclosures | Secure access to electrical panels, circuit breakers, and control systems. |
| Industrial cabinets | House machinery controls, automation systems, or storage for tools and components. |
| Outdoor cabinets | Protect telecommunications gear, network equipment, or surveillance systems. |
| Server racks & IT enclosures | Secure servers, routers, and networking equipment. |
| HVAC enclosures | Provide access to heating, ventilation, and air conditioning systems. |
| Transportation cabinets | Secure signaling equipment, control systems, or storage in transport infrastructure. |
| Renewable energy installations | Protect components in solar, wind, or other renewable energy systems. |
| Utility boxes & street cabinets | Safeguard electrical distribution panels or public utility controls. |
You can learn about other options available in our Guide to furniture and cabinet locks.
Benefits of swing handles
By combining practicality, durability, and style, swing handle locks meet the demands of different industries while adding value to the overall design and usability of cabinets and enclosures.
1. Ergonomic operation
The swing lock is designed for ease of use, making it simple to operate even in demanding conditions or when wearing gloves. This makes it especially suitable for industrial environments.
2. Space efficiency
The streamlined and compact design of swing locks ensures they fit neatly without interfering with adjacent components or doors, optimising available space. The compact nature of any swing lock makes it ideal for enclosures and cabinets in space-constrained areas.

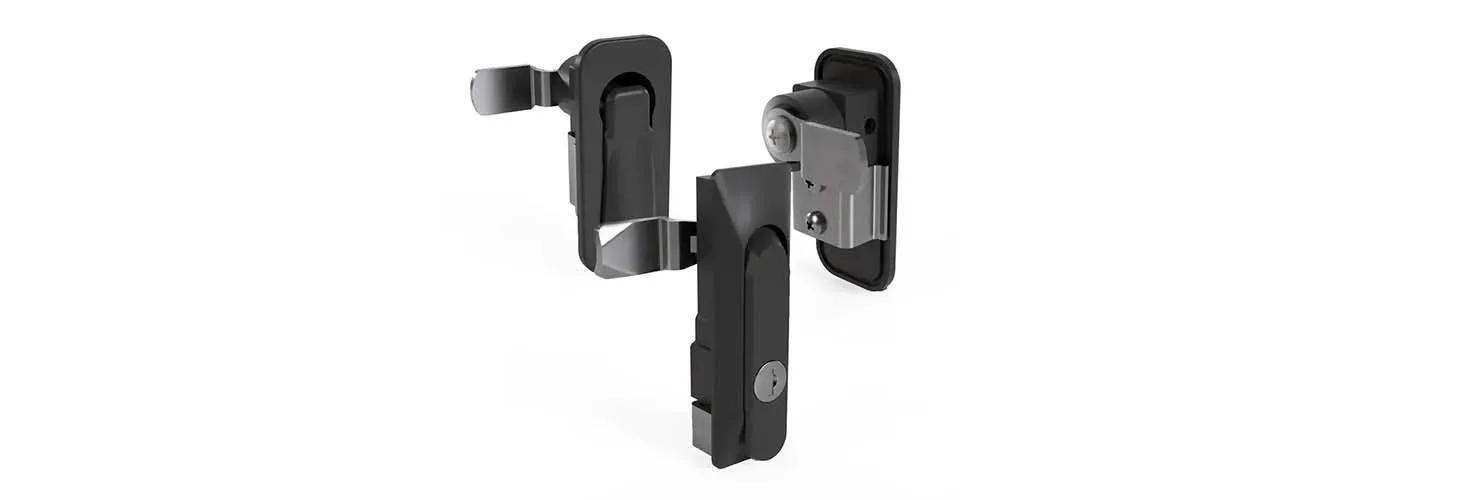

If space is especially limited, consider our mini swing handles, made of nylon and available with no lock, keyed alike or keyed different.
3. Secure locking
Many swing handle cam latches are compatible with multi-point locking systems, enhancing security. They also support various locking mechanisms for tailored access control.
4. Robust and durable
Depending on the materials, some swing handles are resistant to chemicals, UV exposure, and extreme temperatures, ensuring long-lasting performance in challenging environments.
5. Weather resistance

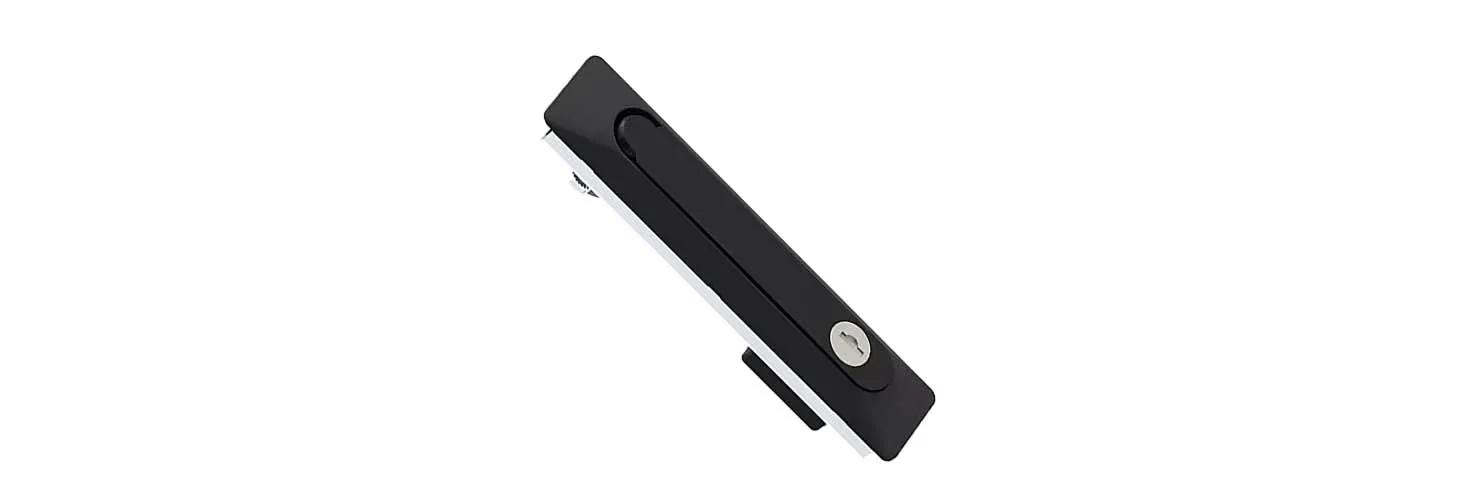

In the example here, this slam-action, spring-loaded swing handle panel lock is rated IP65, making it ideal for indoor or outdoor environments. This low-profile swing handle protects the equipment you’re housing against liquid, moisture, and debris ingress.
6. Aesthetic appeal
Today’s swing handle lock is not only functional but also visually appealing, with sleek designs that contribute to a professional and polished look for cabinets and enclosures.
View our range of swing handle cam locks
How to choose a swing handle
Selecting the appropriate swing handle for your application involves evaluating several key factors to ensure compatibility, durability, and optimal functionality.
1. Application environment
Will the handle be used indoors, outdoors, or in harsh conditions? Outdoor applications require materials and seals that can withstand its environment. Look at IP and NEMA rated options if moisture, liquid, and debris are factors.
2. Locking mechanism
What level of security is needed? Swing handles can offer locking or non-locking capabilities. If you’re working with a large door or have high-security needs, choose swing handles that support multi-point locking systems.
3. Material and finish
Choose the material and finish that best aligns with your application’s durability needs and aesthetic preferences. Our swinging locks come in these materials and finishes.
Materials:
● Nylon: Lightweight, durable, and resistant to wear, making it a cost-effective choice.
● Die-cast zinc alloy: Also known as Zamak. Strong and versatile, offering excellent durability and a smooth surface.
Finishes for metal bodies and handles:
● Chrome: Provides a sleek, polished appearance with added protection against corrosion.
● Black powder coated: Offers a modern, matte finish with enhanced resistance to scratches, wear, and environmental elements.
4. Size and compatibility
Determine your cabinet or enclosure dimension to make sure the swing handle fits the size and style of the door. Don’t forget mounting options—check the compatibility with existing cut-outs, mounting holes, and door thickness, especially for legacy applications.
It might help you to check out our guide, The ultimate guide to cam locks.
5. Budget considerations
Balance cost with durability and features. If the swing handle is designed to stand up to repeated use or harsh environments, it’s probably a worthwhile investment.
Download free CADs
Free CADs are available for most solutions, which you can download. If you’re not quite sure which swing handle will work best for your application, our experts are always happy to advise you. Whatever your requirements, you can depend on fast dispatch.
